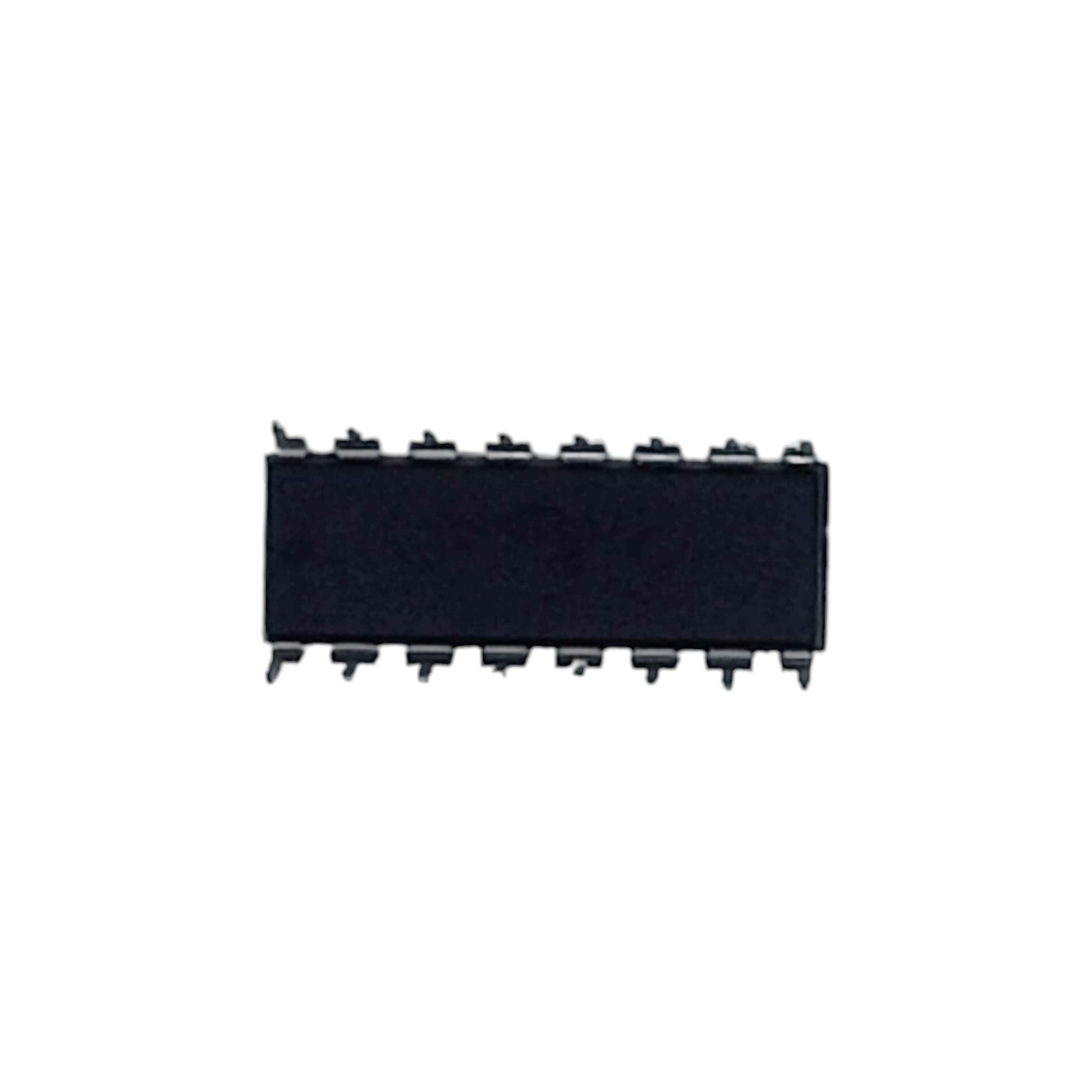

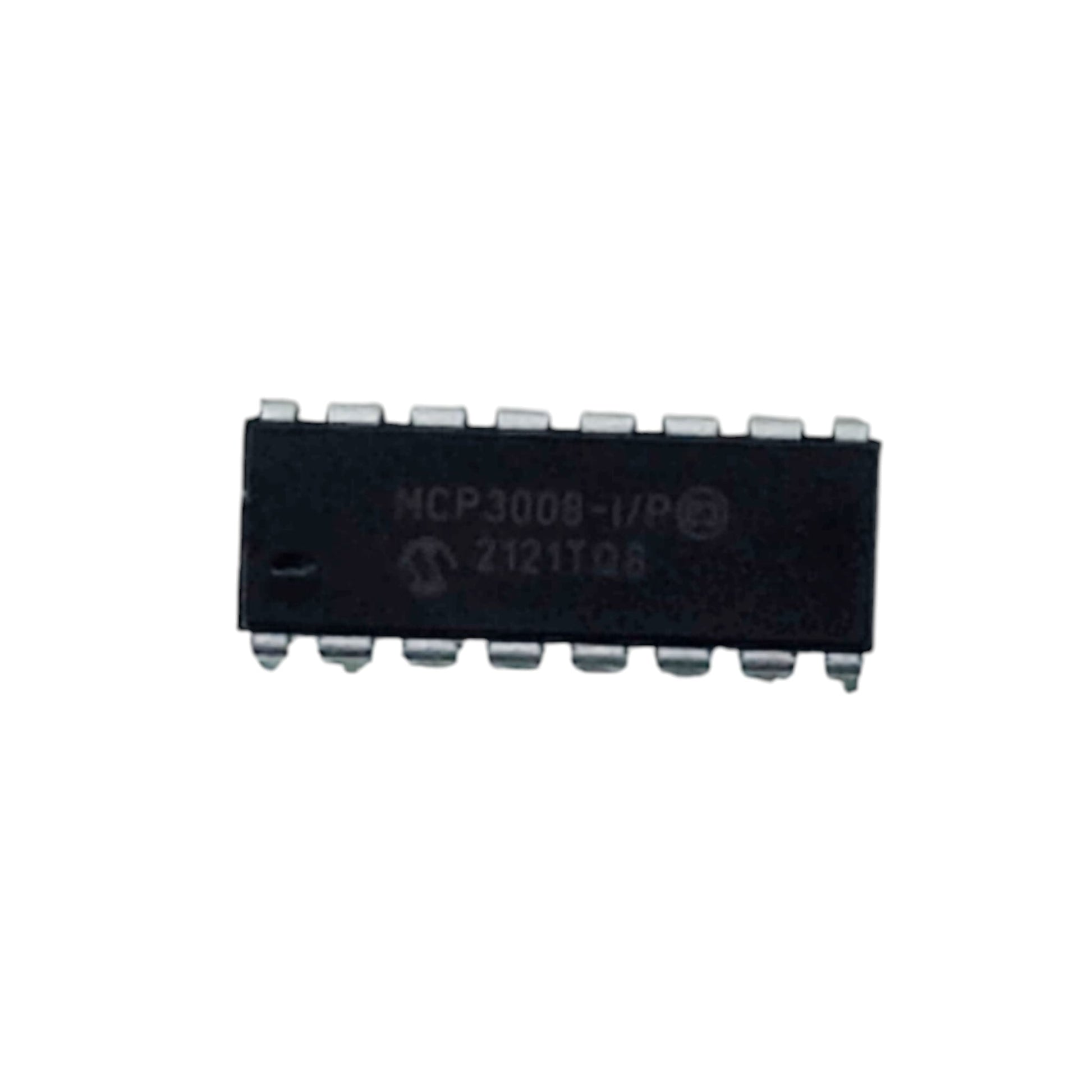

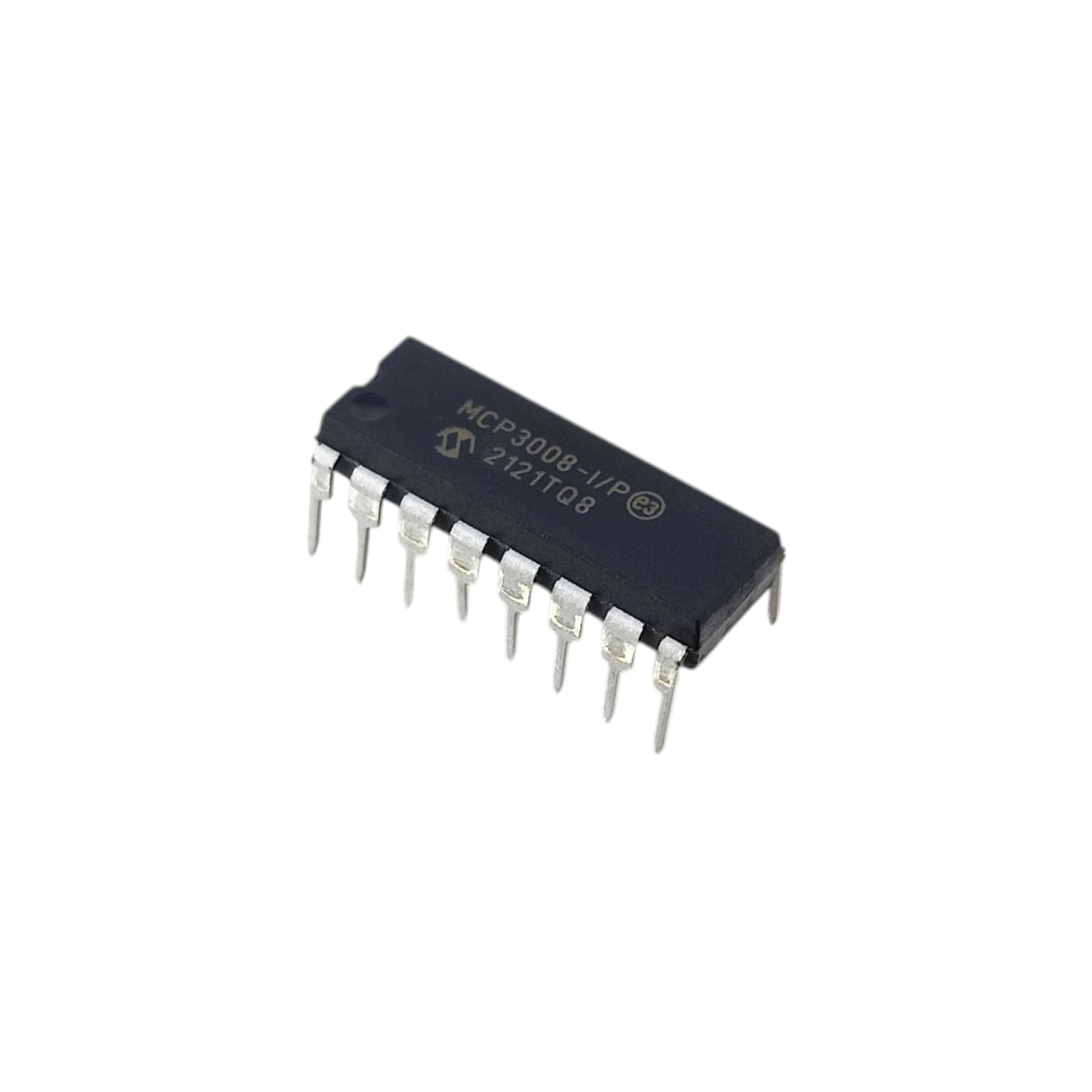

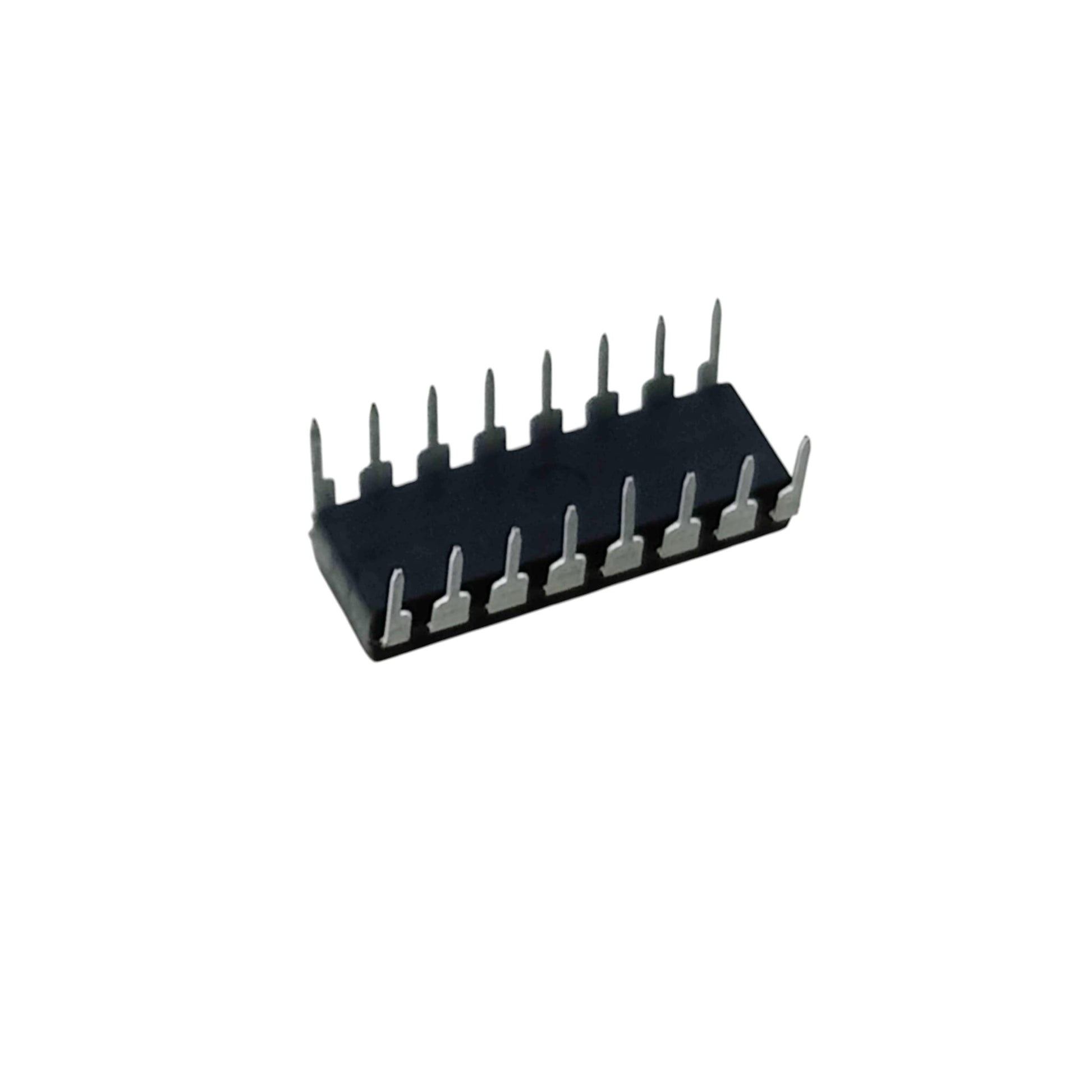

Original MCP3008-I/P 8-Channel 10-Bit ADC SPI IC (DIP-16)
Original MCP3008-I/P 8-Channel 10-Bit ADC SPI IC (DIP-16)
Couldn't load pickup availability
Short Product Description
Short Product Description
Unlock the full potential of your Raspberry Pi or custom microcontroller with the genuine Microchip MCP3008-I/P. This high-performance 8-channel, 10-bit Analog-to-Digital Converter (ADC) uses a standard SPI interface to seamlessly bridge the gap between analog sensors and your digital logic. Plug-and-play ready for breadboards, it is the ultimate IC for DIY electronics, IoT projects, and precision sensor monitoring.
Key Features
Key Features
- 8 Independent Input Channels: Monitor up to 8 different analog sensors simultaneously, saving board space and reducing component costs.
- 10-Bit Resolution: Delivers 1,024 discrete levels of precision, ensuring highly accurate readings for sensitive temperature, light, or pressure sensors.
- Standard SPI Interface: Guarantees fast, reliable, and standardized communication with Raspberry Pi, Arduino, and ESP32 ecosystems.
- Broad Voltage Range (2.7V - 5.5V): Works flawlessly with both 3.3V and 5V logic systems without requiring external level shifters.
- DIP-16 Form Factor: Plugs directly into standard breadboards and perfboards for instant, solder-free prototyping.
Full Product Description
Full Product Description
Overcome Microcontroller Limitations
Many popular microcomputers, like the Raspberry Pi, lack built-in hardware to read analog signals. This means connecting standard light, temperature, or moisture sensors can be a frustrating roadblock. The Original MCP3008-I/P ADC completely solves this problem. By converting analog voltage levels into clean, digital data, this chip allows your digital-only boards to "understand" the physical world with absolute precision.
Seamless SPI Integration for Fast Data Transfer
Time is critical in sensor monitoring. The MCP3008 utilizes a simple, universally supported SPI (Serial Peripheral Interface). This ensures rapid communication between the ADC and your main board, utilizing only four pins (Clock, Data In, Data Out, and Chip Select). Whether you are logging weather data or building a responsive robotics system, you get high-speed data without code bottlenecks.
Breadboard-Friendly Design for Prototyping
Say goodbye to complicated SMD soldering during your initial design phase. Featuring a standard DIP-16 package, this IC pushes smoothly into standard 2.54mm pitch breadboards. It is designed for makers, students, and engineers who need to prototype quickly, iterate easily, and build reliable circuits with zero fuss.
Technical Specifications
Technical Specifications
- Model: MCP3008‑I/P
- Resolution: 10‑bit
- Number of Channels: 8
- Interface: SPI (Serial Peripheral Interface)
- Operating Voltage: 2.7 V – 5.5 V
- Package Type: DIP‑16 (Dual In‑line Package)
- Dimensions: 2 cm × 0.6 cm × 0.8 cm
- Mounting Style: Through‑Hole
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. Can I use the MCP3008 directly with a Raspberry Pi?
A. Ye s! The Raspberry Pi does not have built-in analog inputs. The MCP3008 is the industry-standard solution for adding 8 analog channels to your Pi using the hardware SPI pins.
Q Do I need a logic level converter to use this with 3.3V boards?
A. No. The MCP3008 operates natively anywhere between 2.7V and 5.5V. If you power the chip with 3.3V, its data lines will safely output 3.3V logic to match your board.
Q. Does this IC require soldering to get started?
A. Not at all. The DIP-16 spacing is perfectly sized to snap right into a standard breadboard, making it ideal for immediate testing and prototyping.
Target Users / Applications
Target Users / Applications
- Target Users: Raspberry Pi hobbyists, IoT developers, STEM educators, Arduino makers, and electronic engineers.
- Applications: Weather stations, multi-sensor arrays, joystick/potentiometer reading, battery monitoring systems, and automated smart home devices.
