Logic Test Pen 5v 3.3v

Logic Test Pen 5v 3.3v

Regular price HK$0.00
Regular price Sale price HK$0.00
Sale Sold out

Logic test pen high and low level test 5V 3.3V digital circuit debugging electronic production



Logic test pen, an essential tool for electronic design enthusiasts! Do not use multimeter to measure the level, a hand measurement, convenient and fast oh!



Baby advantage:

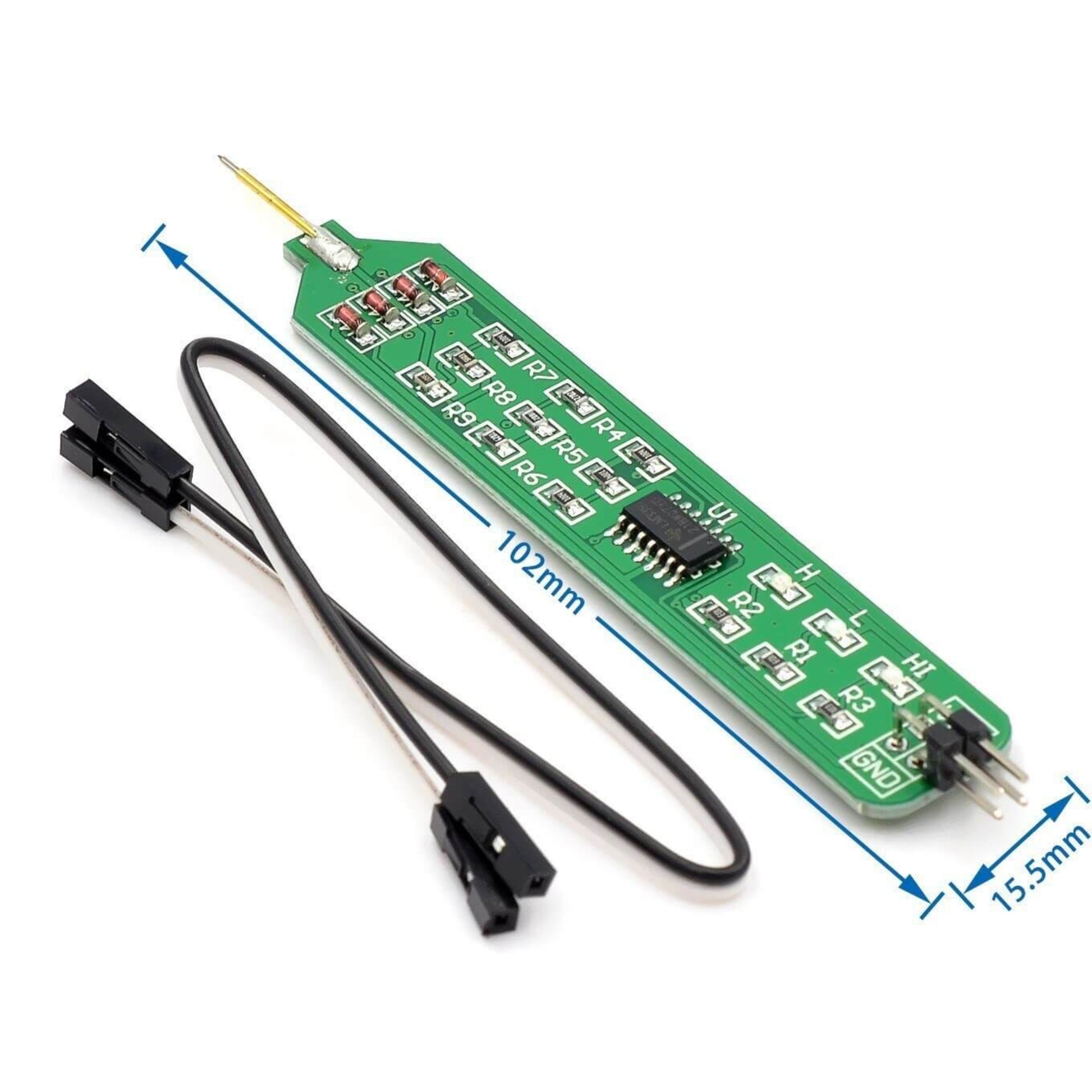

1, the size is moderate, suitable for hand-held



2, elastic probe, convenient measurement

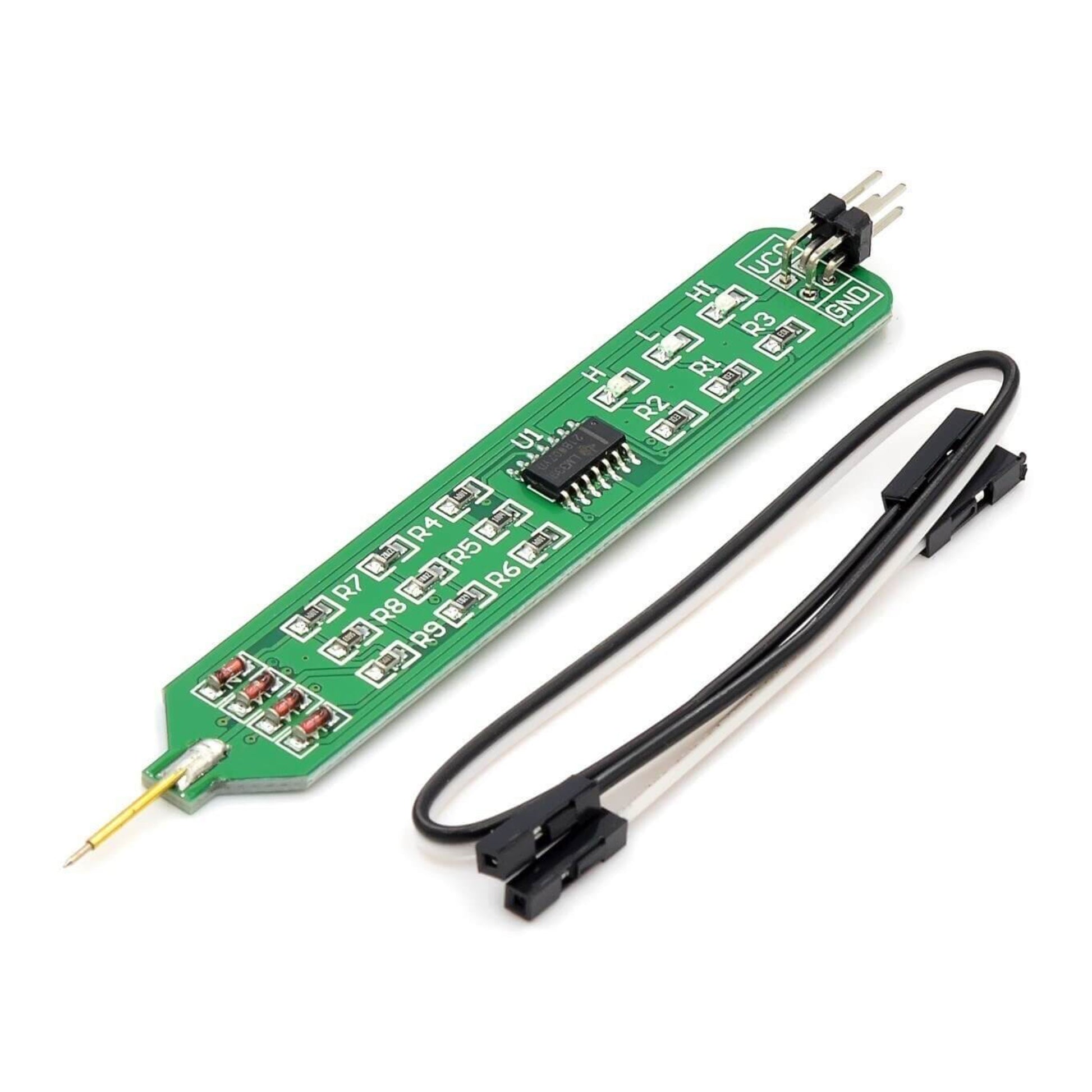

Dupont wire power supply, development board, learning board necessary tools

4, three state display: high, low level, high resistance (off)



High/low level (VCC=5V) :



  1. Red light (high level) -- above 2.4V



  1. Green light (low level) -- below 0.6V



3, blue light -- 0.6-2.4V or disconnected
