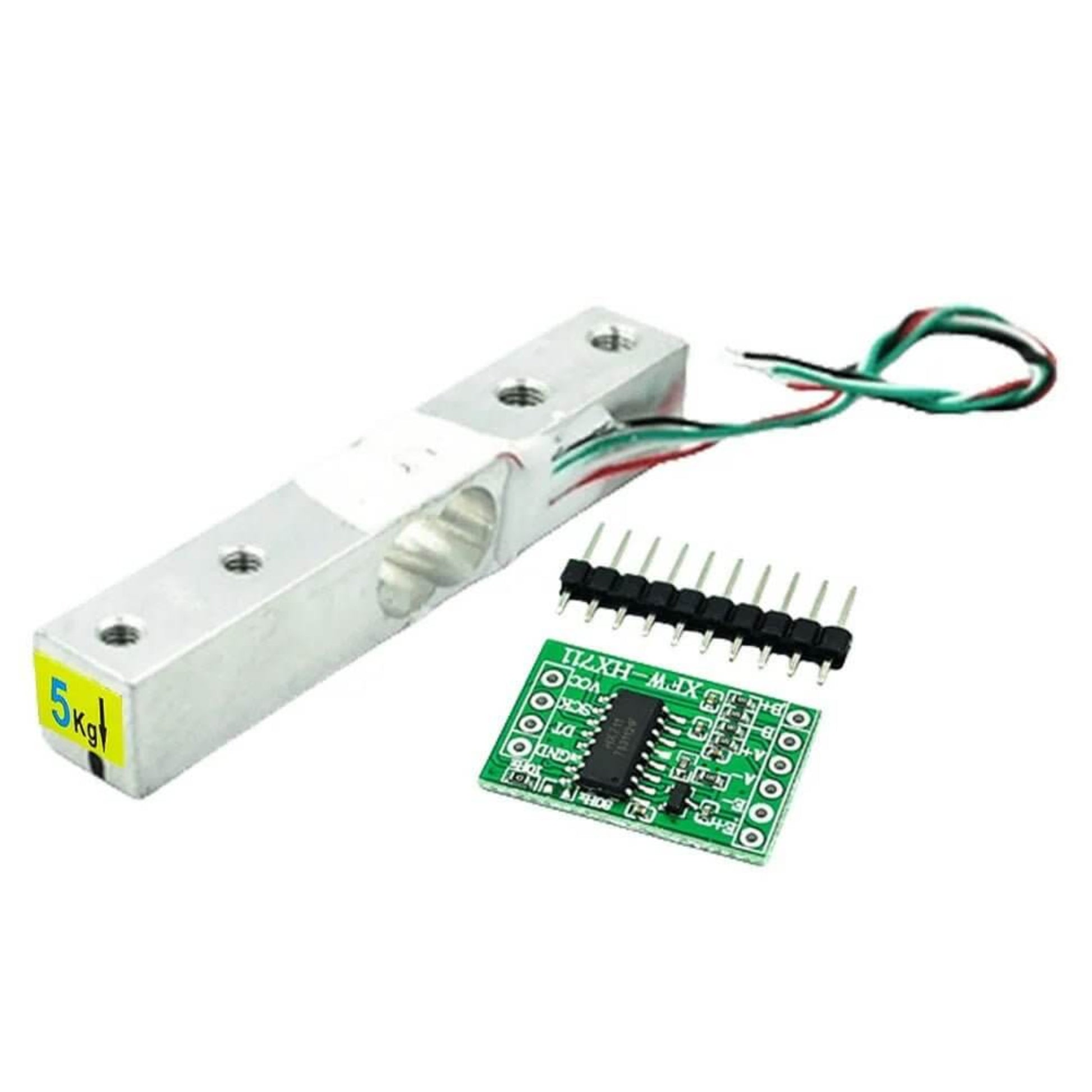

• 5KG load cell weighing pressure sensor and HX711 AD module kit for electronic scales.

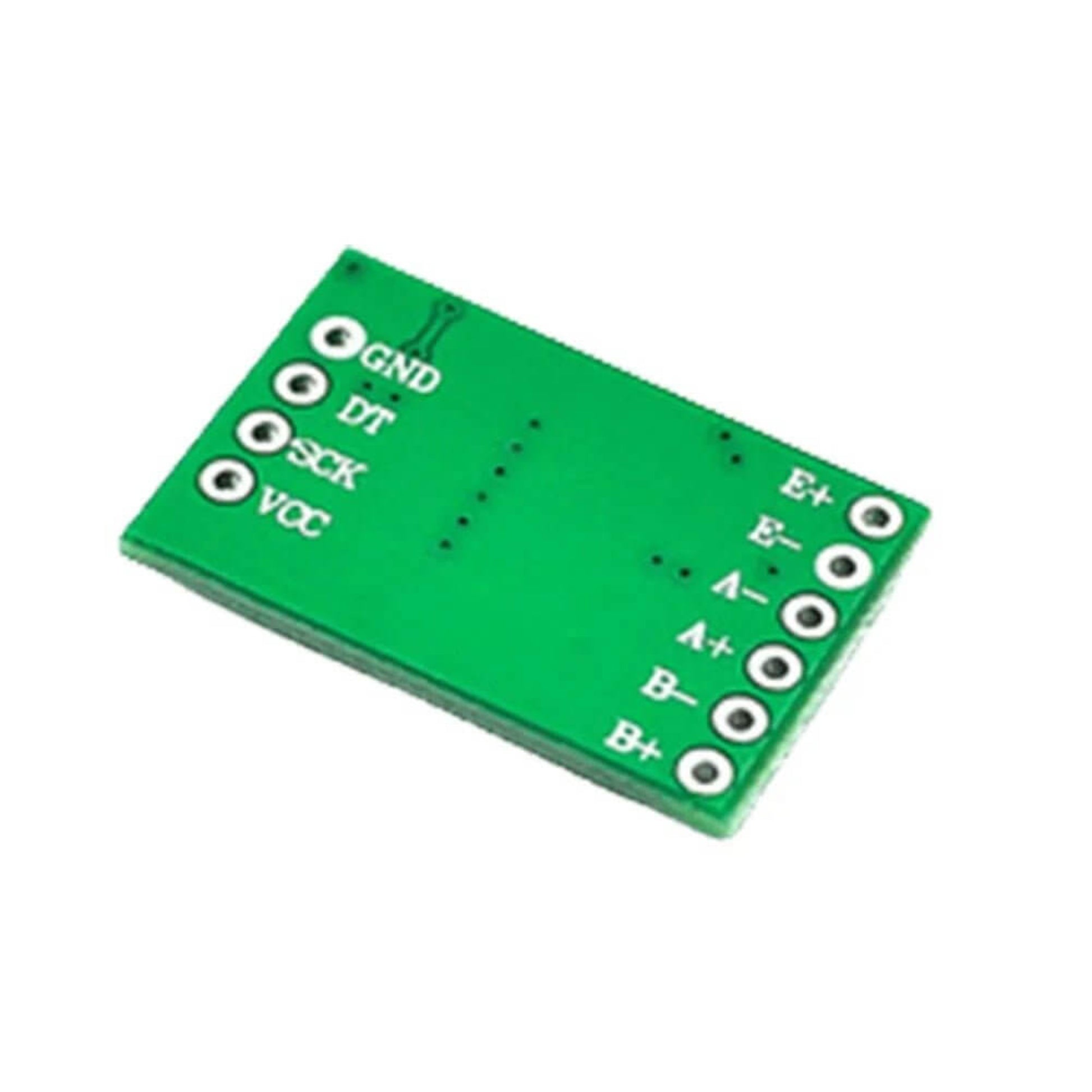

  • HX711 AD conversion module pinout diagram showing GND, SCK, DT, VCC, and bridge pins.
  • Close-up of 5KG aluminum alloy load cell for weight measurement.
1 3
6 sales

High-Precision 5KG HX711 Load Cell Sensor & AD Module Kit

High-Precision 5KG HX711 Load Cell Sensor & AD Module Kit

HK$25.00
HK$25.00
Sale Sold out
Shipping calculated at checkout.

Achieve accurate and stable weight measurement for your DIY or industrial projects with the 5KG HX711 Load Cell Kit. This set includes a durable aluminum alloy load cell and a 24‑bit HX711 analog‑to‑digital module, ideal for creating digital weighing scales, smart sensors, or IoT measurement systems.

The HX711 module’s high‑precision ADC and low‑noise amplifier ensure consistent weight readings, even in variable environments. Designed for both beginners and professionals, the kit is Arduino‑compatible and comes with an easy 4‑wire connection setup.

Key Features

  • High Precision Measurement: 24‑bit ADC ensures stable, accurate weight readings.
  • Low Noise Performance: Built‑in PGA amplifier minimizes electrical interference.
  • Fast Sampling Speed: Ideal for real‑time weight tracking and monitoring.
  • Compact & Lightweight: Easy integration into small‑scale or portable devices.
  • Energy Efficient: Low‑power design supports battery‑operated systems.
  • User Friendly: Comes with straightforward wiring instructions and Arduino sample code.

Technical Specifications

Component Specification
Load Cell Type Aluminum Alloy Weighing Pressure Sensor
Weight Capacity 5KG
Wire Configuration 4‑Wire (Wheatstone Half/Full‑Bridge compatible)
Operating Voltage 5V – 10V DC
Signal Output Voltage proportional to load

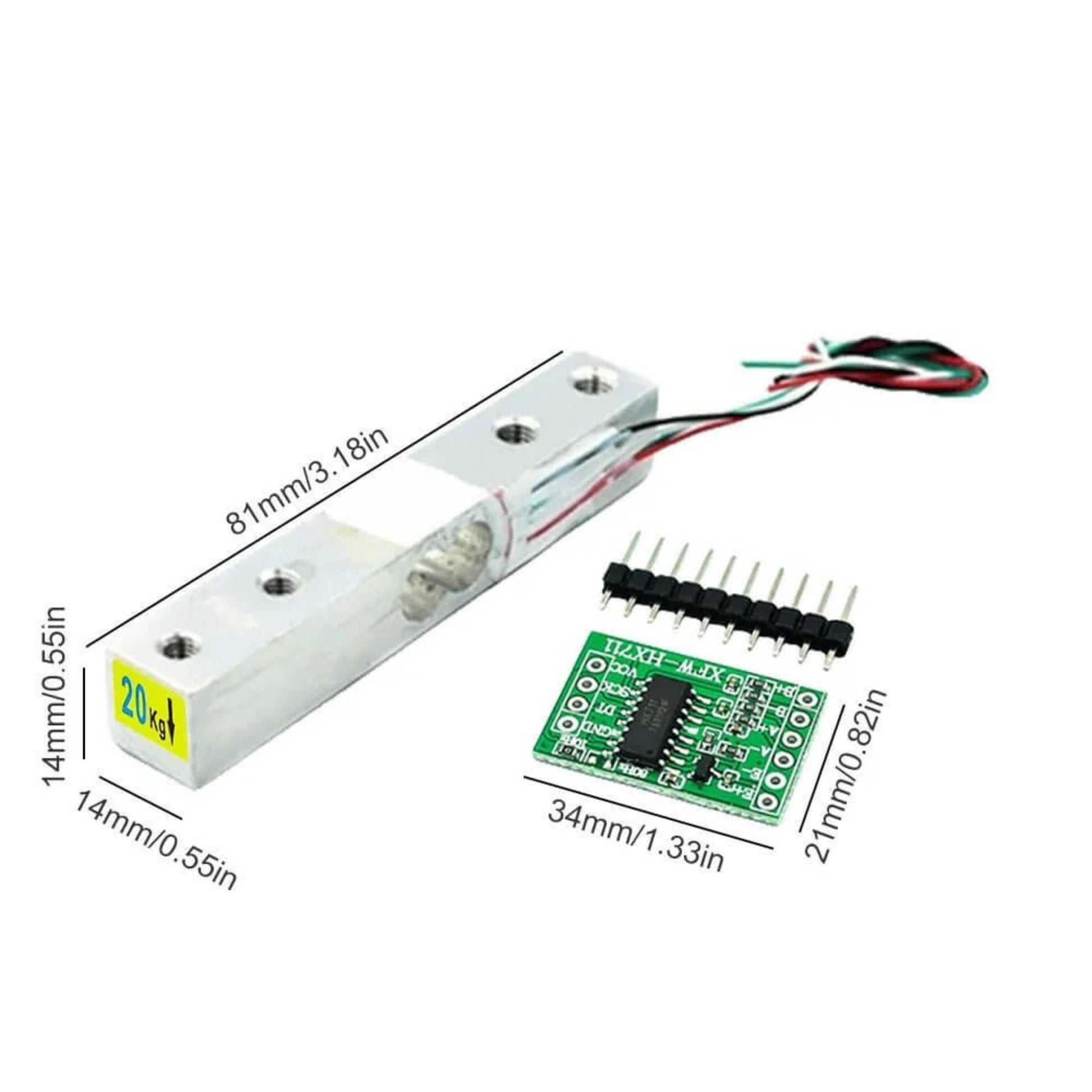

HX711 Module Size 34 × 21 × 3 mm
Load Cell Size 81 × 14 × 14 mm


Connection Guide

Wire Color Function
Red Power Positive (E+)
Black Power Negative (E−)
Green Signal Positive (A+ / S+)
White Signal Negative (A− / S−)


Installation Tip: Secure one end of the load cell and keep the other suspended. Apply pressure in the direction marked on the sensor label. Avoid pressing the white rubber center to prevent internal damage.

Ideal For

  • DIY Electronic Scales
  • Arduino & Raspberry Pi Projects
  • Smart Weighing Systems
  • Robotics Applications
  • Industrial Automation Projects
