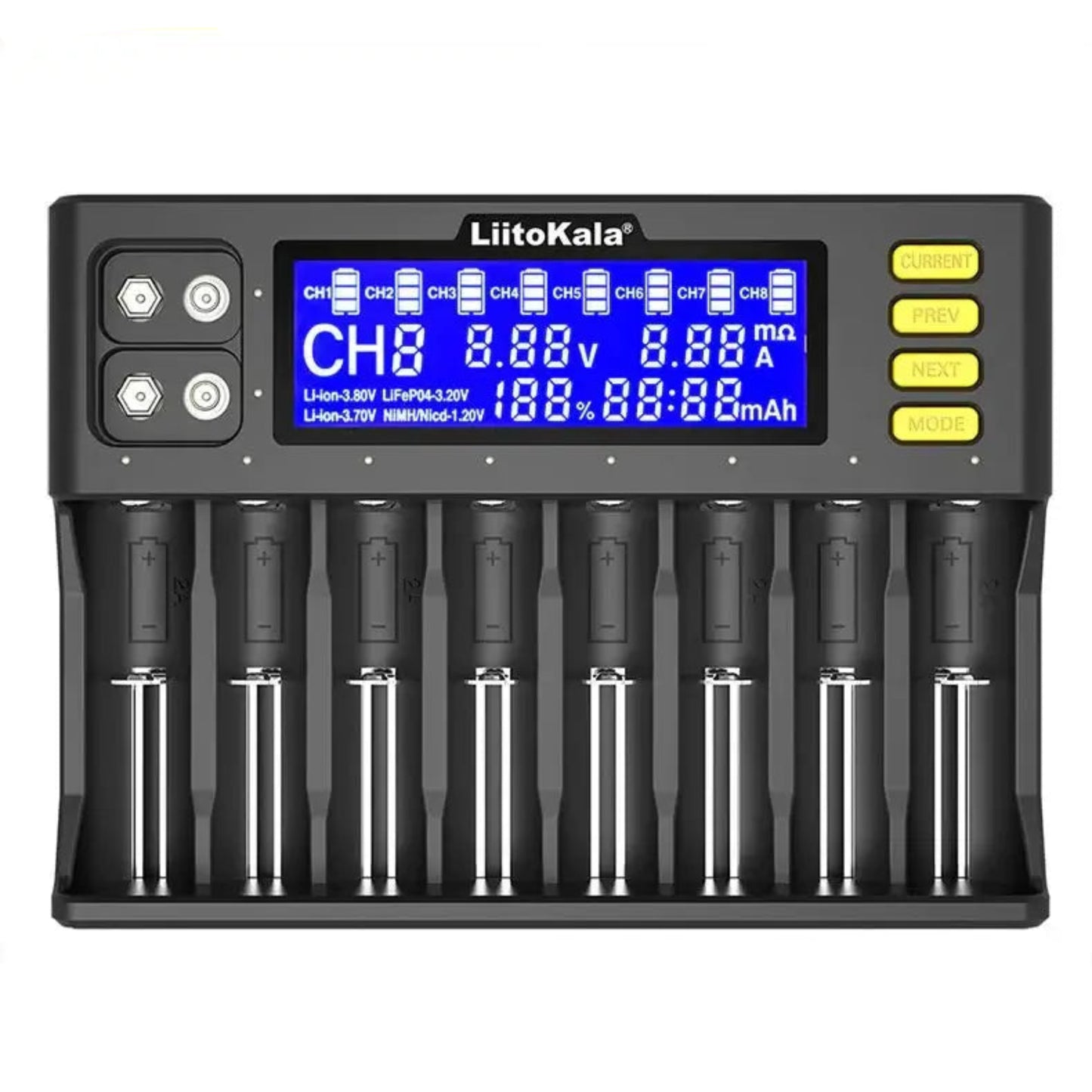

LiitoKala Lii-S8 Smart 8-Slot Universal Charger for Li-ion/NiMH/9V

The LiitoKala Lii-S8 is a versatile and intelligent 8-slot battery charger designed to meet all your charging needs. With its advanced microcomputer management system, it automatically detects battery resistance and intelligently distributes charging current for optimal performance. This charger supports a wide range of cylindrical rechargeable batteries, including Li-ion (3.7V/3.8V), LiFePO4 (3.2V), Ni-MH/NiCd (1.2V), and even 9V NiMH batteries.

Key Features:

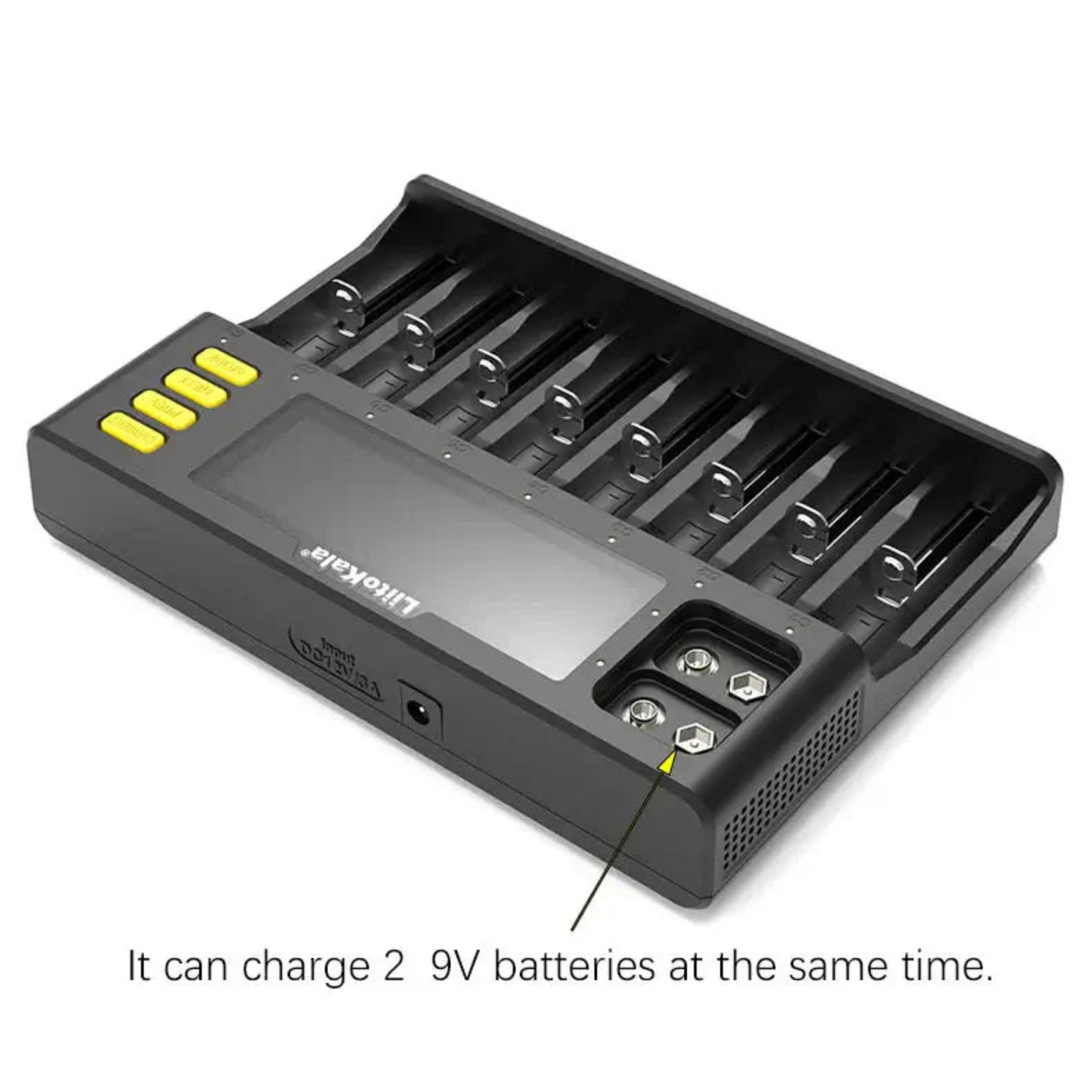

• 8 Independent Charging Slots + 2 for 9V Batteries: Charge up to eight cylindrical batteries simultaneously, plus two 9V NiMH batteries.

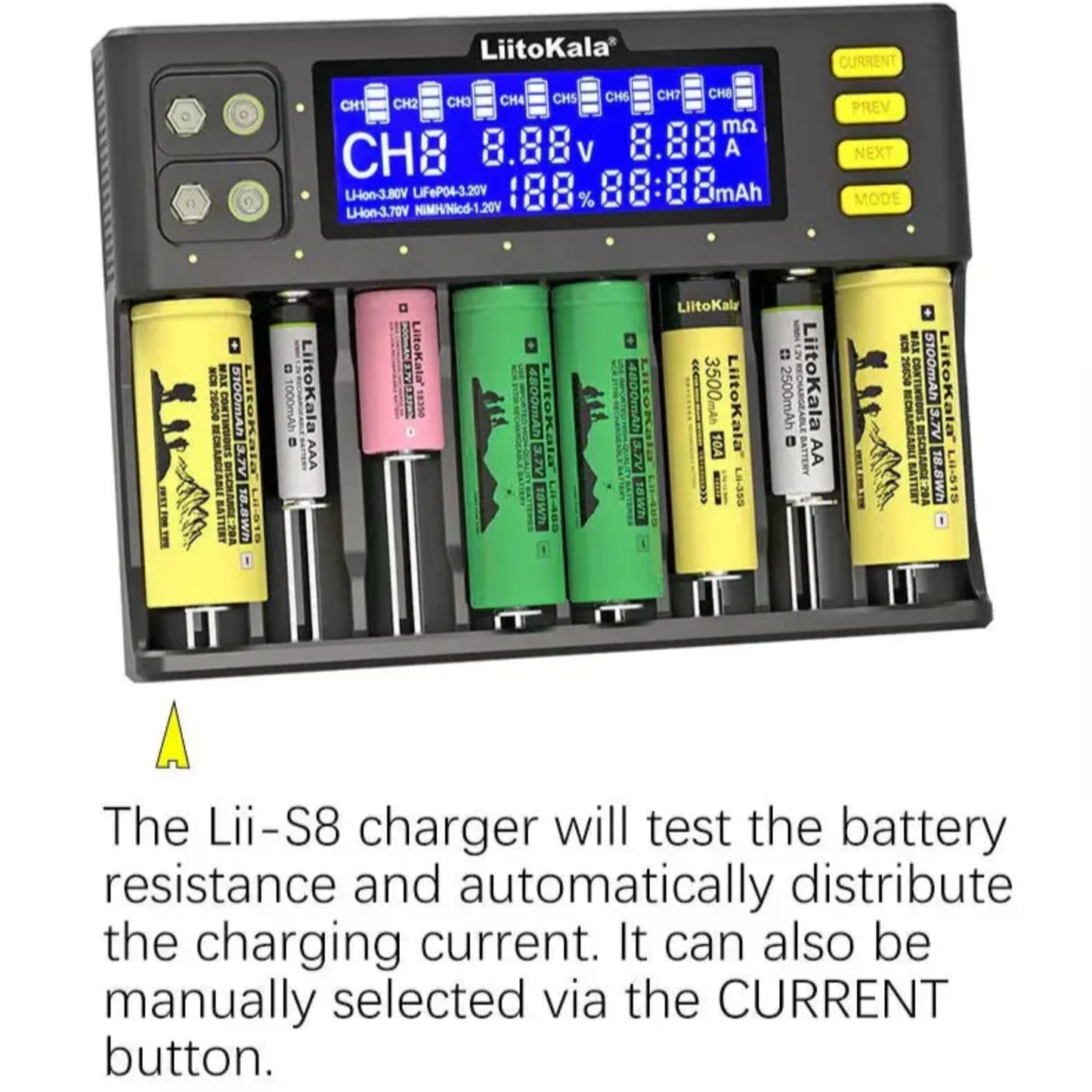

• Intelligent Current Distribution: The charger automatically detects battery internal resistance and configures the charging current.
• Flexible Charging Currents: Manually select charging currents of 0.3A, 0.5A, 0.7A, or 1A for all 8 slots.

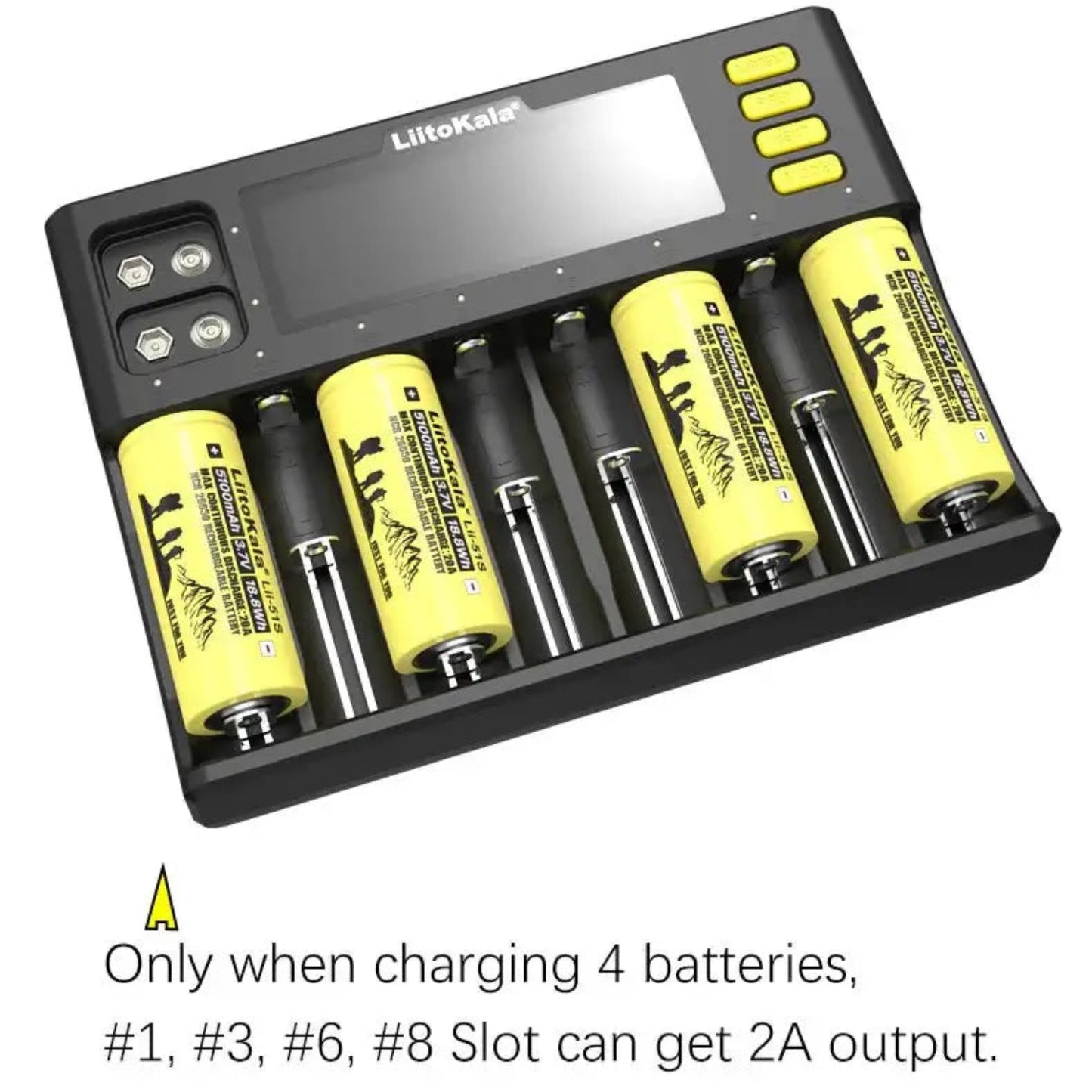

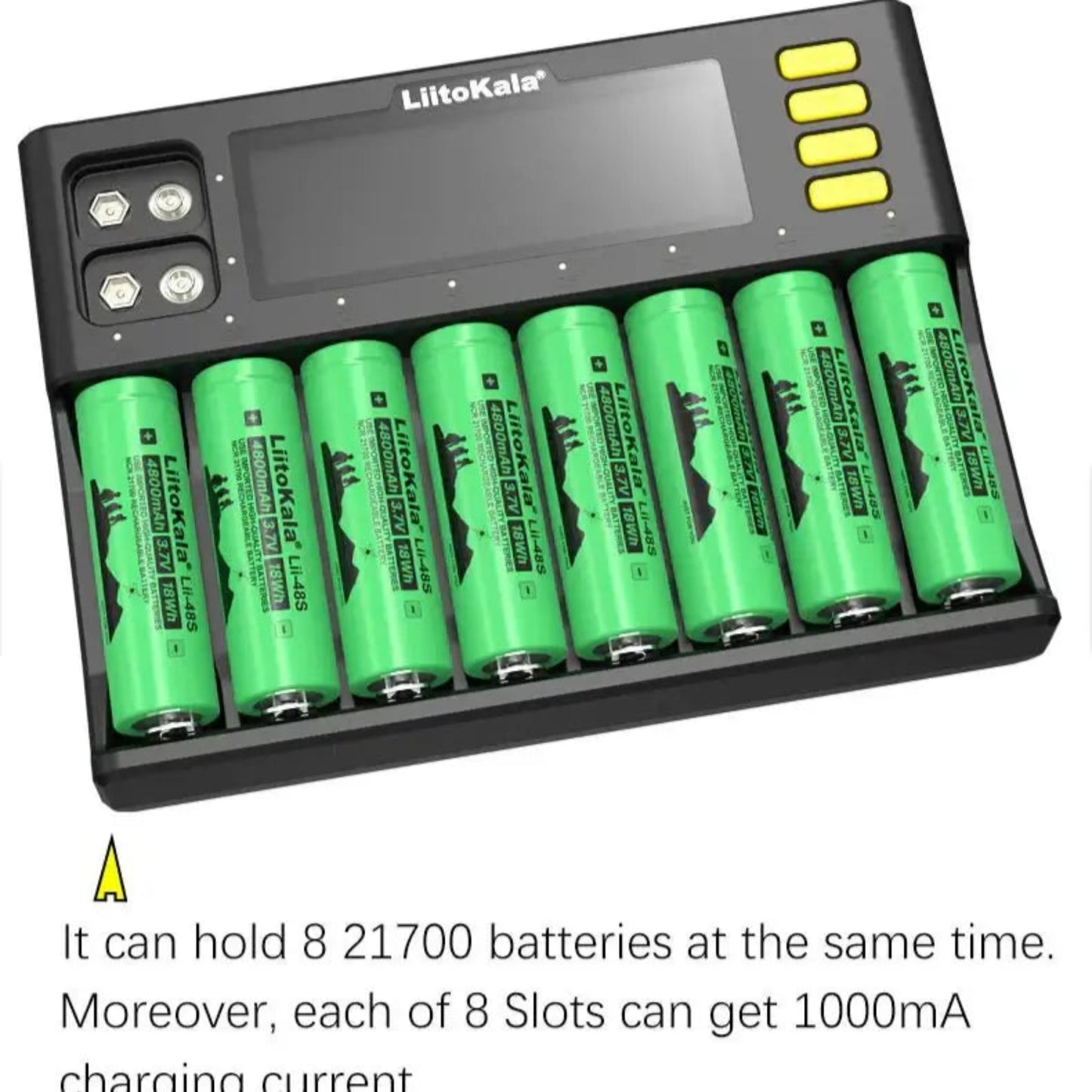

• Fast Charging (2A Output): Enjoy rapid charging with 2A output available in slots #1, #3, #6, and #8 when charging up to 4 batteries. When all 8 slots are in use, each cylindrical slot can receive up to 1A.
• Wide Battery Compatibility: Compatible with a broad spectrum of battery sizes including 26650, 21700, 20700, 18650, 18500, 18350, 16340 (RCR123), 14500, 10440, AA, AAA, SC, and C cells.

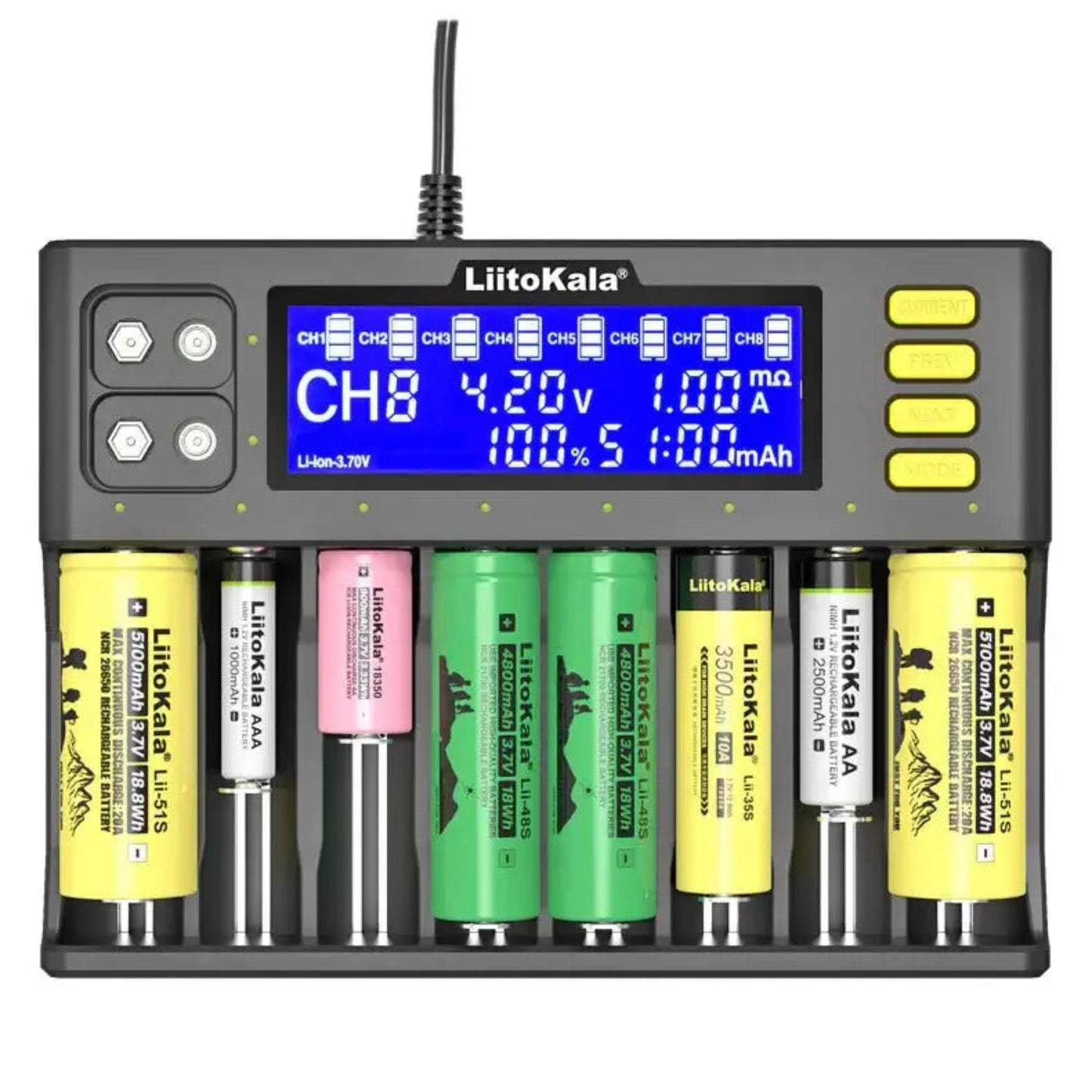

• Clear LCD Display: Monitor essential charging data at a glance, including battery type, charging current, voltage, time, charged capacity (mAh), percentage, and internal resistance (mΩ).
• Automatic Battery Type Recognition: The system automatically identifies 3.7V Li-ion and 1.2V Ni-MH/NiCd batteries. Manual selection is available for 3.2V LiFePO4 and 3.8V IMR batteries.
• 0V Activation Function: Capable of activating deeply discharged batteries (1.65V-2.2V).
• Multiple Safety Protections: Built-in safeguards against overcharge, over-discharge, short-circuit, reverse polarity, and smart detection of faulty batteries.
• Efficient Charging Mode: Utilizes constant current and constant voltage charging for optimal battery health.
• Dual Color LED Indicators: Red light indicates charging, while green light signifies standby or full charge. Flashing red light alerts to abnormal battery or slot conditions.

Important Reminders for Optimal Use:

• Consult User Manual: Always refer to the included user manual before use, especially regarding recommended charging currents for your specific battery types. Do not exceed the recommended current.
• Power Supply: Use only the provided 12VDC 4A power adapter (included in the package). Ensure the supply current is not less than 4A.
• Heat & Safety: The charger may generate heat during operation. Place it in a location inaccessible to children.
• Indoor Use Only: This charger is designed for indoor use at normal room temperatures.
• Disconnect When Not in Use: Always unplug the power supply and remove batteries when the charger is not in use.
• Data for Reference: The detection data provided by this product is for reference only. For precise measurements, please consult professional instruments.

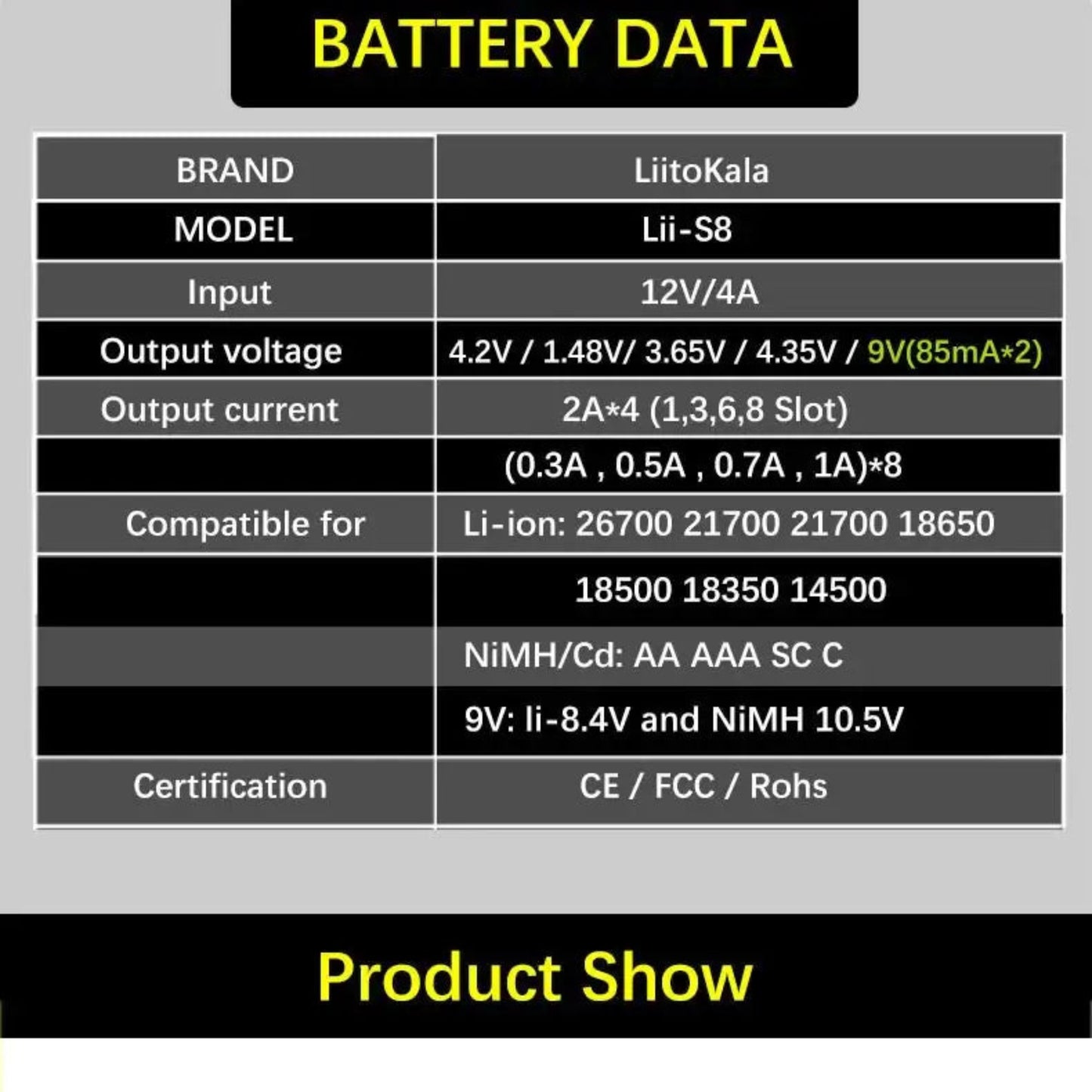

Specifications:

• Brand: LiitoKala
• Model: Lii-S8
• Input: DC 12V/4A
• Output Voltage:
  • DC 4.2V (for Li-ion)
  • DC 4.35V (for IMR)
  • DC 3.65V (for LiFePO4)
  • DC 1.48V (for NiMH/Ni-Cd)
  • DC 9V (for NiMH)
• Output Current:
  • Lithium Battery Charging Current: 2000mA*4 (slots #1, #3, #6, #8 only); (300mA / 500mA / 700mA / 1000mA)*8
  • NiMH Battery Charging Current: 500mA *8
  • 9V Battery Charging Current: 85mA *2
• Compatible Battery Types: Li-ion / IMR / LiFePO4 (26650, 21700, 20700, 18650, 18500, 18350, 16340(RCR123), 14500, 10440), NiMH/Cd (AA, AAA, SC, C)
• Termination Method: Intelligent voltage monitoring
• Dimensions: 195mm (L) * 142mm (W) * 35mm (H)
• Certifications: CE / FCC / Rohs

Package Includes:

• LiitoKala Lii-S8 Battery Charger x 1
• User Manual x 1
• Power Adapter (12V/4A) x 1
