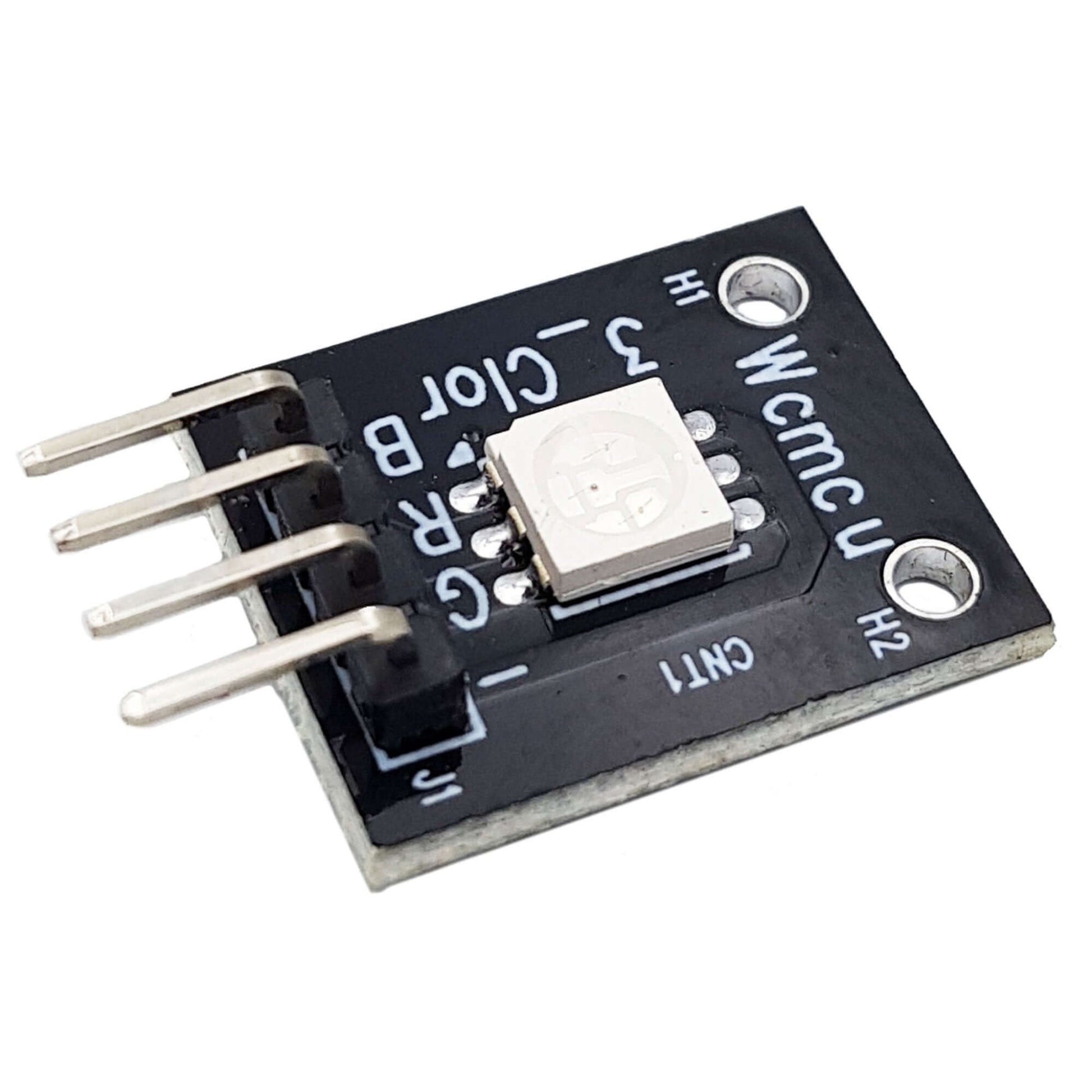

• KY-009 5050 RGB SMD LED module for Arduino with common cathode and 4 connection pins.

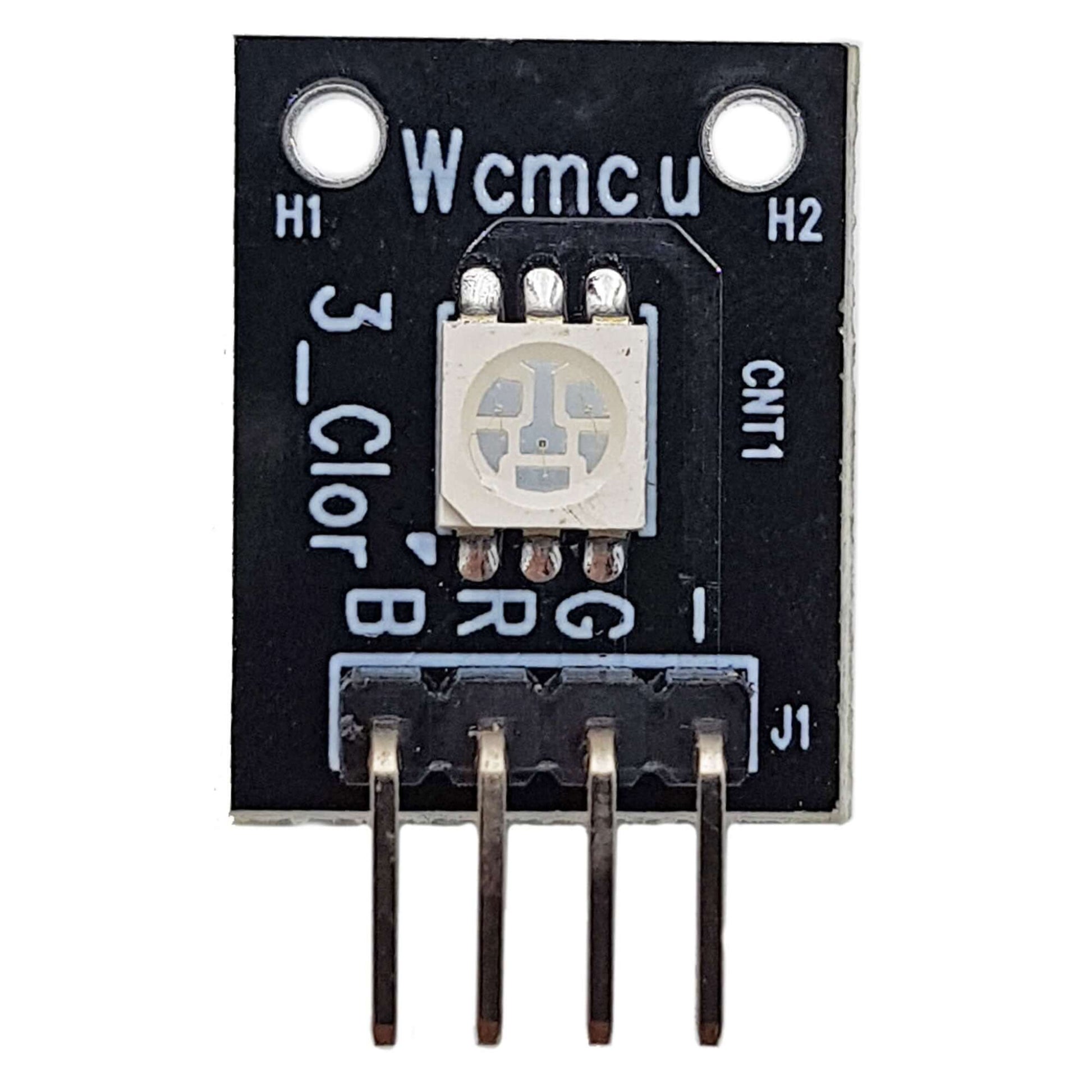

  • KY-009 5050 RGB SMD LED module for Arduino, featuring common cathode design and PWM control for vibrant color output.

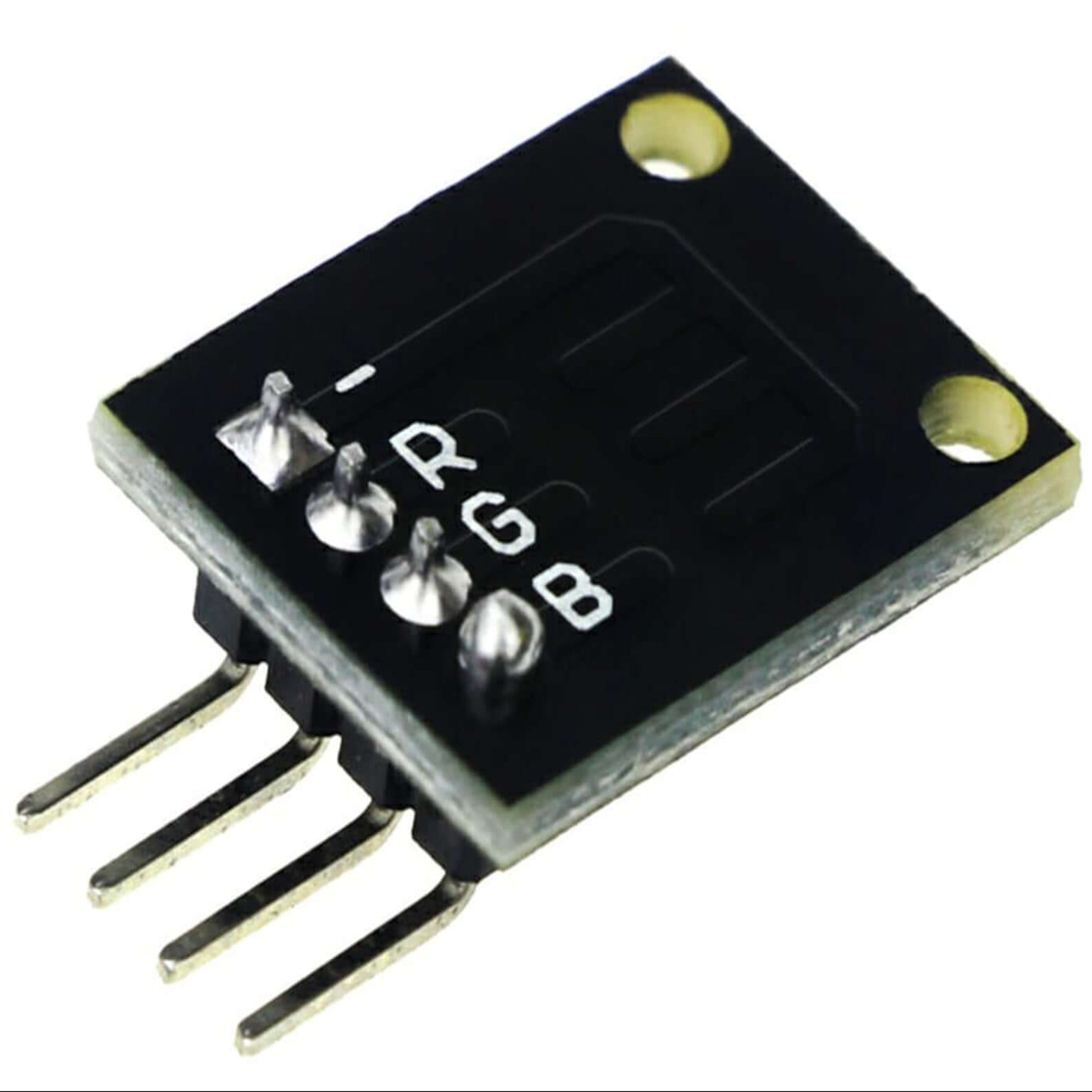

  • KY-009 RGB SMD LED module for Arduino with R, G, B pins for color control and PWM signal manipulation.
1 3

KY-009 5050 RGB LED Module (Common Cathode) for Arduino & Pi

KY-009 5050 RGB LED Module (Common Cathode) for Arduino & Pi

πŸ”₯ 11 soldβ€’βœ“ In stock
HK$10.00
HK$10.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

✨ Bring Color to Your DIY Projects

The KY-009 5050 RGB SMD LED Module is a compact and versatile lighting solution designed for Arduino, Raspberry Pi, and other microcontroller platforms.
Featuring a 5050 SMD RGB LED, this module lets you blend millions of colors through simple PWM (Pulse Width Modulation) control, adding vibrant effects to your creative electronics projects.

πŸ”§ Key Features

  • Full RGB Color Control: Adjust brightness and mix Red, Green, and Blue channels independently using PWM signals to create endless color combinations.
  • Wide Compatibility: Works perfectly with popular 5V controllers such as Arduino Uno, Mega, ESP32, and Raspberry Pi.
  • Common Cathode Design: Simplifies wiring and programming for reliable control.
  • Easy Integration: Compact form factor fits seamlessly into any DIY or educational electronics setup.

βš™οΈ Technical Specifications

Feature Specification
LED Type 5050 RGB SMD LED
Drive Type Common Cathode
Operating Voltage 3.3V–5V compatible
Typical Current per Color 20mA–30mA (max)
Operating Temperature –25Β°C to +75Β°C
Module Size 20mm Γ— 15mm Γ— 7mm
Forward Voltage (per color) Red: 1.8–2.4V / Green: 2.8–3.6V / Blue: 2.8–3.6V

πŸ’‘ Ideal For

  • DIY mood and decorative lighting projects
  • Status indicators or feedback displays
  • Color recognition and visual interaction systems
  • STEM education kits and maker experiments

Add dynamic color control to your next Arduino or Raspberry Pi project with this reliable RGB LED module β€” perfect for hobbyists, students, and developers alike.
