KY-006 Passive Buzzer Module | DIY Programmable Audio Alarm for Arduino
KY-006 Passive Buzzer Module | DIY Programmable Audio Alarm for Arduino
Couldn't load pickup availability
Short Product Description
Short Product Description
Looking to add custom melodies, alert tones, or UI feedback to your next STEM project? The KY-006 Passive Buzzer Module puts you in complete control of pitch and tone. Unlike standard active buzzers that emit a single sound, this programmable module lets you generate distinct musical notes using a PWM signal. Compact, highly responsive, and perfect for Arduino or Raspberry Pi builds, it’s the ultimate audio component for hobbyists and engineers alike.
Key Features
Key Features
- Programmable Pitch Control: Generates varying tones and melodies via PWM signals, unlocking full creative audio control.
- Wide Voltage Compatibility (1.5V - 15V): Easily integrates with 3.3V, 5V, or higher voltage systems without needing logic level converters.
- Ultra-Low Power Consumption (<25mA): Maximizes battery life for portable and remote IoT projects.
- Standardized 3-Pin Interface: Plug-and-play design allows for quick integration with breadboards and standard jumper wires.
- Compact Footprint: Saves valuable space on your PCB or breadboard while delivering clear, audible feedback.
Full Product Description
Full Product Description
Bring Your Electronics Projects to Life with Custom Sound
Whether you are building a smart home security system, a DIY weather station, or an interactive STEM toy, auditory feedback is crucial. The KY-006 Passive Buzzer Module is engineered to deliver clear, customizable audio outputs, transforming a silent circuit board into an interactive experience.
Complete Tone Control (Passive vs. Active Buzzers)
Not all buzzers are created equal. Active buzzers have internal oscillators that restrict them to a single, continuous beep. The KY-006 is a passive buzzer, meaning it relies on external Pulse-Width Modulation (PWM) signals from your microcontroller (like an Arduino or ESP32). This gives you the creative freedom to manipulate frequencies (between 1.5kHz and 2.5kHz) to play specific musical notes, complex melodies, or varying alarm sirens.
Engineered for Versatility and Efficiency
Operating on a wide voltage range of 1.5V to 15V, this module easily adapts to both low-power microcontroller logic and higher-voltage industrial setups. With a working current of <25mA, it provides excellent sound volume without draining your power supply, making it ideal for battery-operated IoT devices.
Backed by Local Expertise
Sourcing reliable electronic components shouldn't be a gamble. At Sun Cheong Computer, we back our catalog with over 20 years of technical expertise. Whether you are ordering a single module for a school project or sourcing parts for a commercial prototype, you can rely on our proven O2O (Online-to-Offline) support.
Technical Specifications
Technical Specifications

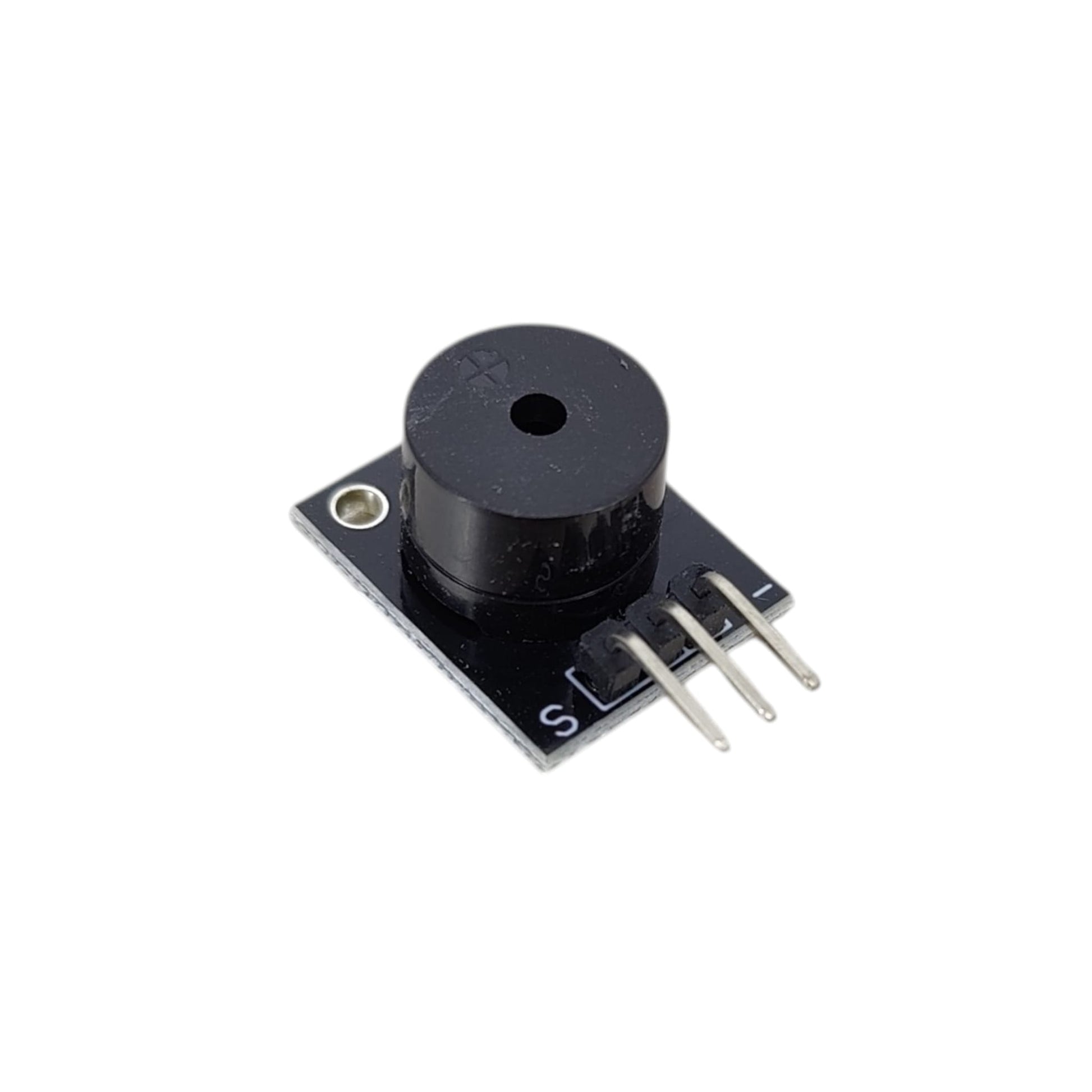

- Model: KY-006
- Type: Passive (requires external oscillator/PWM)
- Operating Voltage: 1.5V – 15V DC
- Operating Current: < 25mA
- Frequency Range: 1.5 kHz – 2.5 kHz

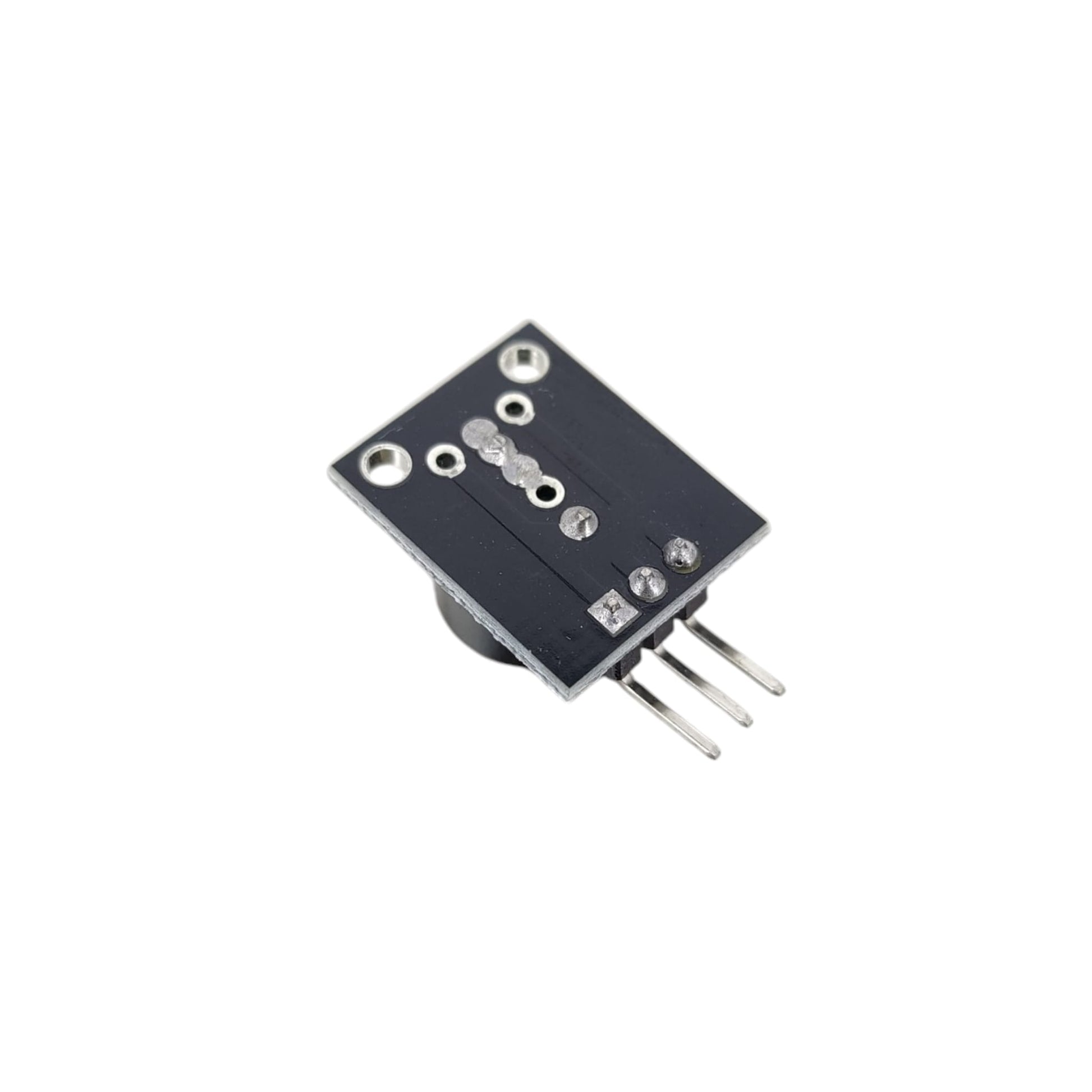

- Dimensions: Approx. 18mm x 15mm (PCB Size)
- Condition: Brand new, high quality
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: What is the difference between the KY-006 passive buzzer and an active buzzer?
A: An active buzzer makes a sound as soon as power is applied, but it only plays one tone. The KY-006 is a passive buzzer, meaning you need to provide a PWM (Pulse-Width Modulation) signal to generate sound. This allows you to control the pitch and play different musical notes.
Q: Do I need a resistor to connect this to my Arduino?
A: The KY-006 module typically has an onboard resistor, allowing you to connect the signal pin directly to a PWM-capable digital pin on your Arduino or Raspberry Pi safely.
Q: Can I pick this up today and get help with the code?
A: Yes! You can choose local pickup at checkout and collect your order directly from our physical store in Sham Shui Po. Our team is always happy to offer basic technical pointers to get your project running.
Target Users / Applications
Target Users / Applications
- Target Users: STEM students, DIY electronics hobbyists, IoT developers, and prototype engineers.
- Applications: Smart alarms, robotic feedback sounds, electronic clocks, custom musical keyboards, and sensor notification alerts.
