Pneumatic Speed Controller Valve | 4mm/6mm Tube to M5-1/2" Thread
Pneumatic Speed Controller Valve | 4mm/6mm Tube to M5-1/2" Thread
Couldn't load pickup availability
Short Product Description
Short Product Description
Achieve precise control over your pneumatic cylinders with the JSC Pneumatic Speed Controller Valve. Featuring a quick push-to-connect (PTC) fitting for 4mm or 6mm PU/Nylon tubing and a highly accurate knurled adjustment knob, this L-shaped elbow valve regulates exhaust airflow to ensure smooth, jitter-free mechanical movement. Built to withstand up to 1.0 MPa (145 PSI), it is available in multiple thread sizes from M5 to 1/2". Need help sizing your pneumatic fittings? Sun Cheong Computer Co. Ltd. has over 20 years of automation expertise. Visit our Sham Shui Po physical store for instant pickup and on-site thread matching!
Key Features
Key Features
- Precise Speed Regulation: Finely threaded adjustment knob allows for micro-adjustments to cylinder actuation speed, preventing mechanical shock.
- Instant Tube Connection: Push-to-connect (PTC) technology provides a secure, tool-free grip on 4mm and 6mm PU/Nylon air hoses.
- Locking Nut Design: Secures your airflow setting in place, ensuring vibrations from heavy machinery won't alter your calibration.
- Pre-Applied Thread Sealant: PT threads (1/8", 1/4", 3/8", 1/2") feature factory-applied sealant, while M5 threads include a premium O-ring for zero air leaks.
- 360-Degree Swivel Body: The L-shaped plastic body can rotate 360 degrees after installation, allowing for neat and flexible cable management.
- Industrial Durability: Safely handles high-pressure pneumatic systems up to 1.0 MPa (145 PSI).
Full Product Description
Full Product Description
Precision Airflow Control for Automated Systems
In pneumatic automation, controlling the speed of an air cylinder is critical to preventing mechanical slamming and ensuring smooth, repeatable operations. The JSC Pneumatic Speed Controller acts as a reliable meter-out flow control valve. By turning the finely threaded knurled knob, you can precisely restrict the exhaust air leaving the cylinder, allowing you to dial in the exact actuation speed required for your robotic arms, CNC loaders, or packaging machinery. Once set, simply tighten the locking nut to secure your configuration.
Quick Push-to-Connect Efficiency
Downtime is the enemy of productivity. This L-shaped elbow fitting features an integrated Push-to-Connect (PTC) collet designed for standard 4mm and 6mm outer diameter (OD) polyurethane (PU) or nylon tubing. Simply push the tube into the fitting for an instant, secure, and leak-proof seal. To release, press the plastic release ring and pull the tube out. No tools, hose clamps, or complicated threading required.
Built for Industrial Reliability
Engineered for continuous industrial use, the JSC series speed controllers feature a robust composite body with precision-machined brass threads. They are rated for a maximum operating pressure of 1.0 MPa (approx. 145 PSI) and can operate flawlessly in temperatures ranging from 0°C to 60°C. The male threads come pre-coated with a Teflon-like sealant (on PT threads) or an O-ring (on M5 threads) to guarantee an airtight connection right out of the box.
💡 Pro Tip from Our Technicians
"Pneumatic thread sizing can be incredibly confusing—a 1/8" PT thread actually measures about 9.7mm in diameter! If you are upgrading your 3D printer, building an animatronic prop, or repairing factory equipment and aren't sure which thread size (M5, 01, 02, 03, or 04) you need, don't guess. Bring your air cylinder or old fitting directly to our Sham Shui Po store. Our team at Sun Cheong Computer Co. Ltd. will use our digital calipers to test-fit the exact JSC valve you need on the spot."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Model Series | JSC Speed Controller (L-Shaped Elbow) |
| Applicable Tube OD | 4mm / 6mm |

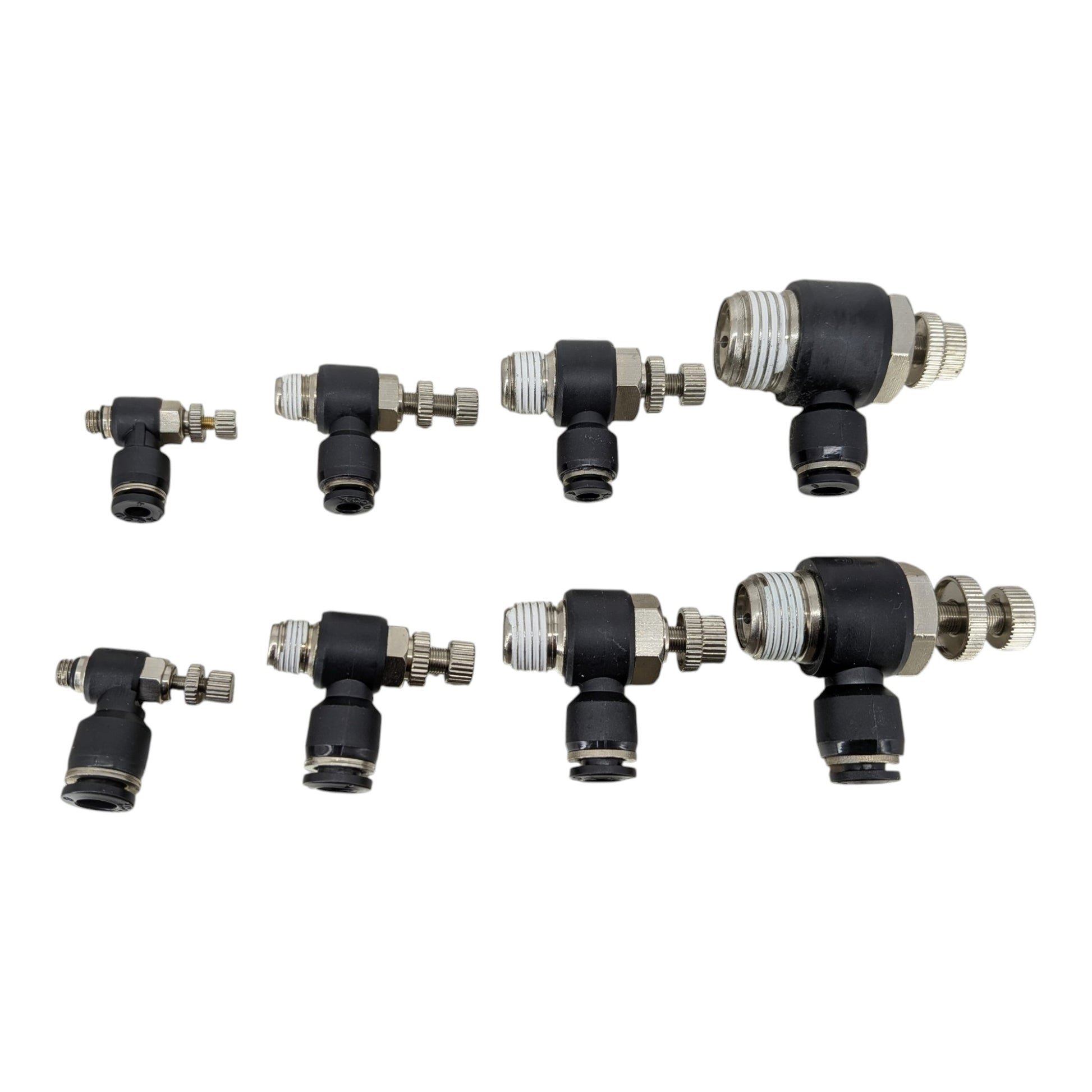

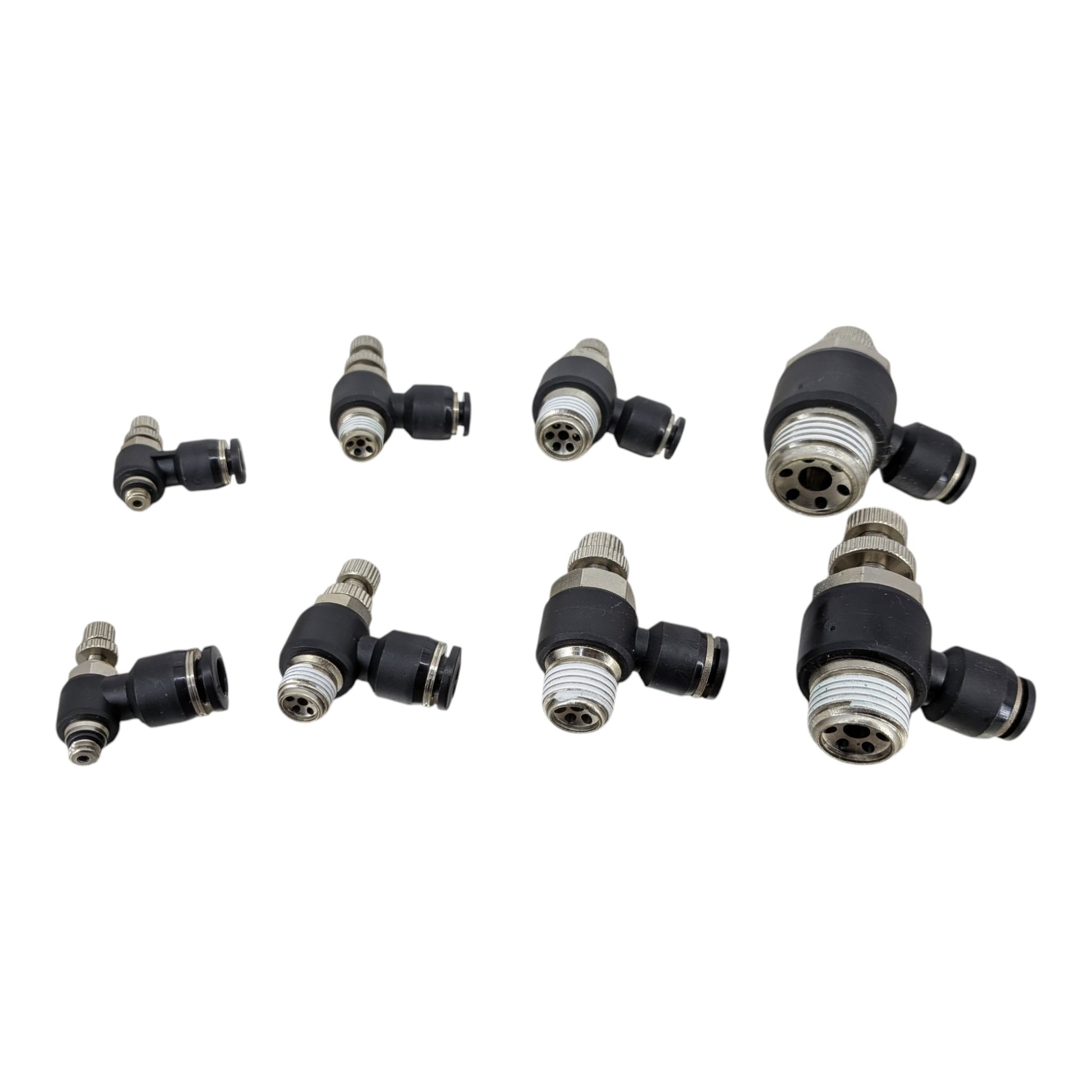

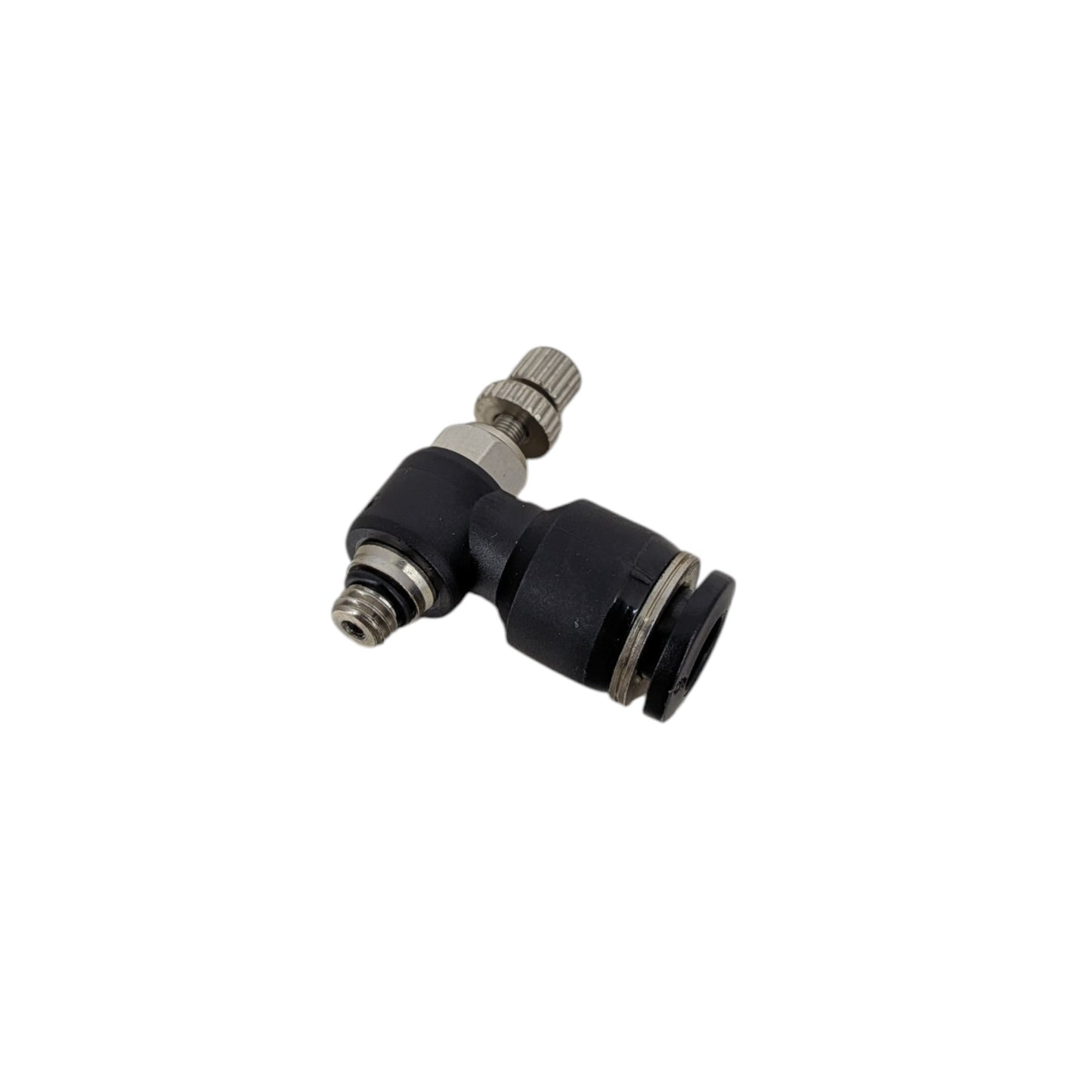

| Available Thread Sizes | M5 (M5x0.8) 01 (PT1/8" - approx. 9.7mm OD) 02 (PT1/4" - approx. 13.1mm OD) 03 (PT3/8" - approx. 16.6mm OD) 04 (PT1/2" - approx. 20.9mm OD) |
| Fluid Type | Compressed Air (Pneumatic Only) |
| Max Operating Pressure | 1.0 MPa (145 PSI) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Applicable Tubing Material | Polyurethane (PU) / Nylon |
| Body Material | Nickel-Plated Brass & PBT Plastic |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section

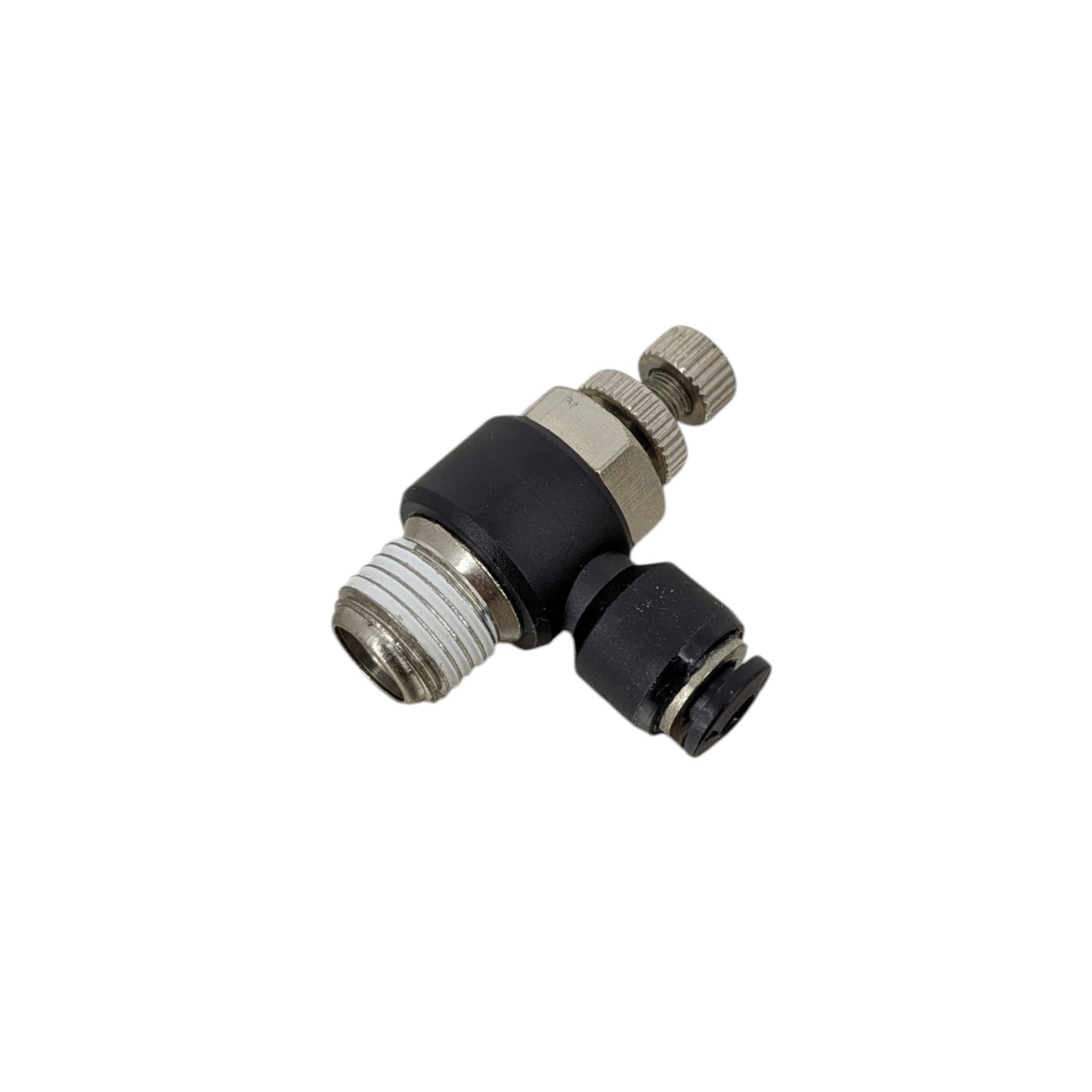

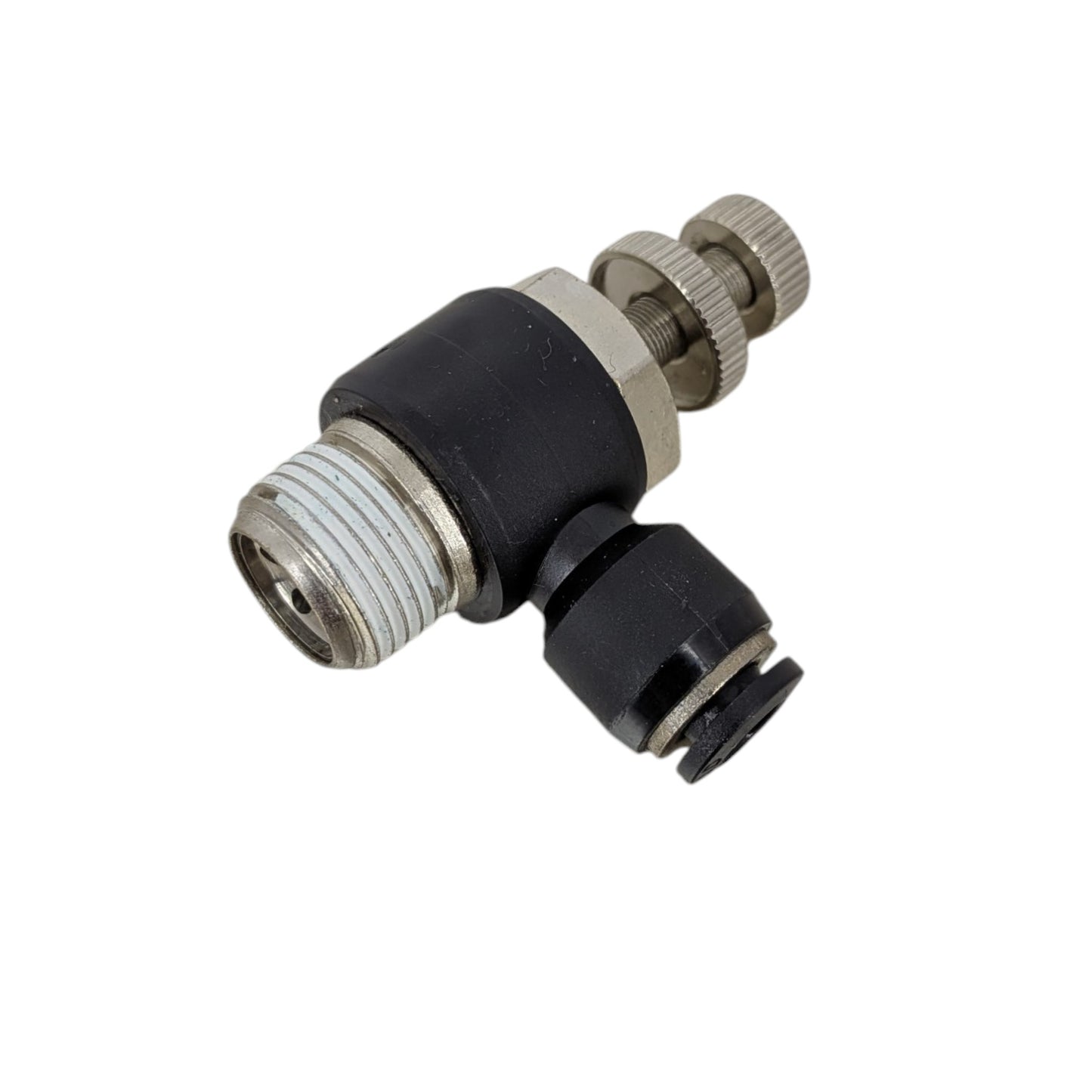

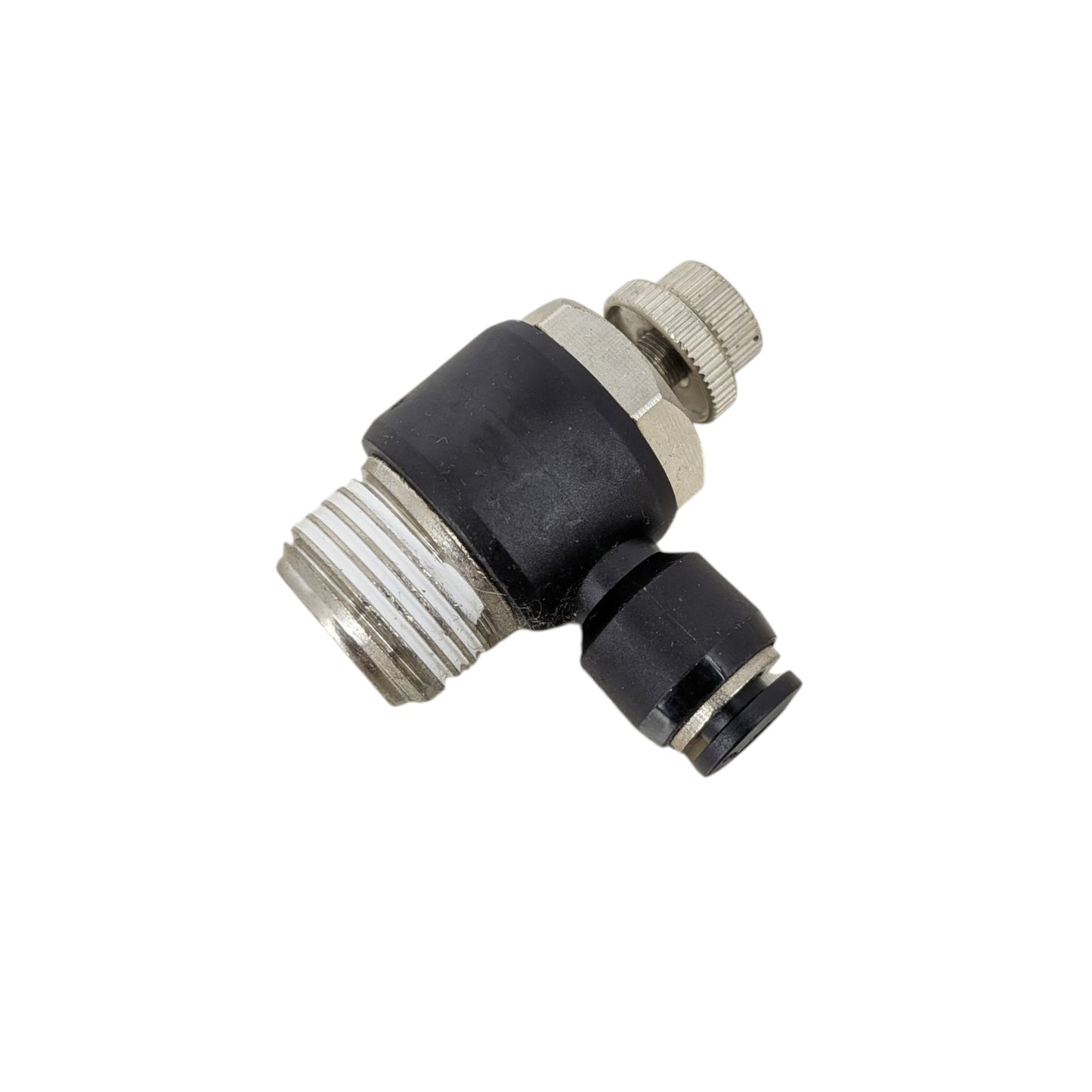

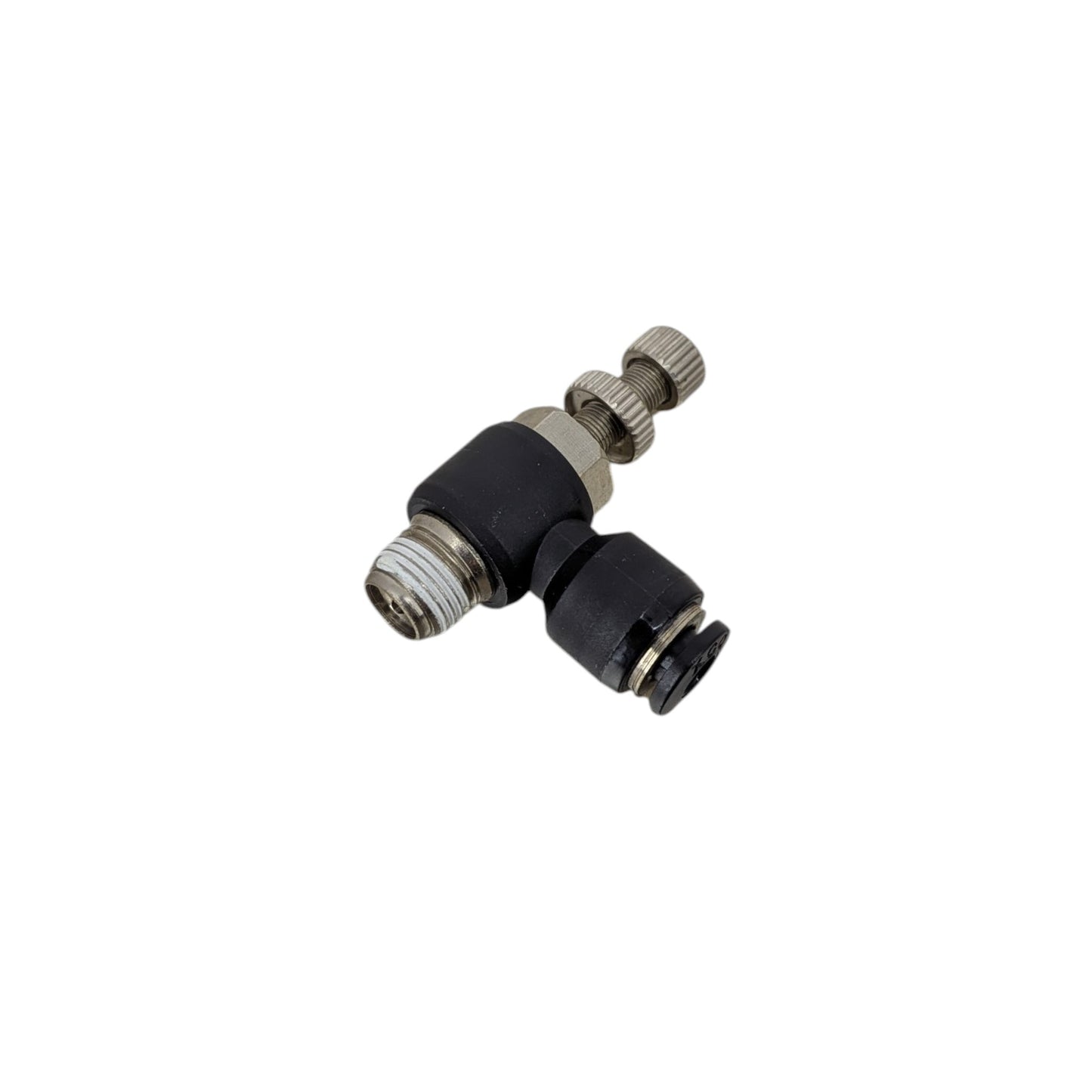

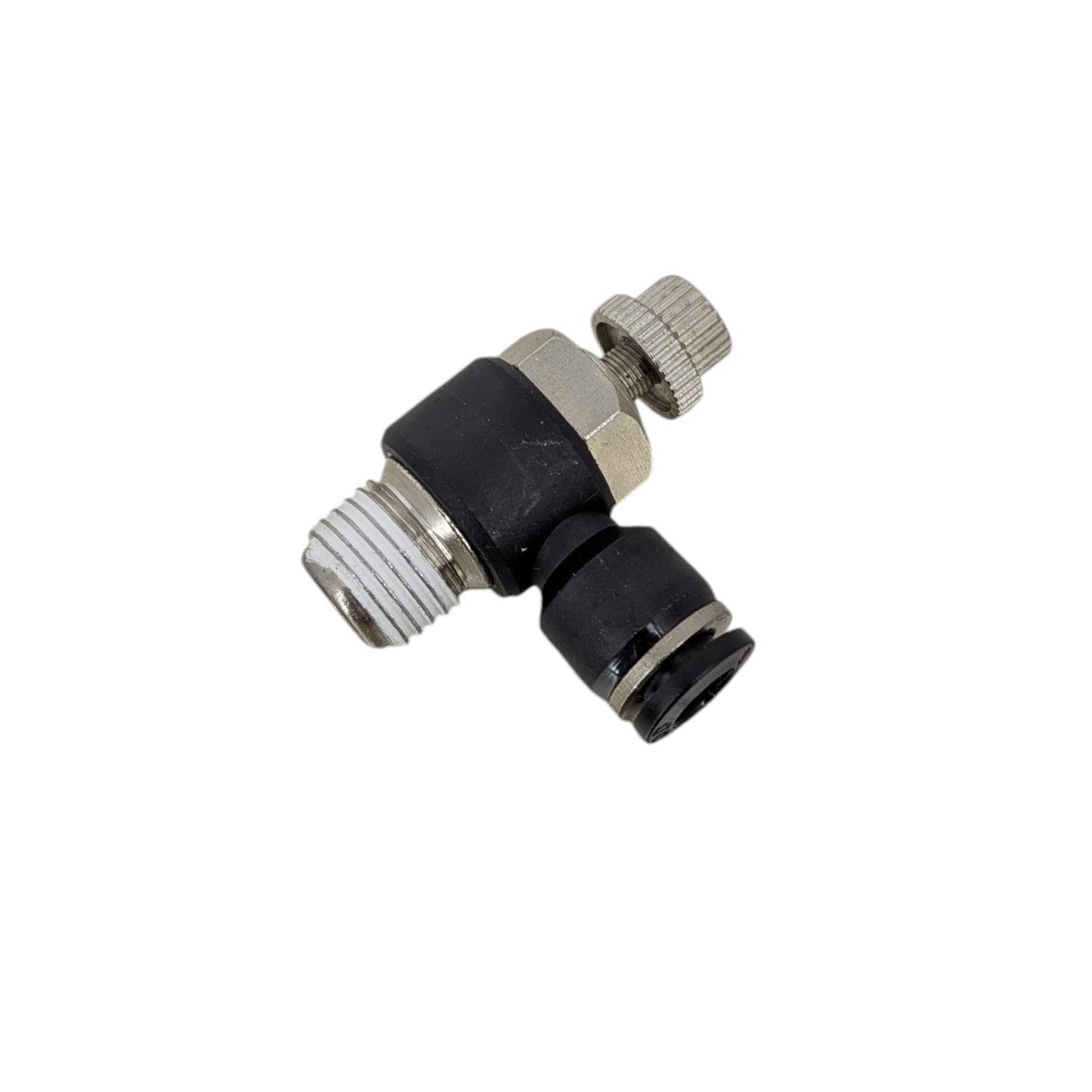

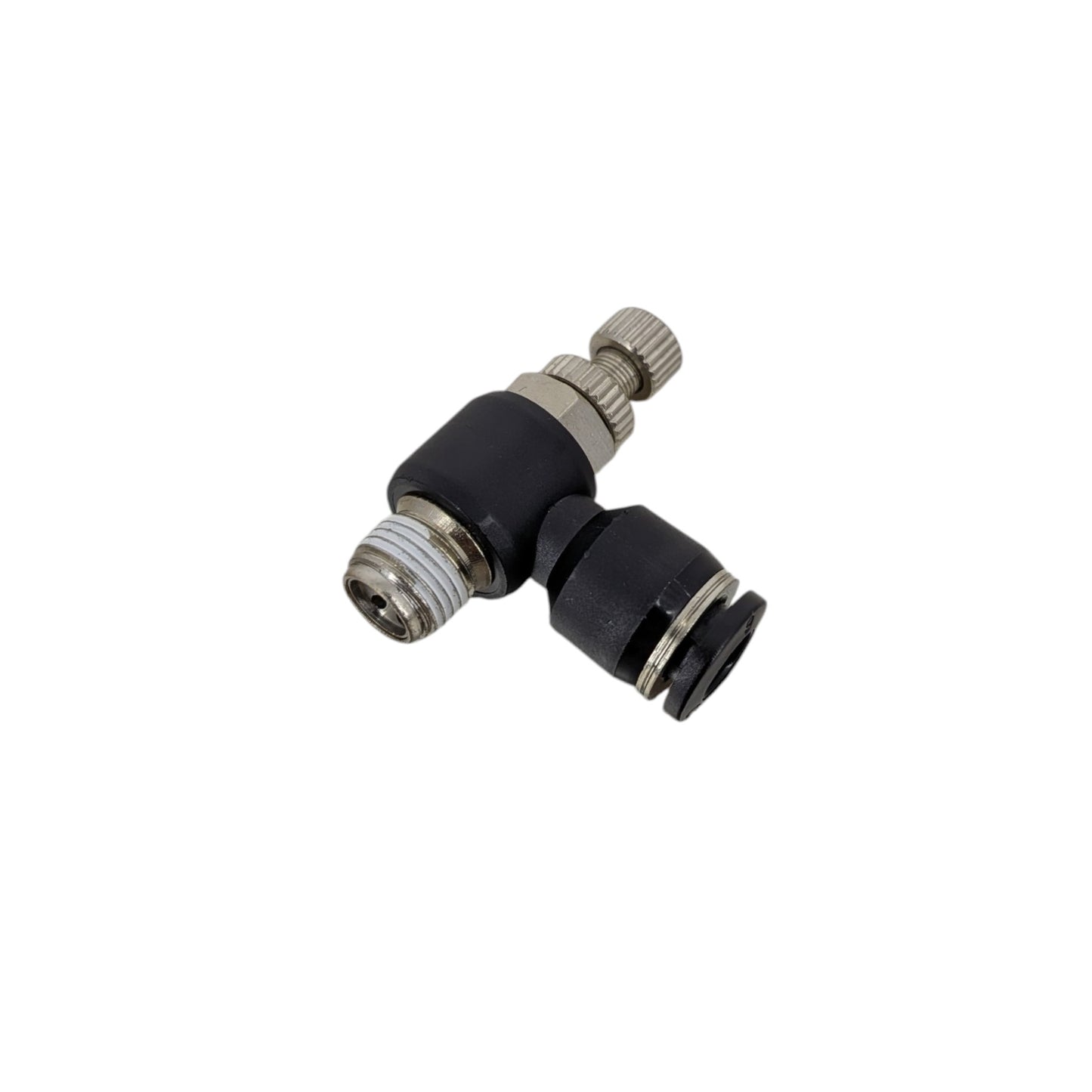

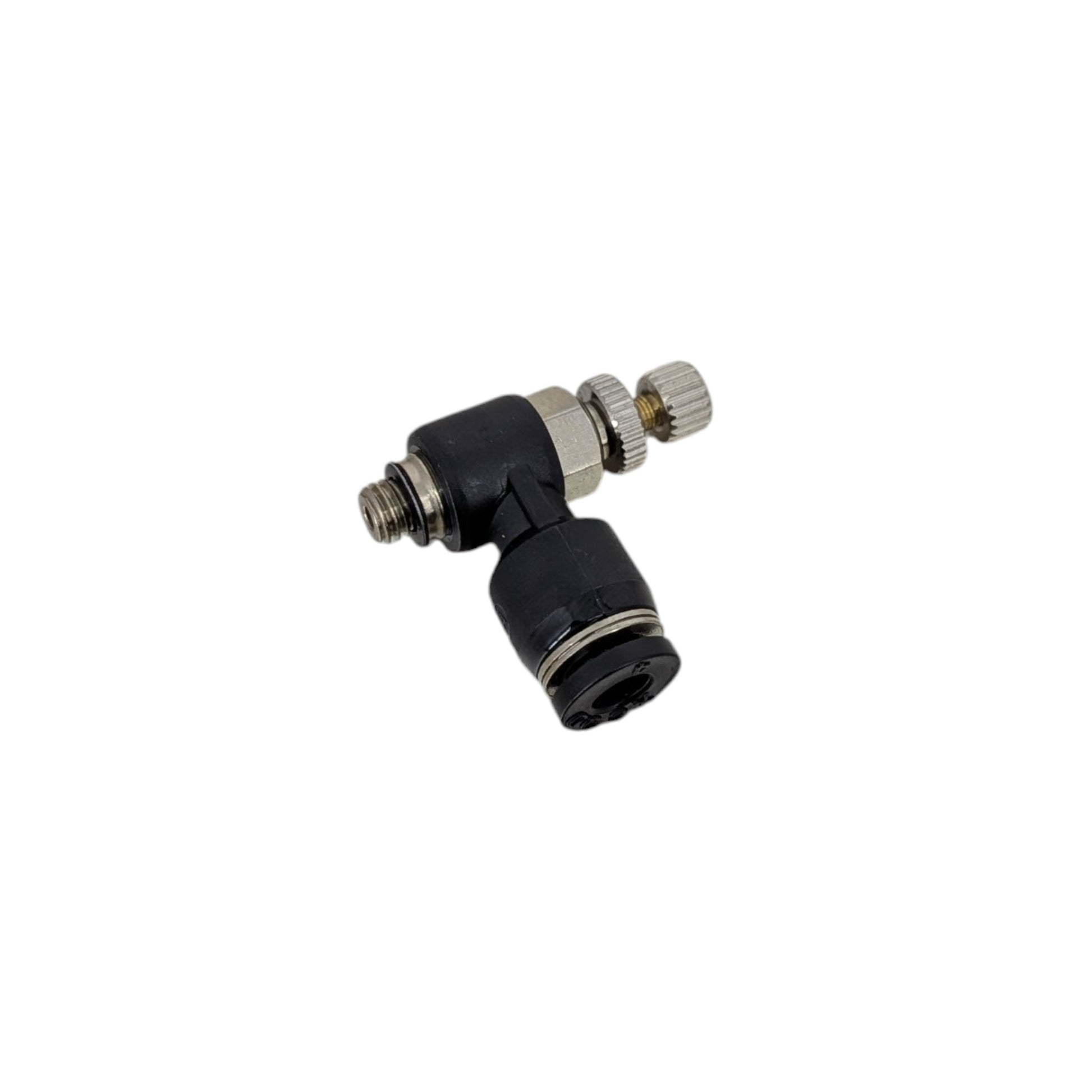

- How do I decode the JSC model numbers to know what I am buying?It's simple! The first number indicates the outer diameter (OD) of the air tube, and the second part indicates the thread size. For example, JSC6-02 fits a 6mm OD tube and has a 1/4" (02) male thread. JSC4-M5 fits a 4mm tube and has an M5x0.8 metric thread.
- Can this valve completely shut off the airflow?While the knurled knob can restrict the airflow to a very slow trickle, it is designed as a speed controller (throttle valve), not a dedicated shut-off or isolation valve. For a 100% airtight shut-off, you should use a dedicated pneumatic ball valve or solenoid valve.
- How do I release the air tube from the push-to-connect fitting?Before attempting to remove the tube, ensure the system is completely depressurized. Then, push the plastic release ring inward (towards the brass fitting) and simultaneously pull the tube out. Never force the tube out without pressing the ring, as this will damage the internal locking claws.
Target Users / Applications
Target Users / Applications
- Factory Automation Maintenance: Replacing broken speed controllers on pneumatic sorting machines and conveyor belts.
- Animatronics & Prop Builders: Fine-tuning the speed of pneumatic cylinders to create lifelike, smooth movements in haunted house props or stage effects.
- Coffee Roaster Modders: Upgrading pneumatic bean release doors on commercial coffee roasting machines.
- DIY Robotics Hobbyists: Controlling the grip speed of pneumatic end-effectors on custom robotic arms.
