IPC-5100 Plus 4K H.265 IP & Analog CCTV Camera Tester with PoE

Overview: The IPC-5100 Plus is an essential all-in-one professional tool for CCTV installers and technicians. Featuring a vivid 5.4-inch IPS touchscreen with 1920x1080 resolution, this versatile tester supports a wide range of camera types including IP (H.265/H.264), 8MP TVI, AHD, CVI, and traditional CVBS analog cameras. Its robust design and comprehensive features streamline installation, maintenance, and troubleshooting, making your job faster and more efficient.

Key Features & Benefits:

• Universal Camera Compatibility:

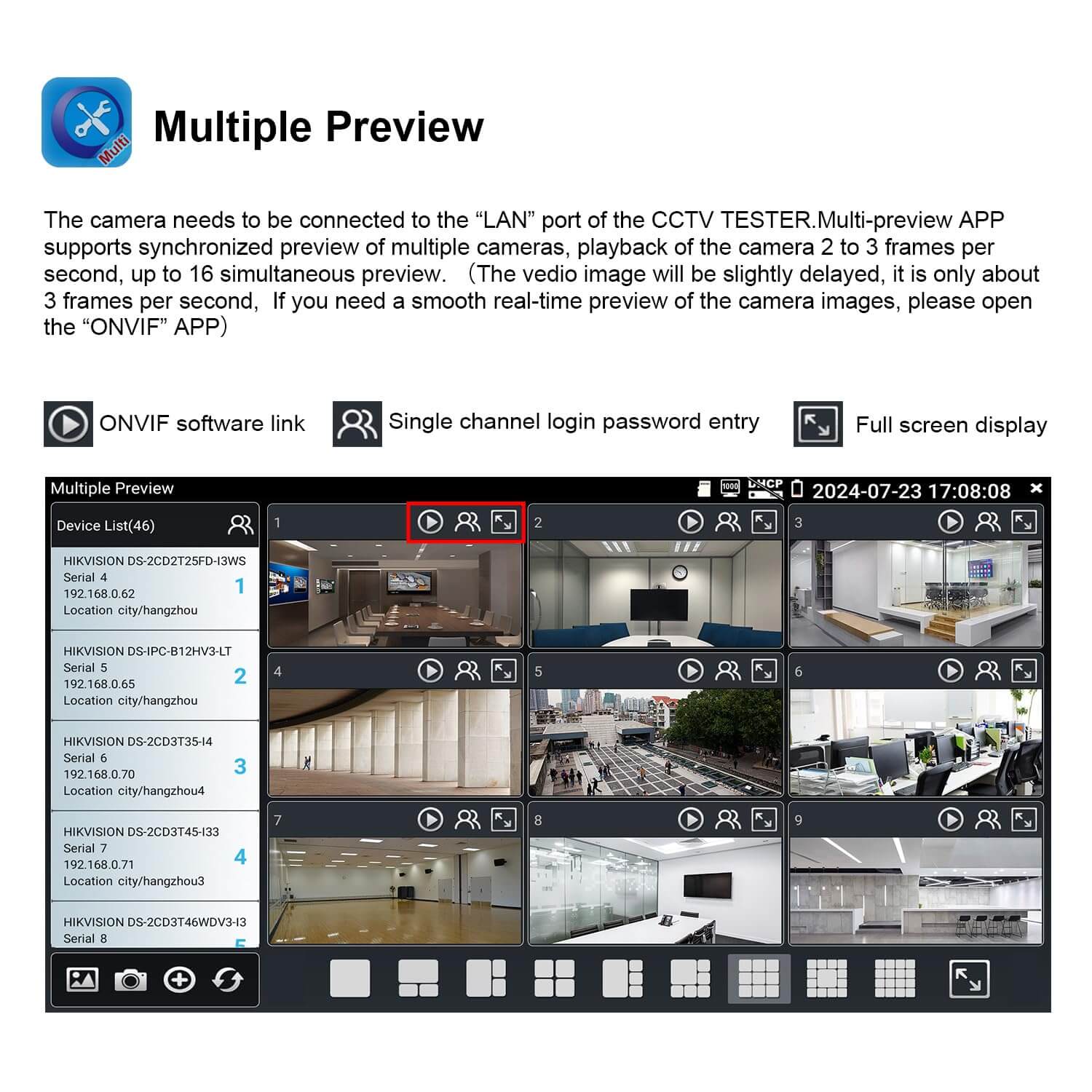

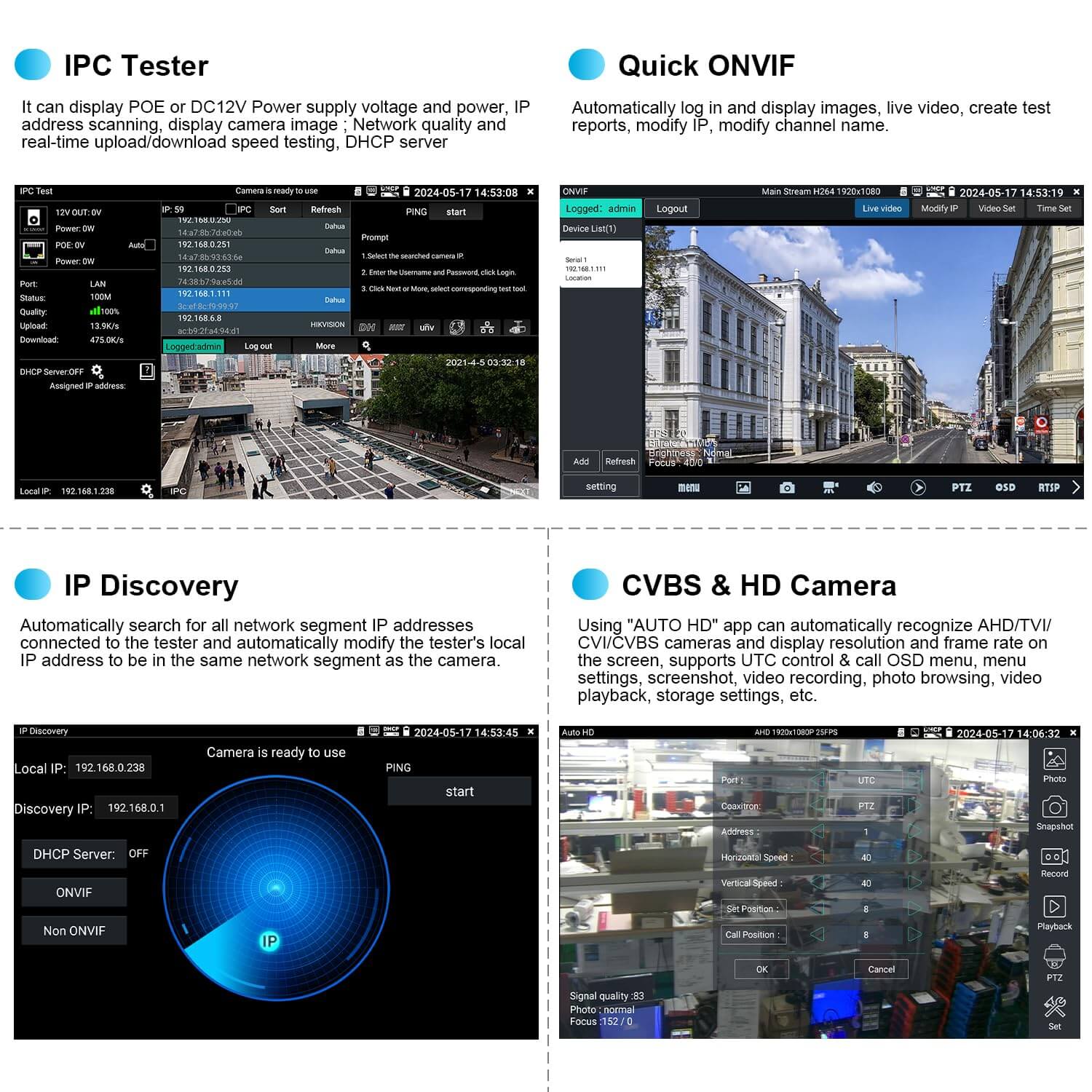

  • IP Camera Testing: Supports H.265 and H.264 IP cameras with 4K video display. Features include Quick ONVIF, IPC test pro (auto scan IP segments, auto PoE power display), RTSP play, and client APK support. Batch activate Hikvision and Dahua cameras, modify IP addresses, and set channel names.

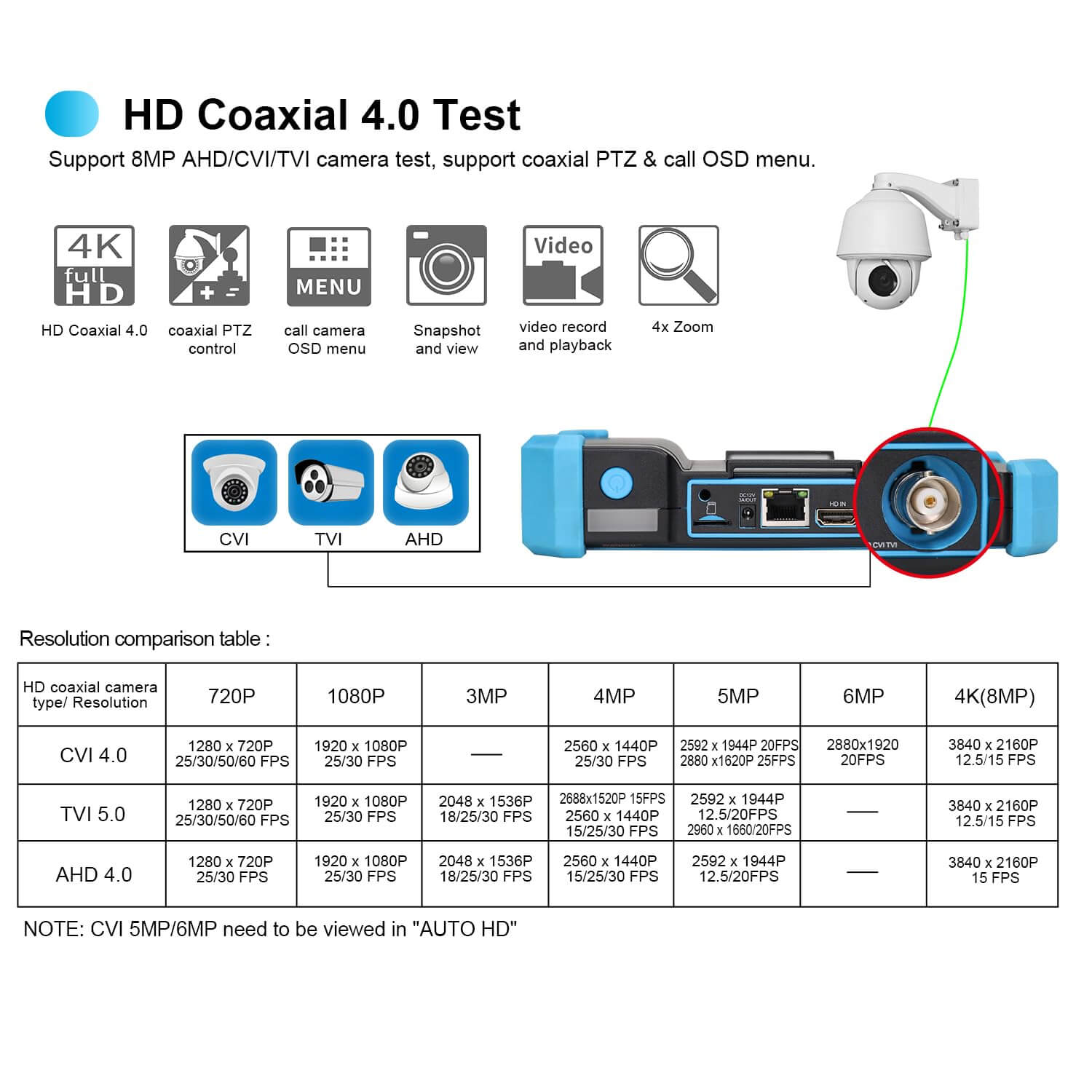

  • HD Coaxial 4.0 Test (8MP Support): Test and configure 8MP TVI, CVI, and AHD cameras. Features "Auto HD" to automatically recognize camera type and resolution. Supports coaxial PTZ control and OSD menu access for easy camera adjustments.
  • Analog (CVBS) Camera Testing: Full support for NTSC/PAL auto-adapting CVBS analog cameras with PTZ control via RS485 (compatible with over 30 protocols like PELCO-D, PELCO-P).

• Integrated Display & Input:

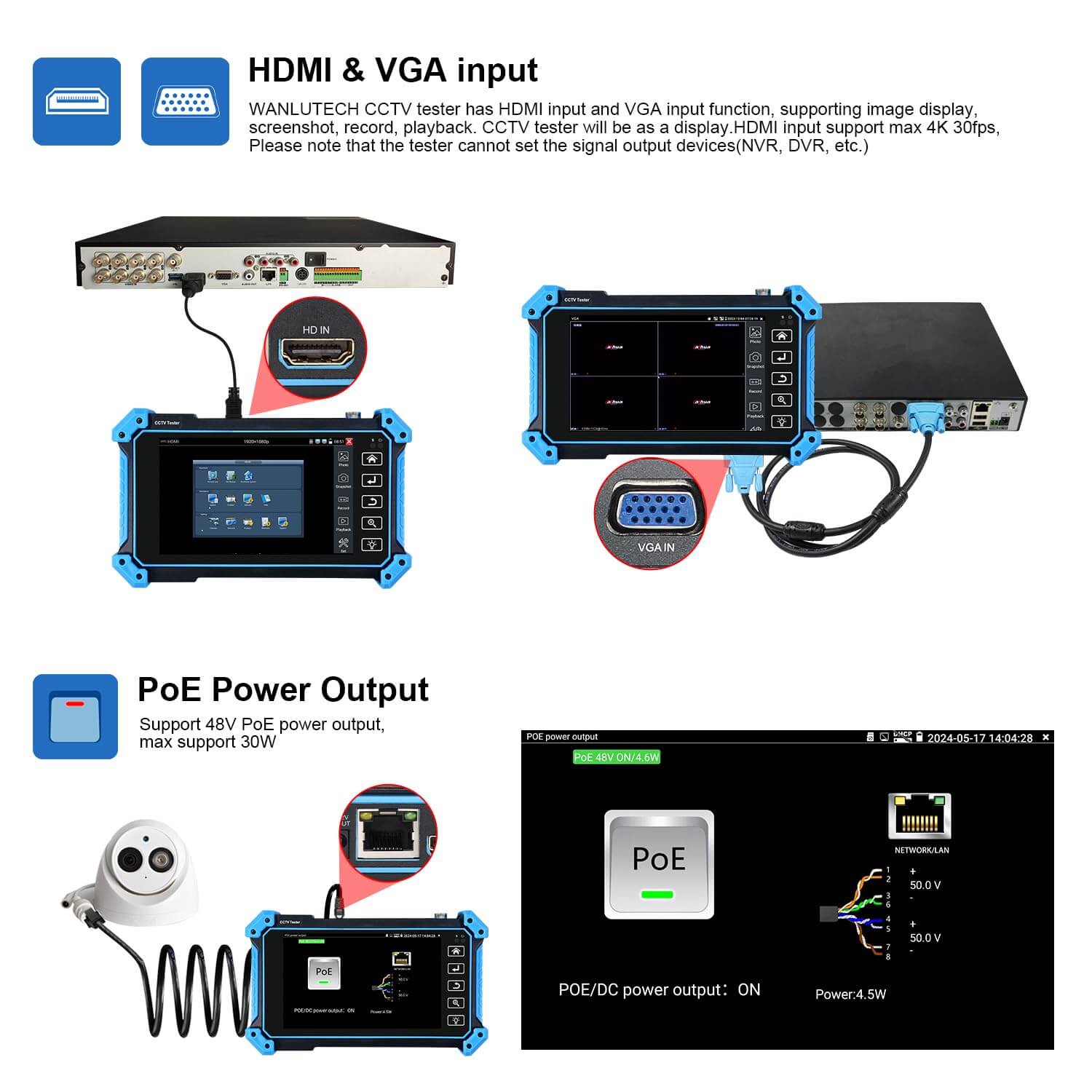

  • HDMI Input: Connect and display video output from DVRs, NVRs, or other HDMI devices up to 4K @ 30FPS.
  • VGA Input: Connect and display video from VGA sources up to 1920x1200P @ 60FPS.

• Power Solutions:

  • PoE Power Output: Provides 48V PoE power output with a maximum power of 30W, allowing you to power IP cameras directly from the tester.
  • DC12V/3A Power Output: Conveniently power cameras temporarily on-site.

• Advanced Cable Testing:

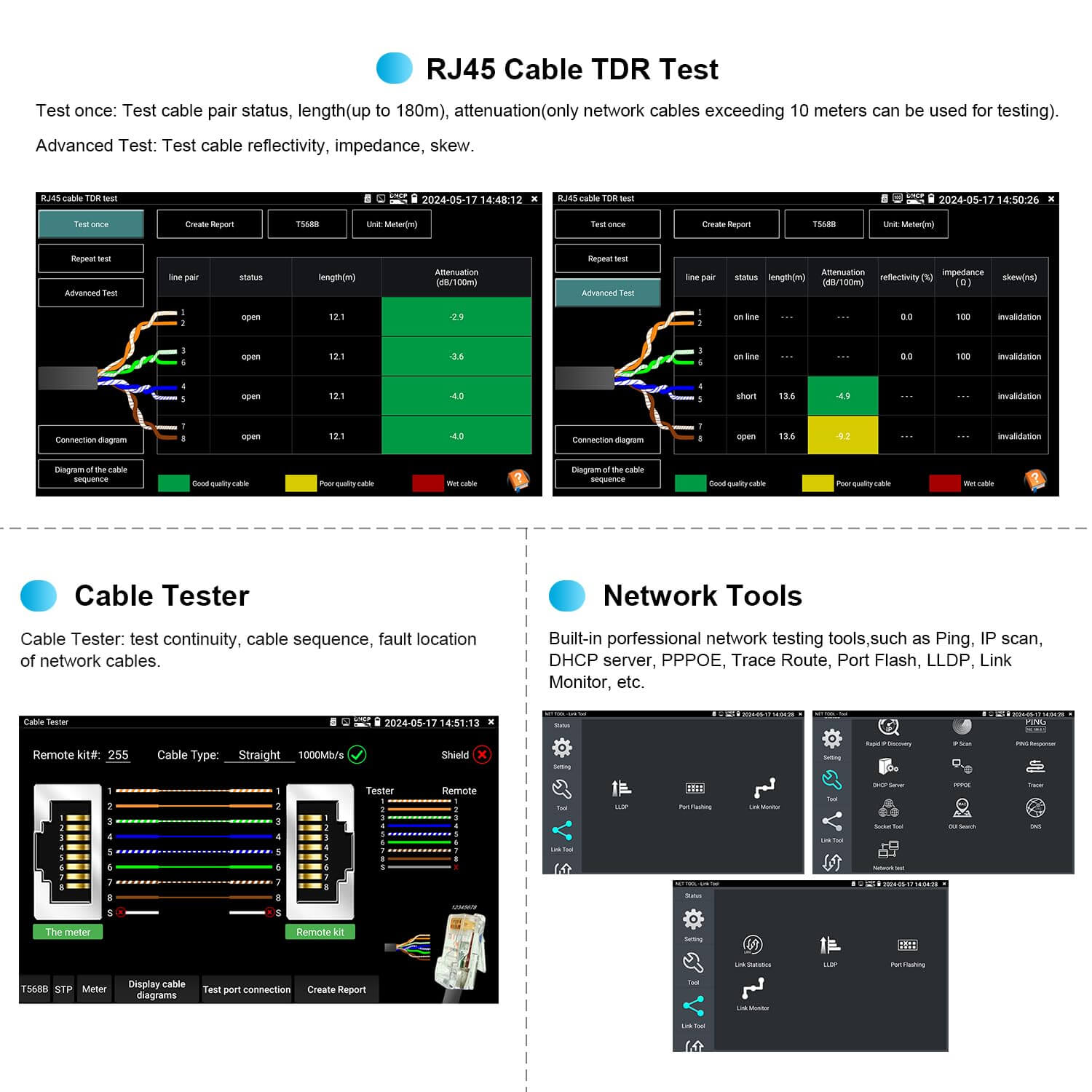

  • RJ45 Cable TDR Test: Accurately measure cable pair status, length, attenuation, reflectivity, impedance, and skew. Generate and save detailed test reports.
  • UTP/Telephone Cable Test: Check cable connectivity and order, identifying near-end, mid-end, and far-end fault points.

• Network & Connectivity Tools:

  • Built-in Wi-Fi: Display images from wireless cameras and create a Wi-Fi hotspot for on-site connectivity.
  • Network Diagnostics: Includes Ping, IP Scan, Port Flash, DHCP Server, and Trace Route for comprehensive network troubleshooting.

• User-Friendly Design:

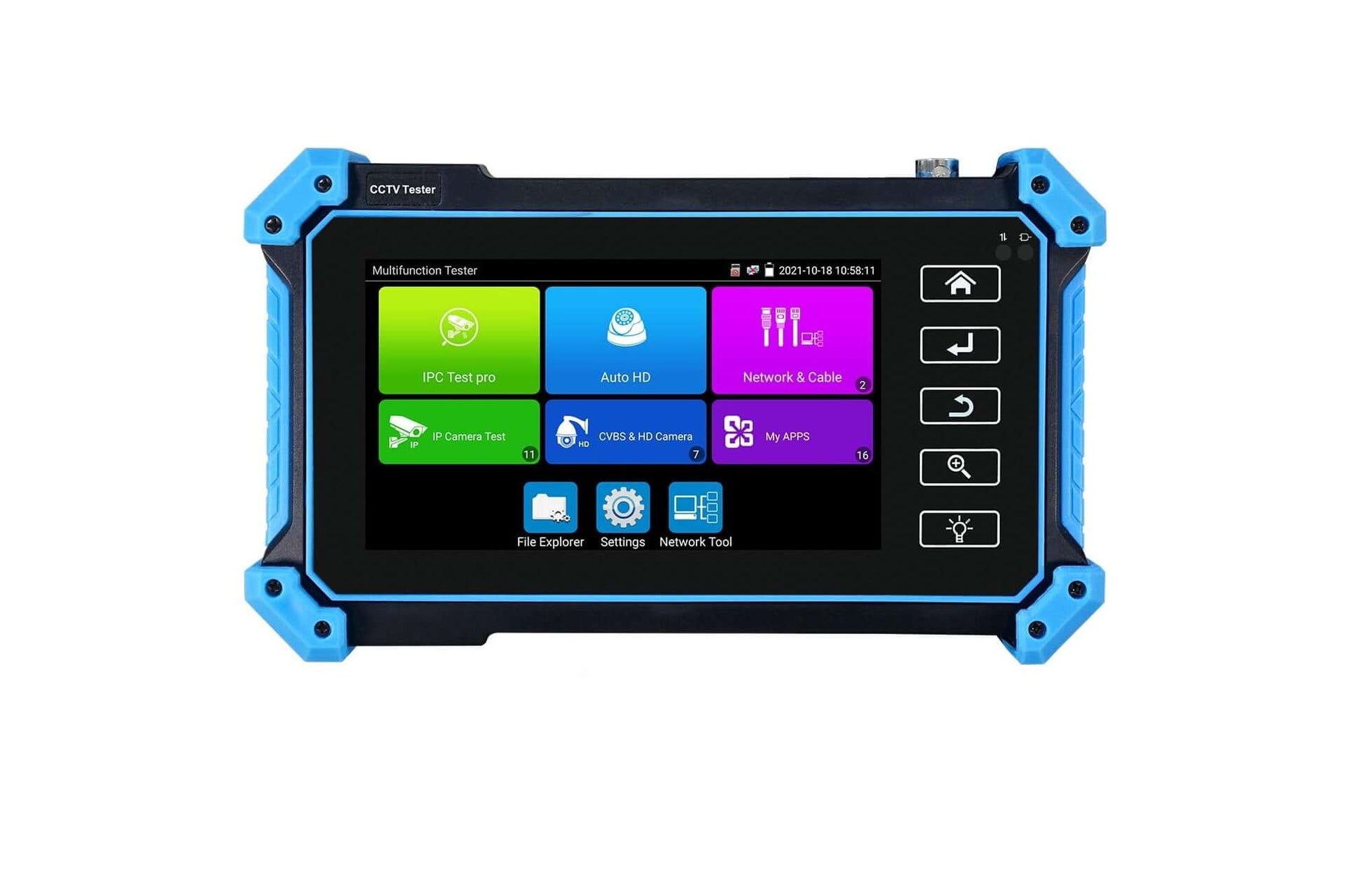

  • 5.4-inch IPS Touchscreen: Intuitive interface for easy navigation and operation.

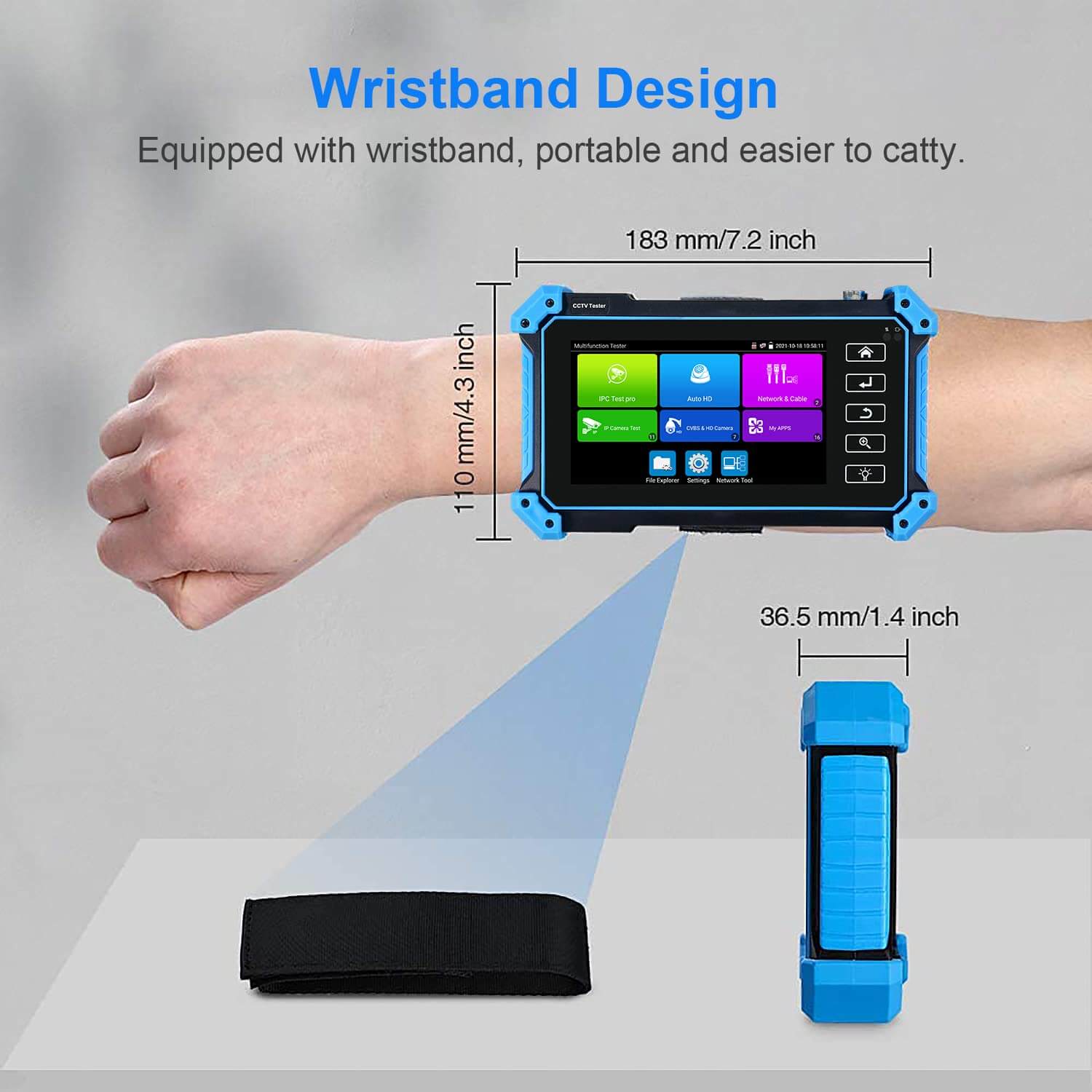

  • Wristband Design: Equipped with a wristband for portable and easier handling during fieldwork.
  • Long Battery Life: Built-in 7.4V, 3350mAh Li-ion battery for extended use on a single charge.

Applications: Ideal for CCTV camera installation, system maintenance, troubleshooting, and network cabling verification in residential, commercial, and industrial settings.

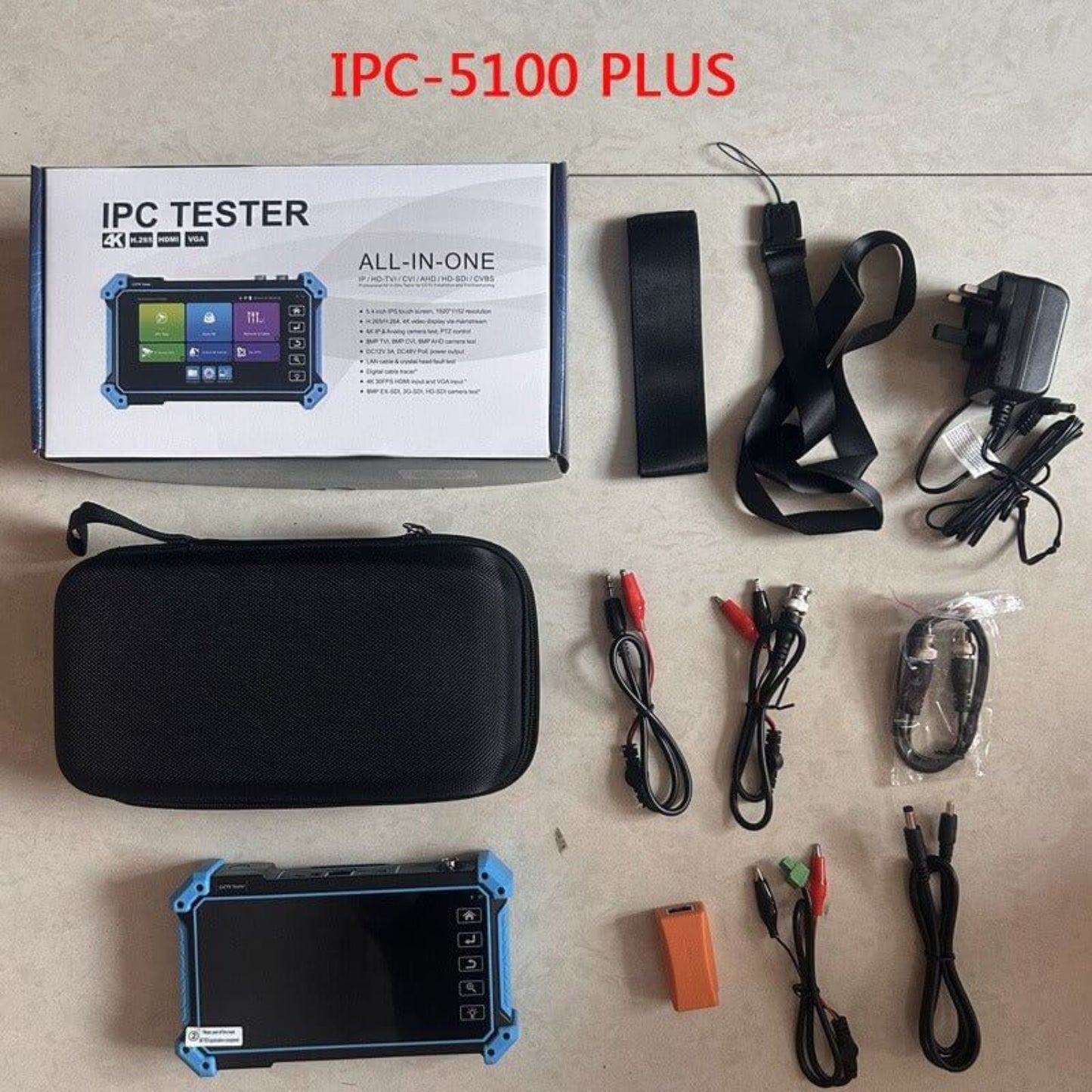

What's Included:

• IPC-5100 Plus CCTV Tester
• Carrying Case
• Power Adapter (UK plug type shown)
• Wristband
• Various connecting cables (BNC, audio, power)

• Cable Tester
