UNI-T UTi260E Industrial Thermal Imager Camera - 256x192

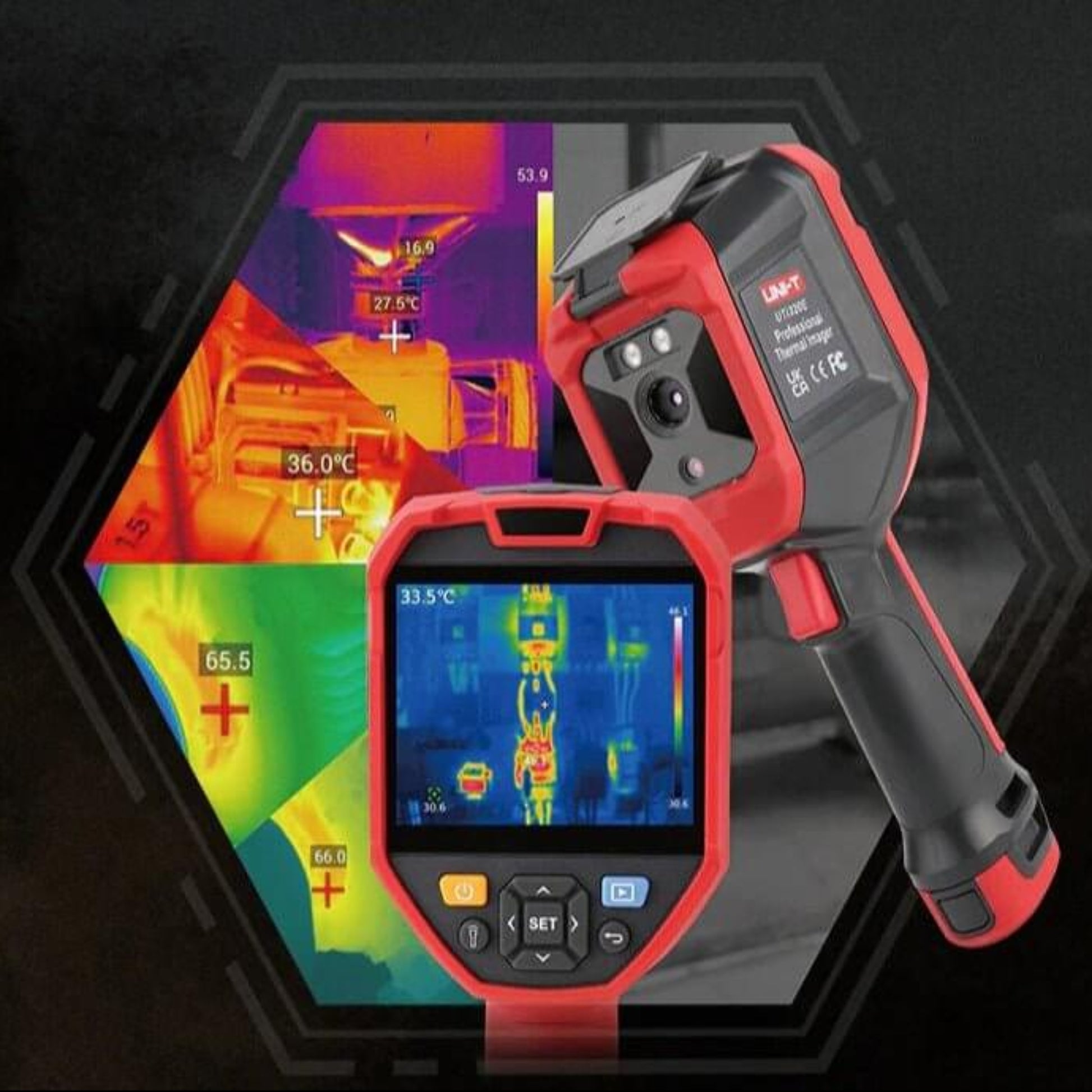

Overview: The UNI-T UTi260E is a robust, professional-grade handheld industrial infrared thermal imager designed for precise temperature diagnostics across a wide range of applications. With its high 256x192 infrared resolution and 2MP visible light fusion, it delivers exceptionally clear and detailed thermal imagery in real-time, helping you quickly identify issues that are invisible to the naked eye. This thermal camera is an essential tool for professionals in electrical, mechanical, and building inspection.

Key Features & Benefits:

• Superior Imaging & Clarity:
  • High Infrared Resolution: 256x192 pixels (49,152 measurement points) captures minute temperature variations with precision.
  • Visible Light Integration: 2-megapixel visible light camera for image fusion, providing a combined thermal and visual overlay for enhanced context and detail.
  • Large 3.5" LCD Display: Offers a clear, vibrant view of thermal images and data.

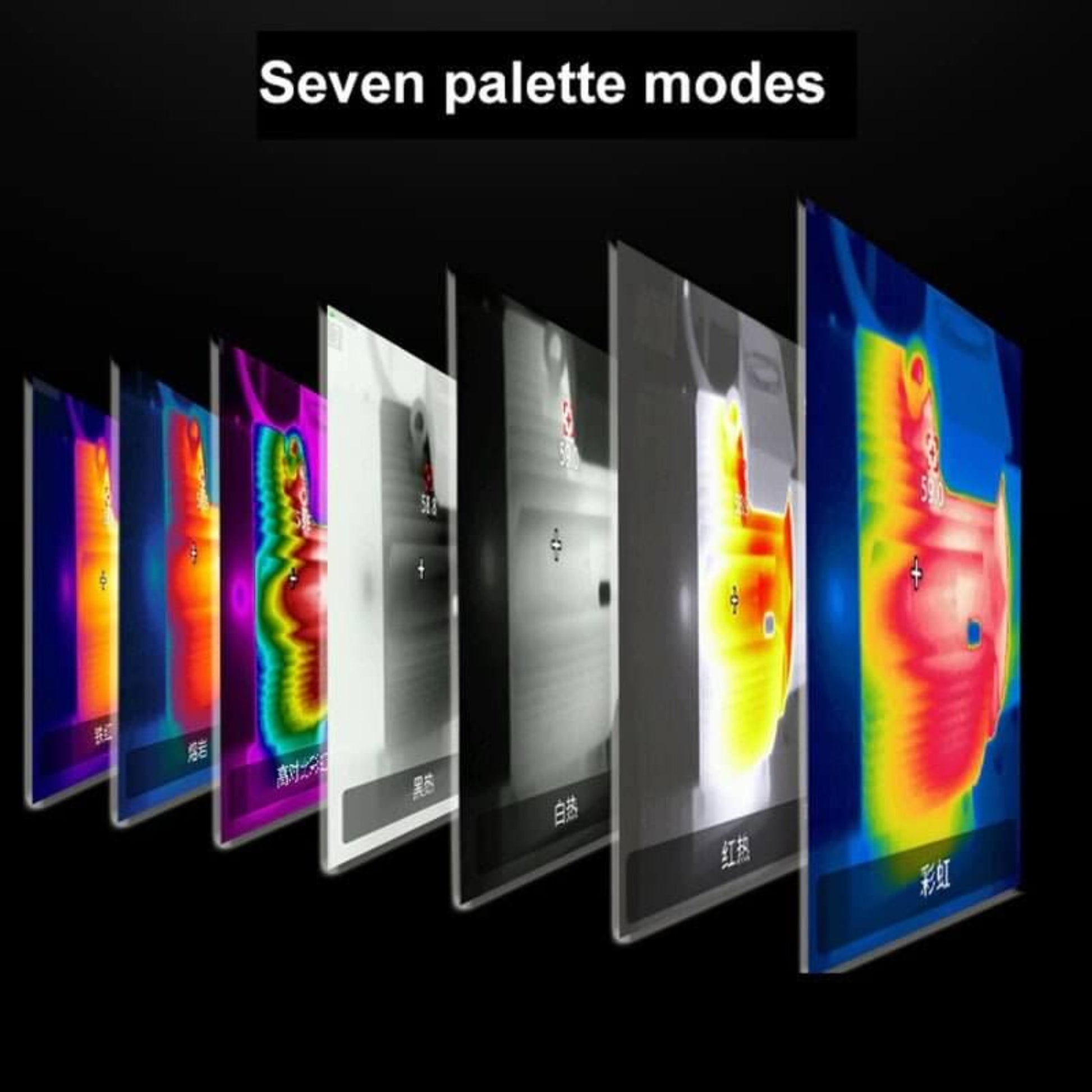

  • Seven Color Palettes: Choose from Iron Red, Rainbow, White Hot, Red Hot, Black Hot, Lava, and High Rainbow to best visualize temperature distributions for different scenarios.

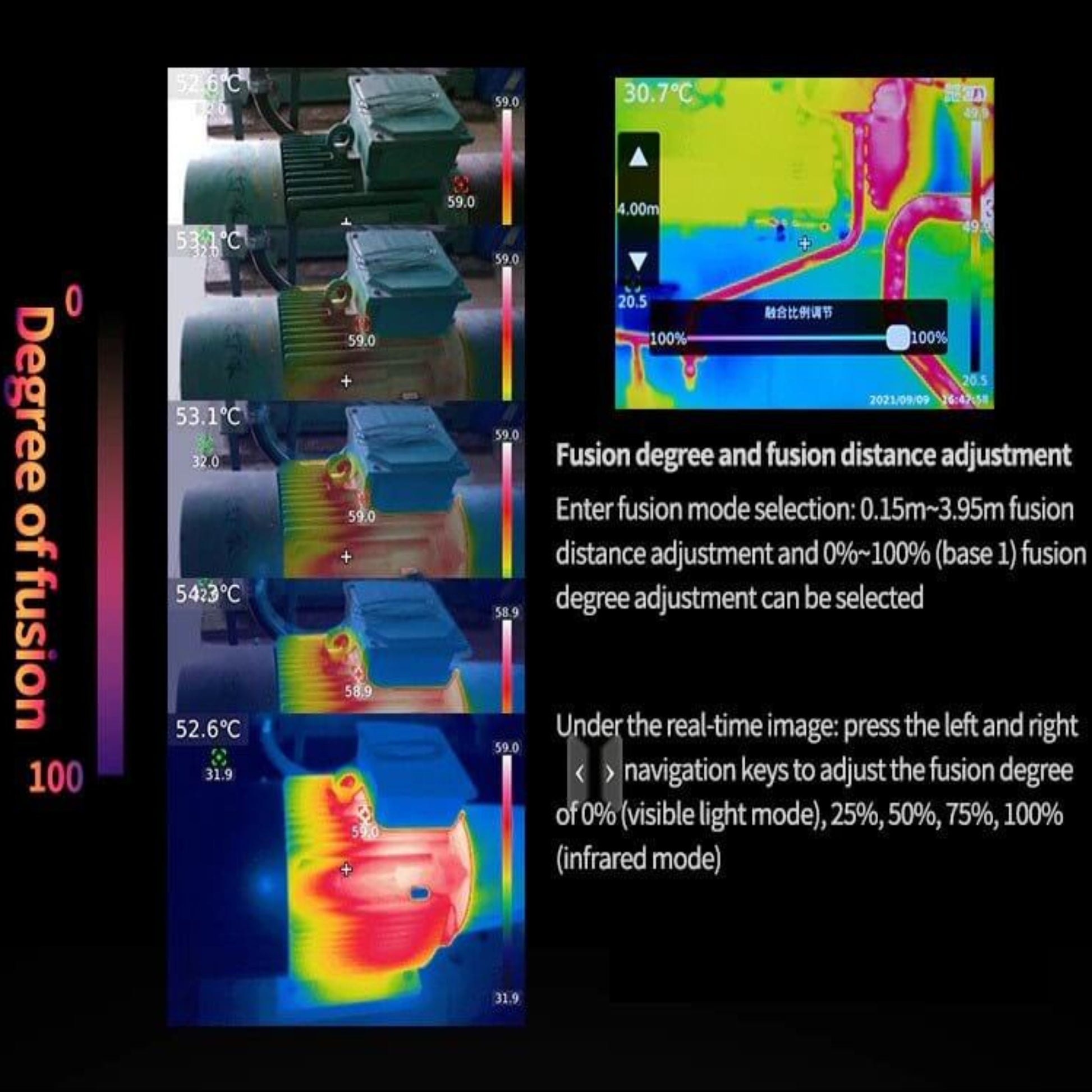

  • Adjustable Fusion Degree: Seamlessly blend thermal and visible light images from 0% (visible light) to 100% (infrared) for optimal analysis.
• Exceptional Performance:
  • Wide Temperature Range: Measures temperatures from -20°C to 550°C, suitable for diverse industrial and commercial applications.
  • High Frame Rate (25Hz): Ensures smooth, real-time thermal imaging, crucial for monitoring dynamic processes.
  • High Accuracy: Reliable measurements with an accuracy of ±2∘C or $\pm 2\%$, whichever is maximum.
  • Durable & Reliable: IP54 protection rating and 2-meter drop resistance ensure durability in challenging environments.
• Advanced Measurement & Analysis:

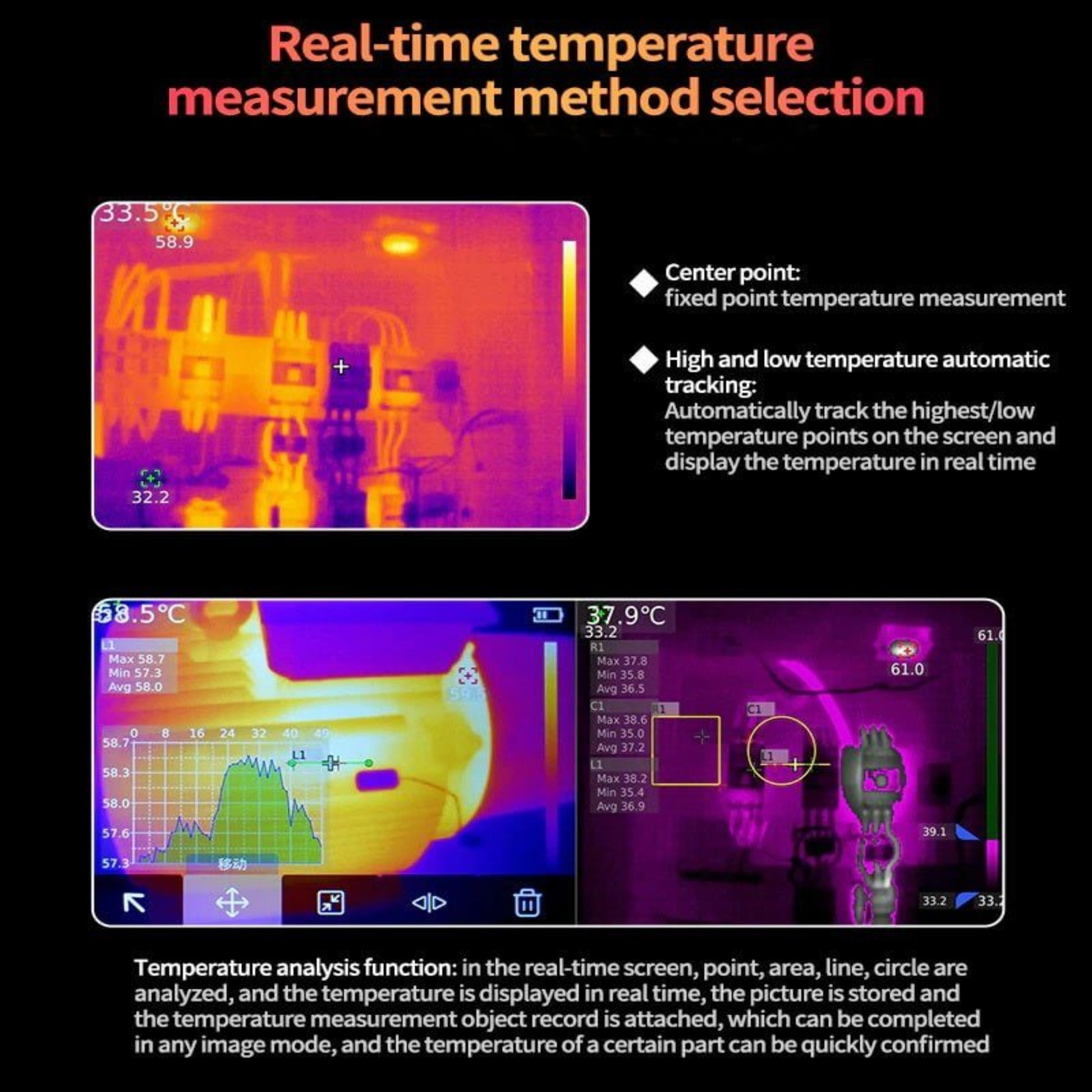

  • Flexible Temperature Measurement: Includes center point, auto hot/cold spot tracking, and custom analysis for points, rectangles, circles, and lines.
  • Isotherm Function: Set high and low temperature limits to easily identify areas within a specific temperature range.
  • High/Low Temperature Alarms: Get instant alerts for critical temperature deviations.
  • Built-in LED Flashlight: Illuminates dark areas for improved visual inspection.
  • Digital Zoom: 2x and 4x digital zoom to magnify areas of interest.
• Seamless Data Management & Connectivity:
  • PC Software Included: Comprehensive software for real-time screen projection, detailed thermal image analysis, picture viewing, and report generation.
  • Wi-Fi Connectivity: Transfer images effortlessly to your mobile device via the dedicated app for quick sharing and reporting.
  • Generous Storage: Comes with a 32GB SD card for ample image storage.

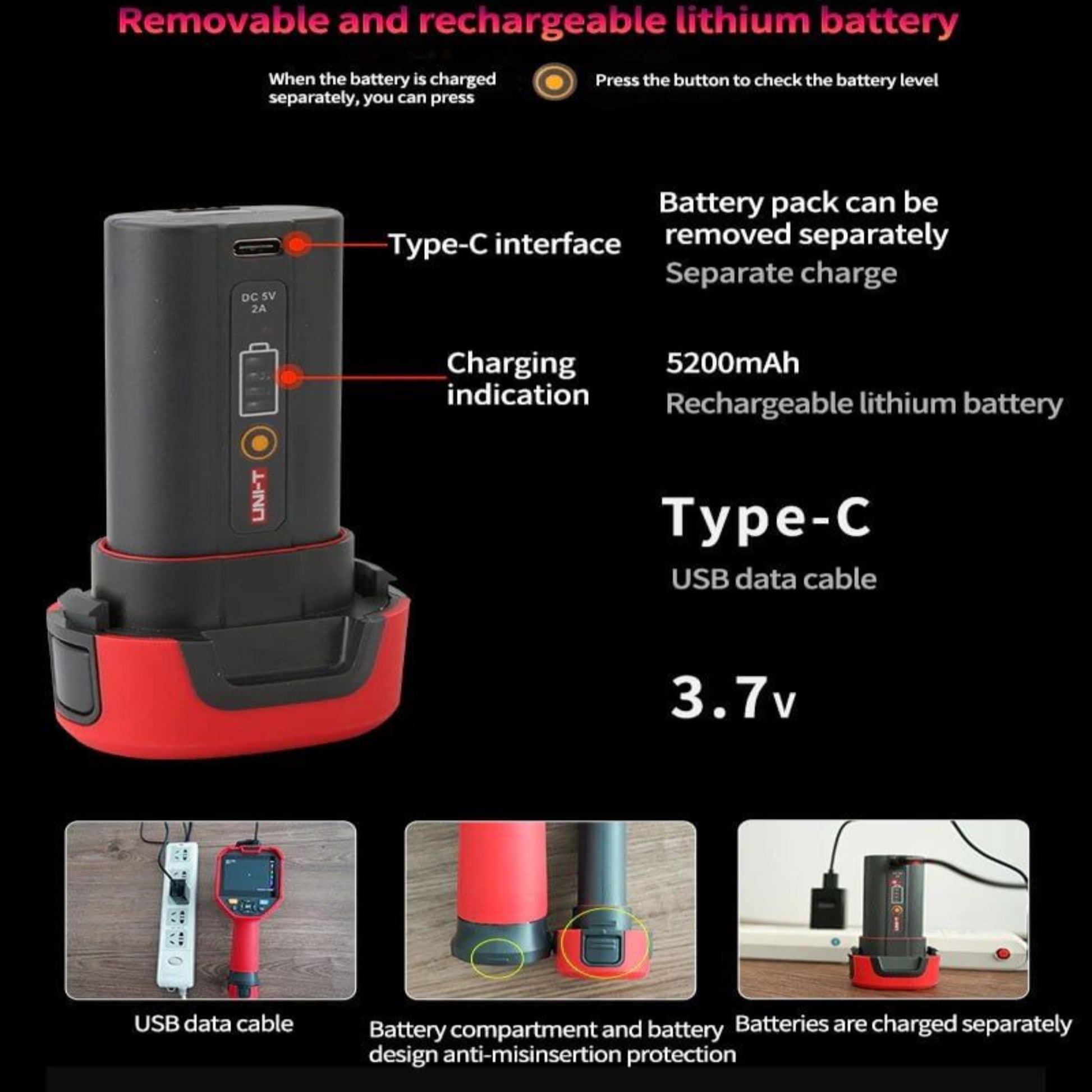

  • Removable & Rechargeable Battery: Features a 5200mAh lithium battery that can be charged directly via USB Type-C or separately, ensuring continuous operation.

Versatile Applications: The UNI-T UTi260E is an indispensable tool for:

• Electrical Inspections: Identifying overheating components, loose connections, and imbalances in electrical panels, motors, and wiring.
• HVAC & Building Diagnostics: Detecting air leaks, insulation deficiencies, moisture issues, and blockages in HVAC systems and building envelopes.
• Industrial Maintenance: Monitoring machinery, bearings, and pipelines for abnormal temperatures to predict and prevent equipment failure (e.g., tin furnace, transmission pipelines).
• PCB Inspection: Pinpointing hot spots and anomalies on circuit boards for quality control and troubleshooting.
• Plumbing: Locating leaks and clogs in hidden pipes.
• Research & Development: Analyzing thermal performance of prototypes and systems.

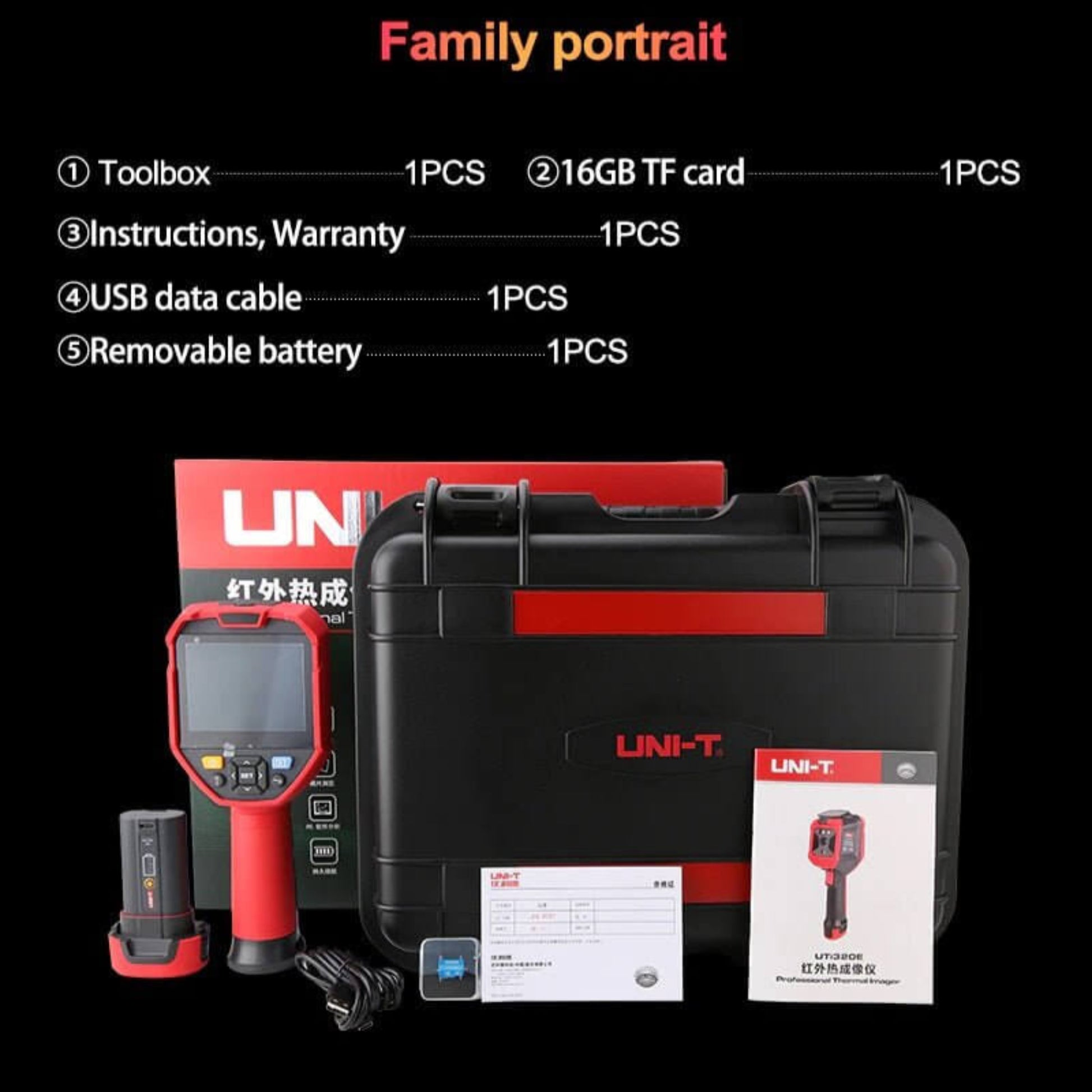

What's Included:

• 1 × UNI-T UTi260E Thermal Camera
• 1 × Rechargeable Lithium Battery
• 1 × USB Type-C Charging Cable
• 1 × User Manual
• 1 × Hard Carrying Case
• 1 × 32GB SD Card
