DIY Heart Rate Monitor Kit for Arduino

Build Your Own Real-Time Heart Rate Monitor!

Dive into the world of biometrics and electronics with our all-in-one DIY Heart Rate Monitor Kit. Perfect for students, hobbyists, and anyone curious about technology, this kit provides everything you need to build a device that measures and displays your heartbeat in real time.

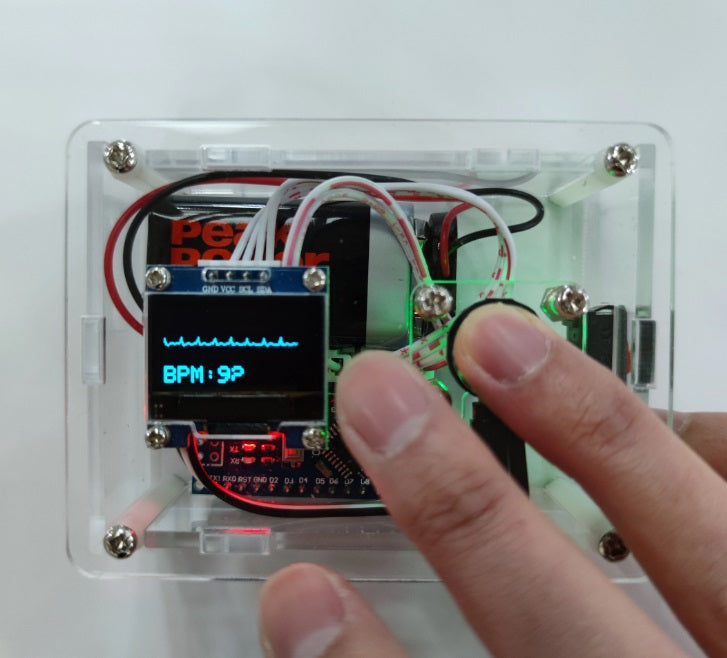

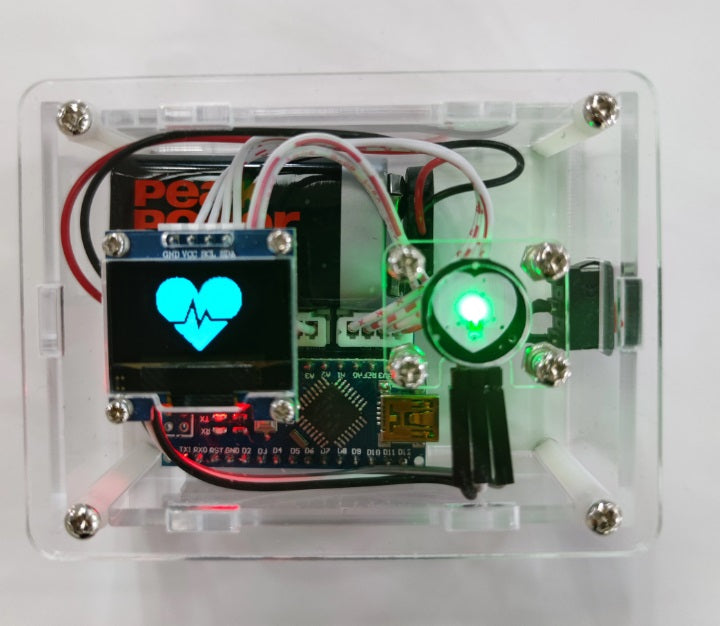

Place your finger on the high-sensitivity pulse sensor and watch as your heart rate (in beats per minute) and a live ECG-style waveform appear on the crisp OLED display. It's a fun, engaging, and educational project for all skill levels.

How It Works: The monitor uses a technique called Photoplethysmography (PPG). A bright green LED illuminates the capillaries in your fingertip, and a sensor measures the tiny changes in light reflection caused by your blood pulsing through them. The powerful Arduino NANO processor then converts this data into an accurate heart rate reading.

Key Features:

• Real-Time Monitoring: See your live pulse waveform and beats per minute (BPM).
• Clear OLED Display: High-contrast screen for easy viewing of data.
• Arduino NANO Powered: Based on the popular and easy-to-use Arduino platform.
• All-Inclusive Kit: Comes with all necessary components, wires, and assembly tools.

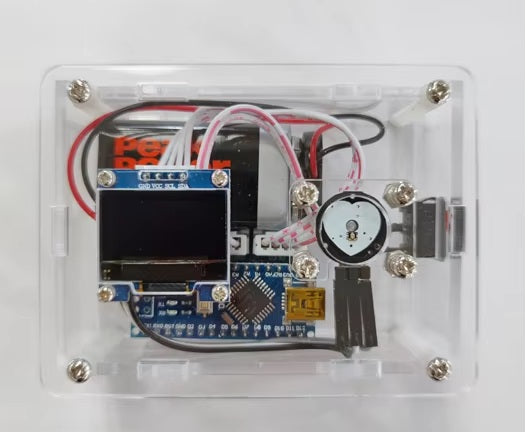

• Protective Acrylic Case: A stylish and durable transparent case to house your finished project.
• Great for Learning: An excellent hands-on introduction to programming, electronics, and biometric sensors.

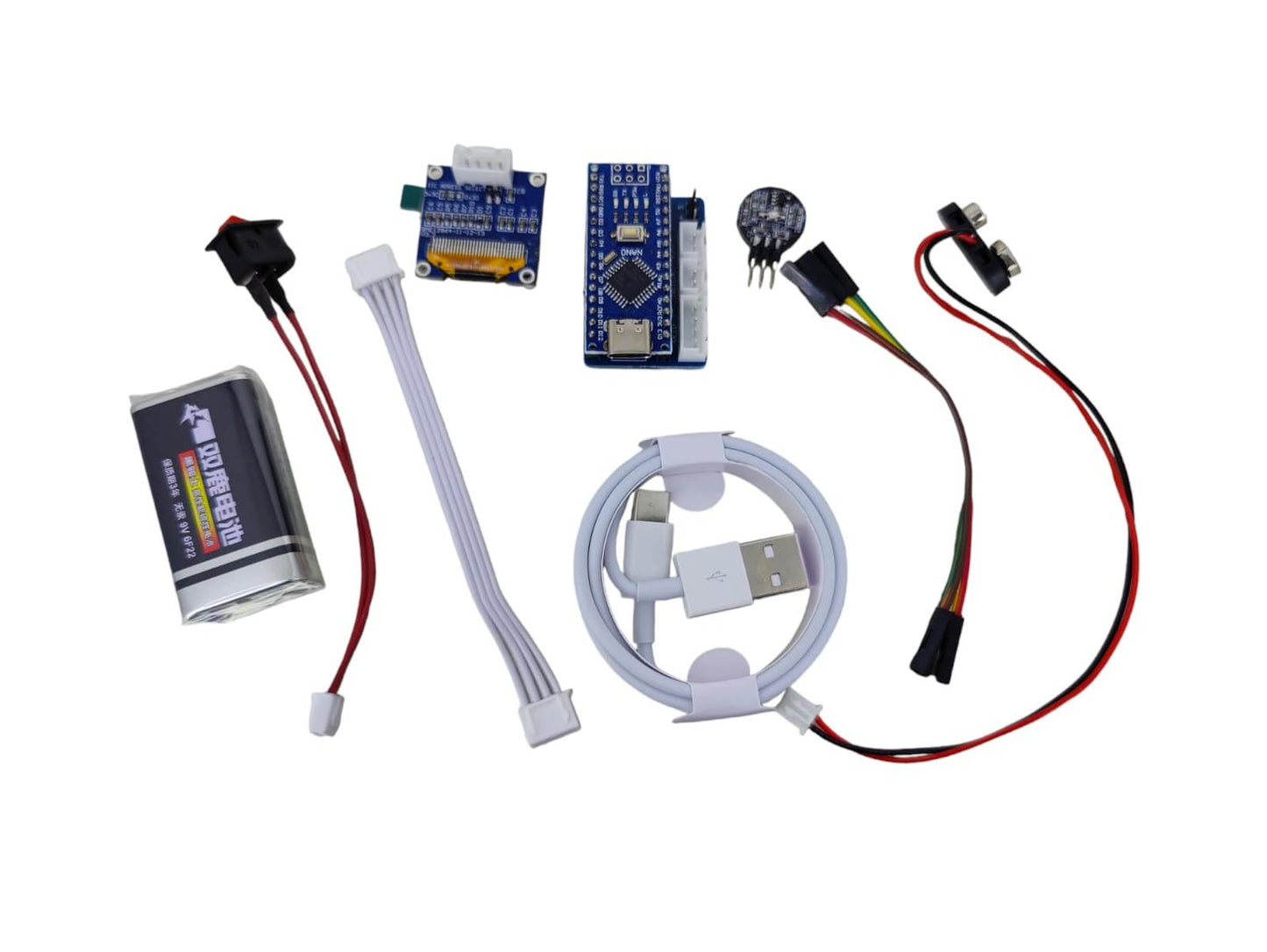

What's in the Box:

• Arduino NANO Microcontroller
• OLED Display Screen
• Pulse Sensor Module
• 9V Battery Connector with Power Switch
• All necessary connecting cables

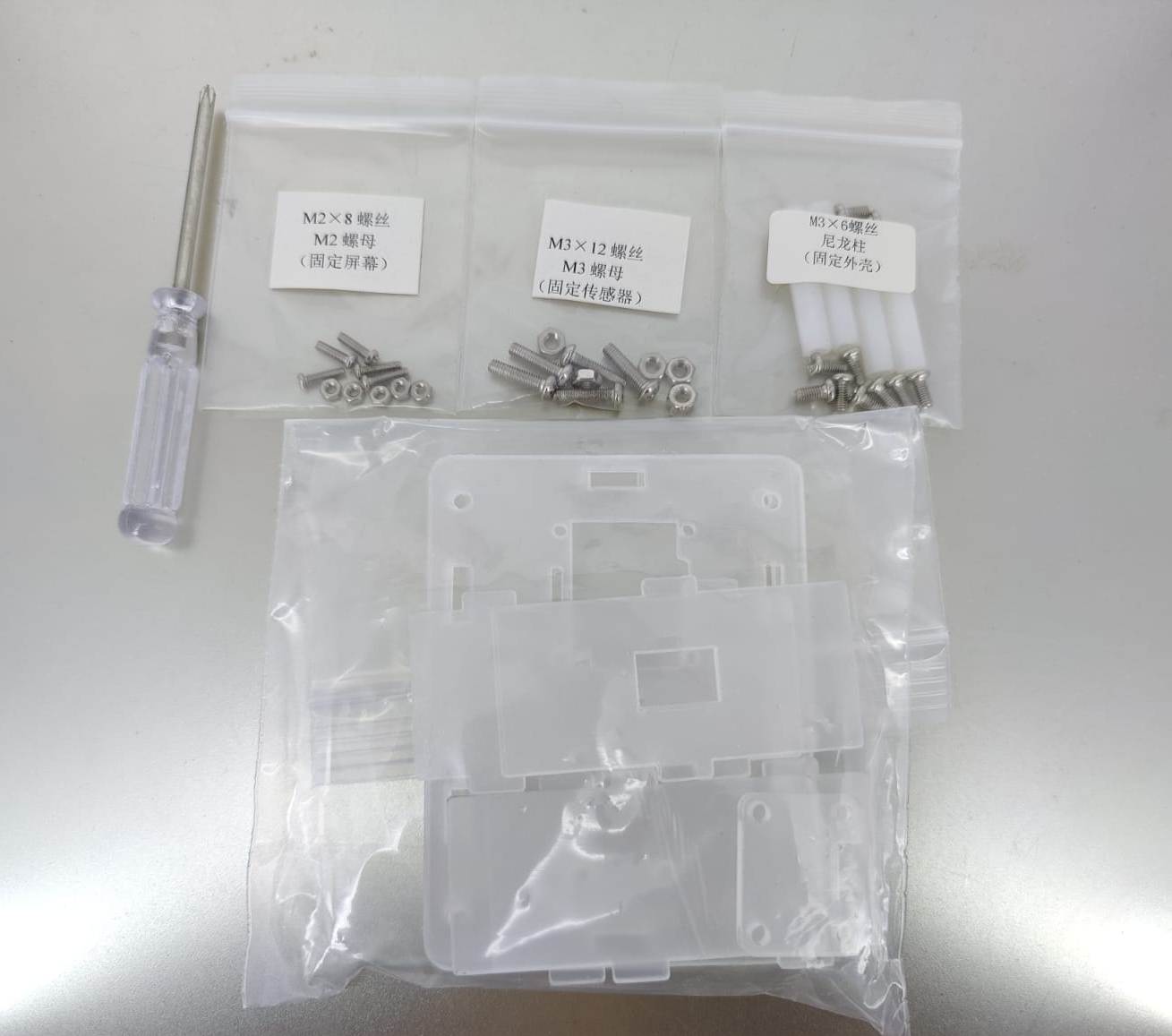

• High-Quality Acrylic Case parts
• Screws, nuts, and standoffs
• Screwdriver for assembly

Specifications:

• Main Controller: Arduino NANO
• Operating Voltage: 5V
• Dimensions (Assembled): Approx. 80mm x 60mm x 36mm
• Case Material: Laser-cut Acrylic

Please Note: This is a DIY kit that requires assembly. Full instructions are provided.
