Simplify Your CCTV Installation with Power and Video Over a Single Cable!
Tired of running separate power and video cables for your security cameras? Our HD Video & Power Transmitter Kit is the perfect solution. This innovative device allows you to transmit both high-definition video and stable DC power to your camera using just one standard 75-5 coaxial cable, saving you time, effort, and material costs.
Extend your signal up to 400 meters (1300 ft.) without any loss of picture quality. It’s the ideal choice for streamlining new installations or upgrading existing analog systems to HD with minimal rewiring.
Key Features & Benefits:
- One Cable for All: Transmits both HD video (AHD/CVI/TVI) and power over a single coaxial cable.
- Long-Distance Transmission: Delivers a clear, distortion-free video signal up to 400 meters (1300 ft.).
- Universal HD Support: Fully compatible with 1080P, 960P, and 720P AHD, CVI, and TVI CCTV cameras.
- Stable Power Supply: Features high-efficiency power switch technology, converting a DC 24-36V input to a stable DC 12V output for your camera.
- Enhanced Anti-Interference: Professional design minimizes signal interference, ensuring a reliable and clear picture.
- Plug & Play: Incredibly easy to install, saving up to 50% on labor time. No configuration required.
How It Works:

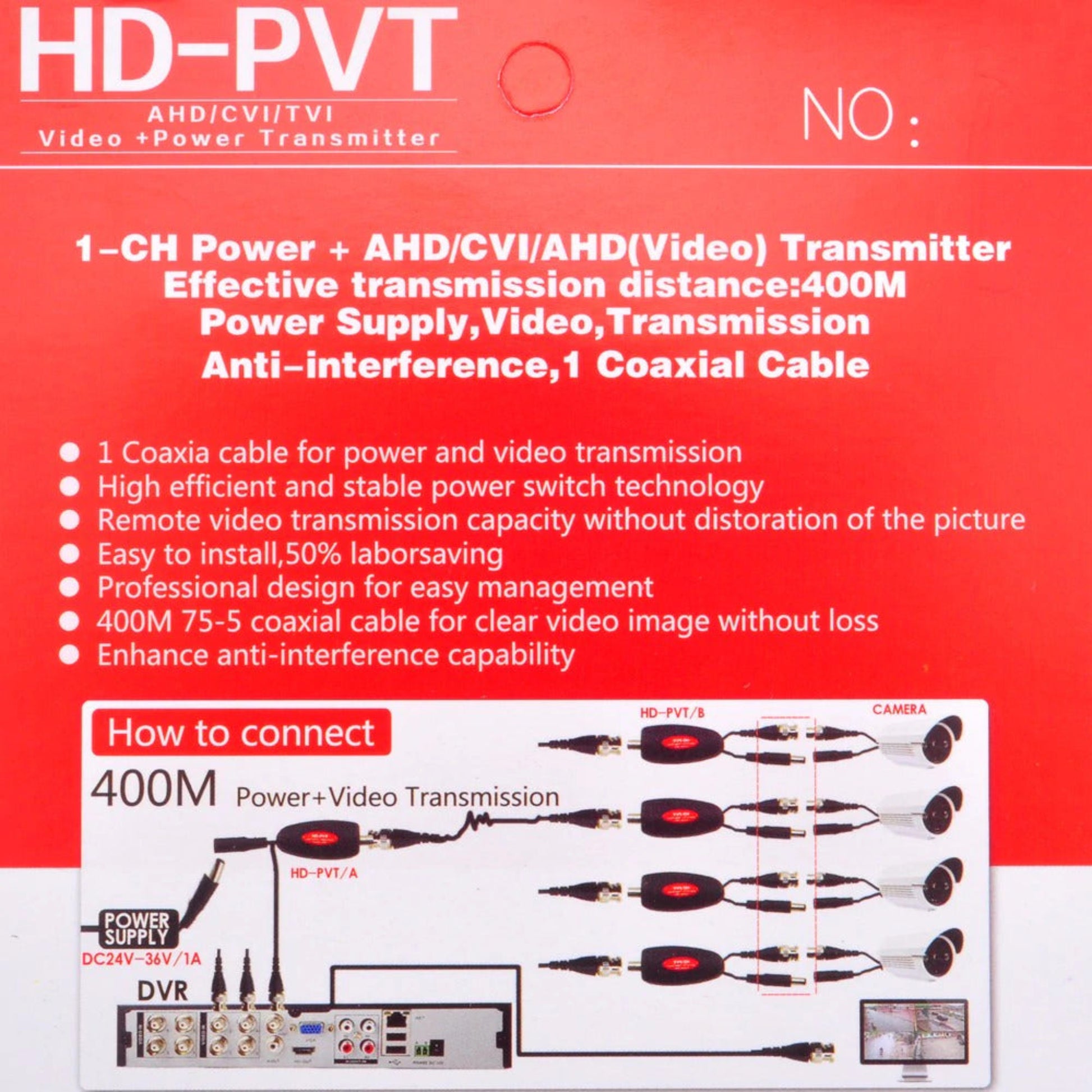

Simply connect the transmitter unit (HD-PVT/A) to your DVR and power supply. Then, connect the receiver unit (HD-PVT/B) to your camera. The two units are linked by a single coaxial cable, which now carries both video and power.
Technical Specifications:
| Item | Specification |
| Function | 1-Channel HD Video + Power over Coax |
| Input Power (A) | DC 24-36V |
| Output to Camera (B) | DC 12V / 1A |
| Max Distance | 400m (1300 ft.) via 75-5 Coaxial Cable |
| Supported Formats | AHD / CVI / TVI |
| Supported Resolutions | 1080P / 960P / 720P |

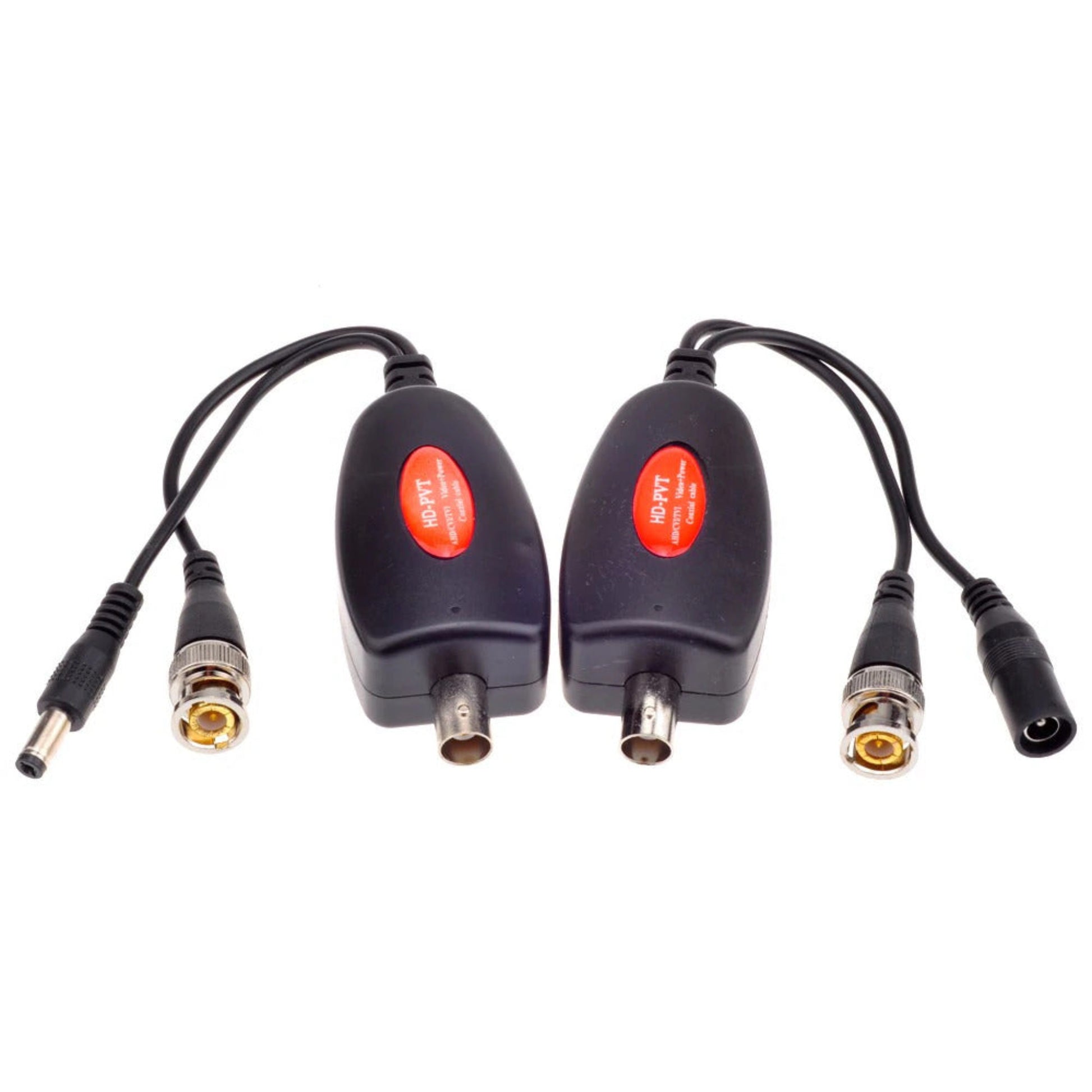

| Connectors | BNC Male/Female, DC Male/Female |
| Impedance | 75 Ohm |
| Operating Temp. | -20°C to 75°C |

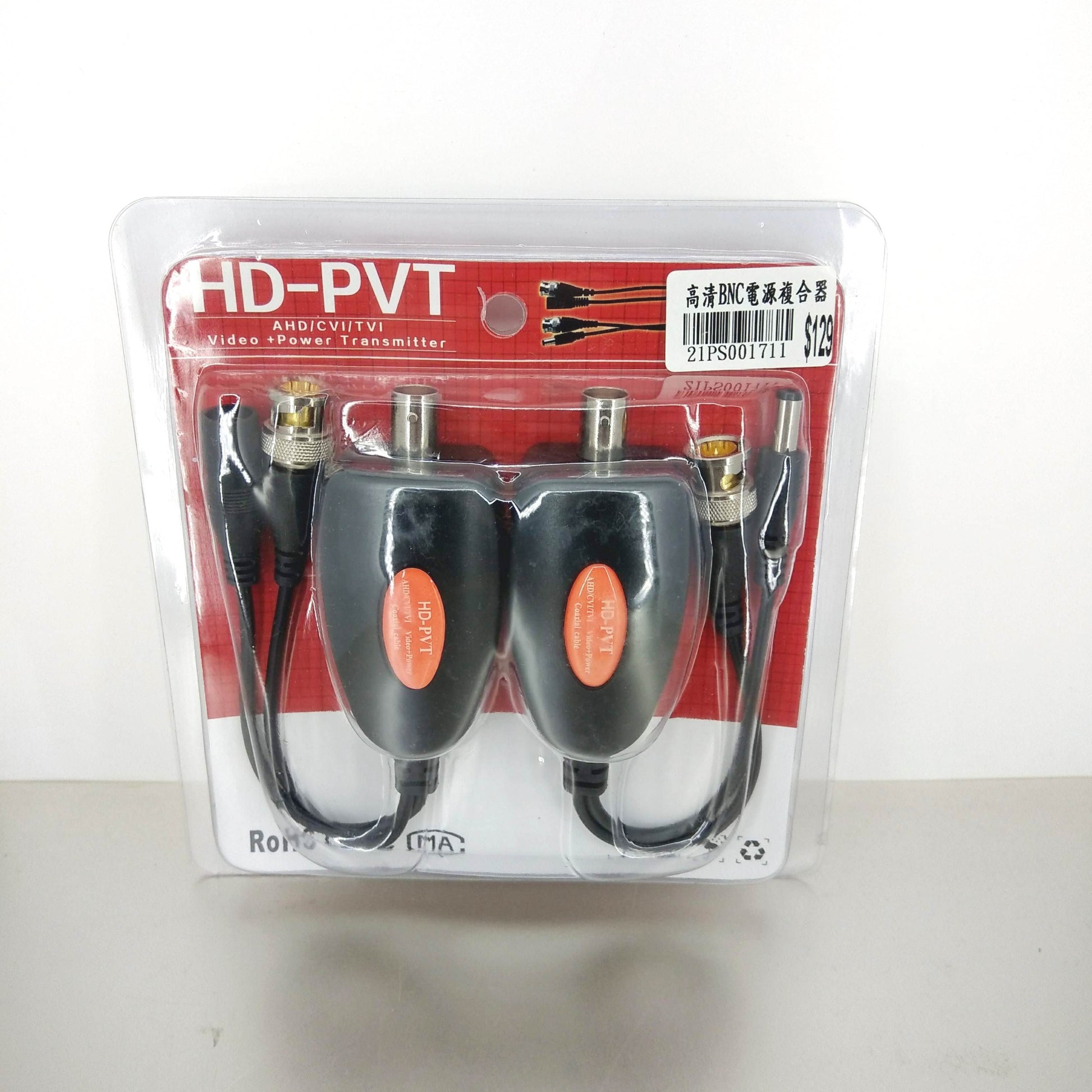

Package Contents:
- 1 x HD-PVT Transmitter (A)
- 1 x HD-PVT Receiver (B)
