HC-USB-T USB to TTL Adapter Board | Bluetooth Module AT Command Test
HC-USB-T USB to TTL Adapter Board | Bluetooth Module AT Command Test
Couldn't load pickup availability
Short Product Description
Short Product Description
Streamline your IoT and STEM projects with the HC-USB-T USB to TTL Parameter Rack. Designed for seamless Bluetooth module testing and configuration, this plug-and-play adapter allows you to quickly set up AT commands without messy jumper wires. Ideal for hardware prototyping and engineering tests. Includes a complimentary Micro-USB cable.
Key Features
Key Features
- Driver-Free Operation: Native plug-and-play capability via HID ensures immediate recognition by your PC, saving setup time.
- Direct AT Command Support: Effortlessly program, test, and troubleshoot Bluetooth parameters without writing complex microcontroller code.
- Standardized UART Interface: Clearly marked pins for foolproof cross-connection (RXD to TXD, TXD to RXD) prevent wiring errors.
- Compact & Portable: Measuring just 22mm x 46mm, it’s a lightweight addition to any professional toolkit.

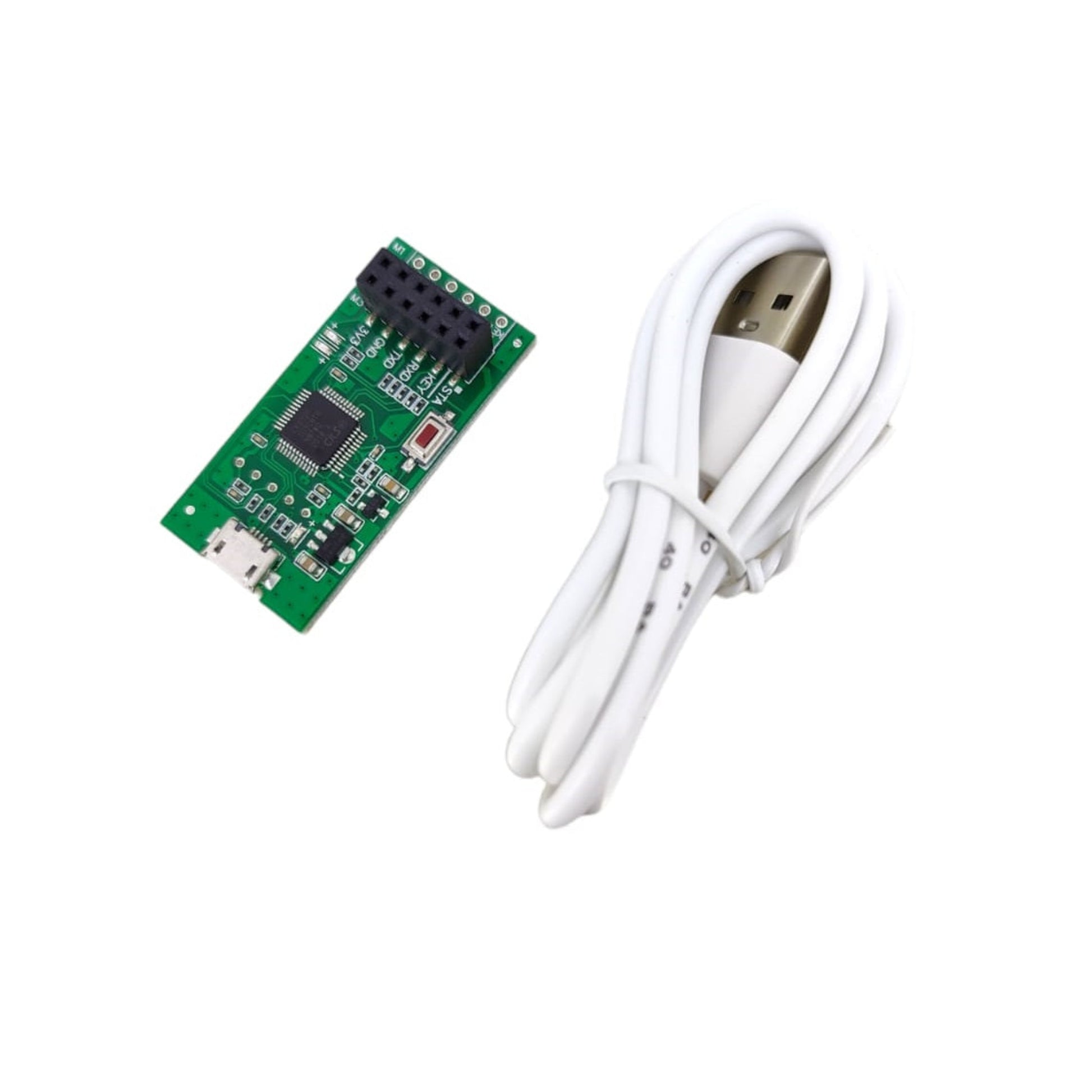

- Ready to Use: Comes complete with a high-quality Micro-USB cable so you can start testing right out of the box.
Full Product Description
Full Product Description
Effortless Bluetooth Module Configuration
Testing and configuring wireless modules shouldn't be a bottleneck in your development process. The HC-USB-T USB to TTL Adapter Board serves as a direct, reliable bridge between your PC and your Bluetooth modules. By providing a stable serial interface, it allows developers to quickly modify baud rates, change broadcast names, and pair devices with absolute precision.
Plug-and-Play Efficiency
Say goodbye to complicated driver installations and unstable connections. This test rack utilizes a reliable STM32-based architecture to ensure consistent data transmission. Simply connect your module, plug the provided Micro-USB cable into your computer, and open your preferred HID serial assistant to start sending AT commands immediately.
Designed for Precision and Durability

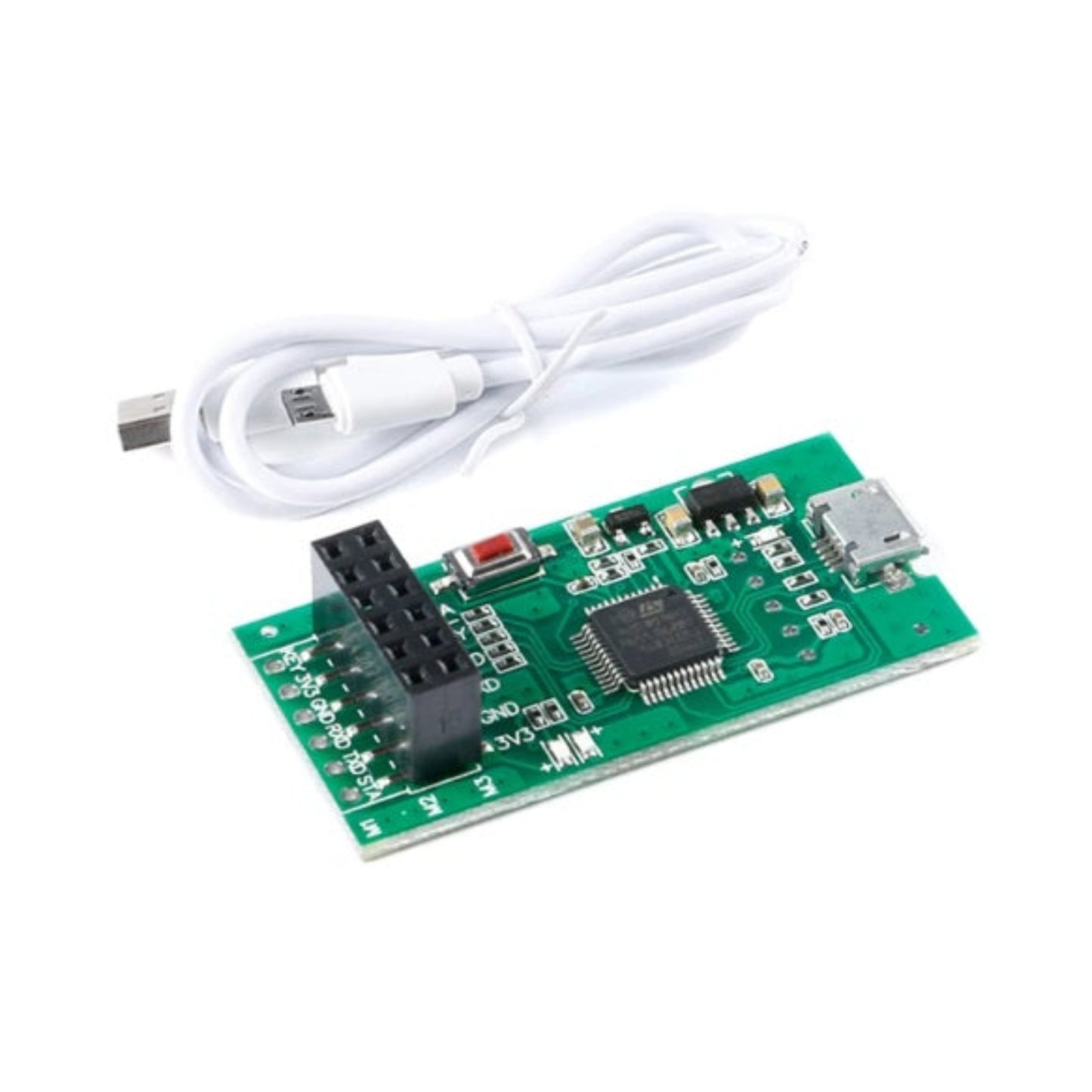

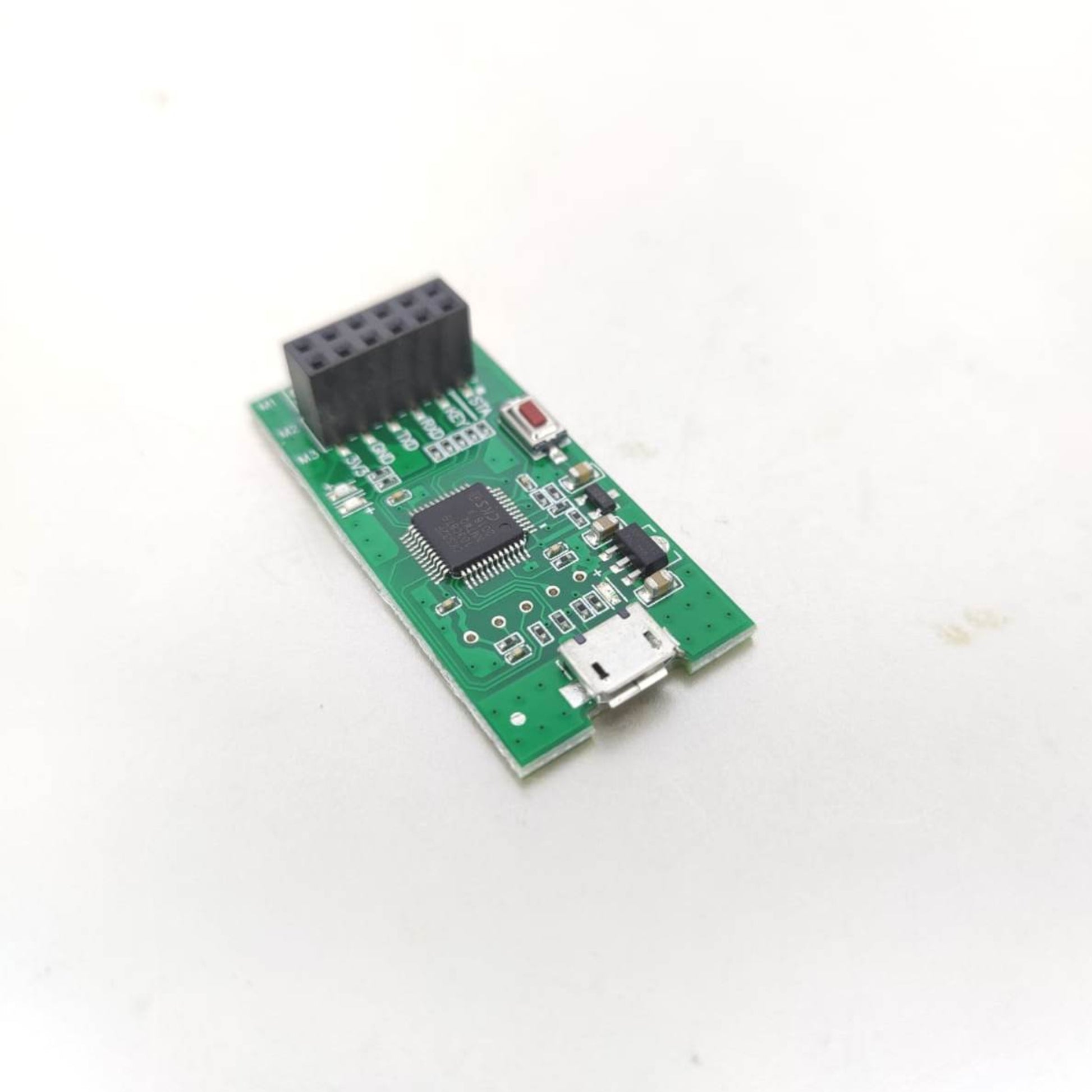

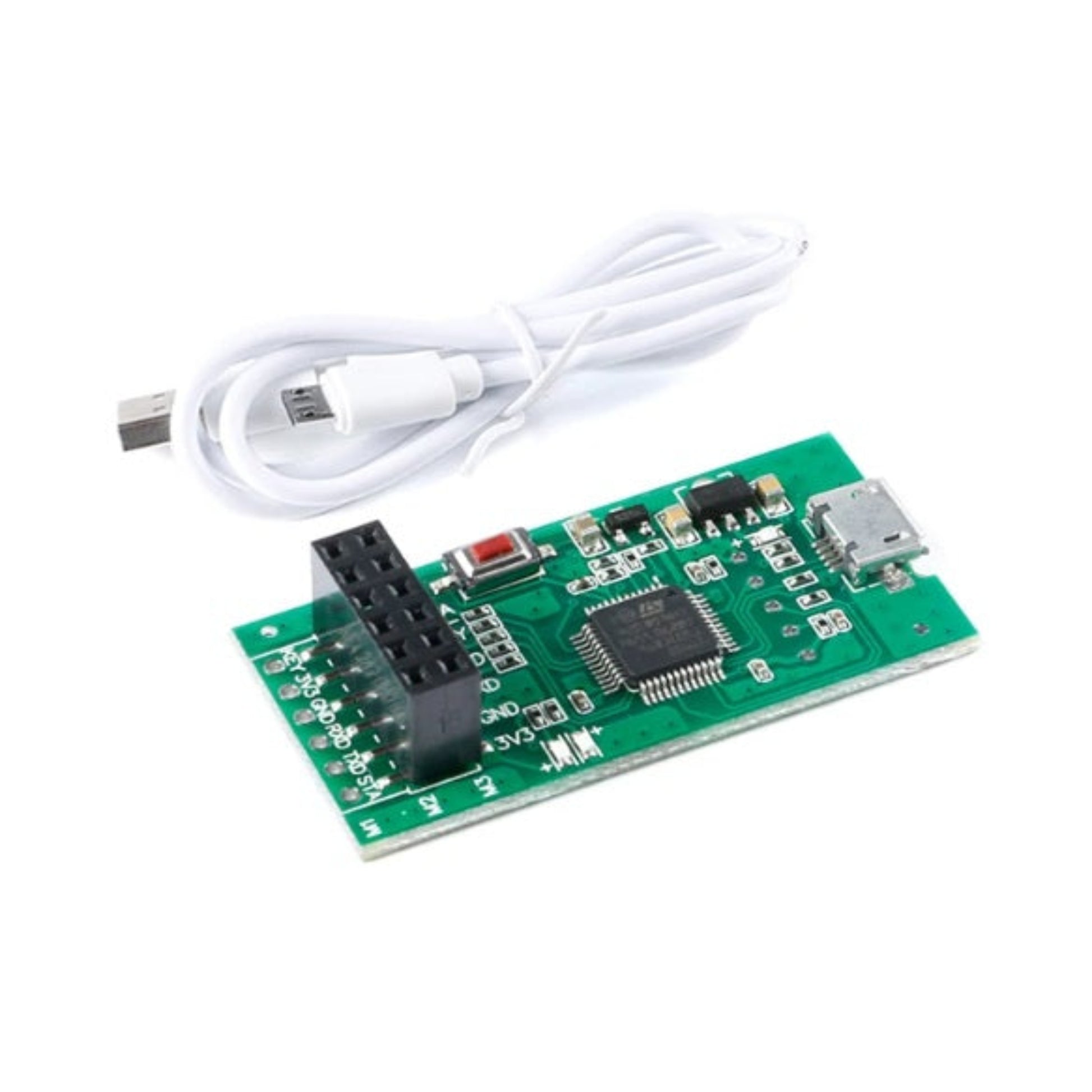

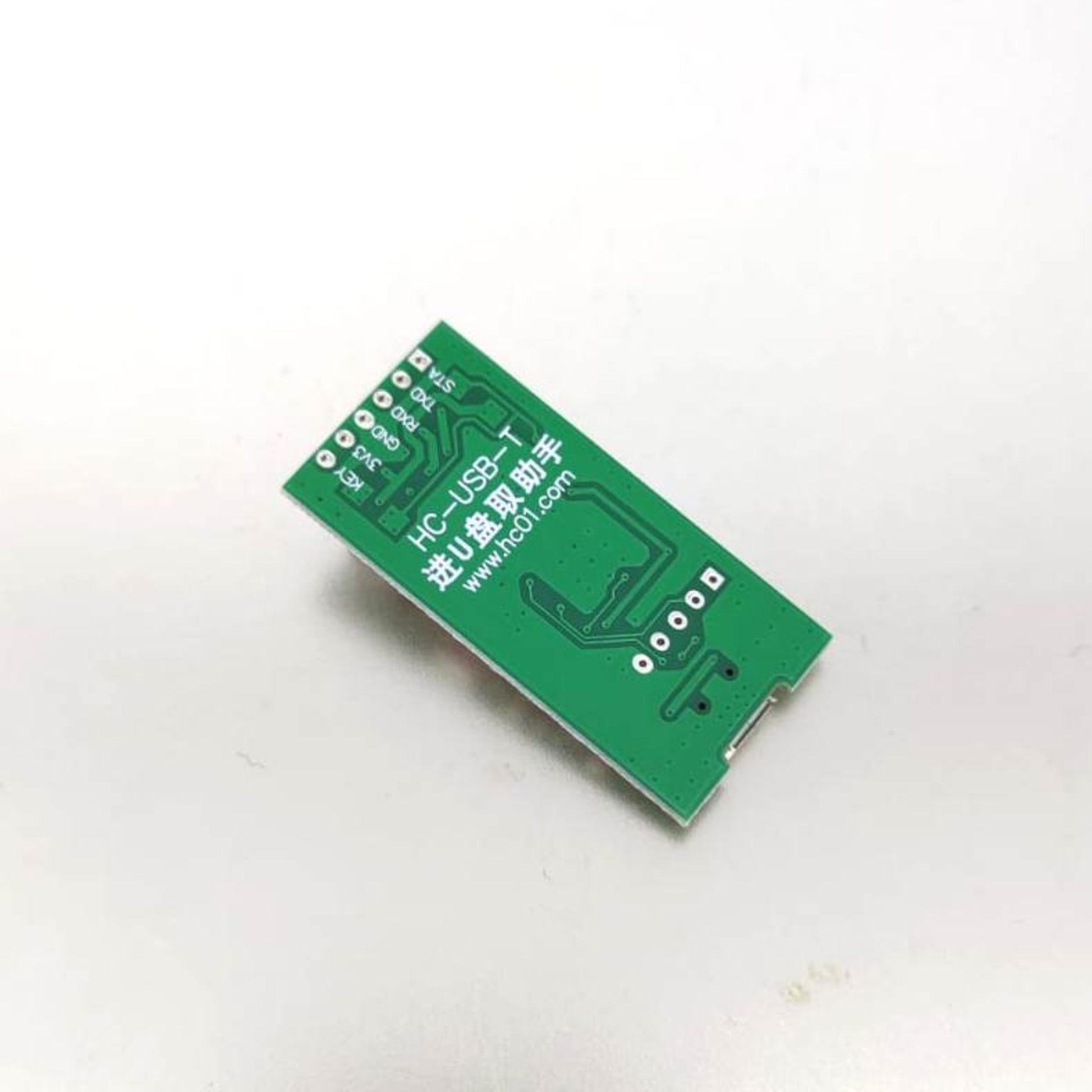

Built for both the hobbyist's workbench and the professional engineering lab, the HC-USB-T features clearly labeled header pins (KEY, 3V3, GND, RXD, TXD, STA) designed for standard cross-serial connection (UART). Its compact 22mm x 46mm footprint ensures it easily fits into your toolkit, making it the perfect companion for on-the-go troubleshooting and rapid prototyping.
Technical Specifications
Technical Specifications
- Model: HC-USB-T
- Primary Function: USB to TTL serial converter / AT command test rack
- Interface: Micro-USB to 6-pin female header
- Pin Configuration: KEY, 3V3, GND, RXD, TXD, STA
- Logic Voltage: 3.3V system output
- Dimensions: 22mm × 46mm
- Included Accessories: 1 × Micro-USB cable
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q. Do I need to install specific drivers for this adapter?
A. No, the HC-USB-T is designed for plug-and-play functionality. It generally utilizes standard HID to serial conversion, allowing your PC to recognize it instantly without hunting for third-party drivers.
Q. Which Bluetooth modules are compatible with this test rack?
A. It is highly compatible with standard UART Bluetooth modules such as the HC-02, HC-05, and HC-06, as long as they operate on a 3.3V logic level and follow standard RX/TX serial communication.
Q. How do I enter AT command mode using this board?
A. Ensure the Bluetooth module is unconnected from other Bluetooth devices (unpaired state). Connect the module to the adapter, plug it into your PC, and use a serial port assistant software. The module's indicator light should flash, indicating it is ready to receive AT commands.
Target Users / Applications
Target Users / Applications
- B2B / Engineering: Hardware developers and IT technicians needing reliable testing jigs for IoT prototyping, CCTV system integrations, and firmware debugging.
- B2C / Education: DIY electronics hobbyists, STEM students, and Arduino/Raspberry Pi enthusiasts learning serial communication and wireless networking.
