HC-12 433Mhz Wireless Serial Module
HC-12 433Mhz Wireless Serial Module
HC-12 433Mhz Wireless Serial Module
  • Load image into Gallery viewer, hc-12 module hk
  • Load image into Gallery viewer, HC-12 433Mhz Wireless Serial Module
  • Load image into Gallery viewer, HC-12 433Mhz Wireless Serial Module
  • Load image into Gallery viewer, HC-12 433Mhz Wireless Serial Module

HC-12 433Mhz Wireless Serial Module

Regular price
$75.00
Sale price
$75.00
Regular price
Sold out
Unit price
per

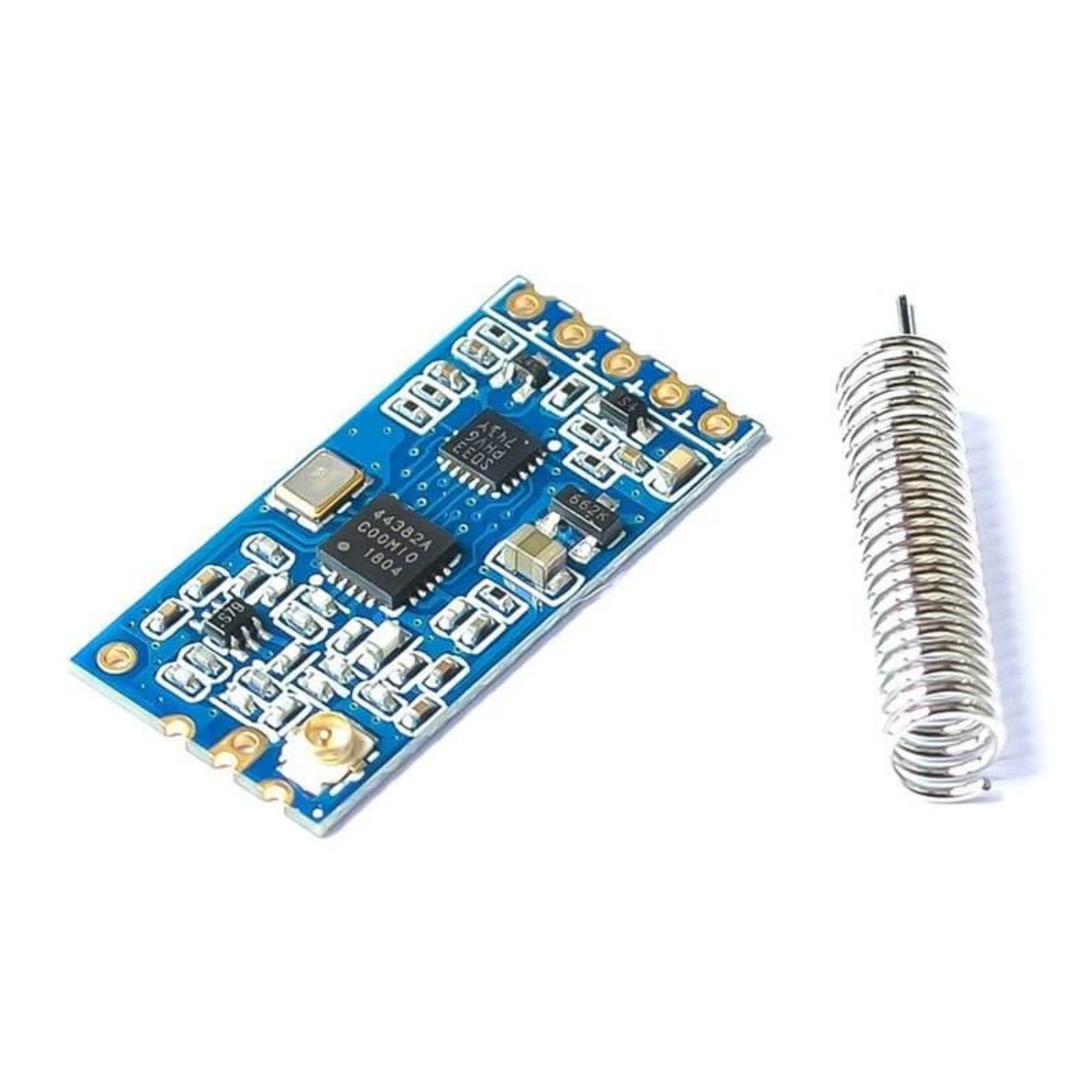

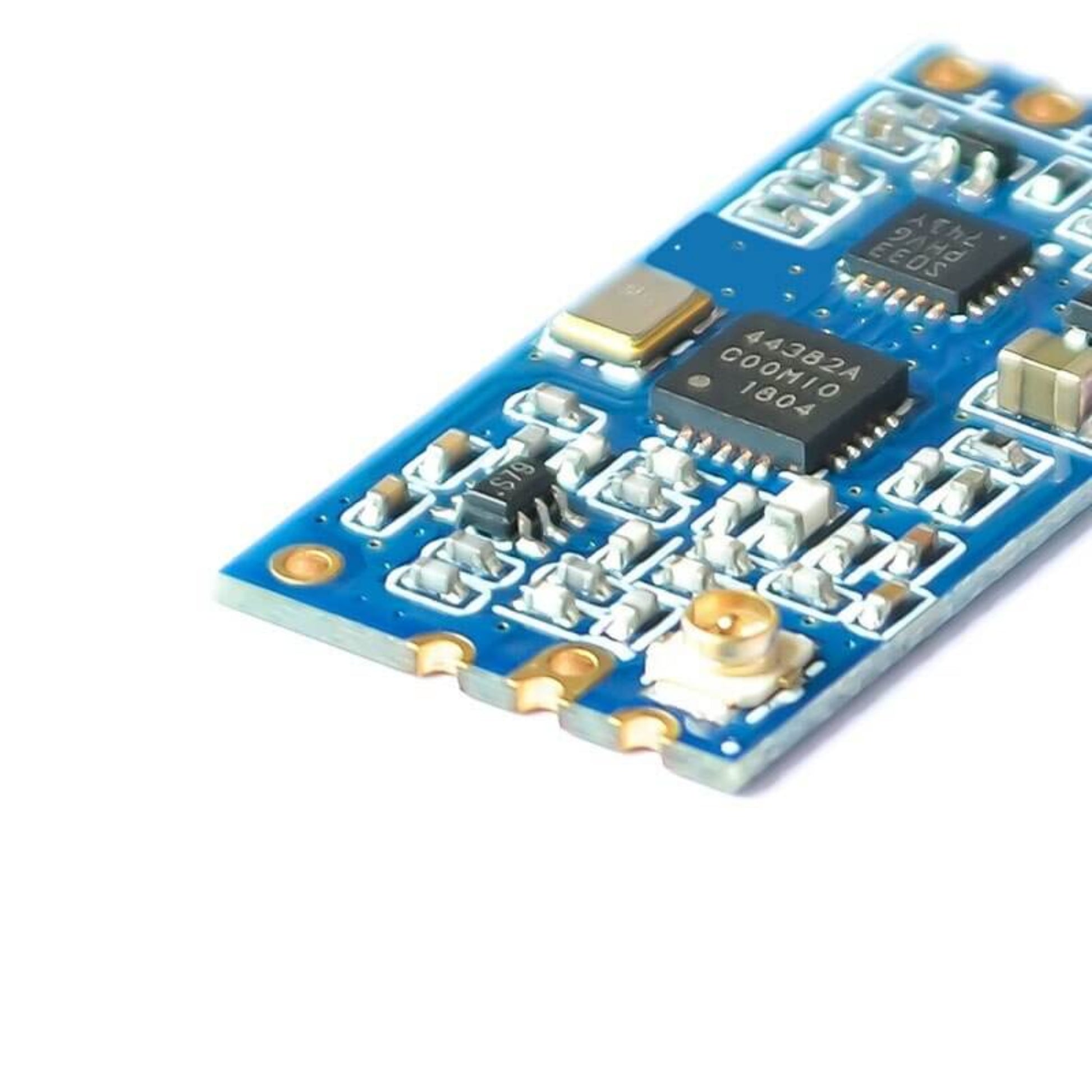

433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m Replace Bluetooth



Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)

Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).

Default idle current: 16 ma (modules in different working mode of different current).

Module size: 27.8mm*14.4mm*4mm.

Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)

Module supporting software upgrades.

Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)



Package Included:

1 x 433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m Replace Bluetooth TOP



HC-12 Tutorial
