GY-BMP280-5V High-Precision Barometric Pressure Sensor Module (I2C)
GY-BMP280-5V High-Precision Barometric Pressure Sensor Module (I2C)
Couldn't load pickup availability
Short Product Description
Short Product Description
Build smarter weather stations, drones, and IoT devices with the GY-BMP280-5V Environmental Sensor. Designed for seamless 5V logic integration, this ultra-compact module delivers high-precision barometric pressure, altitude, and temperature readings. With its simple I2C interface, you can bypass complex wiring and start capturing real-time environmental data for your microcontrollers in minutes.
Key Features
Key Features
- 5V Logic Ready: Built-in voltage regulation allows direct connection to 5V microcontrollers, eliminating the need for external level shifters.
- High-Precision Altimeter: Measures barometric pressure to calculate altitude with ±1 meter accuracy, perfect for drone navigation and GPS enhancement.
- 2-Wire I2C Interface: Simplifies your circuit design by using only the SDA and SCL pins, freeing up GPIO ports for other peripherals.
- Ultra-Low Power Consumption: Draws minimal current during active polling, maximizing battery life for remote IoT and wearable projects.

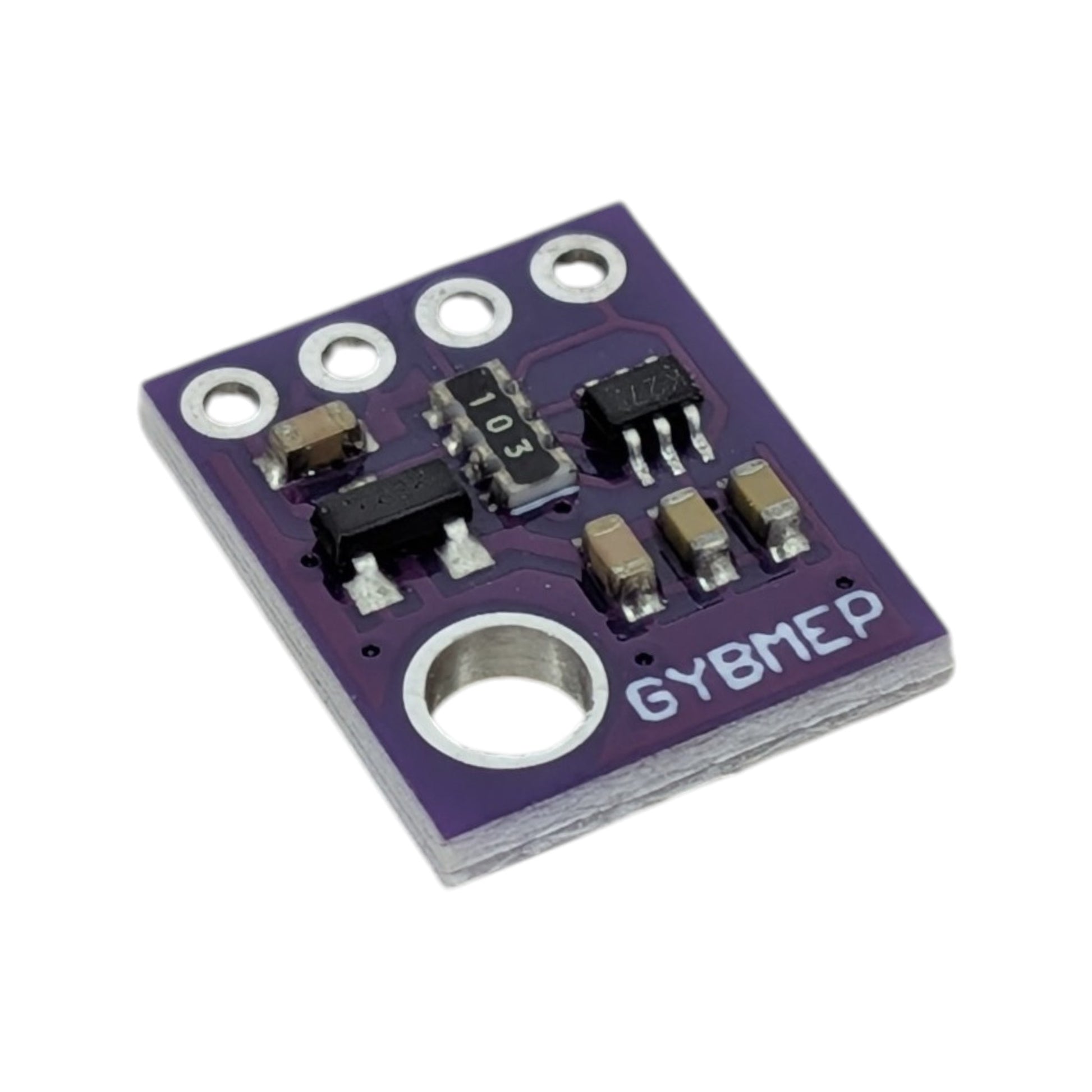

- Compact & Lightweight: The miniature PCB footprint easily fits into space-constrained enclosures without adding unnecessary weight.
Full Product Description
Full Product Description
Next-Generation Environmental Sensing for Your Projects
Whether you are engineering a custom flight controller for a drone or building a smart home weather station, accurate environmental data is critical. The GY-BMP280-5V Sensor Module is a robust, low-power solution that measures barometric pressure and ambient temperature with exceptional precision.
Built around the industry-standard 280-series architecture, this module acts as a highly reliable altimeter, capable of tracking elevation changes with an accuracy of up to ±1 meter.
Seamless 5V Microcontroller Integration
Forget the hassle of external logic level converters. Unlike standard 3.3V sensors, the GY-BMP280-5V features an onboard voltage regulator. This allows you to connect it directly to 5V microcontrollers like the Arduino Uno or Mega. Simply plug it into your breadboard, connect the power, and you are ready to code.
Streamlined I2C Communication

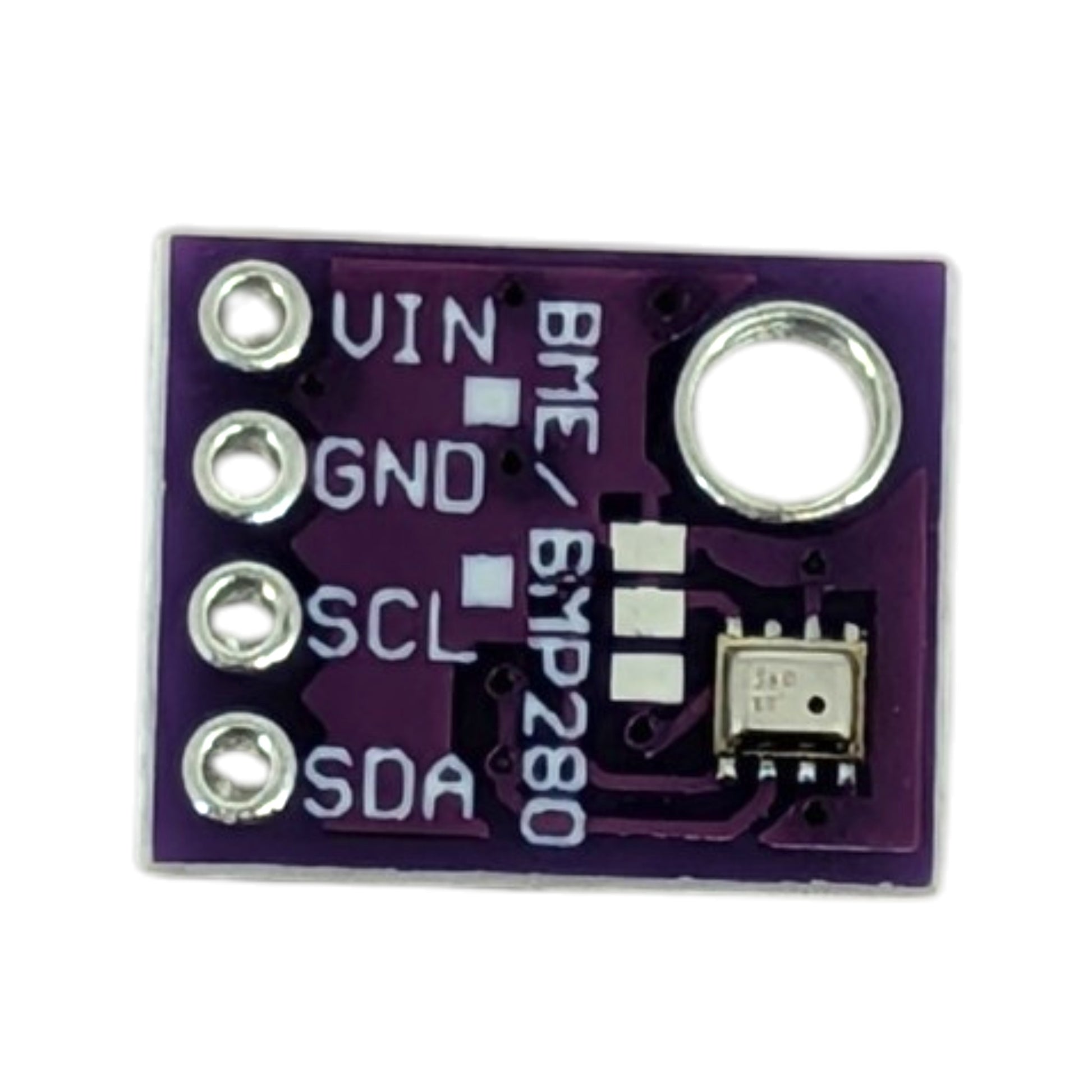

Save your valuable microcontroller pins for other components. This module utilizes a standard I2C interface (SDA/SCL), requiring only two data wires to communicate. The purple PCB clearly labels all pinouts (VIN, GND, SCL, SDA), ensuring a frustration-free wiring experience for both beginners and seasoned engineers.
Ultra-Low Power for Battery-Operated IoT
Designing a remote weather node? The GY-BMP280-5V is optimized for energy efficiency. Its ultra-low current consumption ensures that your battery-powered IoT devices and wearable tech run longer without sacrificing data accuracy or polling rates.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Operating Voltage (VIN) | 5V DC (Onboard Regulator) |
| Communication Interface | I2C (SCL, SDA) |
| Pressure Range | 300 to 1100 hPa (Equivalent to +9000m to -500m relative to sea level) |
| Temperature Range | -40°C to +85°C |
| Accuracy | Pressure: ±1 hPa Temperature: ±1.0°C |
| Dimensions | 13.4 mm x 10.6 mm |

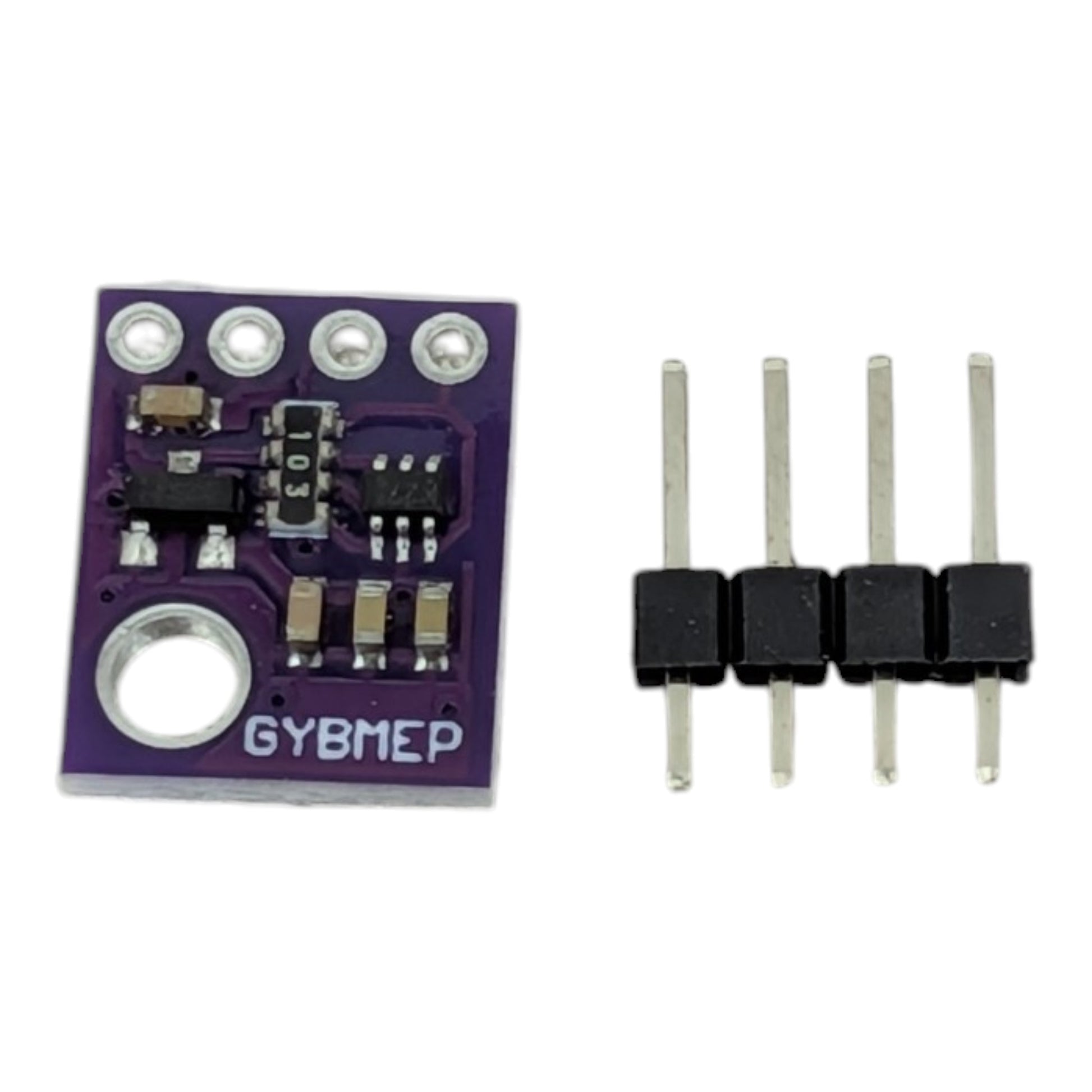

| Pinout | VIN, GND, SCL, SDA (4-pin header included) |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Do I need a logic level converter to use this with an Arduino Uno?No. The GY-BMP280-5V has an onboard voltage regulator, meaning you can safely connect the VIN pin directly to the 5V output of your Arduino Uno without damaging the sensor.
- How do I wire the I2C interface?Connect VIN to 5V, GND to Ground, SDA to your microcontroller's SDA pin (e.g., A4 on Arduino Uno), and SCL to the SCL pin (e.g., A5 on Arduino Uno).
- Can this module measure altitude?Yes. By measuring the absolute barometric pressure, the sensor can calculate your current altitude relative to sea level with an accuracy of approximately ±1 meter.
Target Users / Applications
Target Users / Applications
- Drone Builders: For stabilizing flight altitude and enhancing GPS data.
- IoT Developers: For creating smart home weather stations and climate monitoring nodes.
- STEM Educators & Students: An easy-to-use module for learning I2C communication and environmental data logging.
- Outdoor Enthusiasts: For DIY wearable altimeters and weather prediction devices.
