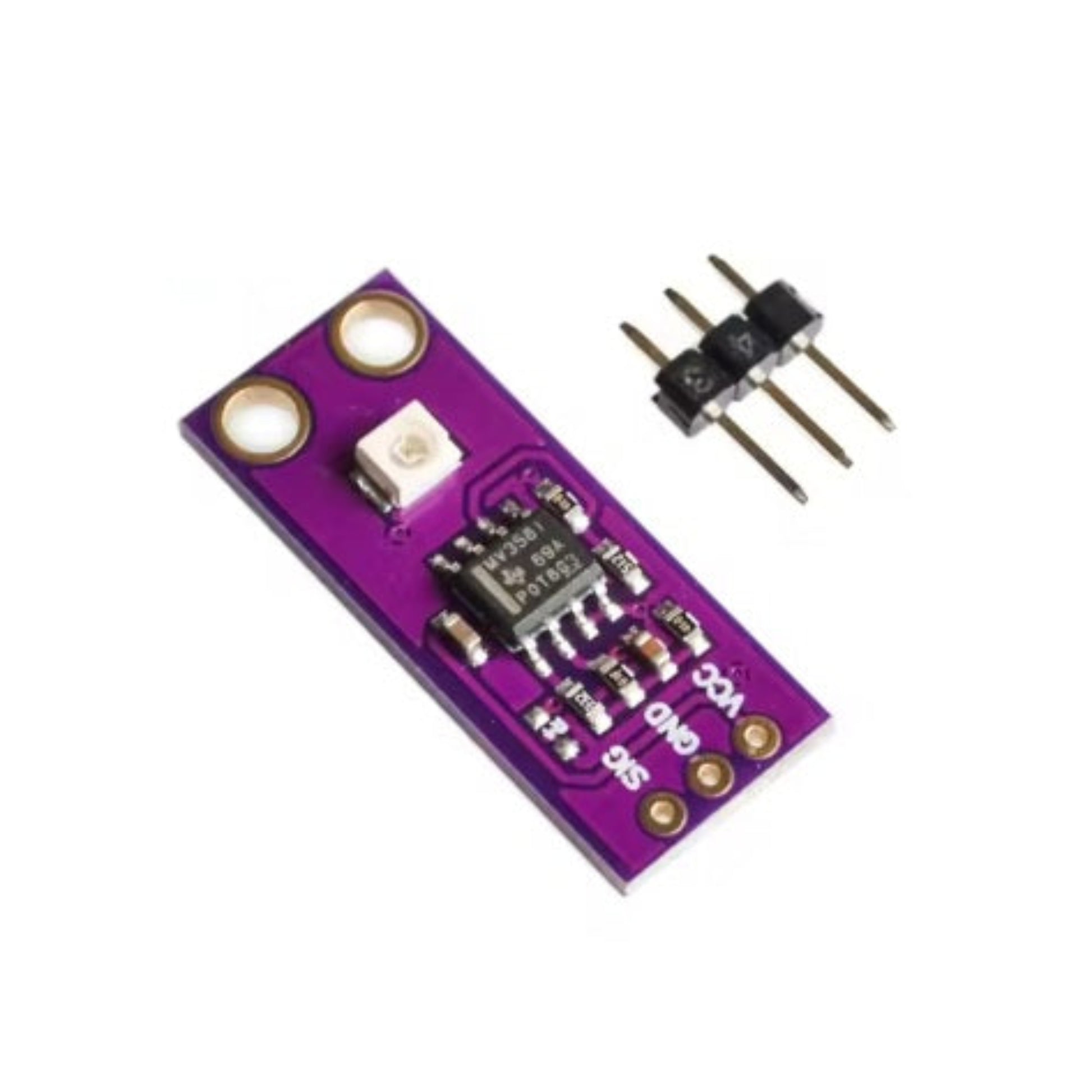

GUVA-S12SD UV Sensor Module | Sunlight Ultraviolet Detector for Arduino
GUVA-S12SD UV Sensor Module | Sunlight Ultraviolet Detector for Arduino
Couldn't load pickup availability
Short Product Description
Short Product Description
Accurately monitor sunlight intensity and UV levels with the GUVA-S12SD UV Sensor Module. Featuring an ultra-wide 240nm–370nm detection range and exceptionally low power consumption, this Schottky-type photodiode delivers linear, highly stable analog outputs. It is the perfect compact solution for your next DIY weather station, IoT environmental monitor, or STEM robotics project.
Key Features
Key Features
- Wide UV Detection Range (240nm - 370nm): Effectively captures both UVA and UVB spectrums for comprehensive sunlight analysis.
- Ultra-Wide 130° Viewing Angle: Maximizes light intake to ensure accurate, multidirectional UV readings without restrictive blind spots.
- Low Power Consumption: Operates at the microamp level (2.5V–5V), making it ideal for battery-powered IoT and remote environmental monitoring.
- Highly Linear Analog Output: Provides a straightforward electrical signal proportional to UV intensity, simplifying code integration for Arduino and Raspberry Pi.
- Schottky-Type Photodiode: Guarantees high sensitivity and long-term stability for professional-grade reliability in your circuits.
- Compact Form Factor (11mm x 27mm): Easily integrates into crowded breadboards, custom PCBs, and small 3D-printed project enclosures.
Full Product Description
Full Product Description
Precision UV Detection for Your Next Electronics Project

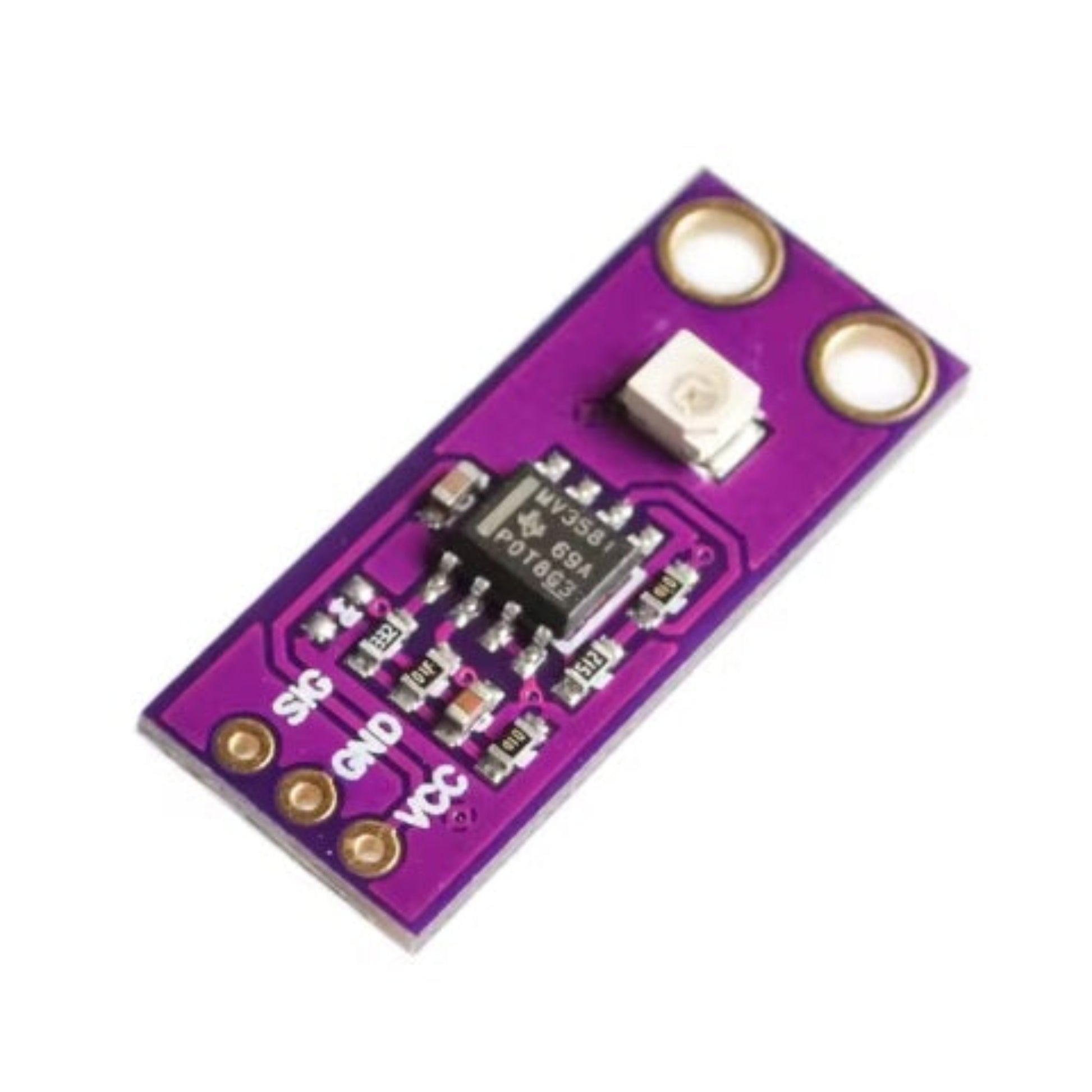

Whether you are building a smart agriculture system or an automated weather station, understanding environmental sunlight is crucial. The GUVA-S12SD Sunlight UV Intensity Sensor is designed to provide highly accurate and stable ultraviolet light measurements. By utilizing an advanced Schottky-type photosensitive diode, this module translates ambient UV radiation into a clear, readable analog voltage signal that your microcontroller can easily interpret.
Covering the Essential UV Spectrum
Not all UV sensors are created equal. The GUVA-S12SD boasts a wide detection range of 240nm to 370nm, allowing it to effectively capture both UVB and UVA rays. Combined with a broad 130-degree viewing angle, it ensures comprehensive light absorption, reducing blind spots in your data collection and giving you a true representation of the environmental UV index.
Seamless Integration and Low Power Consumption
Engineered for modern DIY and professional applications, this sensor operates efficiently within a 2.5V to 5V power supply range. Its microamp-level working current makes it incredibly power-efficient, ensuring your battery-operated remote nodes and IoT devices run longer without needing frequent maintenance. With its compact 11mm x 27mm footprint, it easily fits into tight enclosures and complex circuit layouts.
Technical Specifications
Technical Specifications
- Model: MCU-GUVA-S12SD
- Sensor Type: Schottky-type Photosensitive Diode
- Operating Voltage: 2.5V ~ 5V DC
- Operating Current: Microamps (µA) level
- Detection Range: 240 nm ~ 370 nm (UVA & UVB)
- Viewing Angle: 130 degrees
- Output Type: Analog Voltage Signal
- Dimensions: 11 mm x 27 mm
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Which microcontrollers are compatible with the GUVA-S12SD sensor?
A: Because it outputs a standard analog voltage signal, it is fully compatible with almost any microcontroller equipped with an ADC (Analog-to-Digital Converter), including Arduino UNO, ESP32, ESP8266, and Raspberry Pi (with an external ADC module).
Q: Can I use this to measure the exact UV Index?
A: Yes. The sensor provides a linear output voltage that correlates directly with the UV Index. By mapping the analog voltage readings in your code (typically 0-1V mapping to UV Index 0-10), you can estimate the current UV Index accurately.
Q: Is this sensor waterproof for outdoor weather stations?
A: The bare PCB module is not waterproof. For outdoor applications, you must install the sensor inside a weatherproof enclosure with a UV-transparent window (like quartz glass or specific clear acrylics) to protect the components while allowing UV light to reach the diode.
Target Users / Applications
Target Users / Applications
- STEM Students & Educators: Ideal for physics and environmental science experiments.
- DIY Electronics Enthusiasts: Perfect for custom weather stations, smart home setups, and Arduino/Raspberry Pi projects.
- IoT Engineers: Reliable component for remote agriculture monitoring and solar power efficiency tracking.
