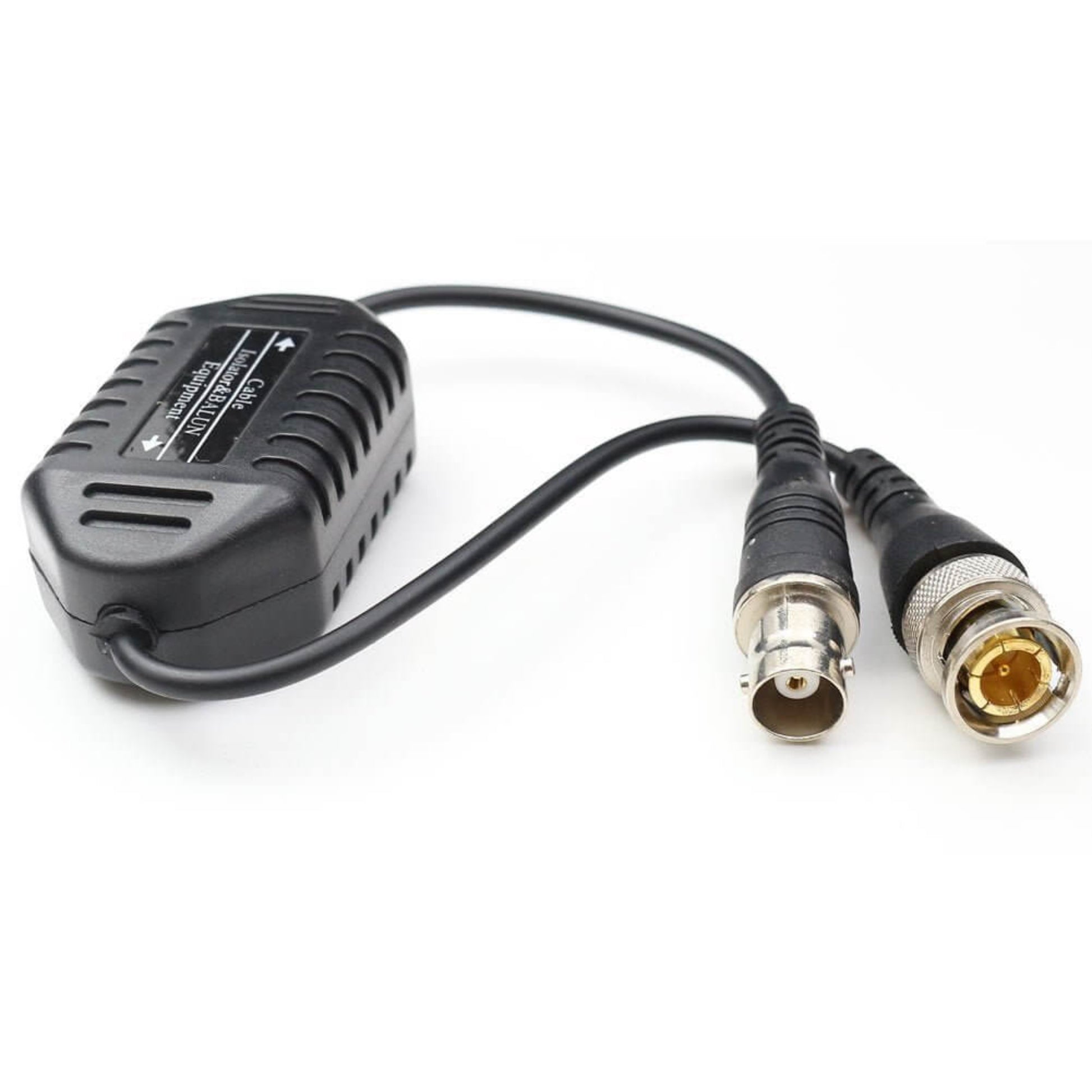

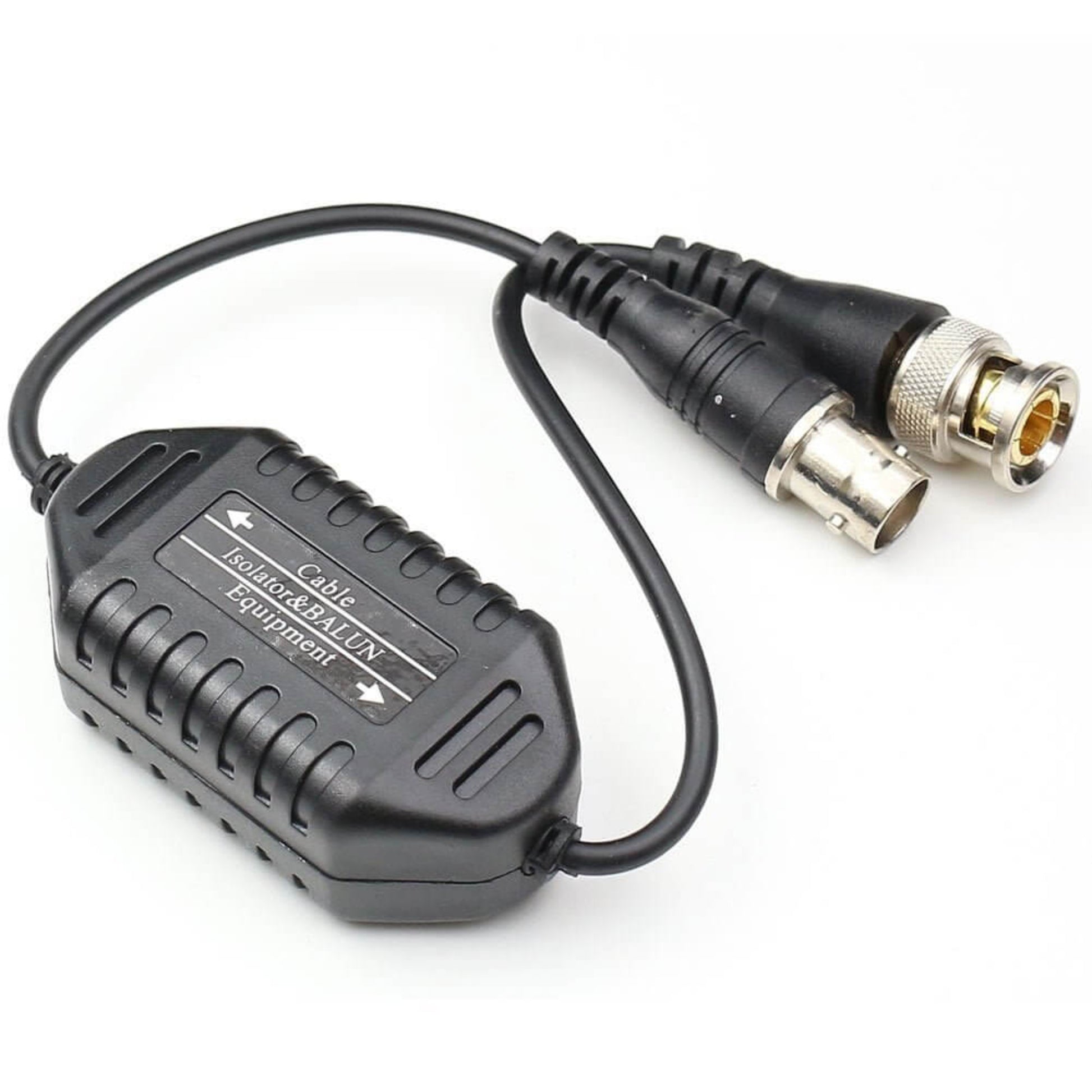

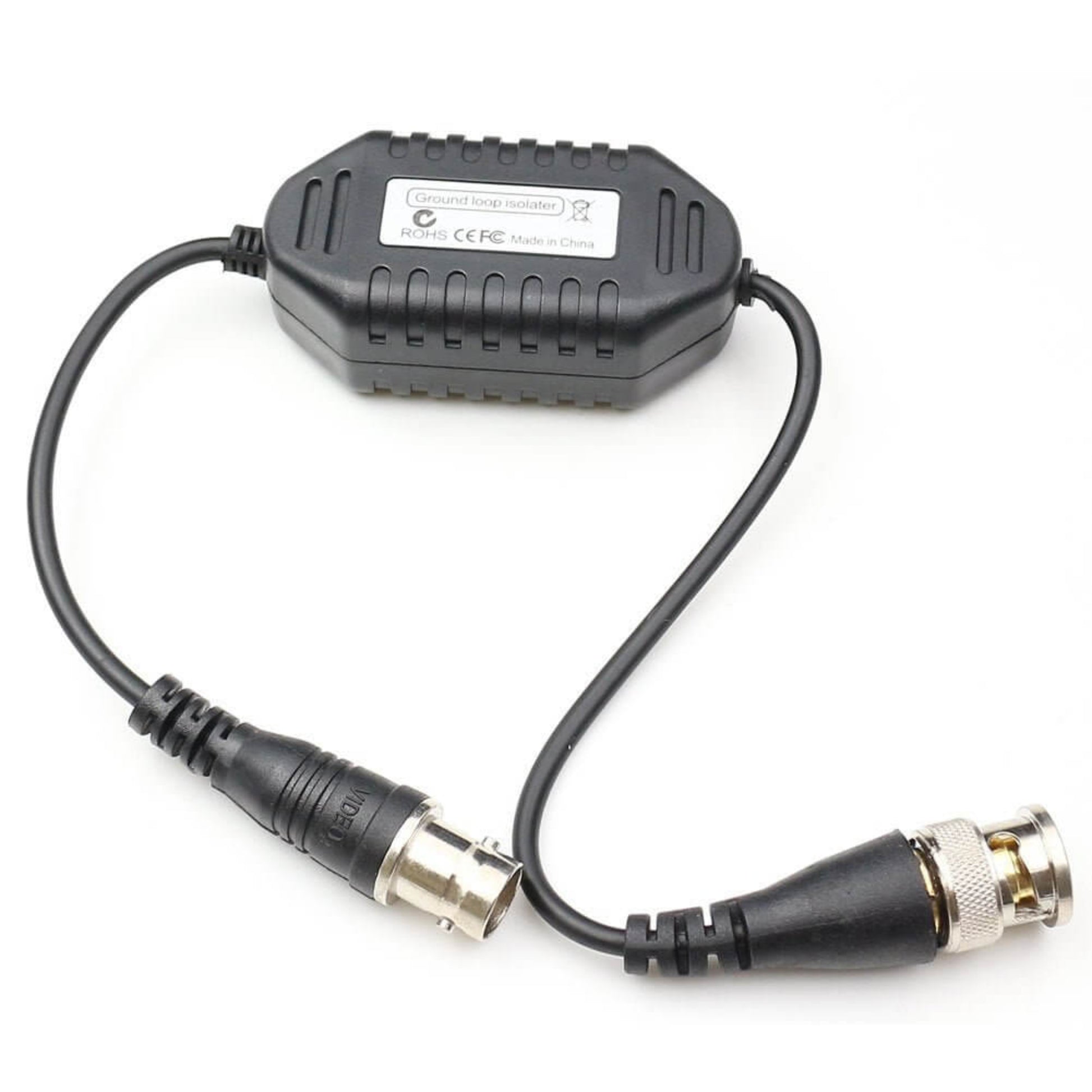

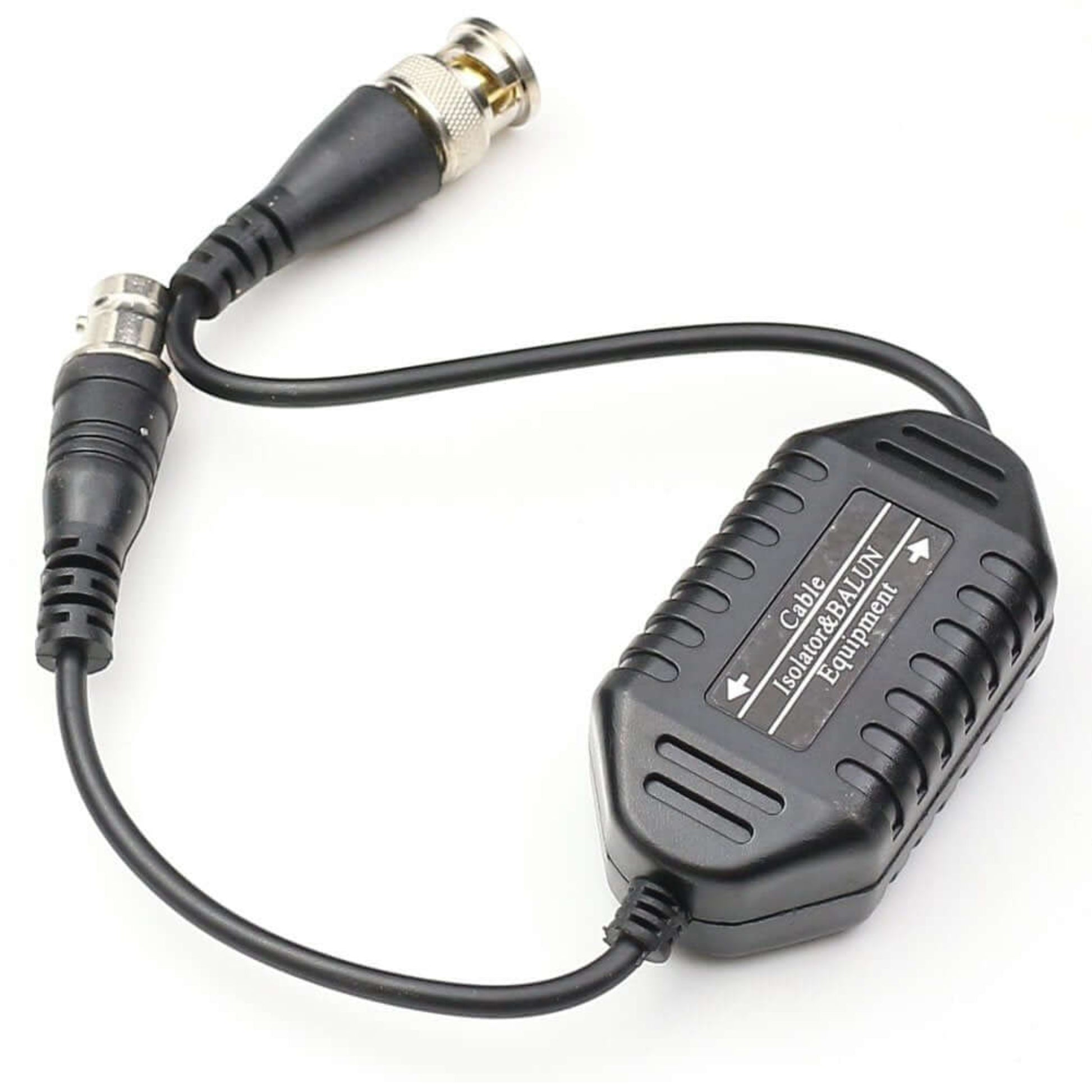

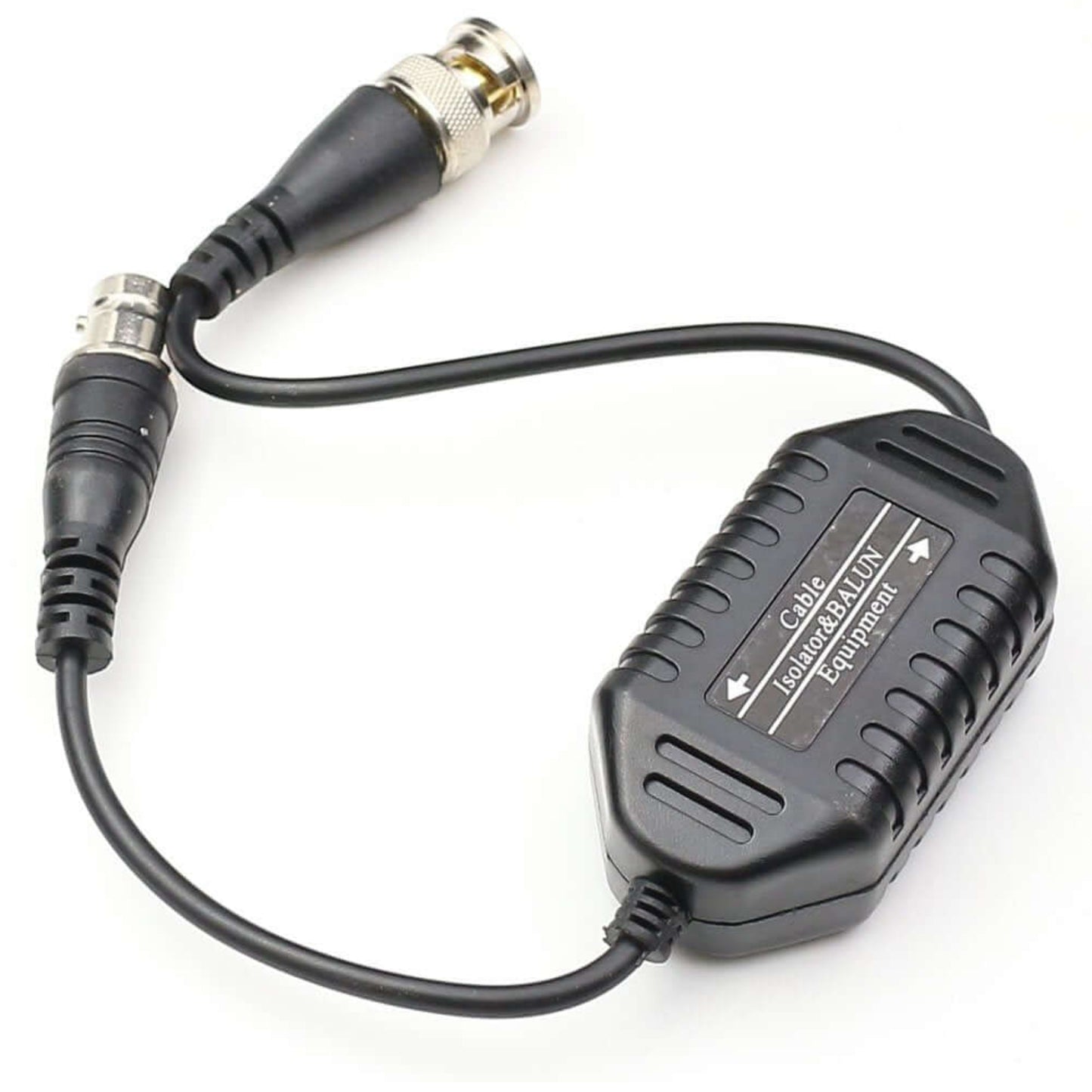

Security Camera Ground Loop Isolator, BNC Male to Female Coaxial Video Ground Loop Isolator CCTV Balun
Useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.
1.Video Ground Loop Isolator;Interface BNC Male to Female;Insertion Loss : <0.5dB
2.Input Resistance : 75 ohm;Output Resistance : 75 ohm;Frequency Response : 0-3dB at 10MHz
3.Video ground loop isolator could reduce ground loop interference with CCTV signals ,Prevents power cables laid by others interfering with the CCTV system.
4.No Power required,easily install in a new or added to existing systems.
5.Built in TVS (Transient Voltage Suppressors) for surge protection,Eliminates picture tearing, cross talk and rolling.
6.Dimesions: 68 x 28 x 21mm with 24cm cable.
