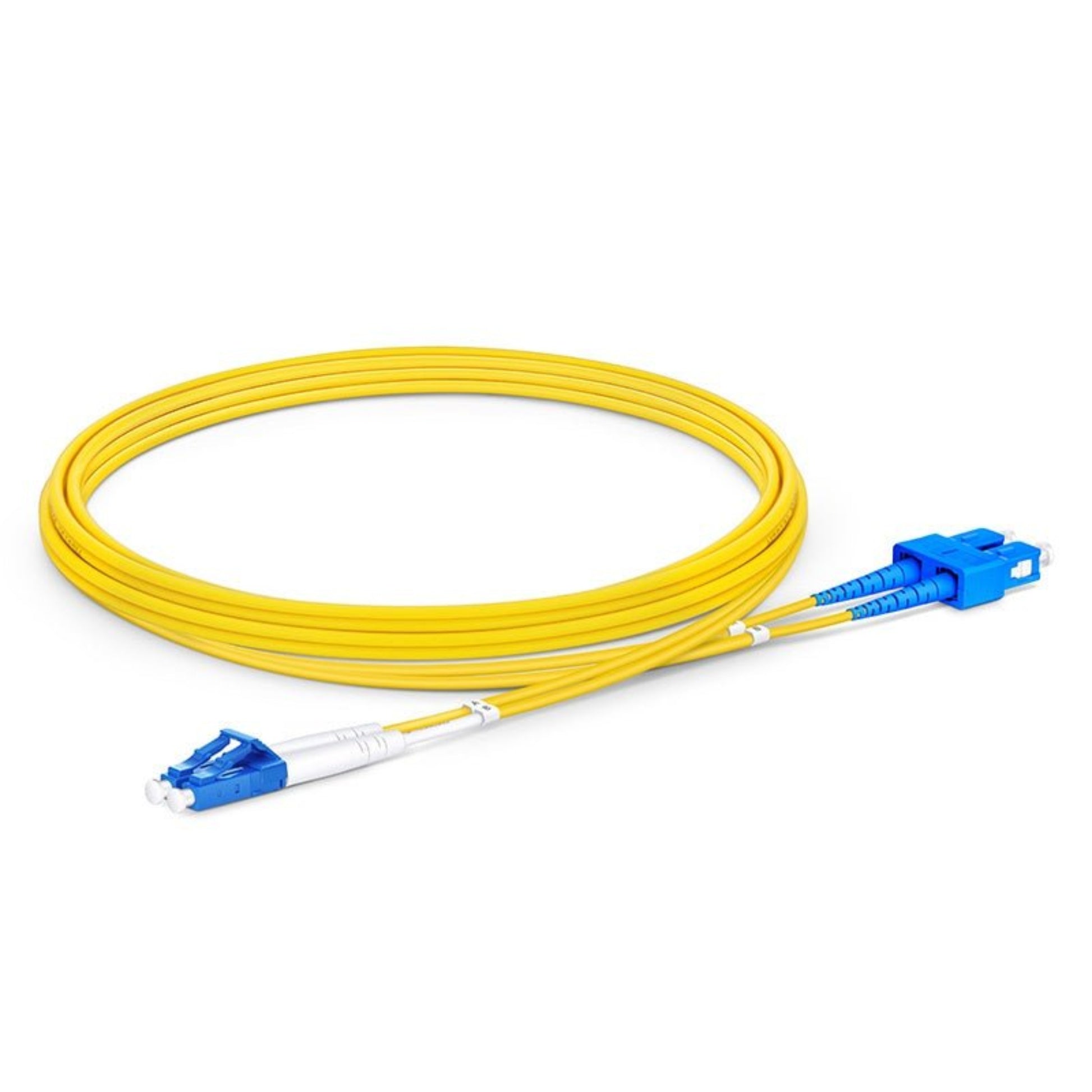

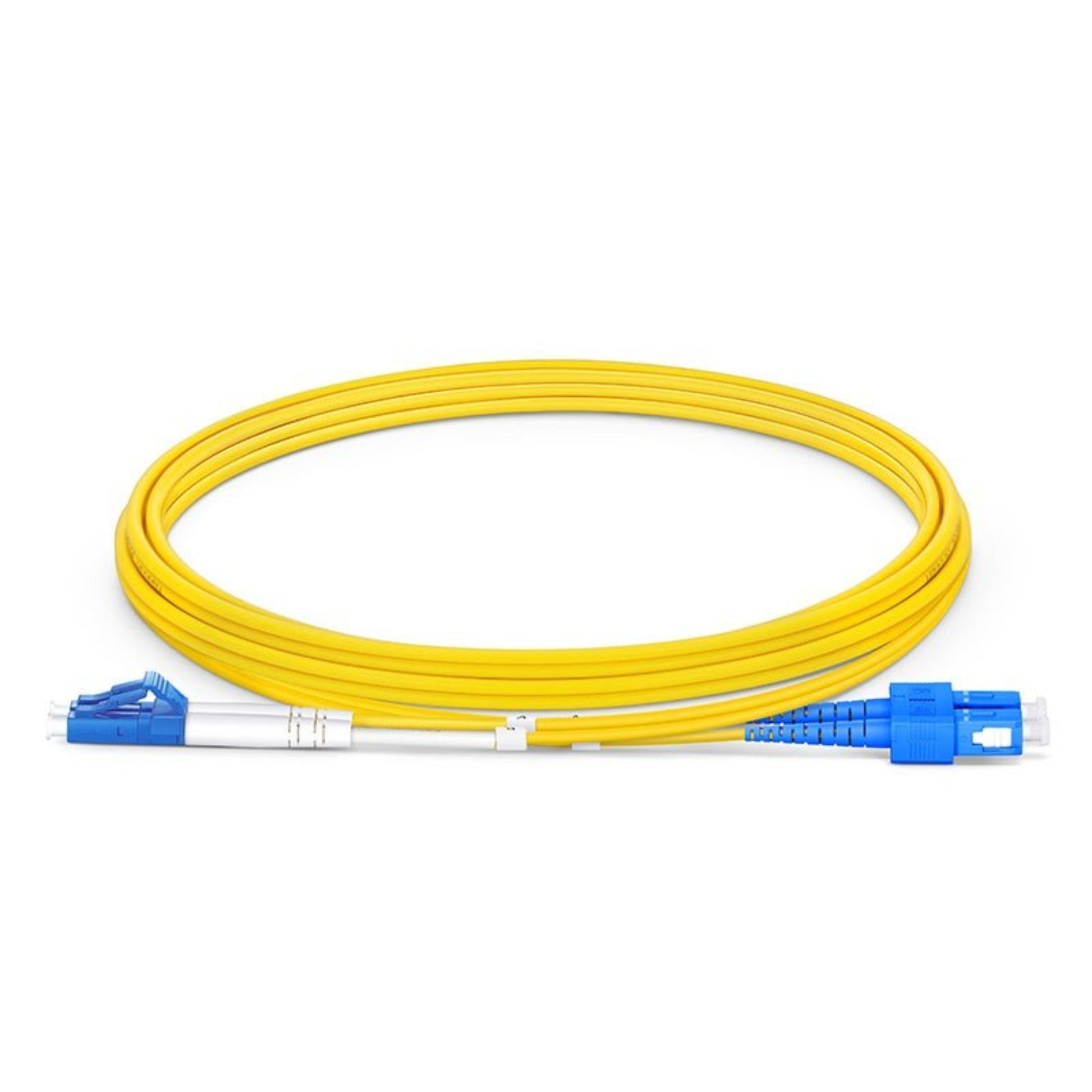

FS 2M OS2 Singlemode Duplex LC-SC Fiber Patch Cable, Yellow

Overview: The FS 9/125 OS2 Singlemode Duplex Fiber Patch Cable is a high-performance, yellow, 2-meter (7-foot) cable designed for reliable and efficient optical connections. Featuring LC UPC duplex connectors on one end and SC UPC duplex connectors on the other, this cable is ideal for a wide range of networking applications, from telecommunications rooms to data centers and desk connections.

Key Features & Benefits:

• High Performance: Supports 1G/10G/25G/40G/100G/400G Ethernet connections, ensuring fast and reliable data transmission.
• Long-Distance Capability: Capable of transporting data up to 10km at 1310nm or up to 40km at 1550nm, making it suitable for extended reach applications.
• Bend Insensitive Design: Constructed with G.657.A1 fiber (compatible with G.652.D), this cable offers lower attenuation when bent or twisted compared to traditional fiber cables, simplifying installation and maintenance.
• Durable & Reliable: Engineered for longevity with a connector durability of 1000 times and robust tensile strength, ensuring consistent performance.
• Riser (OFNR) Rated: Suitable for vertical runs between floors in buildings, meeting fire safety standards.
• Plug-and-Play: Factory-terminated and tested, ensuring optimal performance and easy deployment.

Technical Specifications:

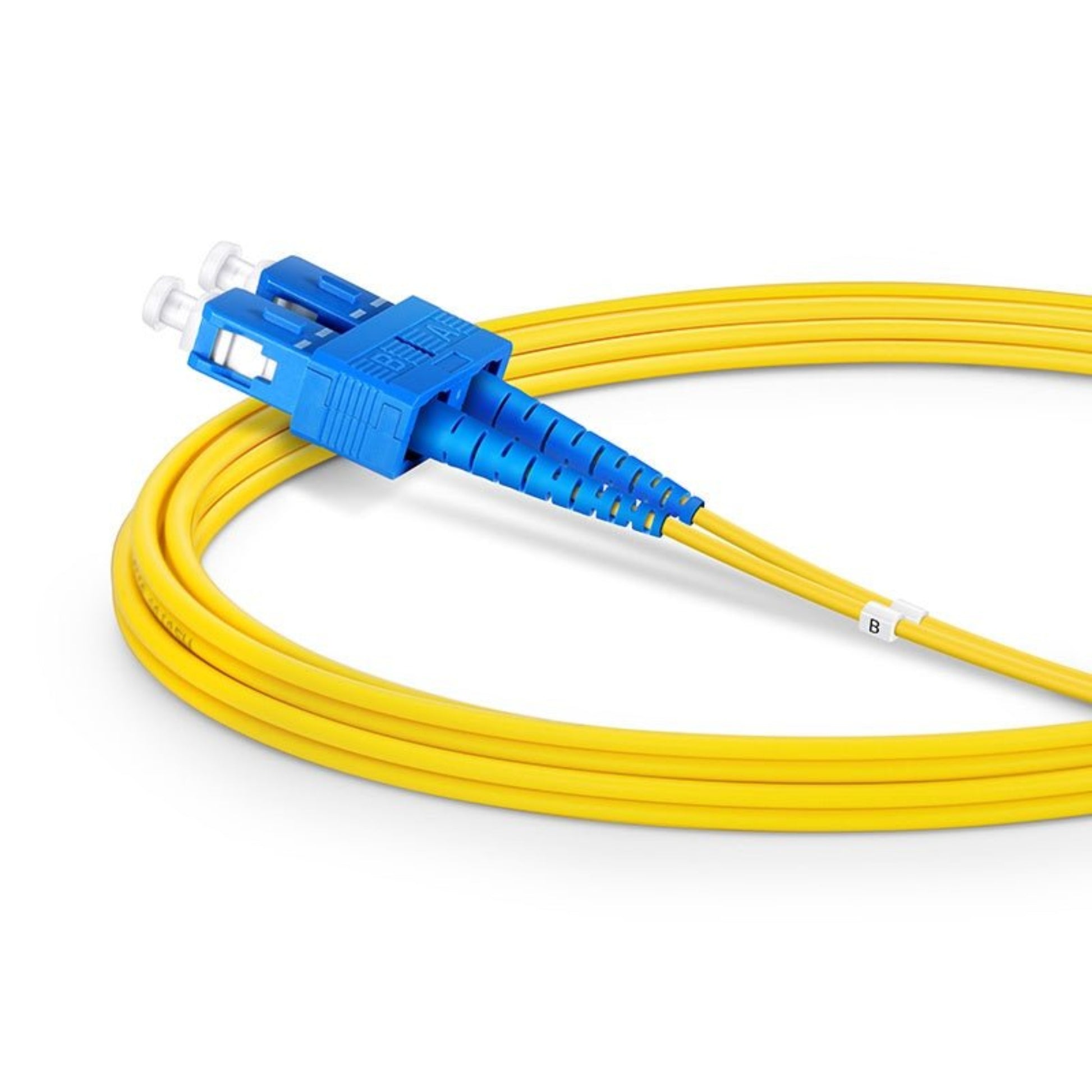

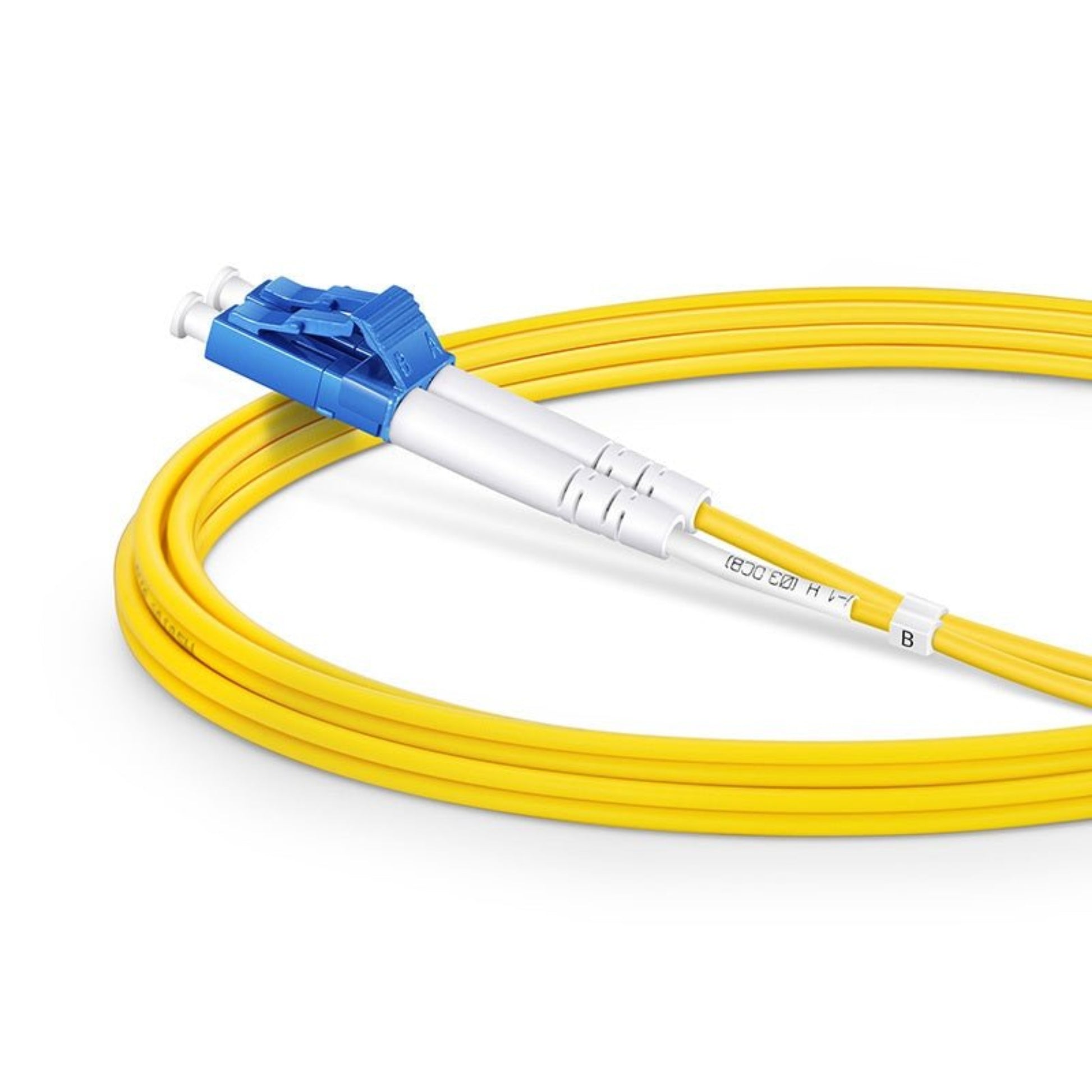

• Connectors: LC UPC Duplex to SC UPC Duplex
• Fiber Mode: OS2 9/125μm Single Mode
• Fiber Count: 2 Fibers
• Cable Length: 2 Meters (7 Feet)
• Cable Color: Yellow
• Cable Type: Tight-Buffered
• Outer Diameter (OD): 2.0mm
• Fiber Grade: G.657.A1 (Compatible with G.652.D)
• Wavelength: 1310/1550nm
• Polarity: A (Tx) to B (Rx)
• Flame Rating: Riser (OFNR)
• Min. Bend Radius (Optical Fiber): 10mm
• Min. Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
• Insertion Loss: $\le 0.3\text{dB}$
• Return Loss: $\ge 50\text{dB}$
• Attenuation at 1310 nm: $0.36\text{dB/km}$
• Attenuation at 1550 nm: $0.22\text{dB/km}$
• Operating Temperature: −20 to 70∘C (−4 to 158∘F)
• Storage Temperature: −40 to 80∘C (−40 to 176∘F)

Applications:

• Entrance Facilities
• Telecommunications Rooms
• Data Centers
• Desktop Connections
• 1G/10G/25G/40G/100G/400G Ethernet Networks
