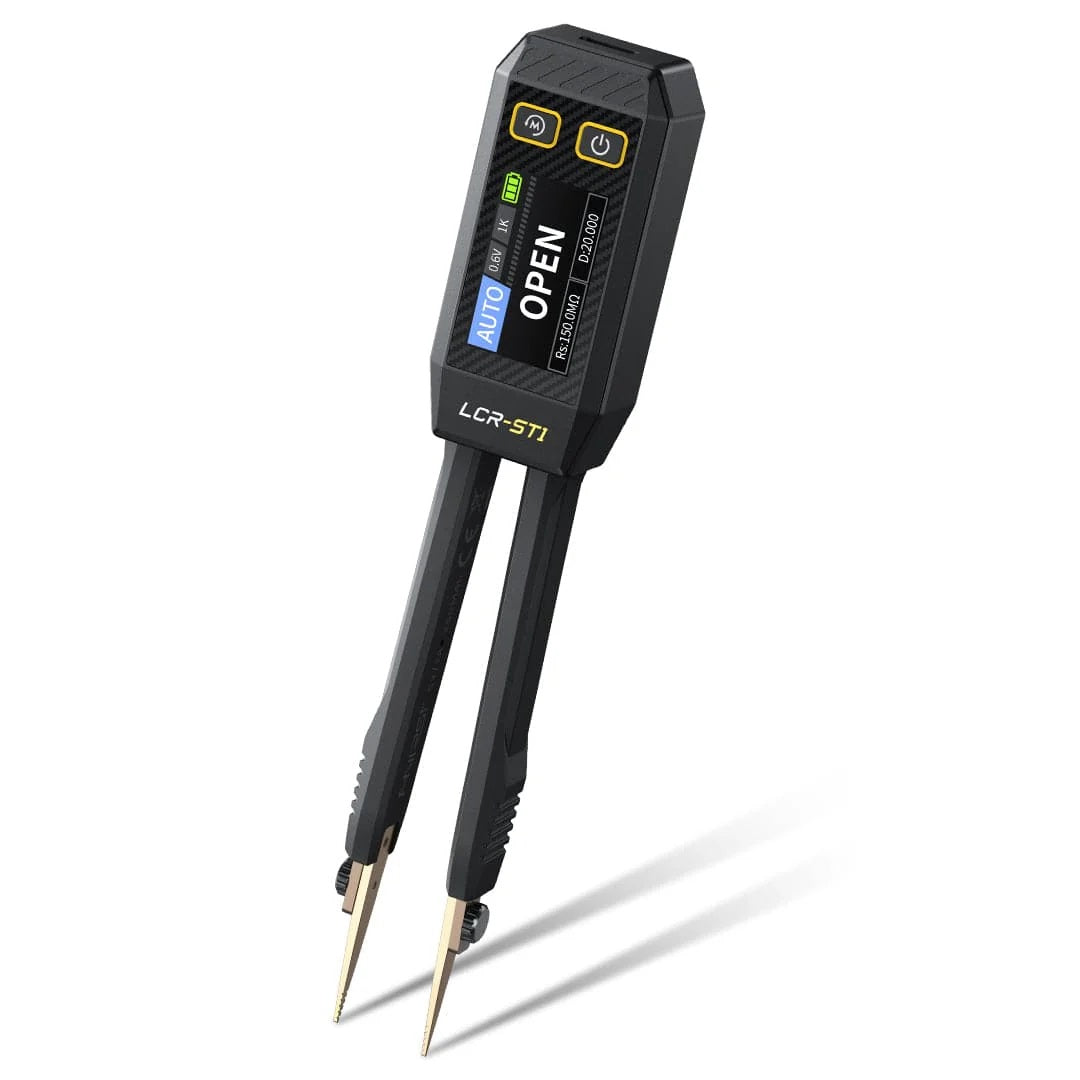

FNIRSI LCR-ST1 Smart Mini Tweezer: LCR/ESR Tester

Precise, Portable, and Smart: The FNIRSI LCR-ST1 Smart Mini Tweezer

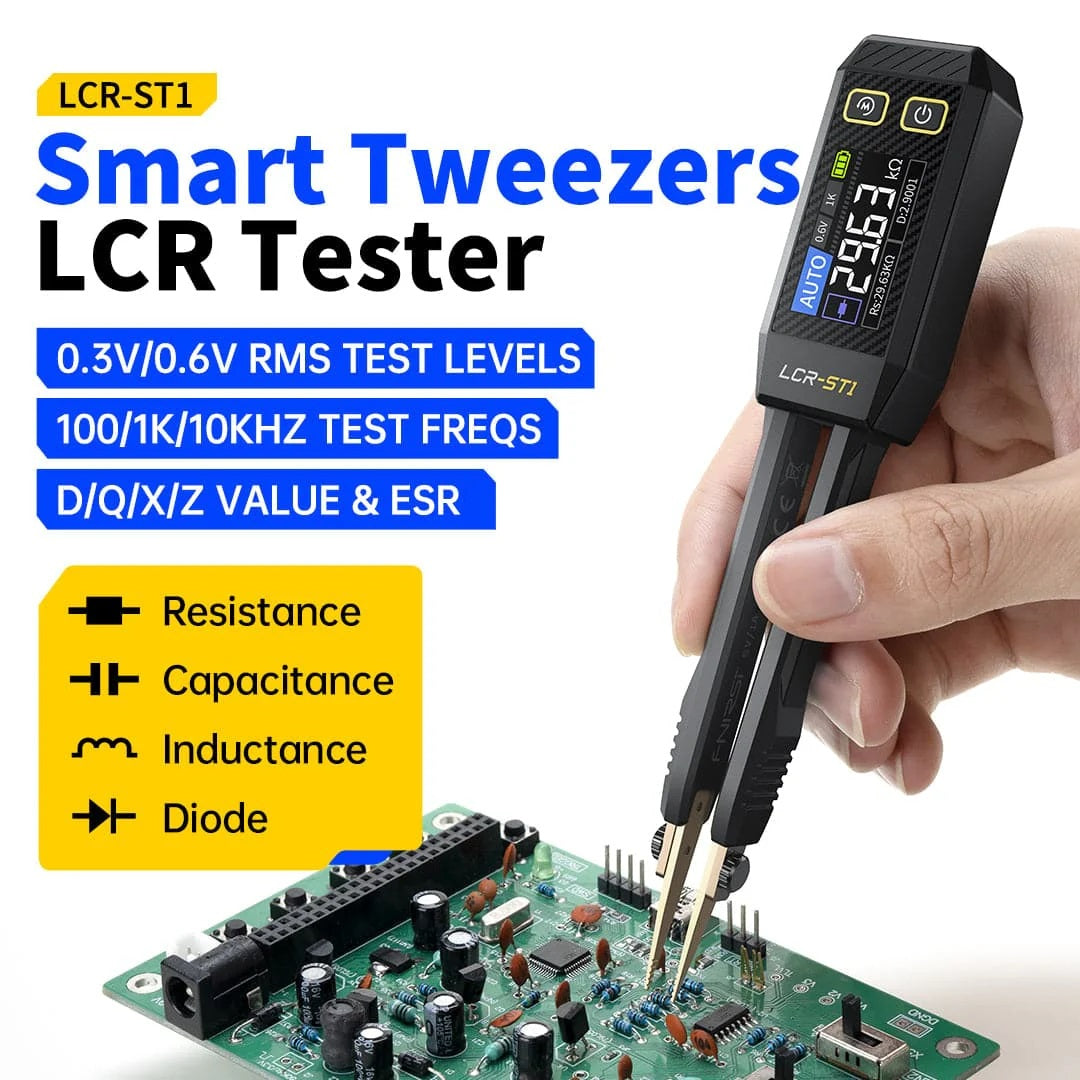

The FNIRSI LCR-ST1 Smart Mini Tweezer is an essential, multi-functional tool designed for electronics enthusiasts, professional technicians, and DIY hobbyists. This compact device provides highly accurate measurements for rapid diagnostics and repair of electronic components, particularly SMD (Surface Mount Device) components.

Key Features and Benefits:

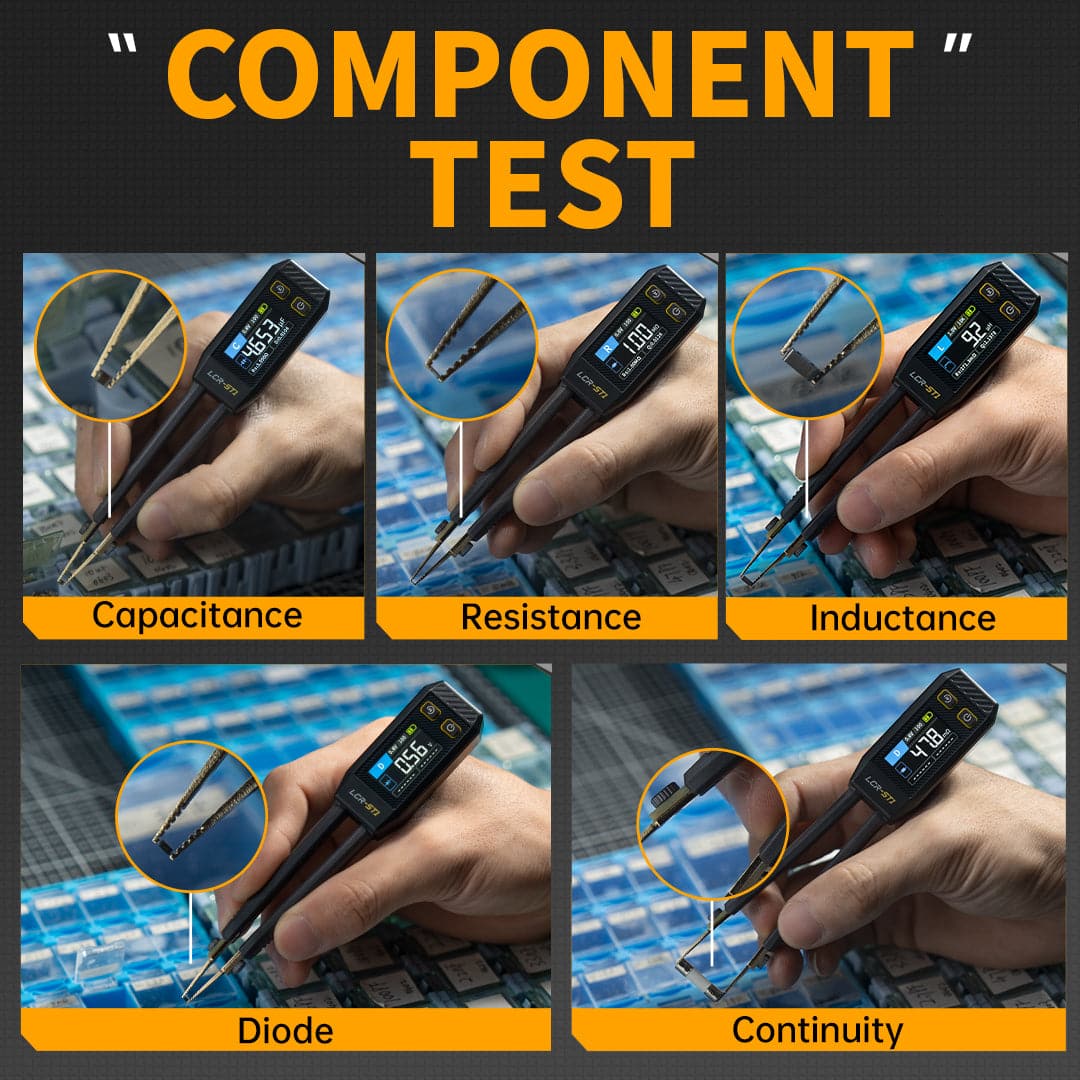

• All-in-One Component Testing: Automatically identifies and measures Resistance ($R$), Capacitance ($C$), Inductance ($L$), Diode continuity, and ESR (Equivalent Series Resistance).

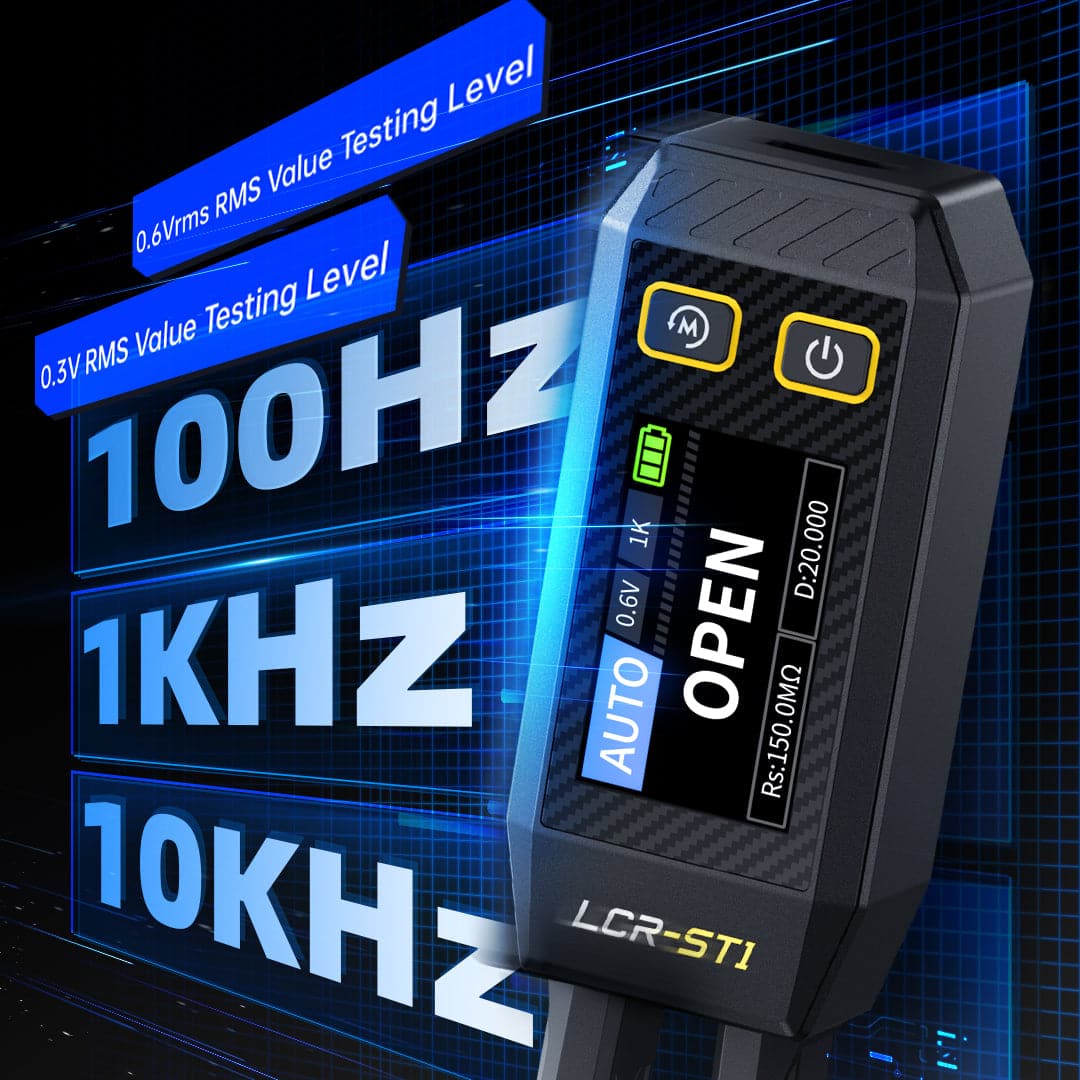

• High-Precision Measurements: Utilize three selectable test frequencies (100 Hz, 1 kHz, 10 kHz) and two test voltages (0.3 Vrms, 0.6 Vrms) for reliable and accurate results.
• Wide Measurement Ranges:
  • Resistance ($R$): 10 mΩ to 10 MΩ
  • Capacitance ($C$): 1 pF to 22 mF
  • Inductance ($L$): 1 μH to 10 H
• Crystal-Clear HD Display: The 1.14" HD Color Display ensures clear readings and easy navigation of test results and parameters.

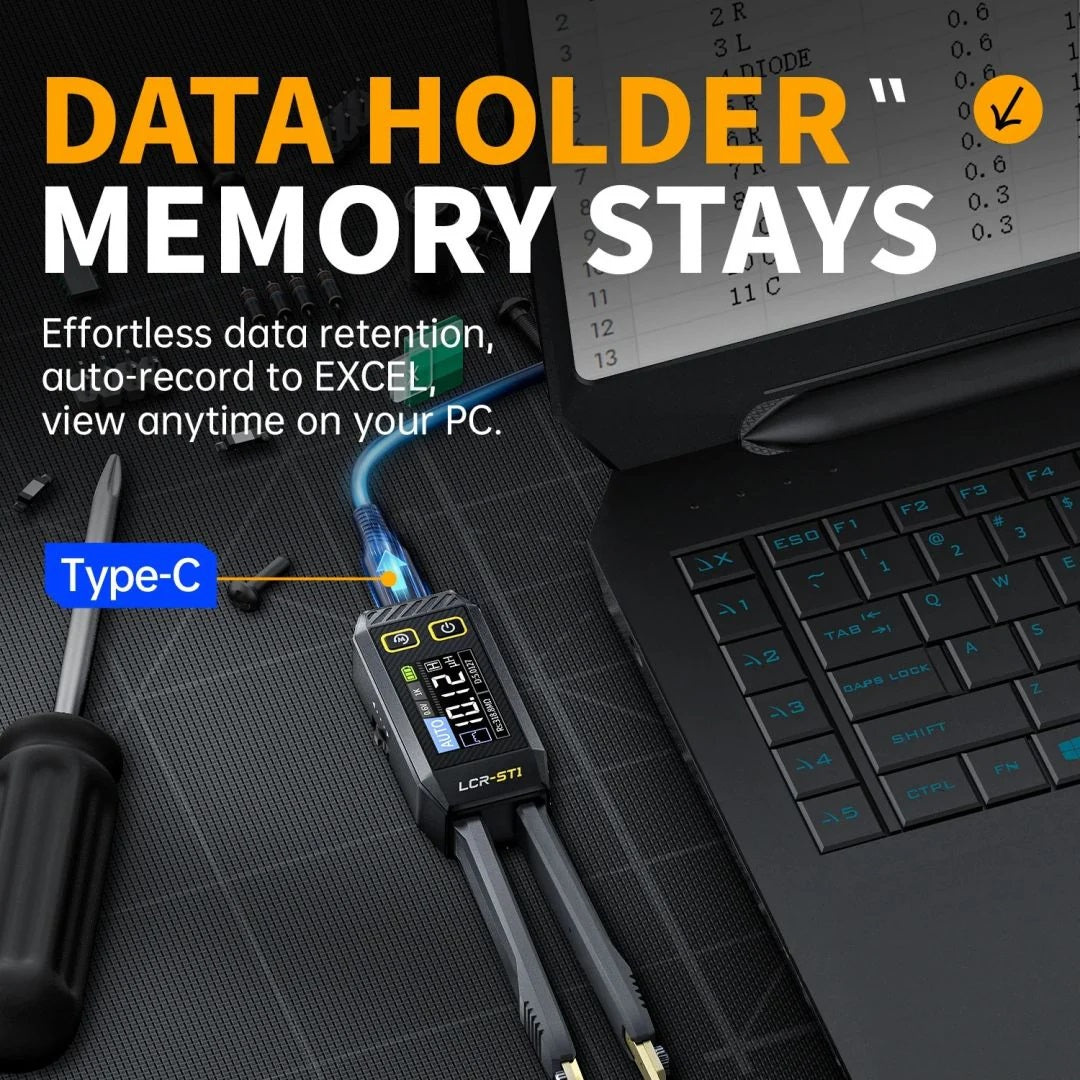

• Efficient Data Management: Automatically saves test records and allows for easy export of data to a PC via Excel, streamlining your diagnostic workflow.

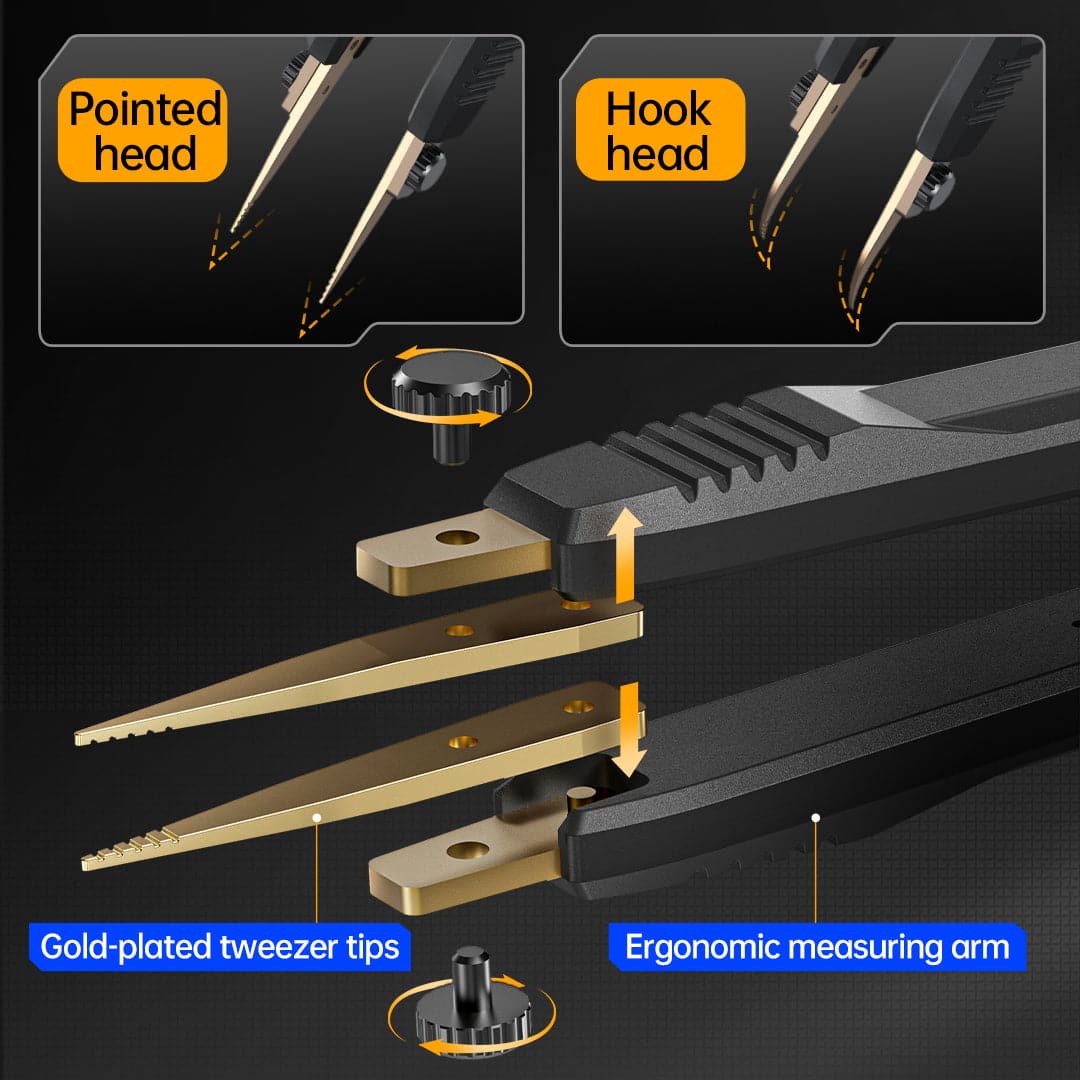

• Versatile Tweezer Heads: Includes both pointed and hook heads to accommodate various testing scenarios and component types.
• Portable and Rechargeable: Designed for convenience, the device is portable, rechargeable via USB, and includes a convenient carrying bag for on-the-go use.

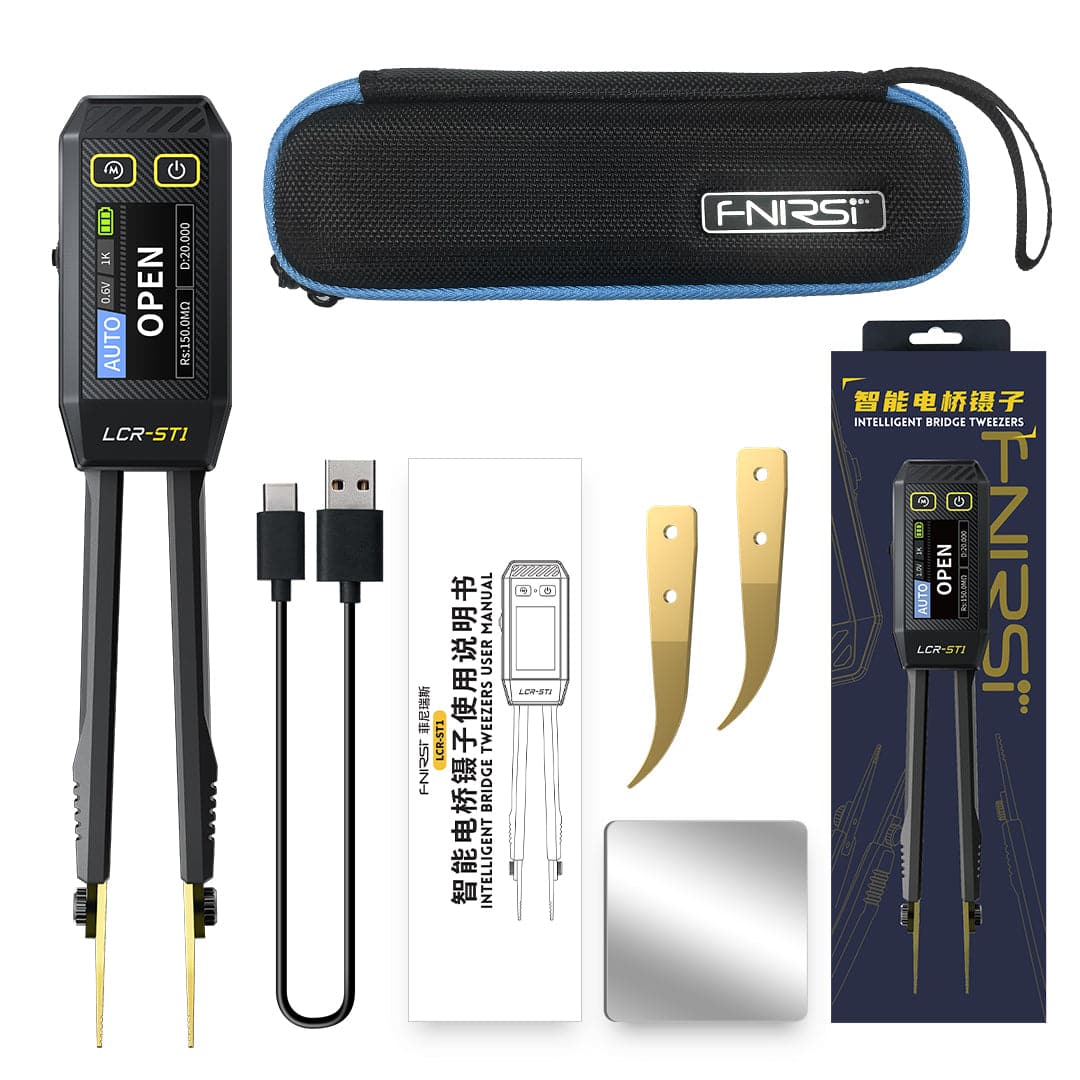

Package Includes:

• 1x LCR-ST1 Tweezer
• 1x Pair of Hook Heads
• 1x Magnetic Patch
• 1x USB Data Cable
• 1x User Manual
• 1x Packing Box
• 1x Tool Bag
