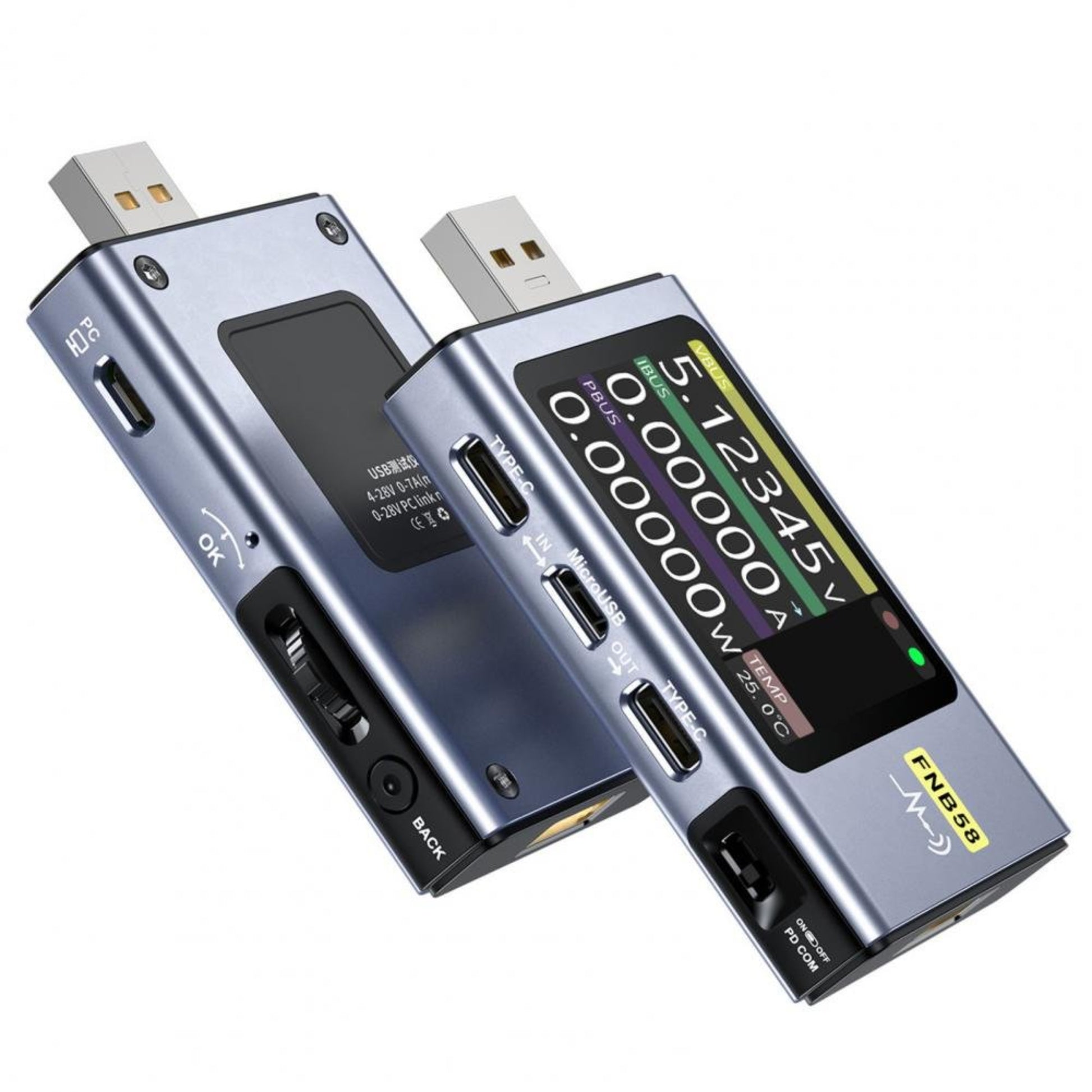

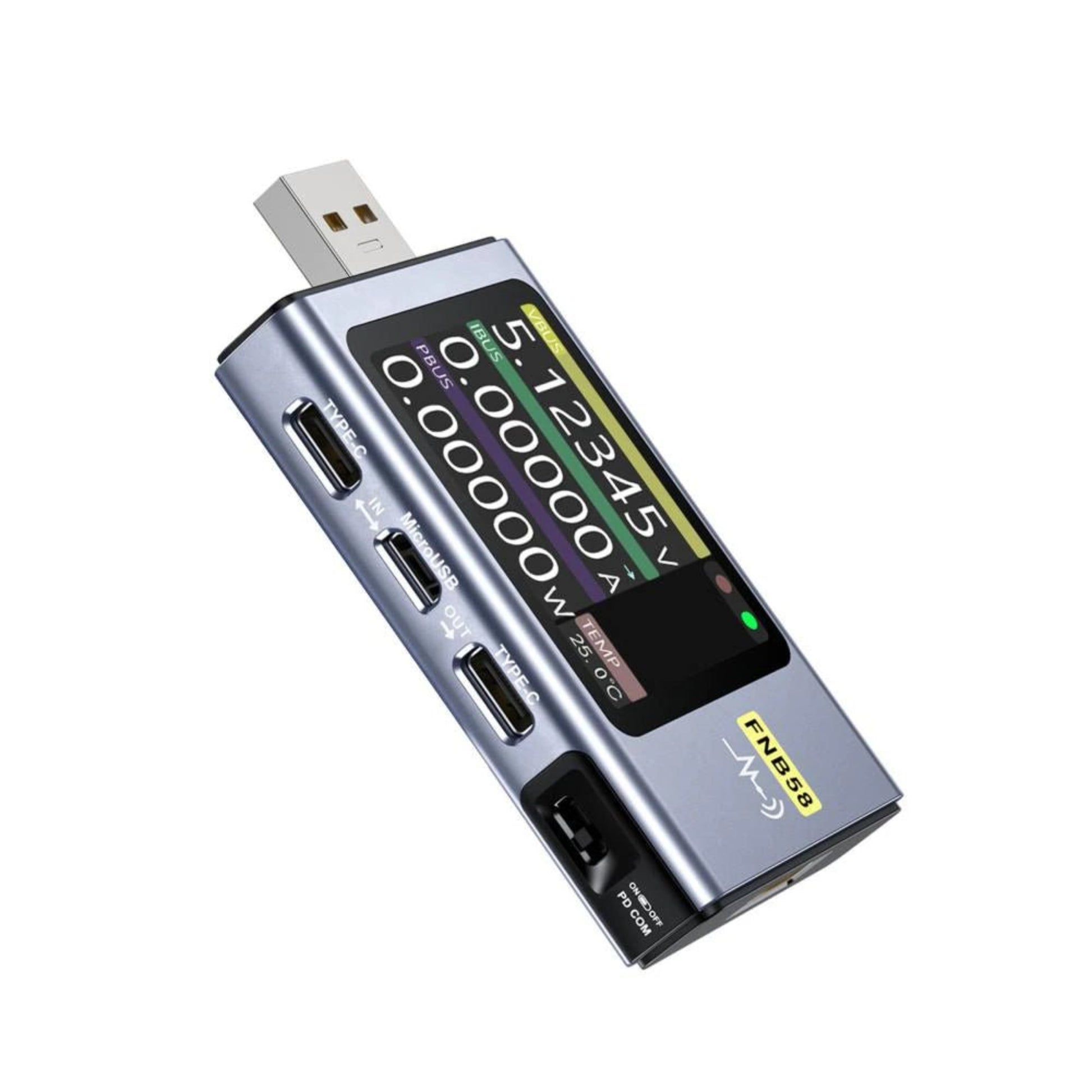

FNB58 USB VoltmeterAmmeter HD-compatible Large Screen Display Multifunctional Fast Charge Tester QC/PD Decoy Multi-interface
Description:

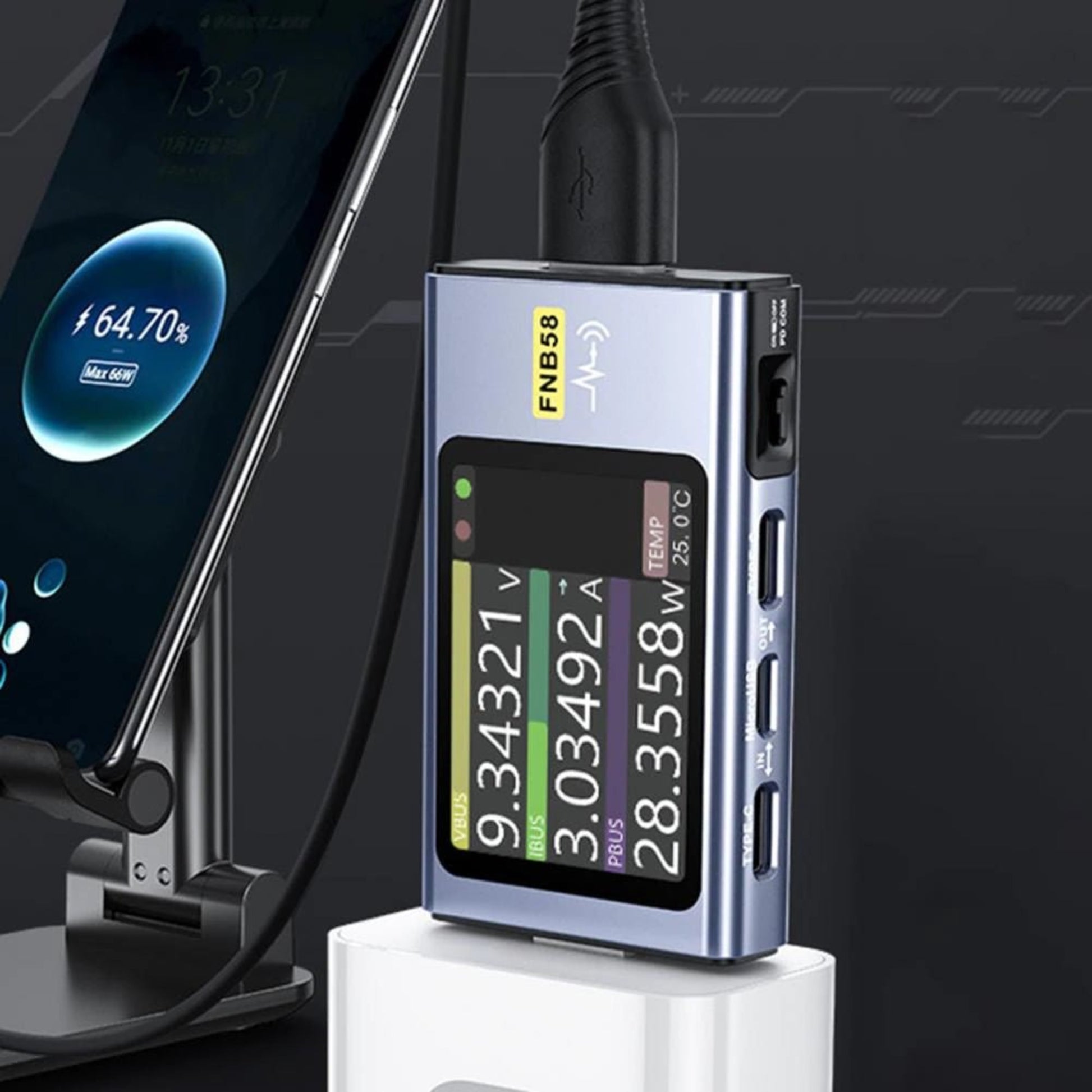

Support quick charger recognition; data wire resistance value testing; voltage/current/power detection; cable impedance measurement, etc. Allows you to check the charging performance of the output wall chargers/car chargers/solar panel chargers and USB charging cables. It can be also used to find the highest current of the Wireless Charger, and test capacity and electric energy of power bank.
Widely used in the quality inspection of digital devices with USB and Type C peripheral. Great for testing and getting real draw ratings on various chargers and equipment, such as PC/Laptop/Desktop Computer/Mobile Phone/Power Bank/Charger/Discharge Load/Car Charger/Cable. With this tester, you can see clearly what was happening when charging various USB devices, ranging from phone, to tablets and batteries.

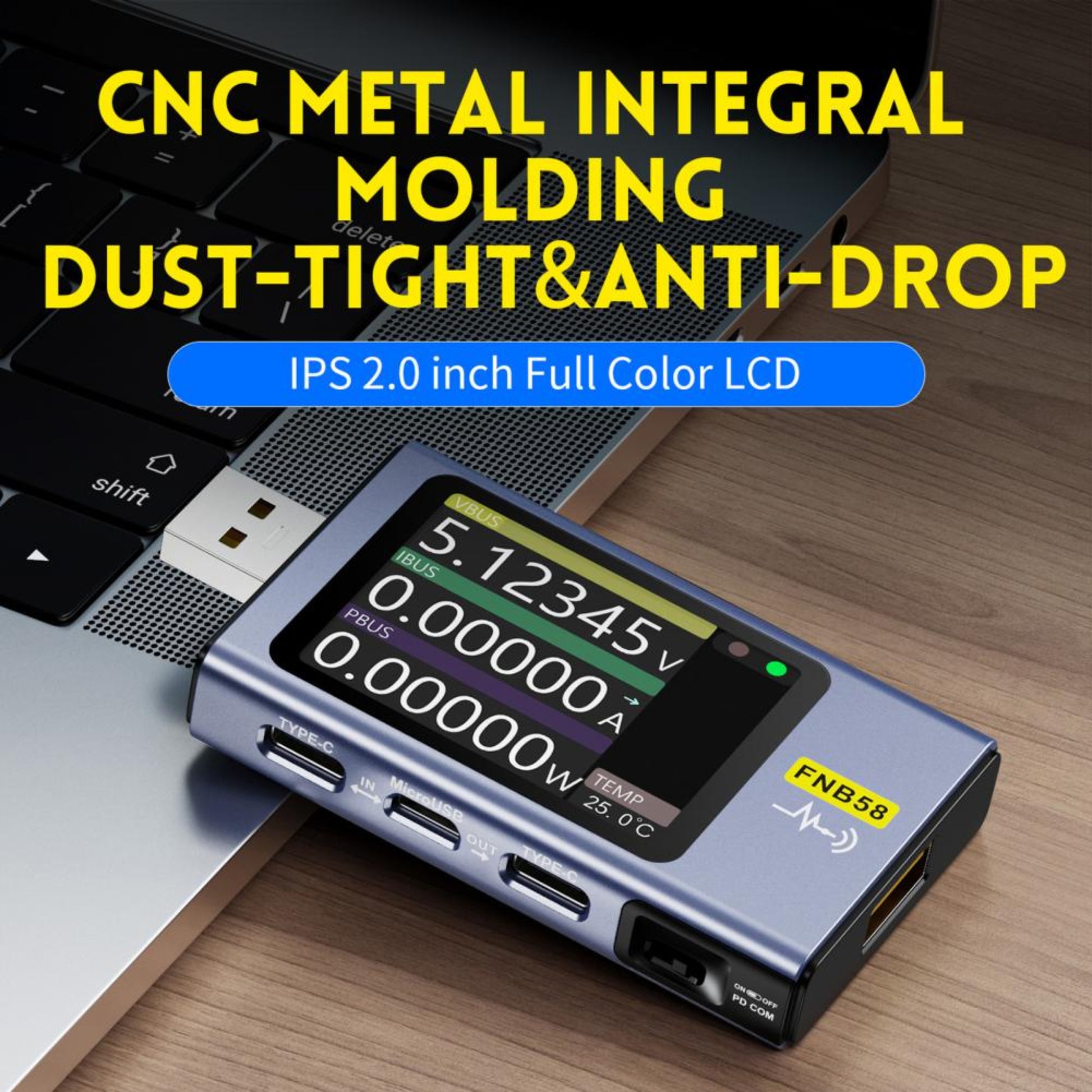

It is constructed of metal material.
The length of this product is 8.2cm, the width is 4.2cm and the height is 1.3cm.

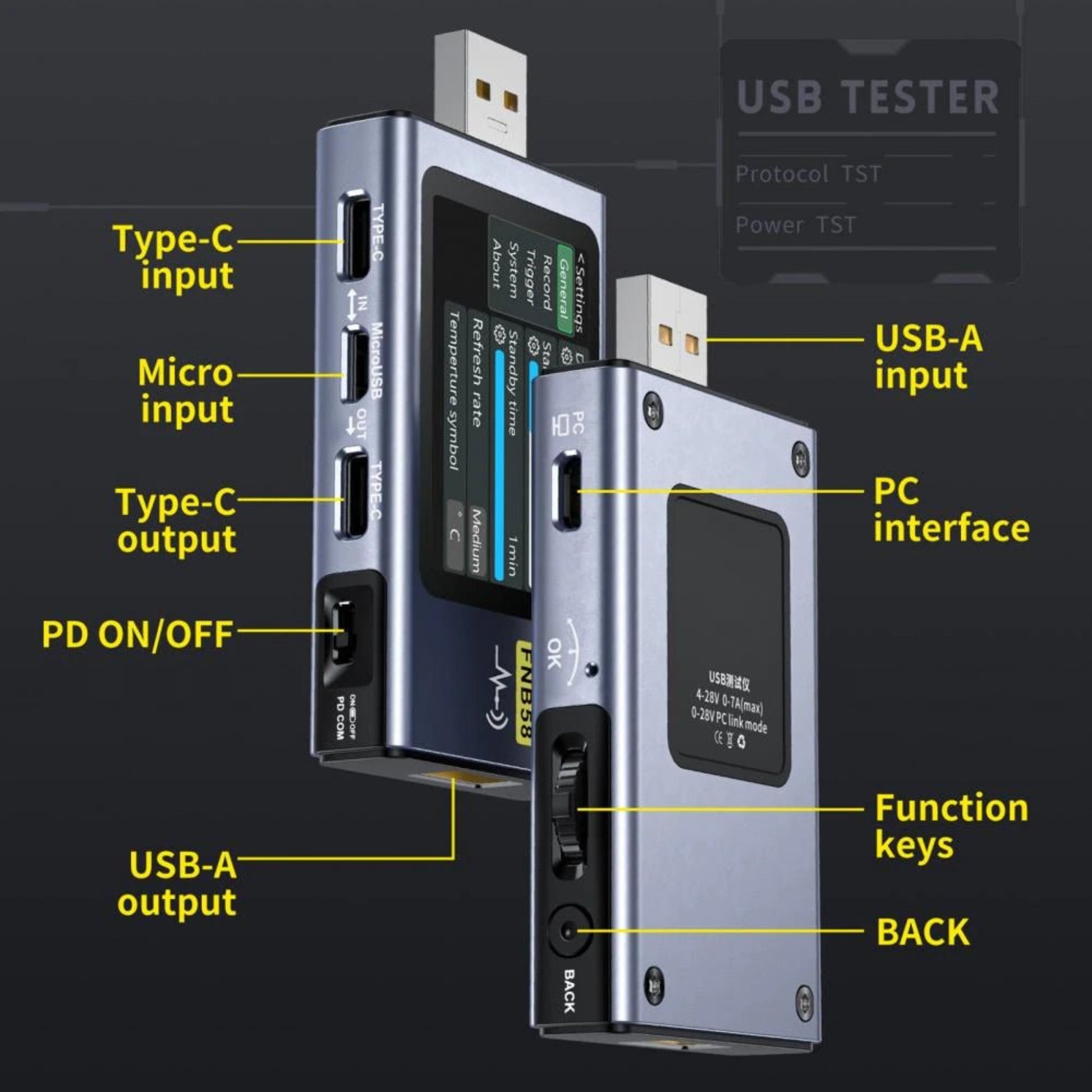

Application in varieties of test: PC/laptop/desktop computer/mobile phone/power-bank/fast charger/car charger/cable impedance measurement

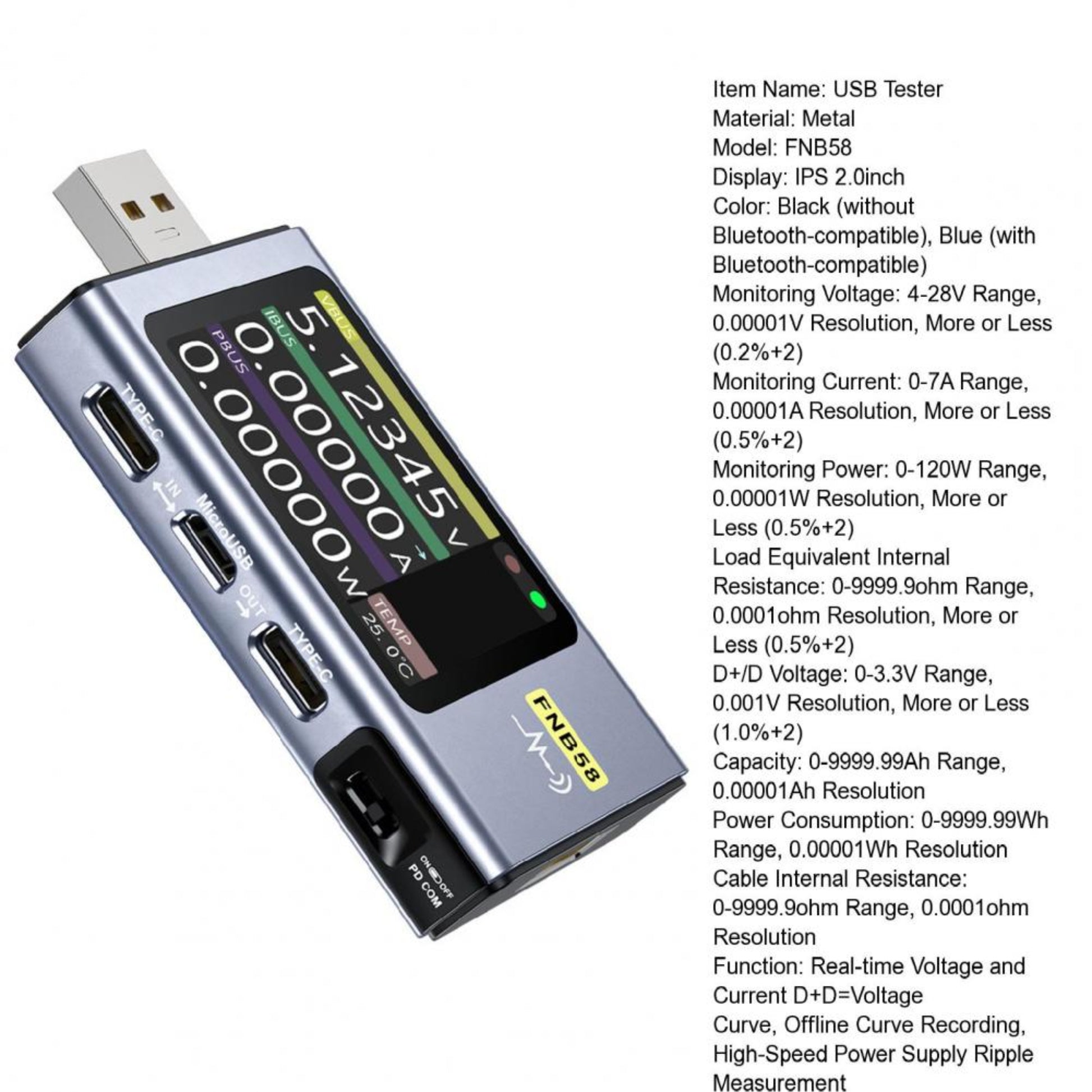

Item Name: USB Tester
Material: Metal
Model: FNB58

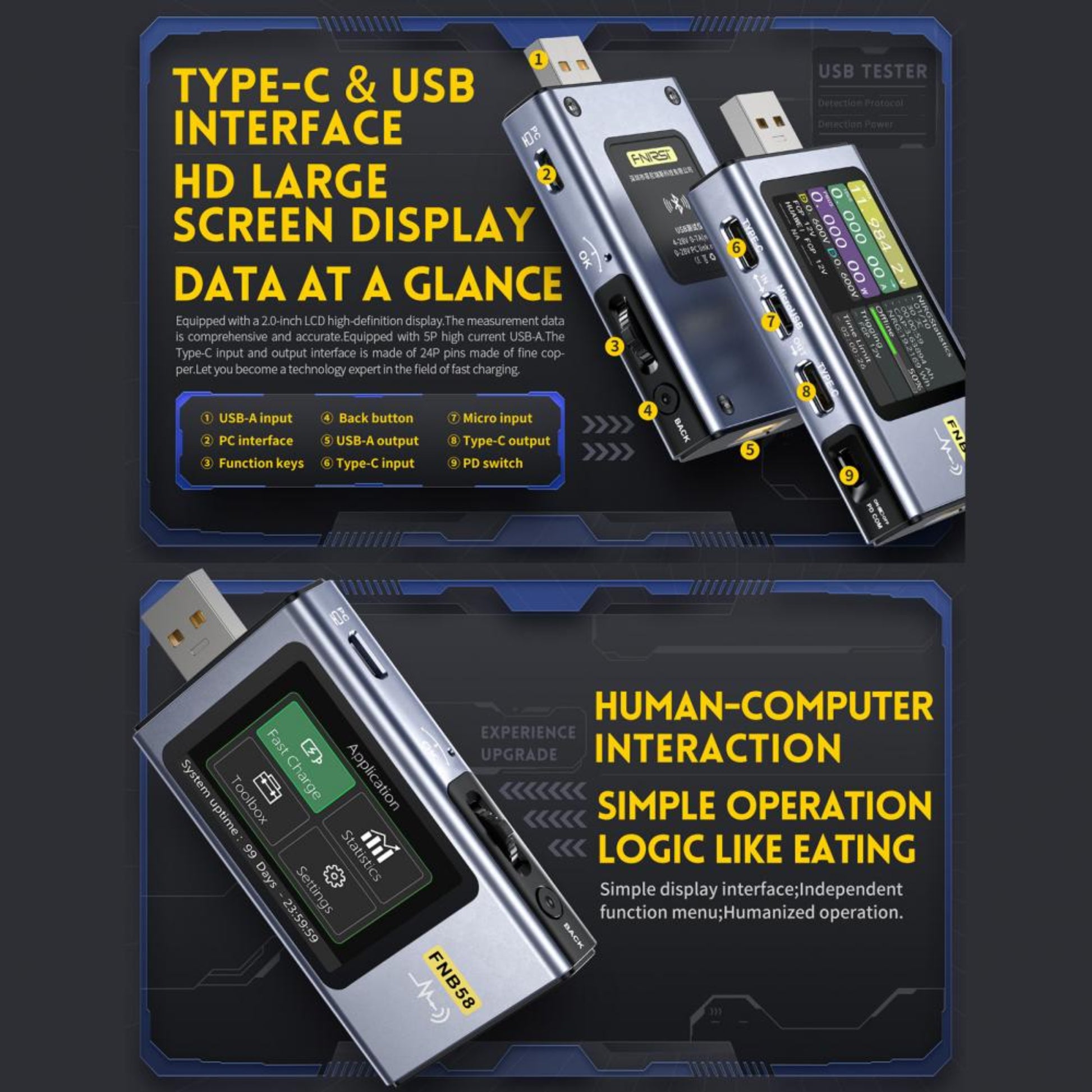

Display: IPS 2.0inch
Color: Black (without Bluetooth-compatible)
Monitoring Voltage: 4-28V Range, 0.00001V Resolution, More or Less (0.2%+2)
Monitoring Current: 0-7A Range, 0.00001A Resolution, More or Less (0.5%+2)
Monitoring Power: 0-120W Range, 0.00001W Resolution, More or Less (0.5%+2)
Load Equivalent Internal Resistance: 0-9999.9ohm Range, 0.0001ohm Resolution, More or Less (0.5%+2)
D+/D Voltage: 0-3.3V Range, 0.001V Resolution, More or Less (1.0%+2)
Capacity: 0-9999.99Ah Range, 0.00001Ah Resolution
Power Consumption: 0-9999.99Wh Range, 0.00001Wh Resolution

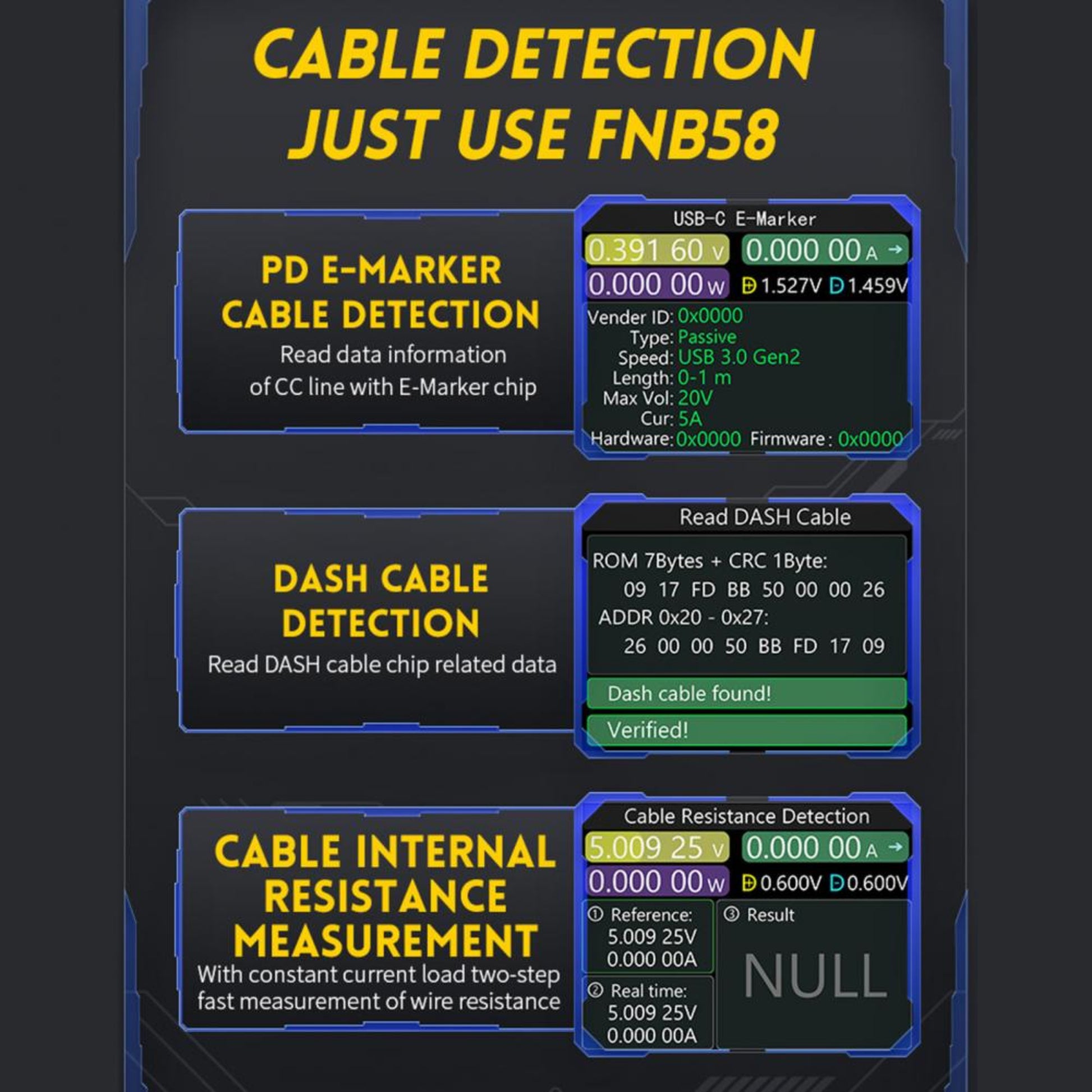

Cable Internal Resistance: 0-9999.9ohm Range, 0.0001ohm Resolution

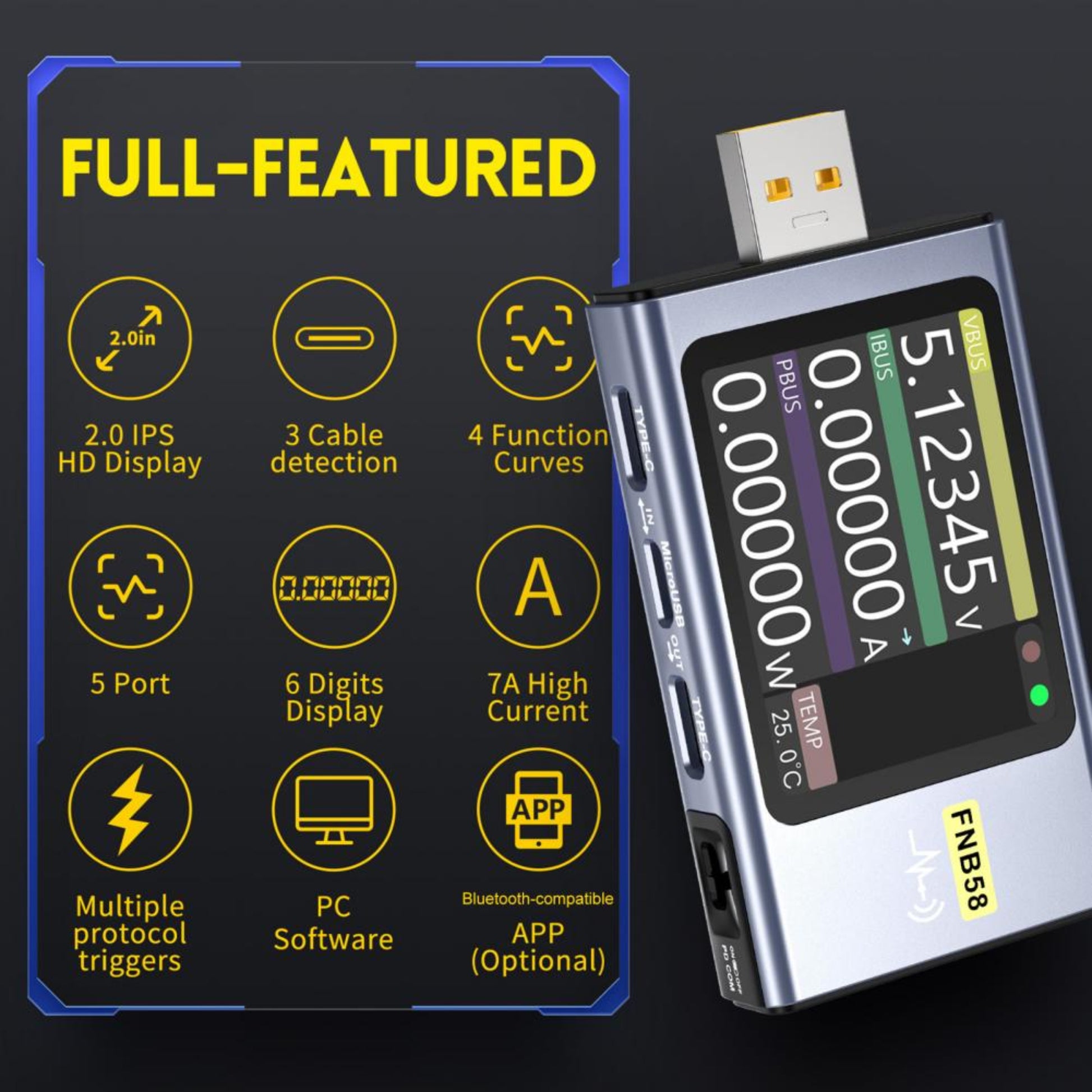

Function: Real-time Voltage and Current Curve, D+D=Voltage Curve, Offline Curve Recording, High-Speed Power Supply Ripple Measurement
Size Details:
LxWxH: 8.2cm x 4.2cm x 1.3cm/3.23" x 1.65" x 0.51"(Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x USB Tester
