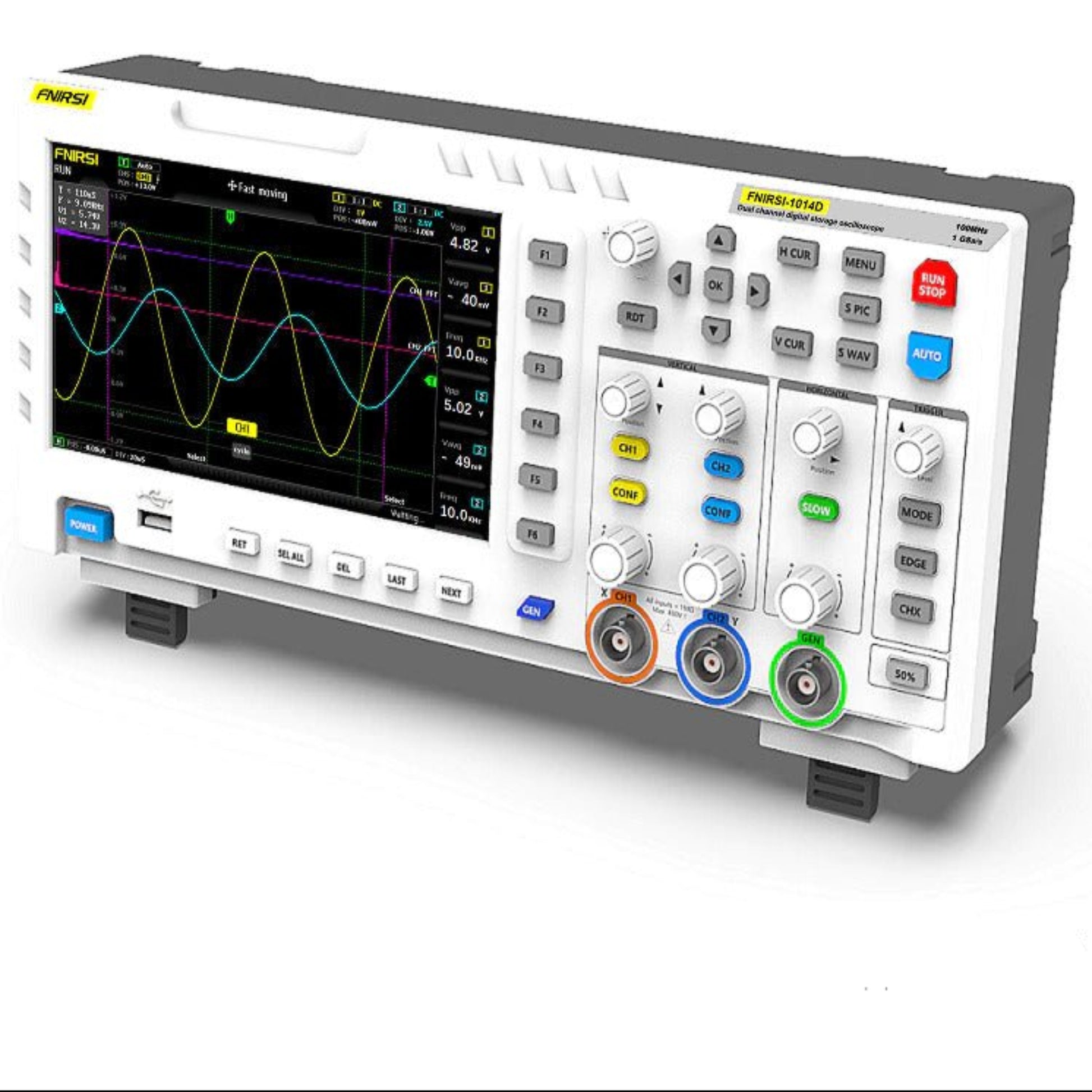

FNIRSI-1014D Dual Channel Digital Oscilloscope & Signal Generator

FNIRSI-1014D Dual Channel Digital Oscilloscope & Signal Generator

HK$1,250.00
HK$1,250.00
Sale Sold out
Shipping calculated at checkout.

The FNIRSI-1014D is an innovative 2-in-1 device combining a powerful digital oscilloscope with a versatile signal generator, perfect for electronics enthusiasts, engineers, and educators. This compact yet feature-rich instrument delivers exceptional performance and ease of use, making it an indispensable tool for a wide range of debugging and testing applications.

Key Features & Benefits:

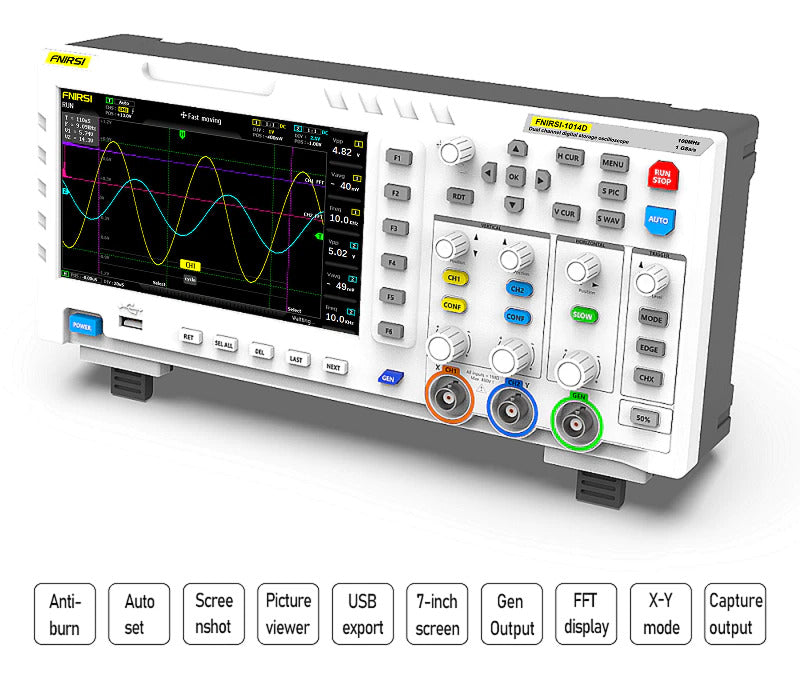

  • Dual-Functionality (2-in-1 Device): Seamlessly switch between a high-performance digital oscilloscope and a built-in DDS function signal generator, saving space and cost.

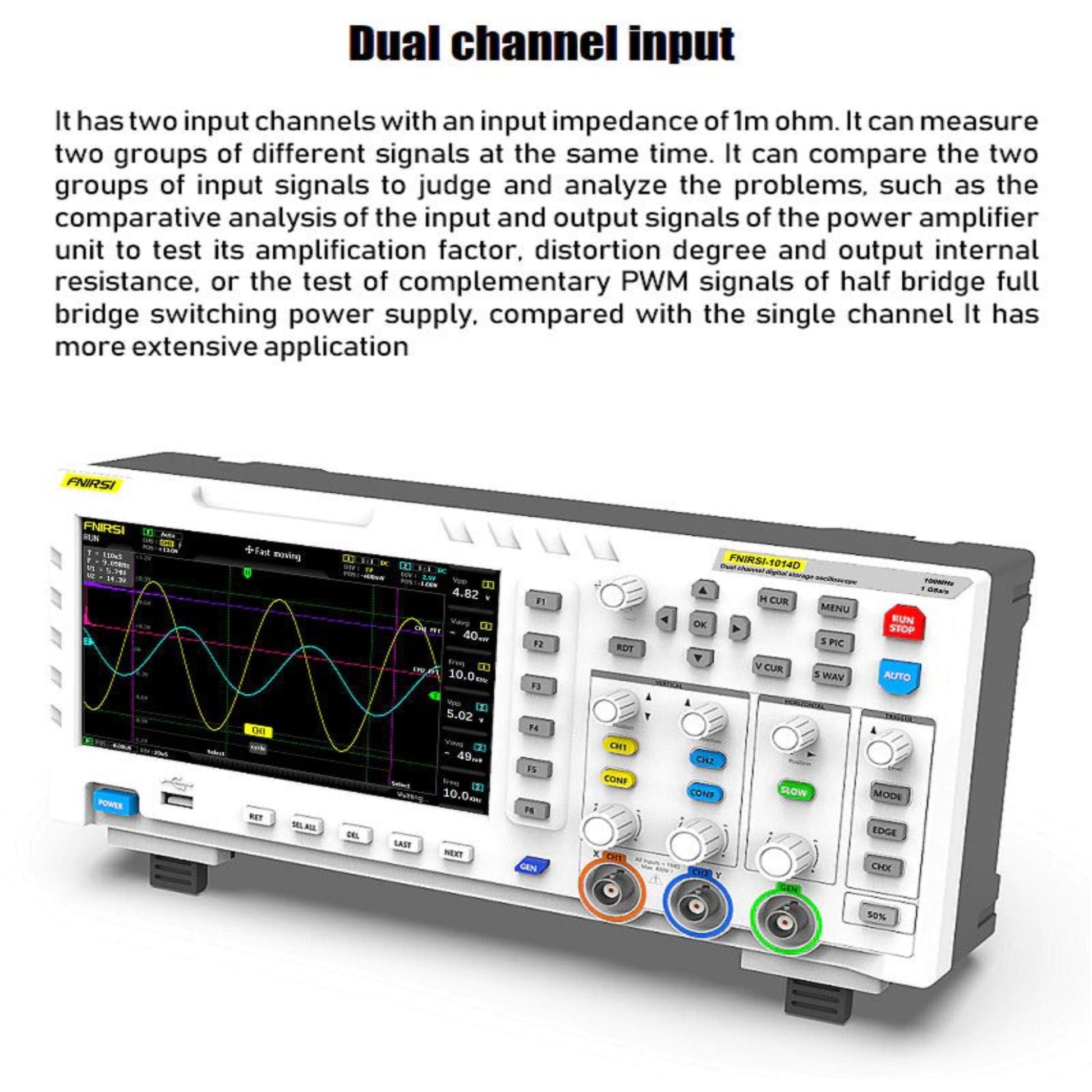

  • Superior Performance: Boasts a real-time sampling rate of 1GSa/s and an impressive 100MHz analog bandwidth across two channels, allowing for precise measurement and analysis of complex signals.

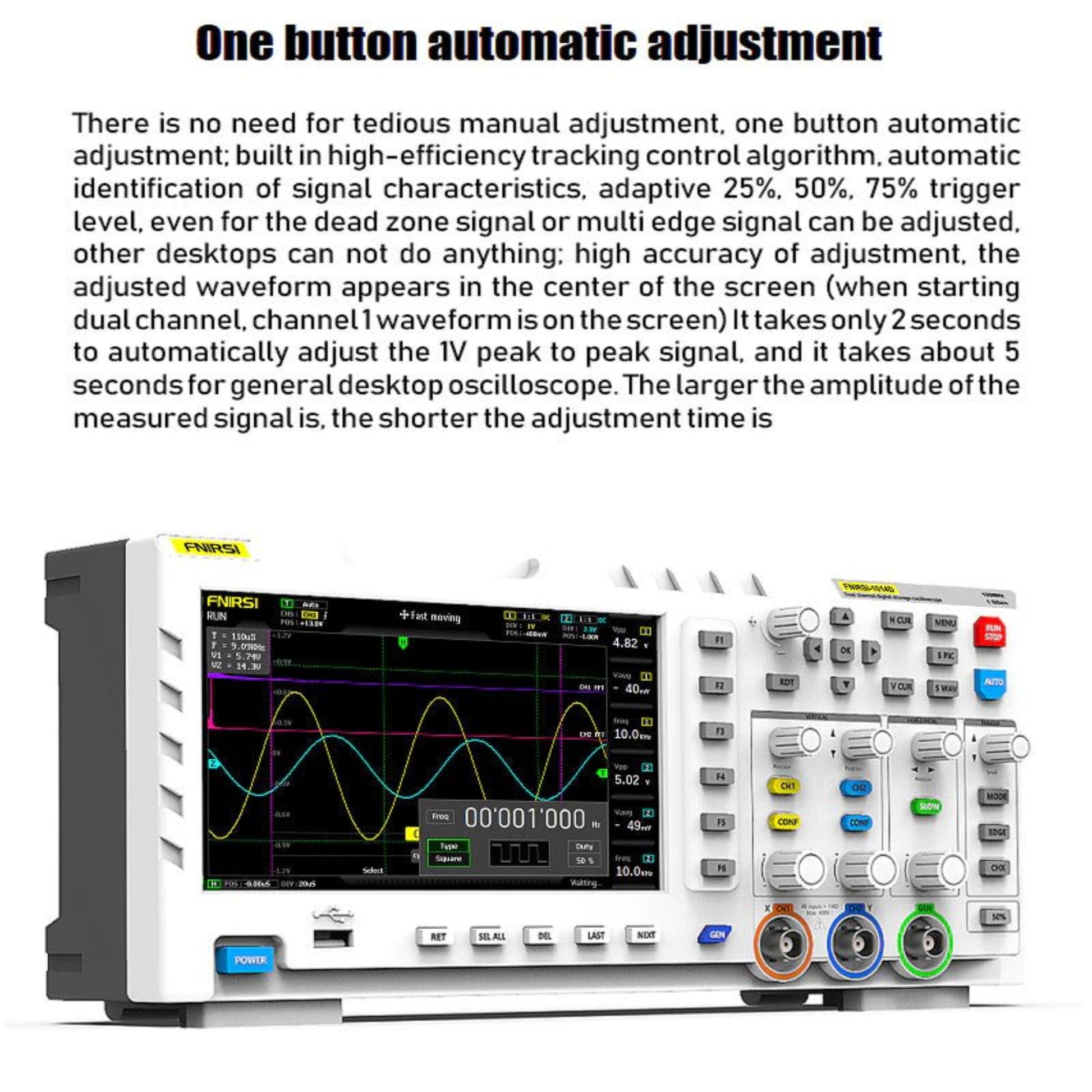

  • Intelligent Auto-Adjustment: Say goodbye to tedious manual adjustments! The one-button automatic adjustment feature quickly and accurately sets up the waveform display, taking just 2-5 seconds for most signals.

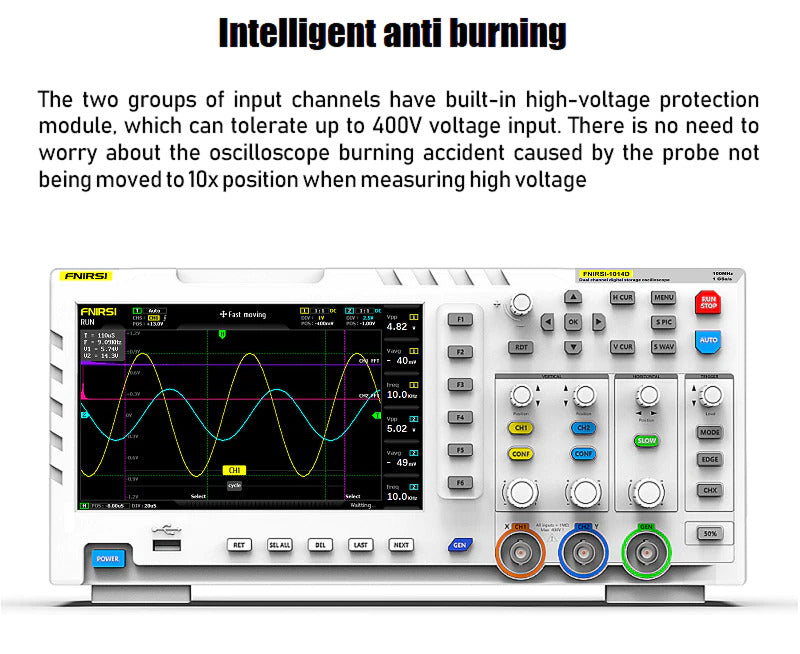

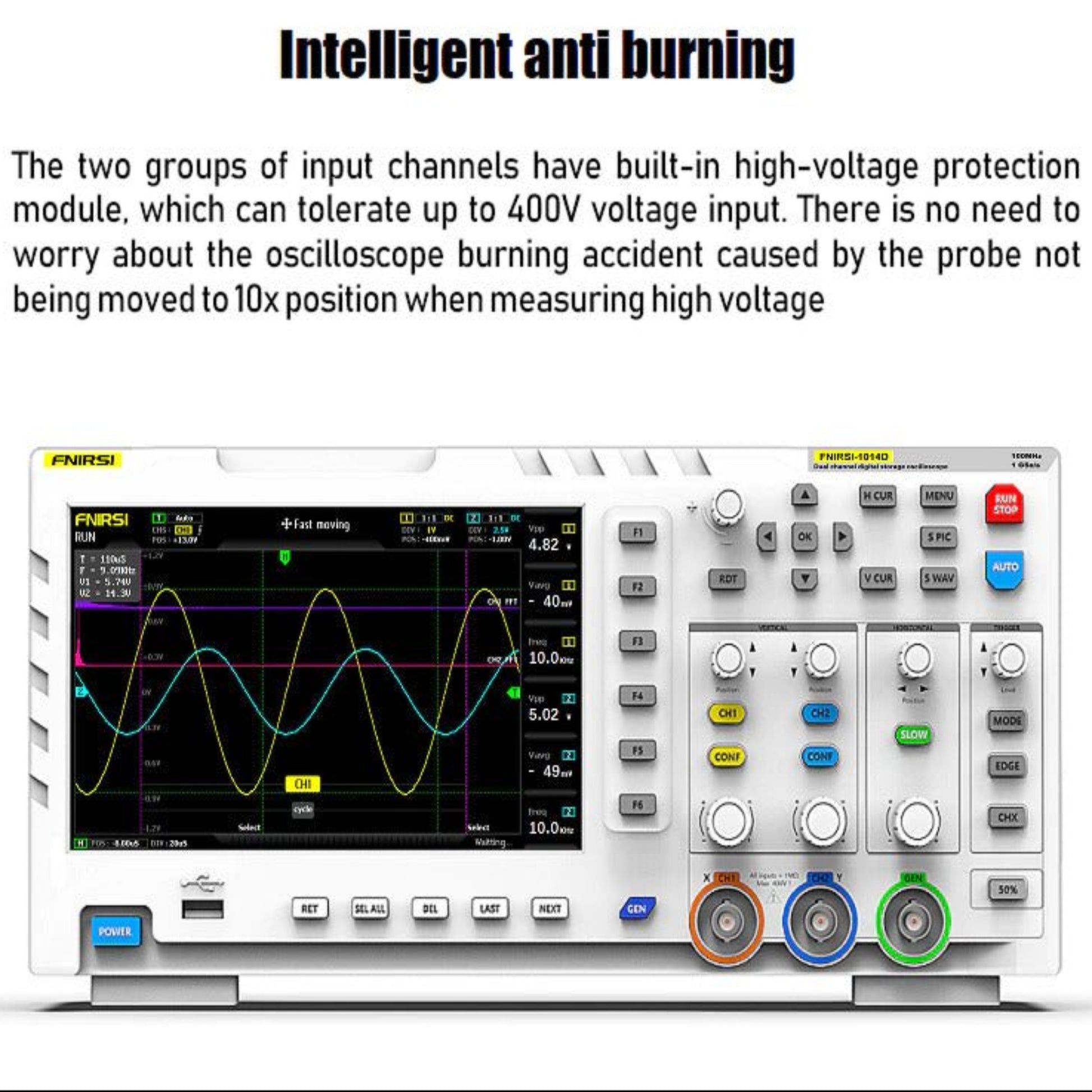

  • Intelligent Anti-Burn Protection: Designed with a built-in high-voltage protection module on both input channels, capable of tolerating up to 400V continuous voltage. This safeguards your oscilloscope from accidental damage even if the probe is not set to 10x position when measuring high voltage.

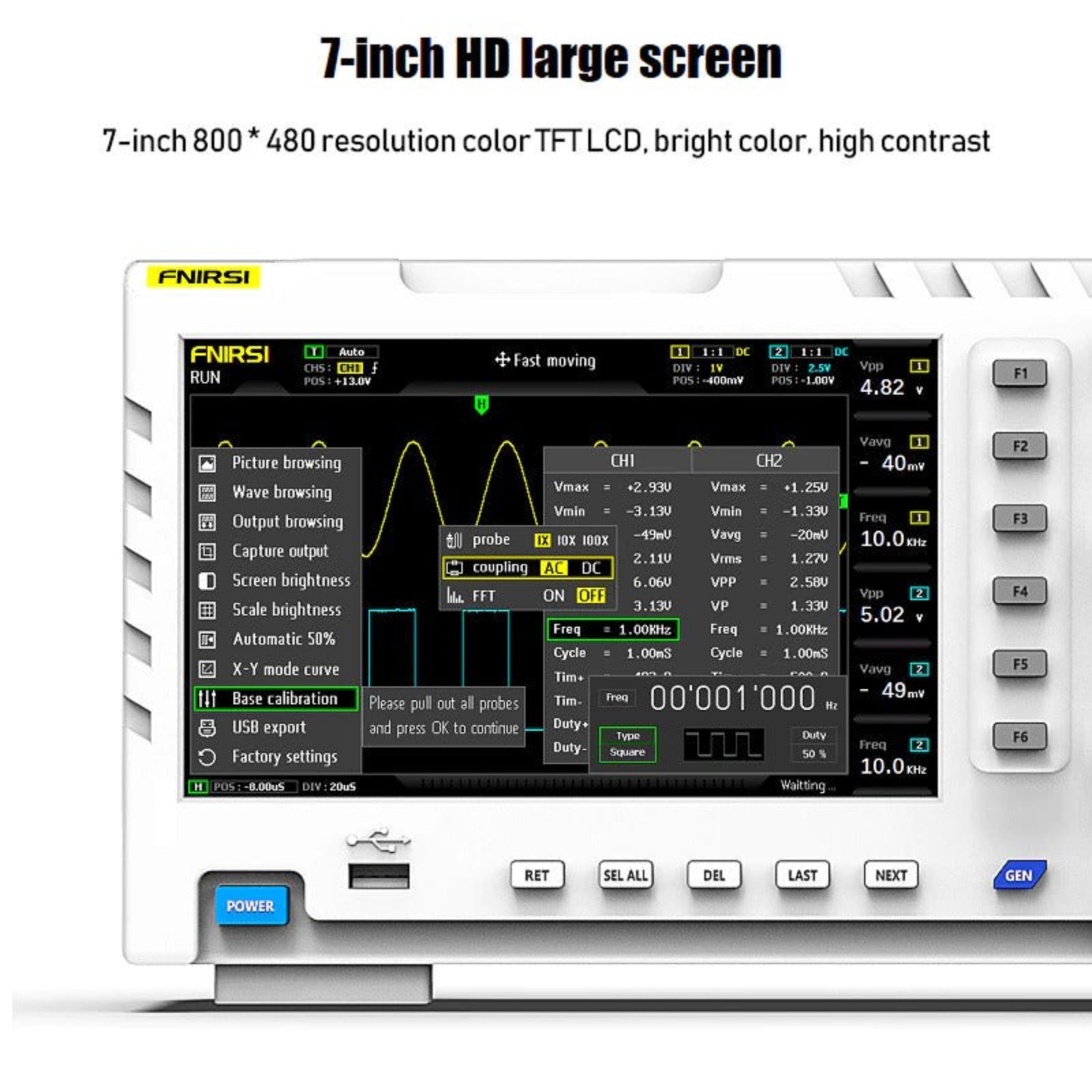

  • Intuitive 7-inch HD Display: Experience clear and vibrant waveform viewing on the full-fit 7-inch TFT LCD with 800 * 480 resolution, bright colors, and high contrast.

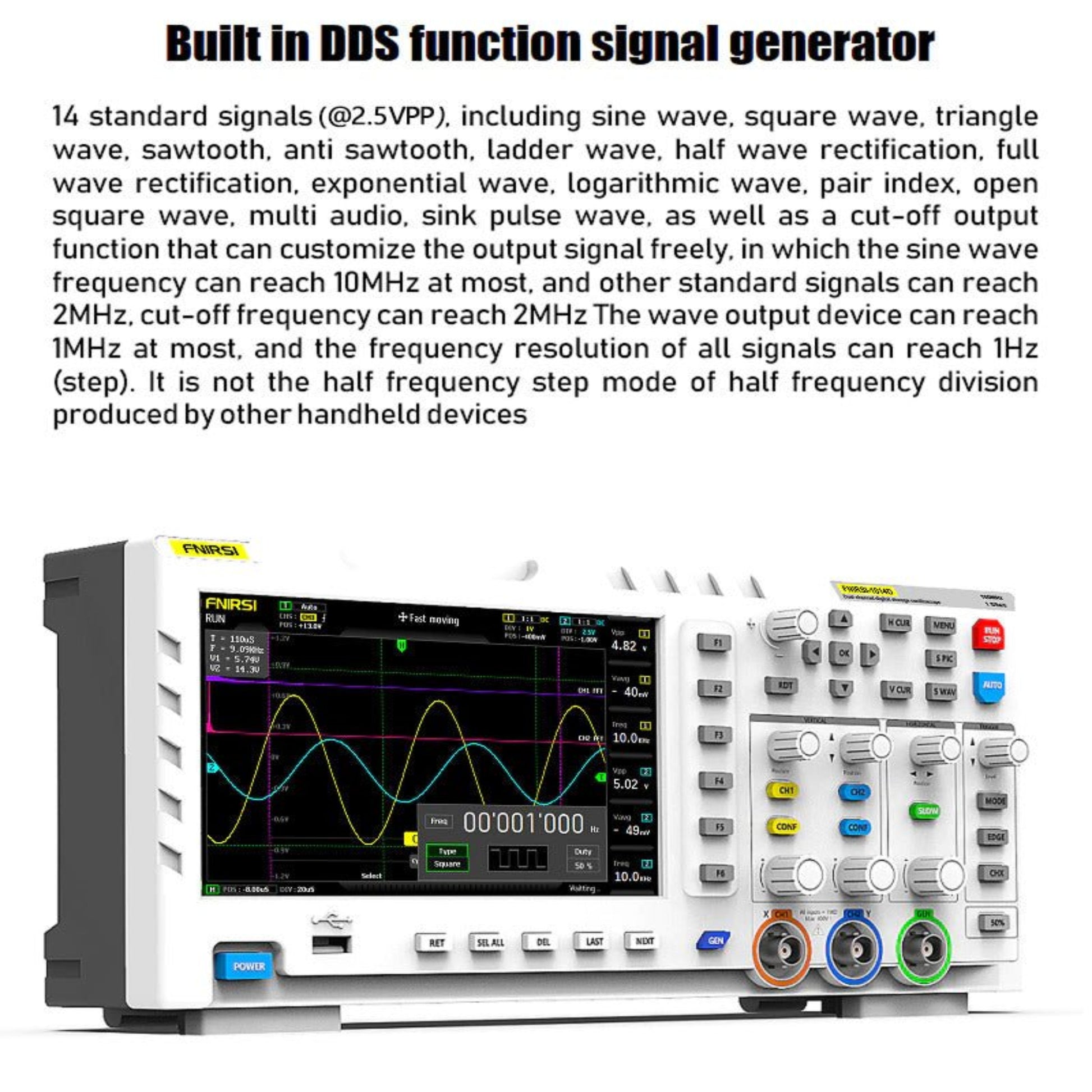

  • Versatile Signal Generator: The integrated DDS signal generator supports 14 standard function signals (including sine, square, triangle, and more) at 2.5Vpp. Customize and output signals with frequency steps as low as 1Hz, up to 10MHz for sine waves and 1MHz for other standard signals.

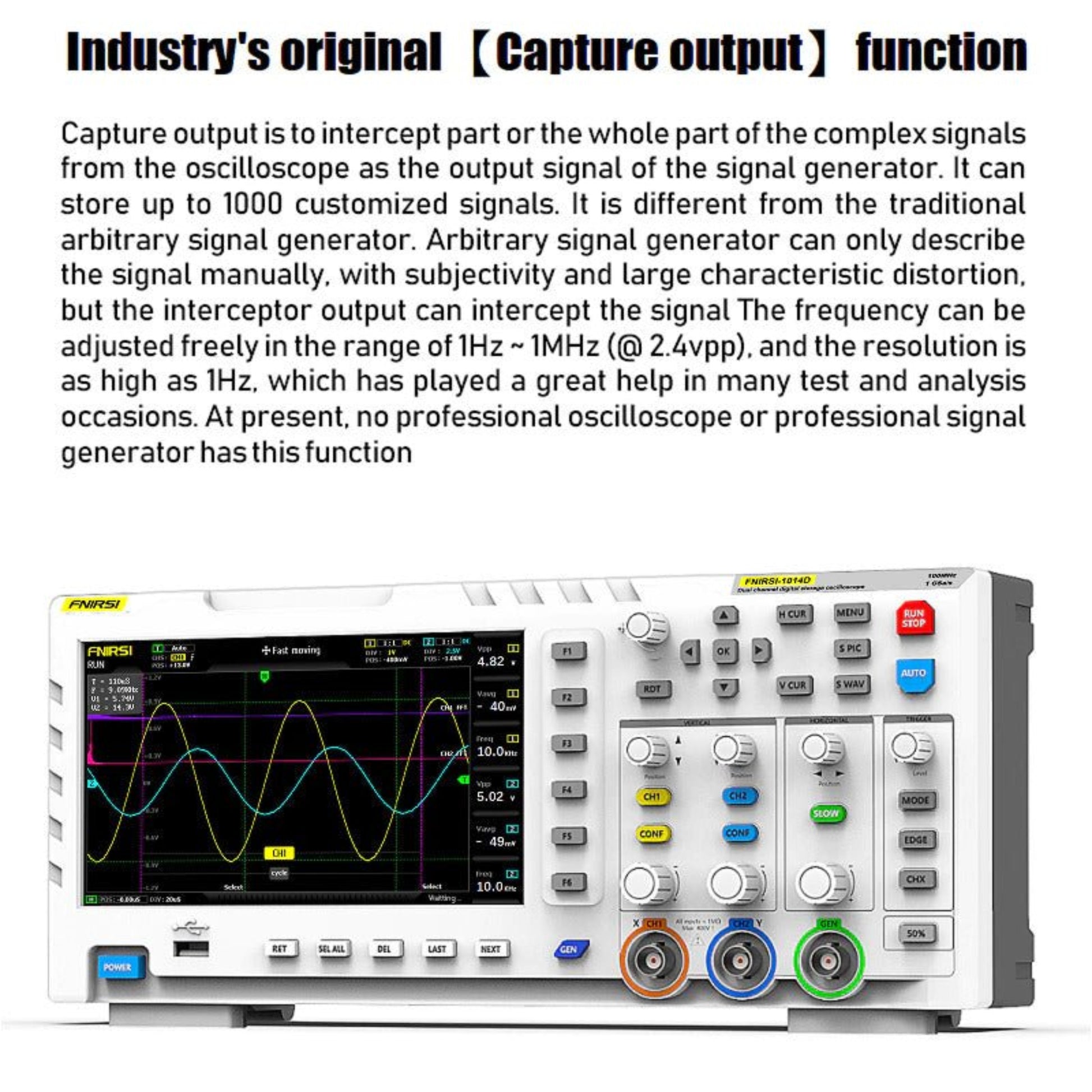

  • Industry-Original Capture Output Function: A unique feature allowing you to intercept part or the whole of complex signals from the oscilloscope and use them as output signals for the signal generator. Store up to 1000 customized signals, perfect for replicating specific waveforms.

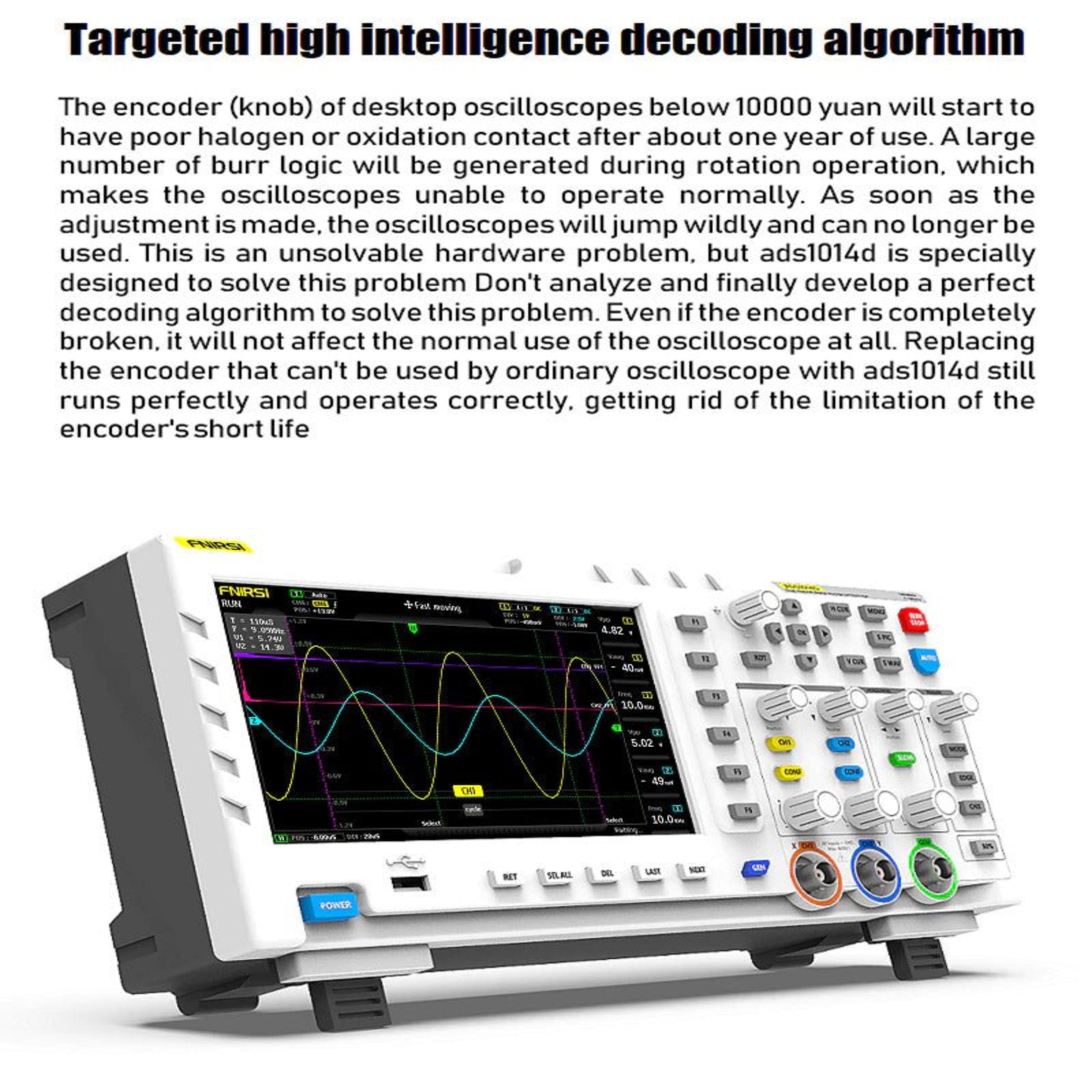

  • Robust Decoding Algorithm: Features a targeted high intelligent decoding algorithm that ensures smooth and accurate operation of the encoder knobs, even after extended use, eliminating common issues found in other oscilloscopes.
  • Comprehensive Measurement & Analysis:
    • 12 Parameter Measurements: Automatically displays VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, and Period.
    • Cursor Measurement: Manually measure period, frequency, and voltage with ease.
    • FFT Display Function: Analyze the spectral characteristics of your signals for in-depth understanding.
    • Lissajous Figures Graphic Display: Determine amplitude, frequency, and phase contrast between two signals.
  • Effortless Data Management:

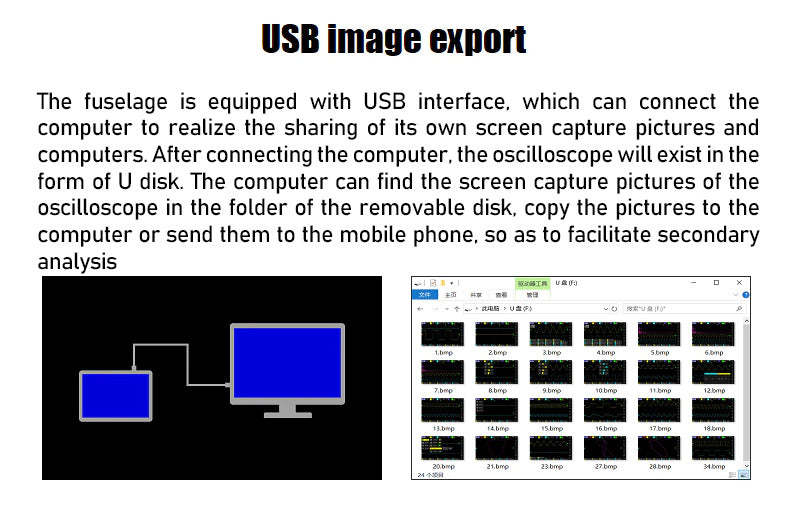

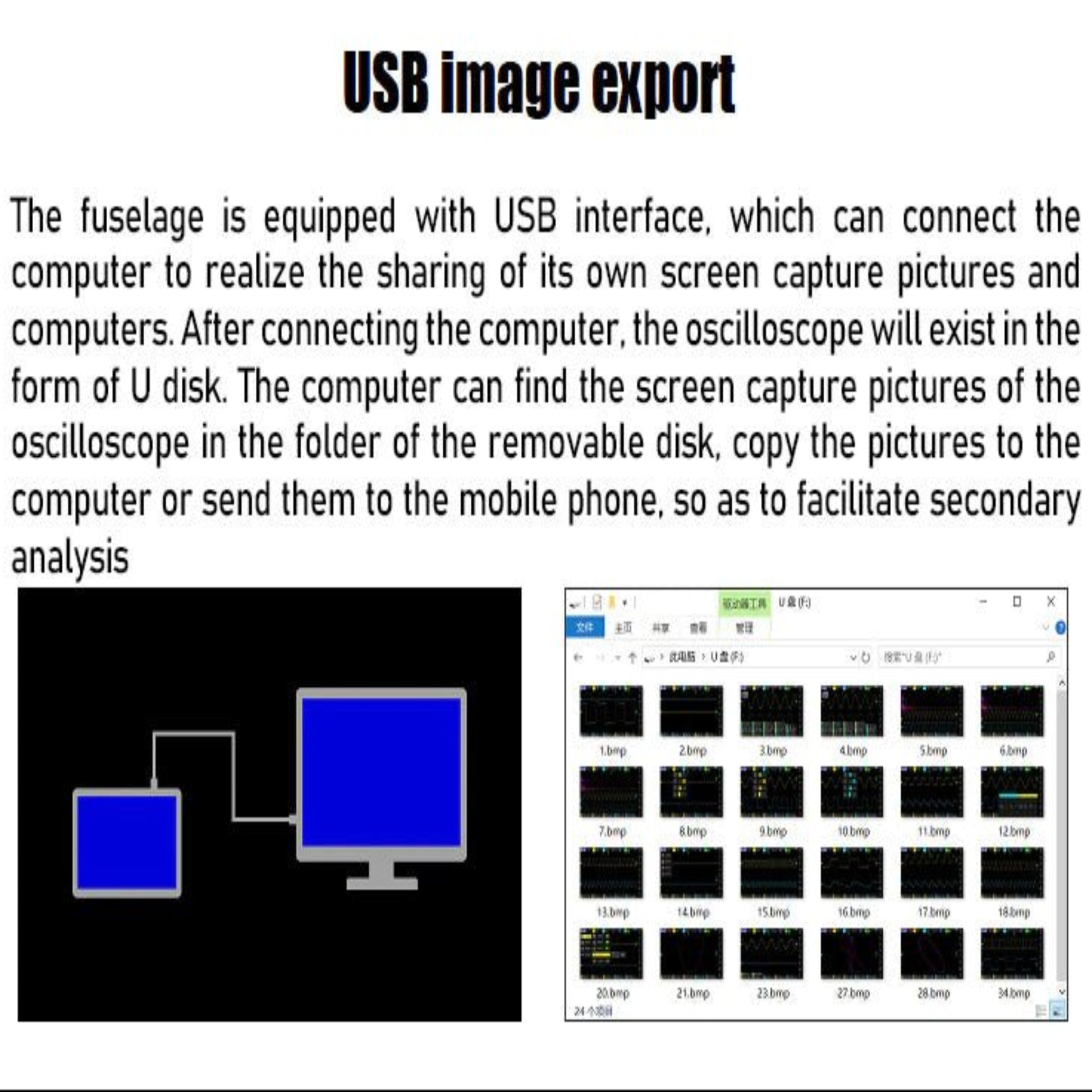

    • USB Image Export: Easily connect to a computer via USB to share screenshots and waveform data for secondary analysis. The oscilloscope appears as a U-disk for simple file transfer.
    • Built-in 1GB Storage: Store up to 1000 screenshots and 1000 sets of waveform data directly on the device.
    • Powerful Waveform Picture Manager: Browse, view, zoom, move, and delete stored waveforms and screenshots directly on the device.

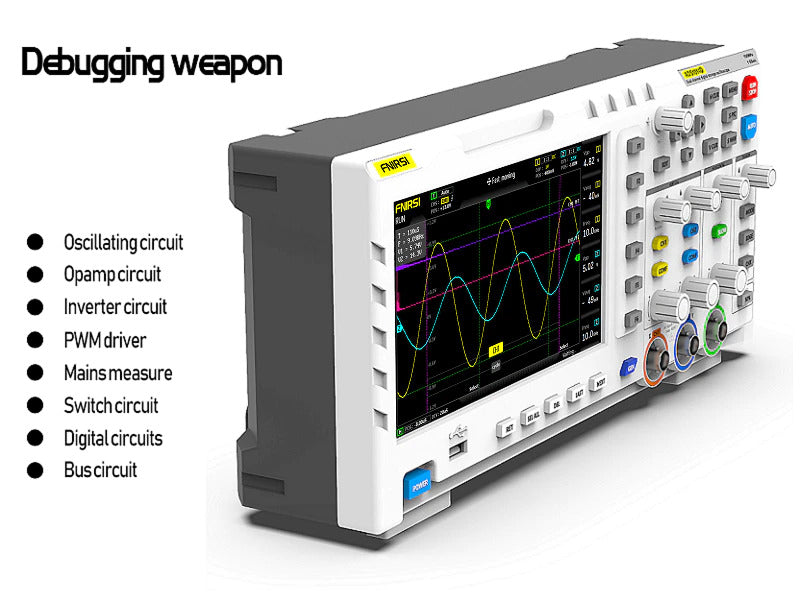

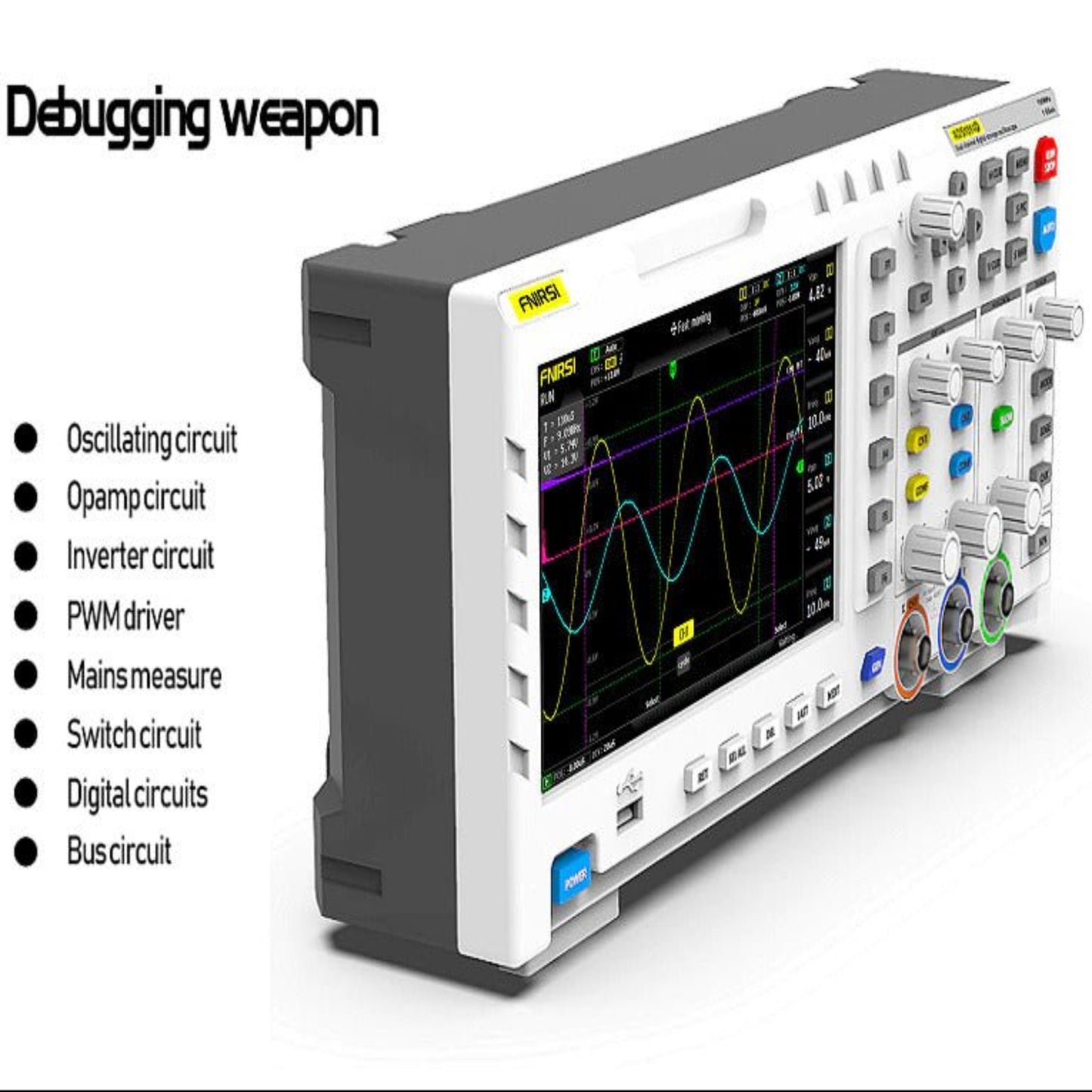

  • Wide Application: An essential debugging tool for:
    • Oscillating circuits
    • Opamp circuits
    • Inverter circuits
    • PWM drivers
    • Mains measure
    • Switch circuits
    • Digital circuits
    • Bus circuits

Specifications:

  • Analog Bandwidth: 100MHz * 2
  • Channels: 2
  • Maximum Real-time Sampling Rate: 1GSa/s
  • Vertical Sensitivity: 50 mV/div ~ 500 V/div
  • Horizontal Time Base Range: 50S/div ~ 10nS/div
  • Maximum Test Voltage: 40V (1X probe), 400V (10X probe)
  • Storage Depth: 240Kbit
  • Input Resistance: 1MΩ
  • ADC Precision: 8bits
  • Coupling Mode: AC/DC
  • Trigger Mode: Single, Normal, Auto
  • Trigger Edge: Rising edge/Falling edge
  • External Trigger Voltage: 0~40V
  • Extension Ports: USB picture export

What's in the Box:

  • 1 * FNIRSI-1014D Oscilloscope Host
  • 2 * Matching 100MHz Probes (1X and 10X)
  • 1 * Clip
  • 1 * 5V2A Power Adapter
  • 1 * USB Data Line
  • 1 * English User Manual
