ESP32 Module 2.8 inch ESP32-2432S028R 240*320 LCD Screen

Regular price
$169.00
Sale price
$169.00
Regular price
Sold out
Unit price
per

ESP32 Arduino LVGL WIFI&Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch LCD TFT Module With Touch WROOM



Product description

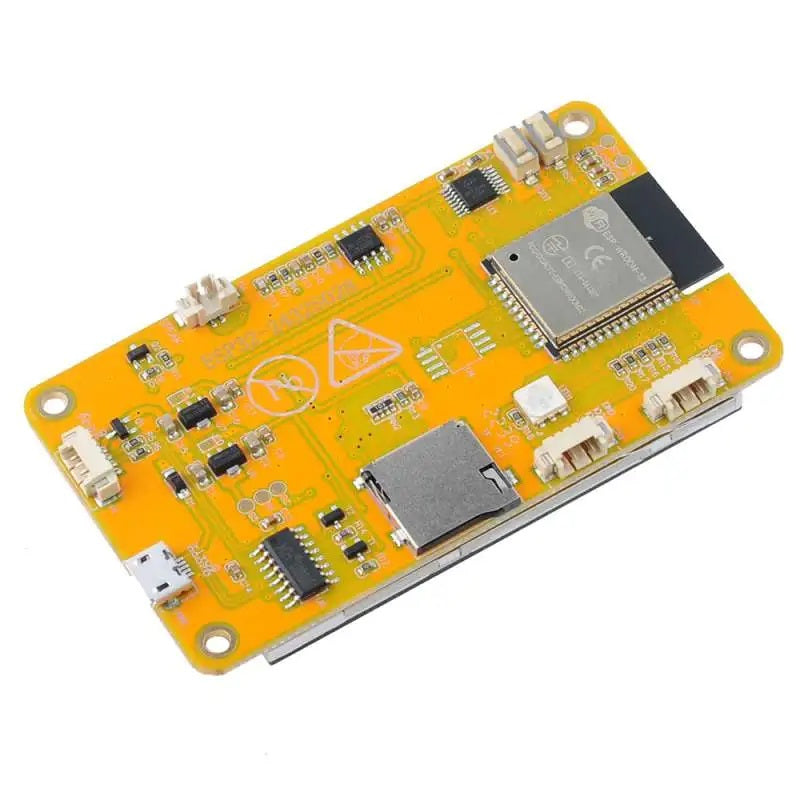

This LCD module uses ESP32-WROOM-32 module as the main control, the maincontrol is a dual-core MCU, integrated Wl-Fl and Blue-tooth functions, the mainfrequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB,Thedisplay resolution is 240x320, resistive touch. The module includes LCD displayscreen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved lO portinterface, this module supports development in a rduino lDE, ESP IDE, M icropythonand M ixly.

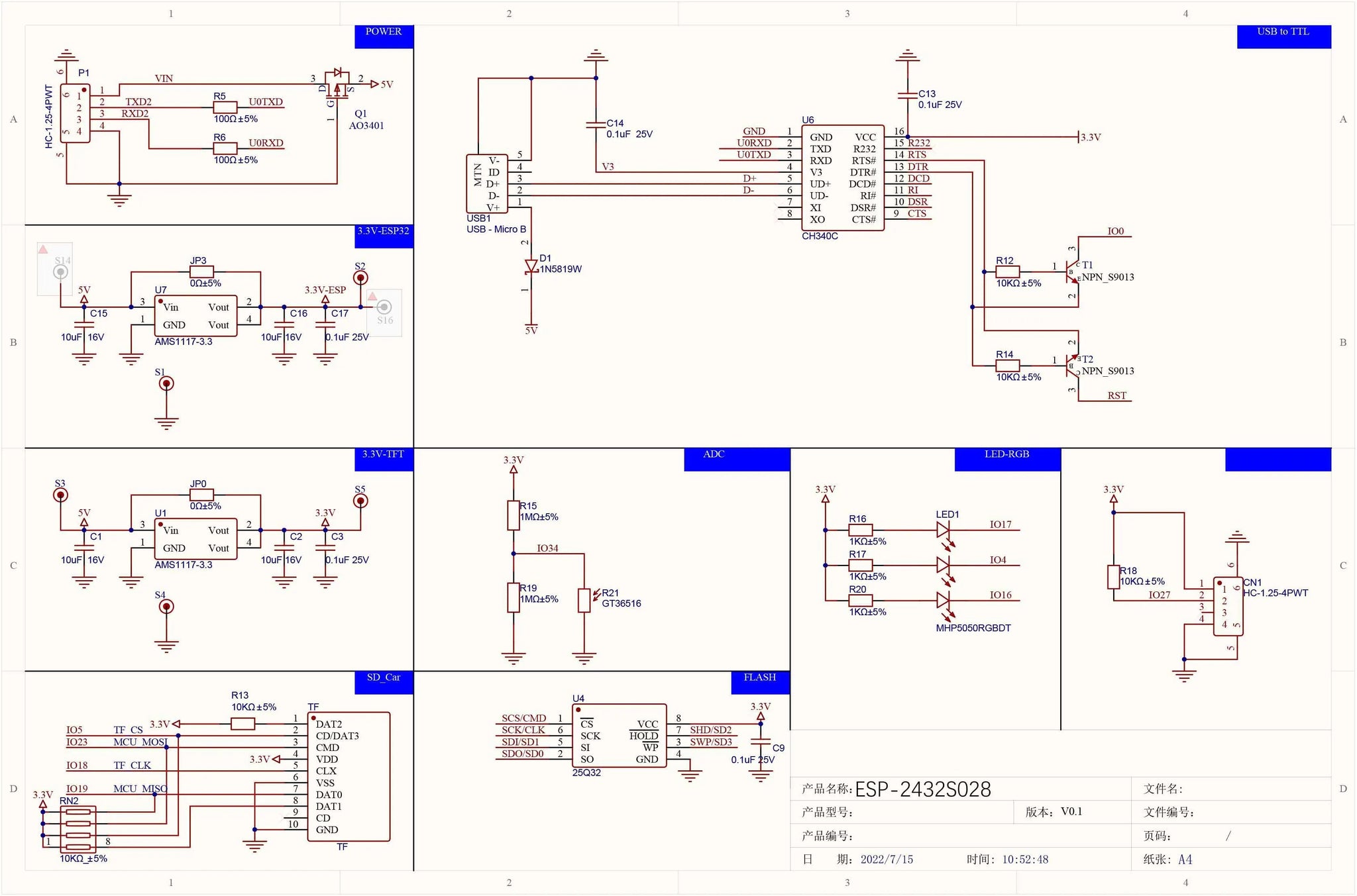

ESP32-2432S028 mother board introduction

ESP32 =MCU +WiFi + BT

ESP32-2432S028 development board is based on the company's ESP32-DOWDQ6 controller,dual-core CPU, clock frequency up to 240MHZ,integrates a wealth of resource peripherals,high-speed SDIO,SPI, UART and other functions,supports automatic download.



Remote loT Development Board

ESP32-2432S032 development board, which gives full play to the development of the Internet of Things, it is a real lnternet of Things development tool with a control-lable display screen, which can be used for APP remote control,remote environmental data collection, remote data fusion, remote Parameter setting and other loT de-velopment applications.



Scratch 3.0 programming demonstration

App drag and drop programming

The development of remote lOT app adopts blank app software, which cancustomize the personalized interface on the terminal device,with rich built-in controls and beautiful U interface. lt can customize the app control module and interface, which is very suitable for making an app interface that meets its own requirements.

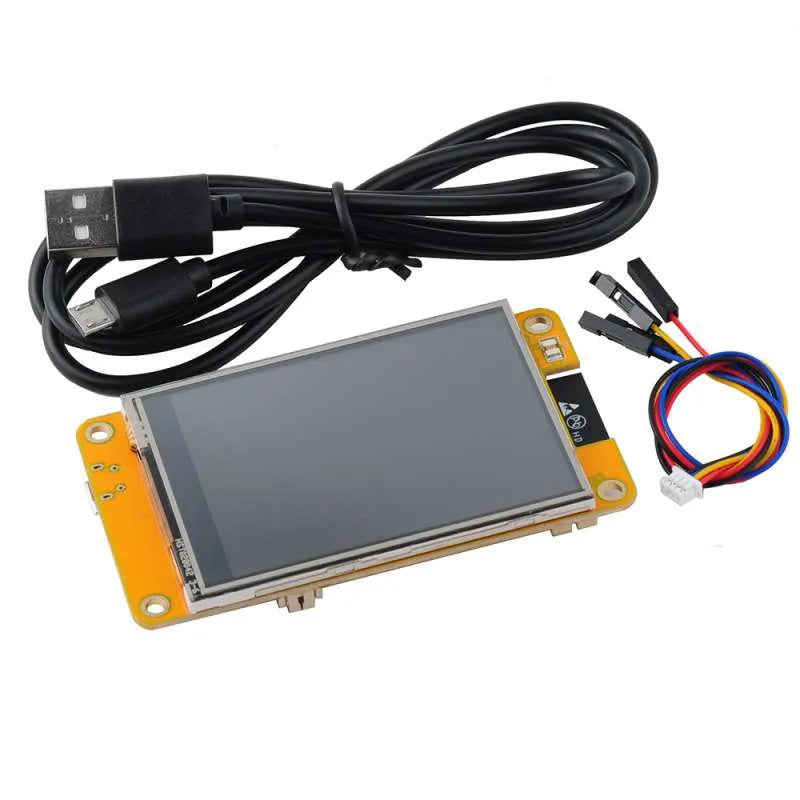

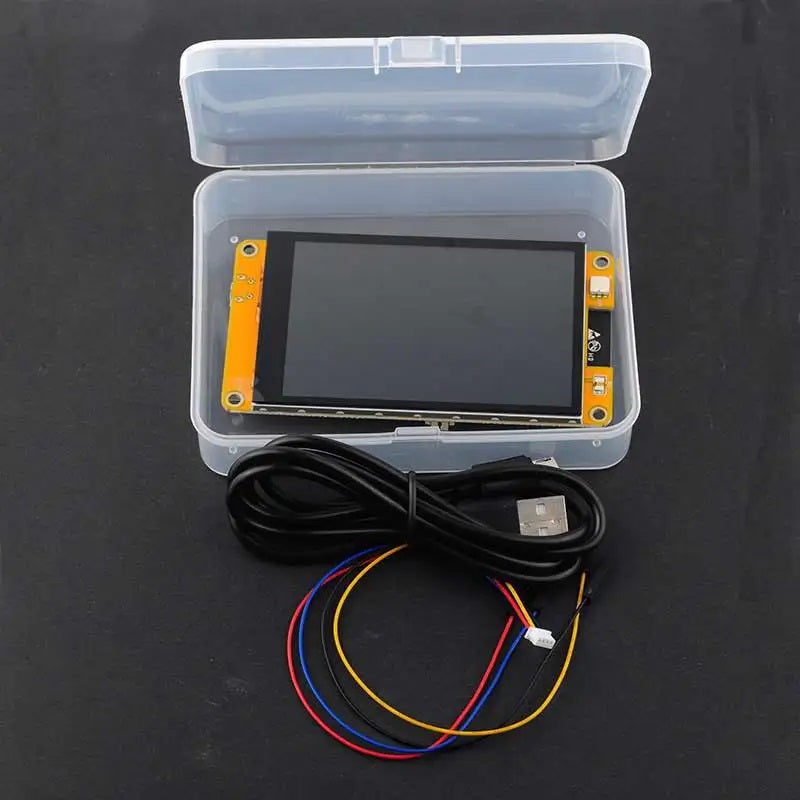

Package includes:

1 X 2.8 inch ESP32 module

1 x usb charging cable

1 x dupont cable



Instructions for use:

https://drive.google.com/file/d/1E85GDLWHMqLSKMN7CNddRtbESKiiOrmG/view?usp=sharing
