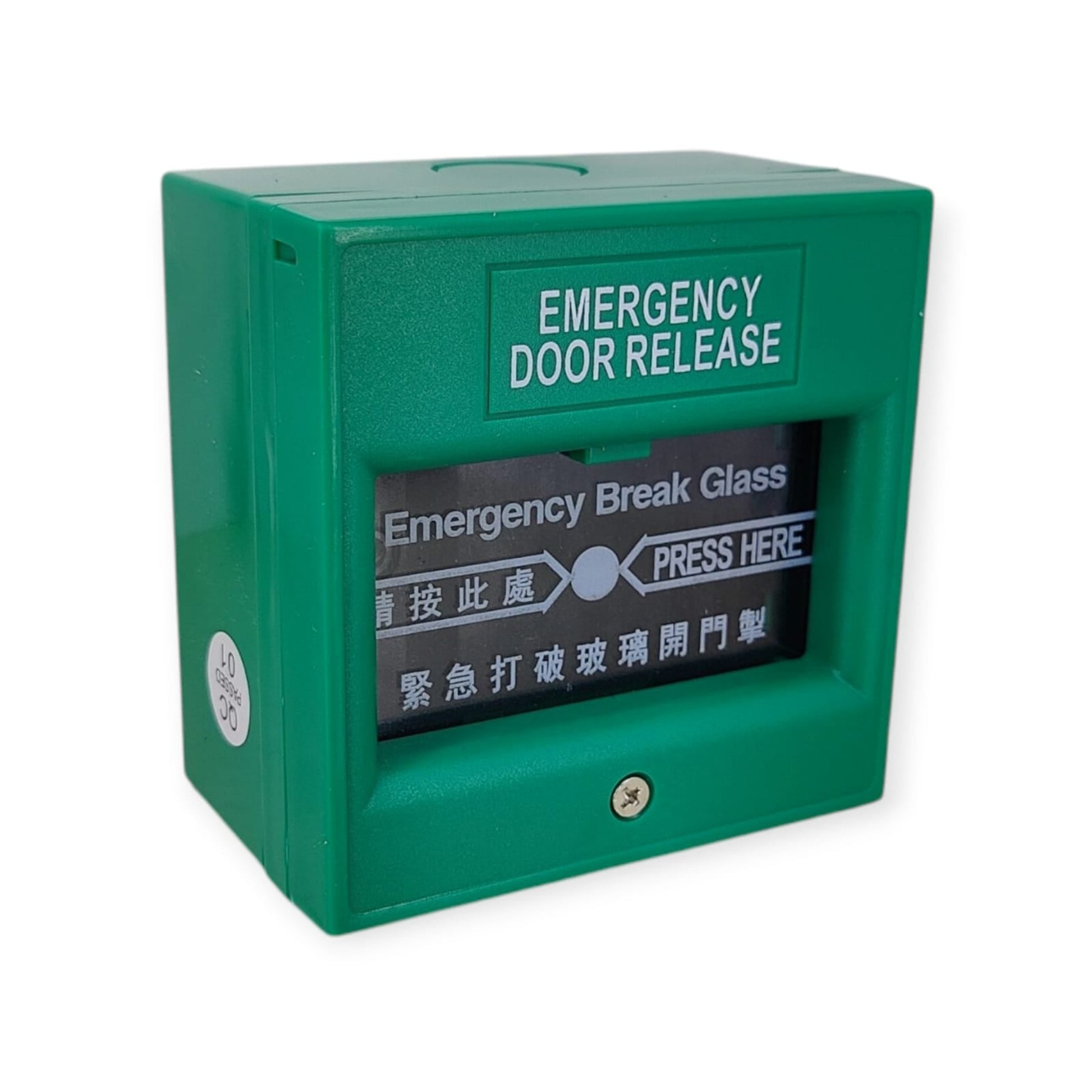

Emergency Door Release Break Glass Alarm Button for Access Control

Ensure Immediate and Safe Egress with the Emergency Door Release Break Glass Button

Enhance the safety and security of your building with our reliable Emergency Door Release button. Designed for use in access control systems, this break glass unit provides a crucial and dependable method for overriding electronically locked doors during an emergency. A simple press on the glass plate triggers the alarm and releases the door, ensuring a swift and safe exit when every second counts.

Key Features:

• Instant Emergency Access: Eyewitnesses can simply break the glass to trigger the door release mechanism, providing an immediate exit path during emergencies like a fire or security threat.

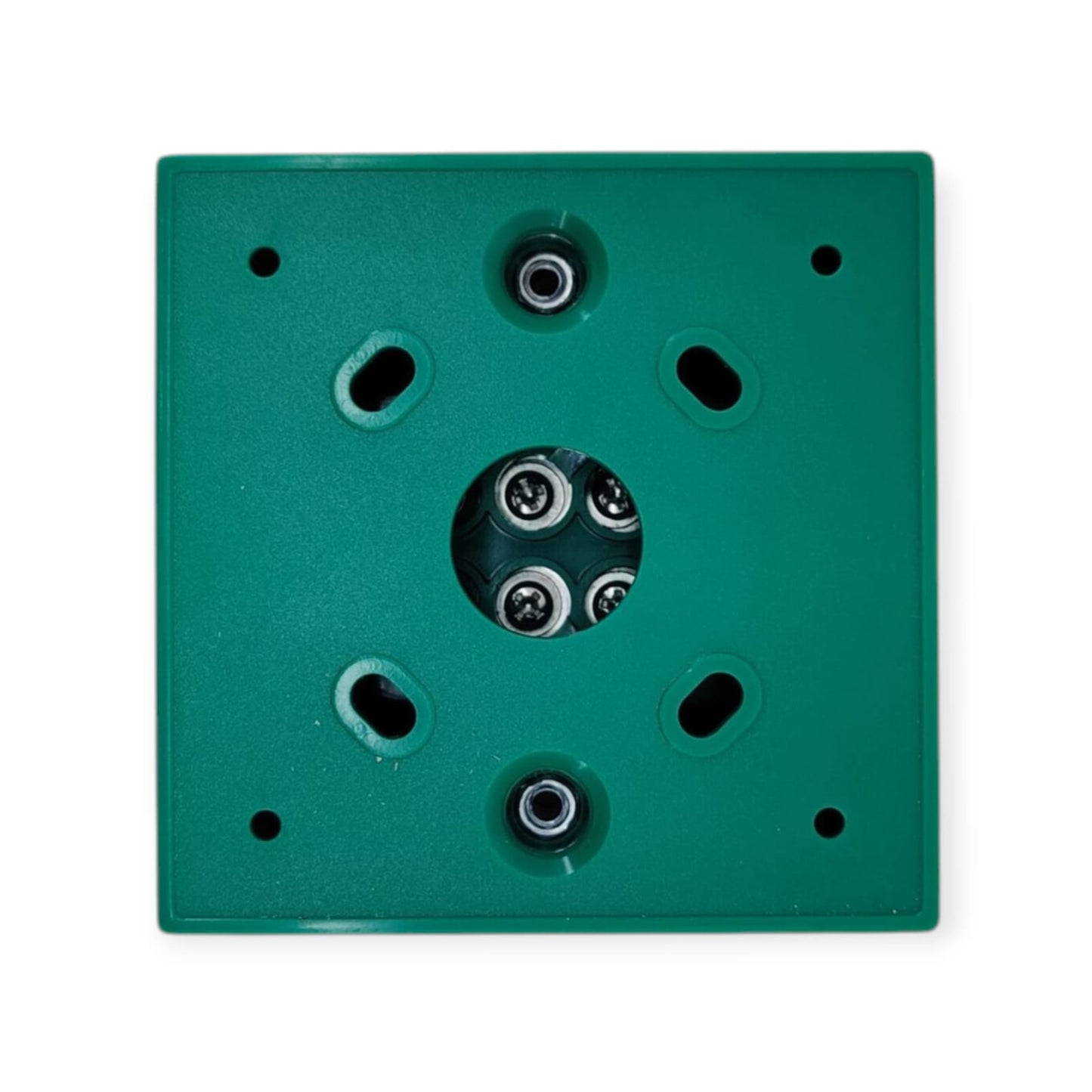

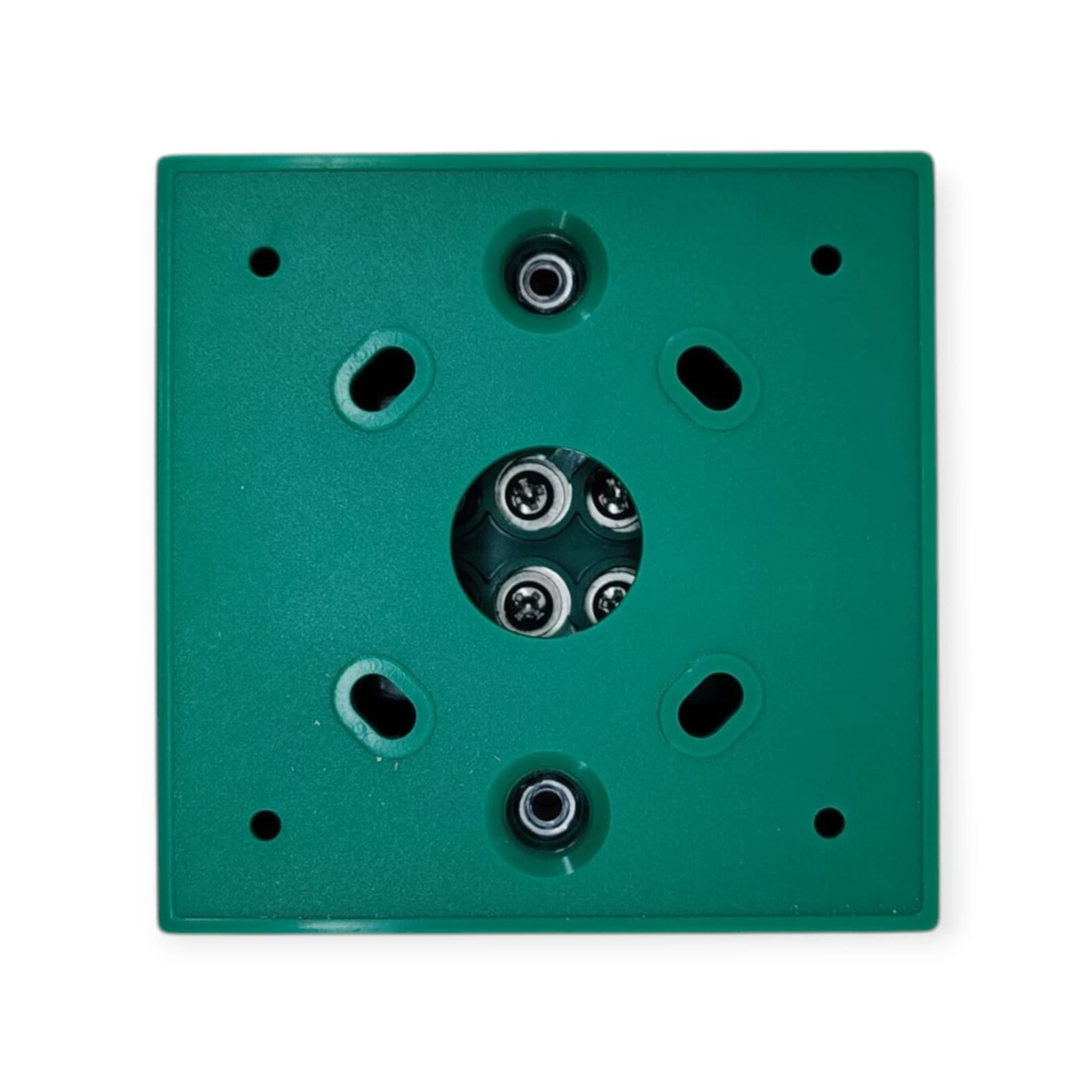

• Seamless Integration: Fully compatible with most electrical control and access control systems. It features versatile NO (Normally Open), NC (Normally Closed), and COM (Common) output contacts to suit your specific wiring needs.
• Durable, Fireproof Construction: Made from a high-quality, durable plastic shell with a sandblasted finish. The unit is constructed using fire-retardant materials, complying with safety regulations and ensuring reliability under extreme conditions.

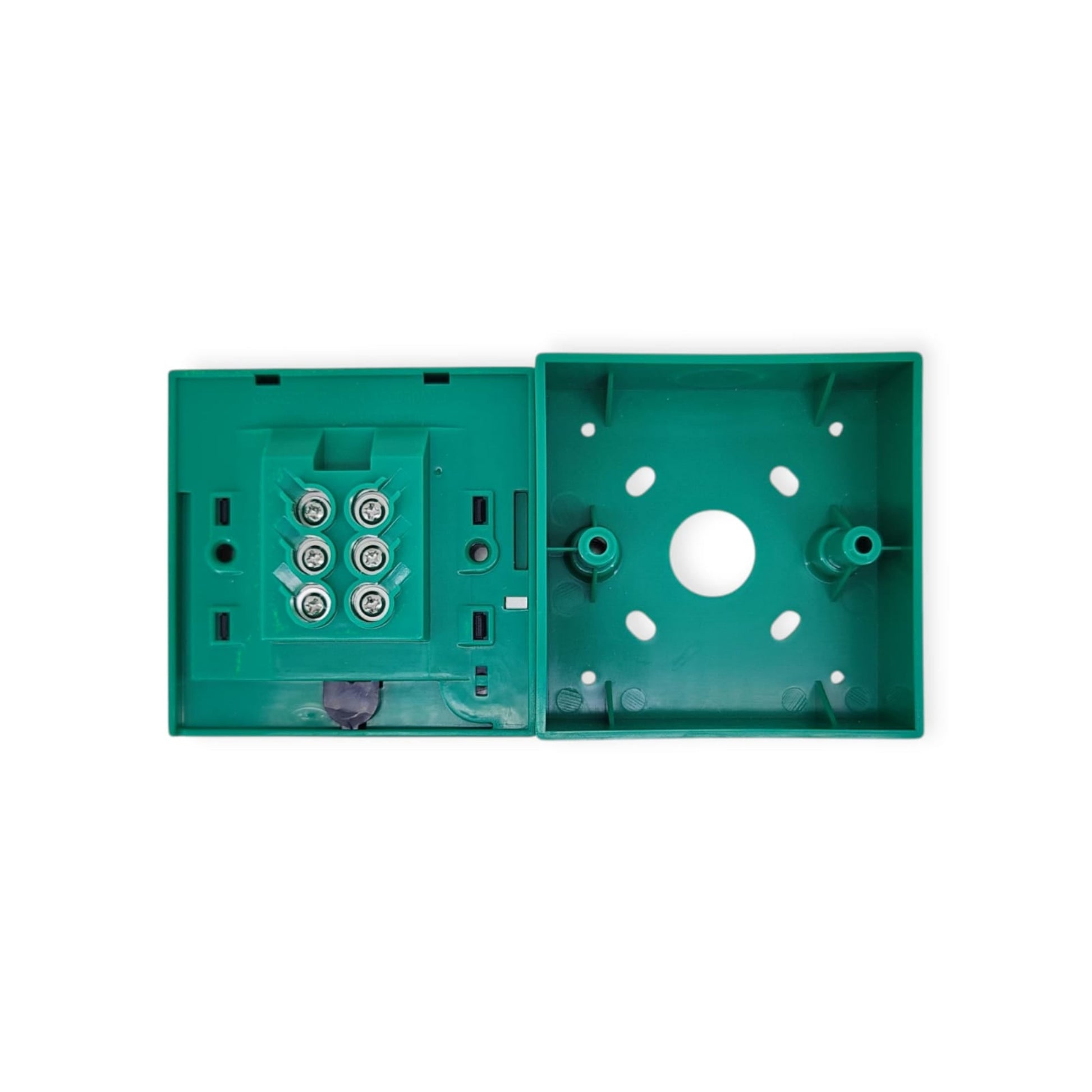

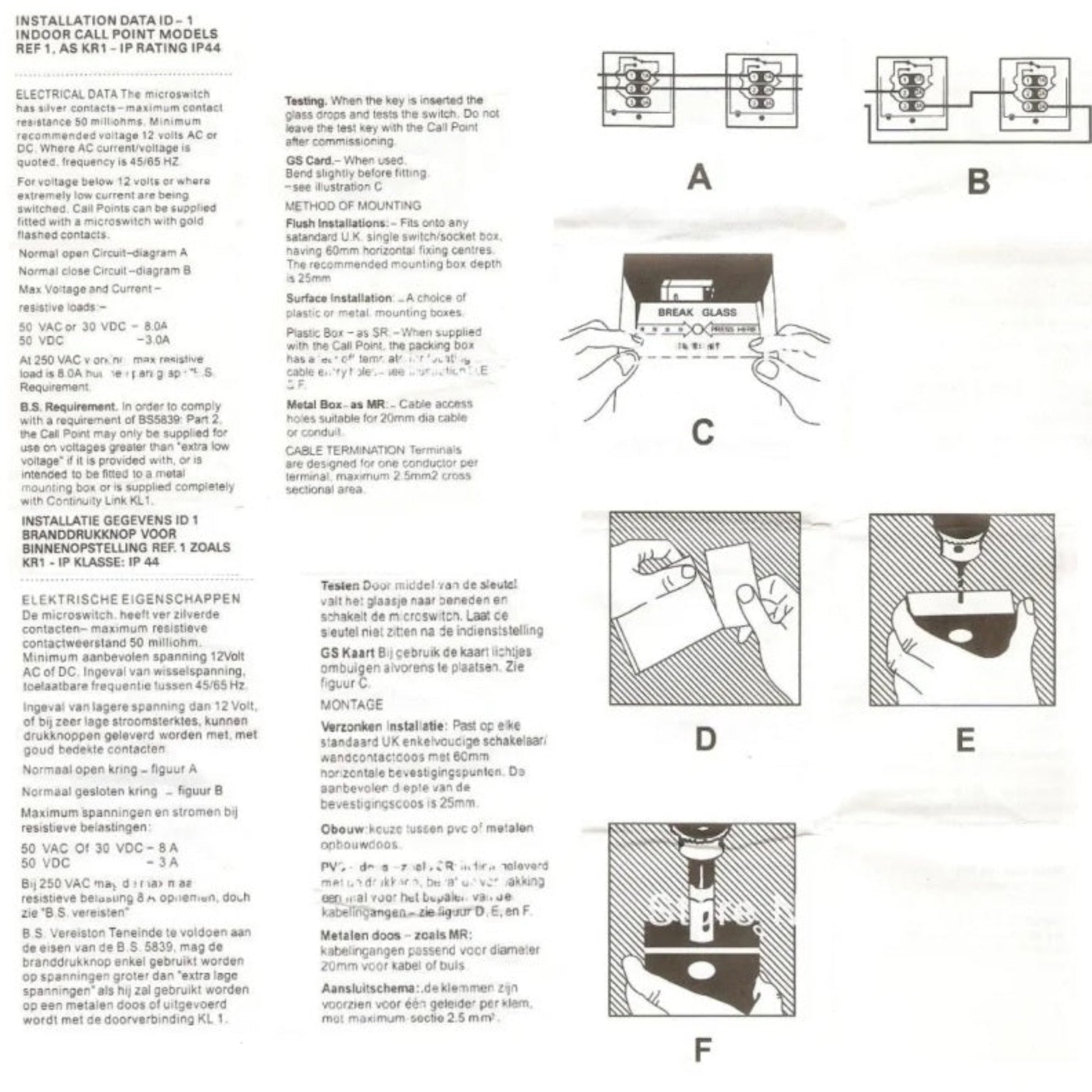

• Easy to Install: The unit is designed for standard surface mounting. It comes complete with a back box and mounting screws for a straightforward installation process on any wall.

Ideal for:

• Office Buildings
• Commercial Shops
• Residential Complexes
• Schools and Public Venues

Technical Specifications:

• Dimensions: 86mm (L) x 86mm (W) x 52mm (H)
• Current Rating: 3A @ 36VDC Max
• Output Contact: NO / NC / COM
• Material: Fireproof Plastic, Sandblast Finished
• Operating Temperature: 10°C to 55°C (14°F to 131°F)
• Operating Humidity: 0-95% (relative, non-condensing)
• Suitable for: Emergency Doors, Exit Doors

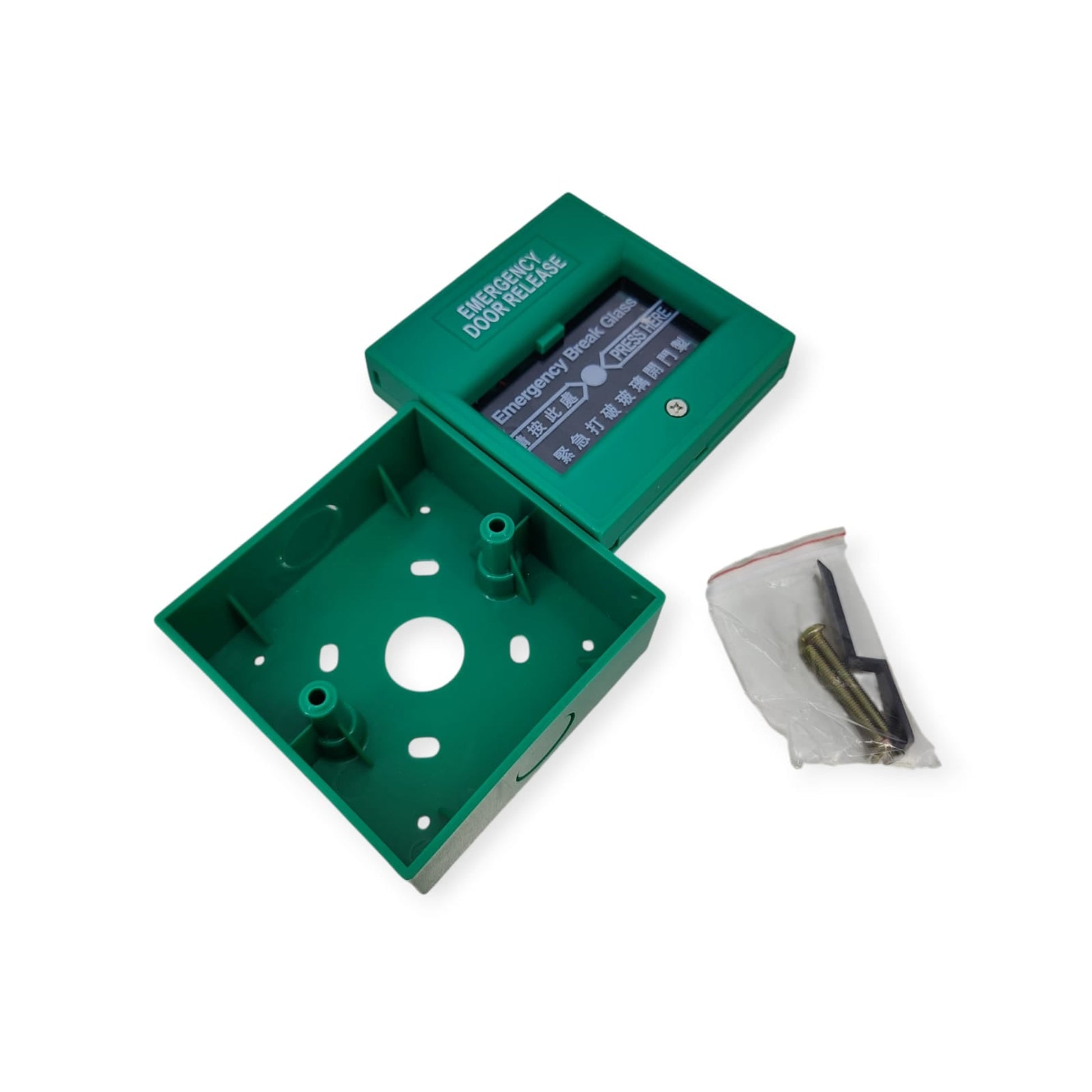

What's in the Box?

• 1 x Emergency Door Release Unit
• 1 x Mounting Back Box
• 2 x Mounting Screws
