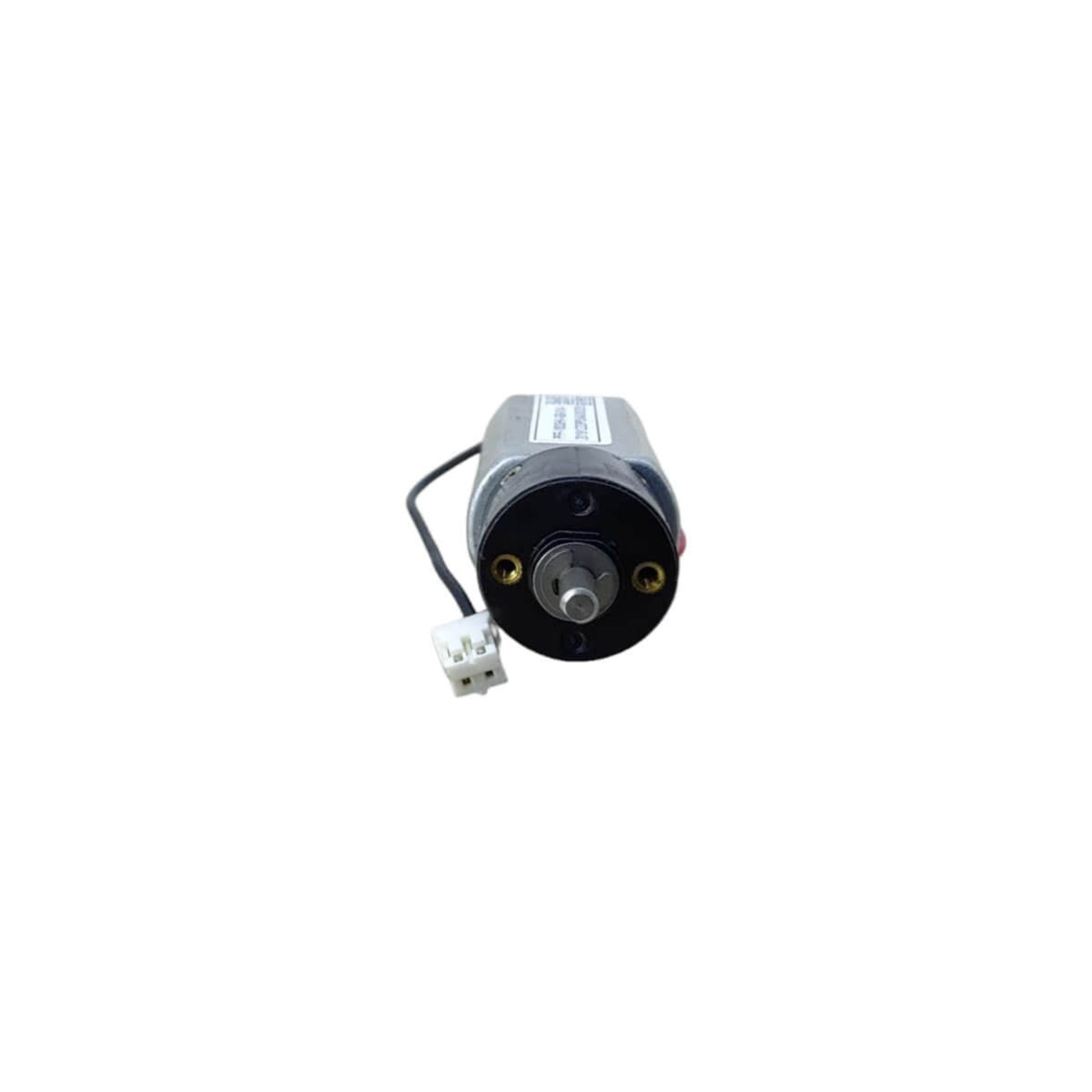

• DC 3.6V-12V 180 Miniature Gear Reducer Motor with 17mm gearbox and 3mm output shaft for DIY projects.

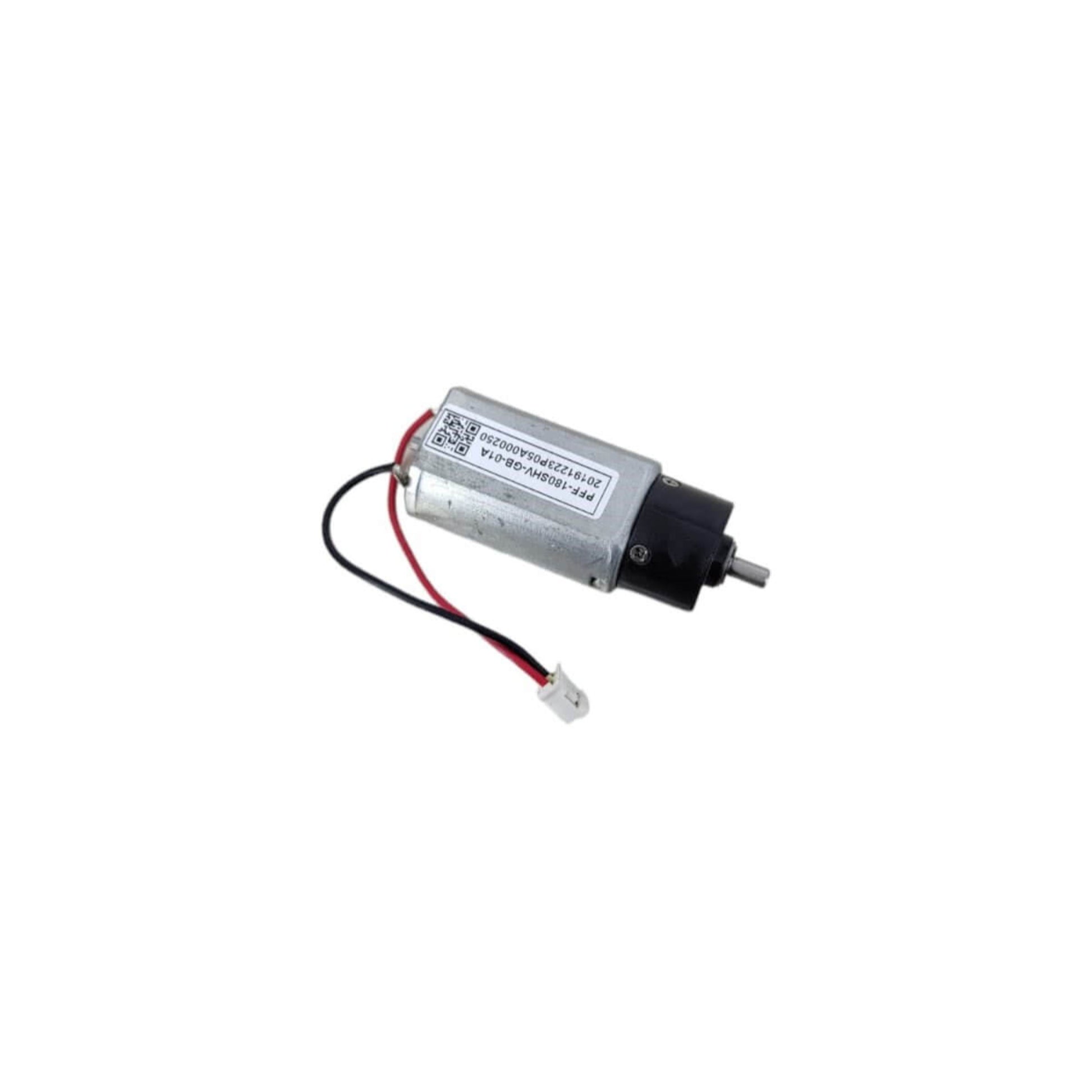

  • DC 3.6V-12V 180 Miniature Gear Reducer Motor with gearbox for robotics and DIY projects.

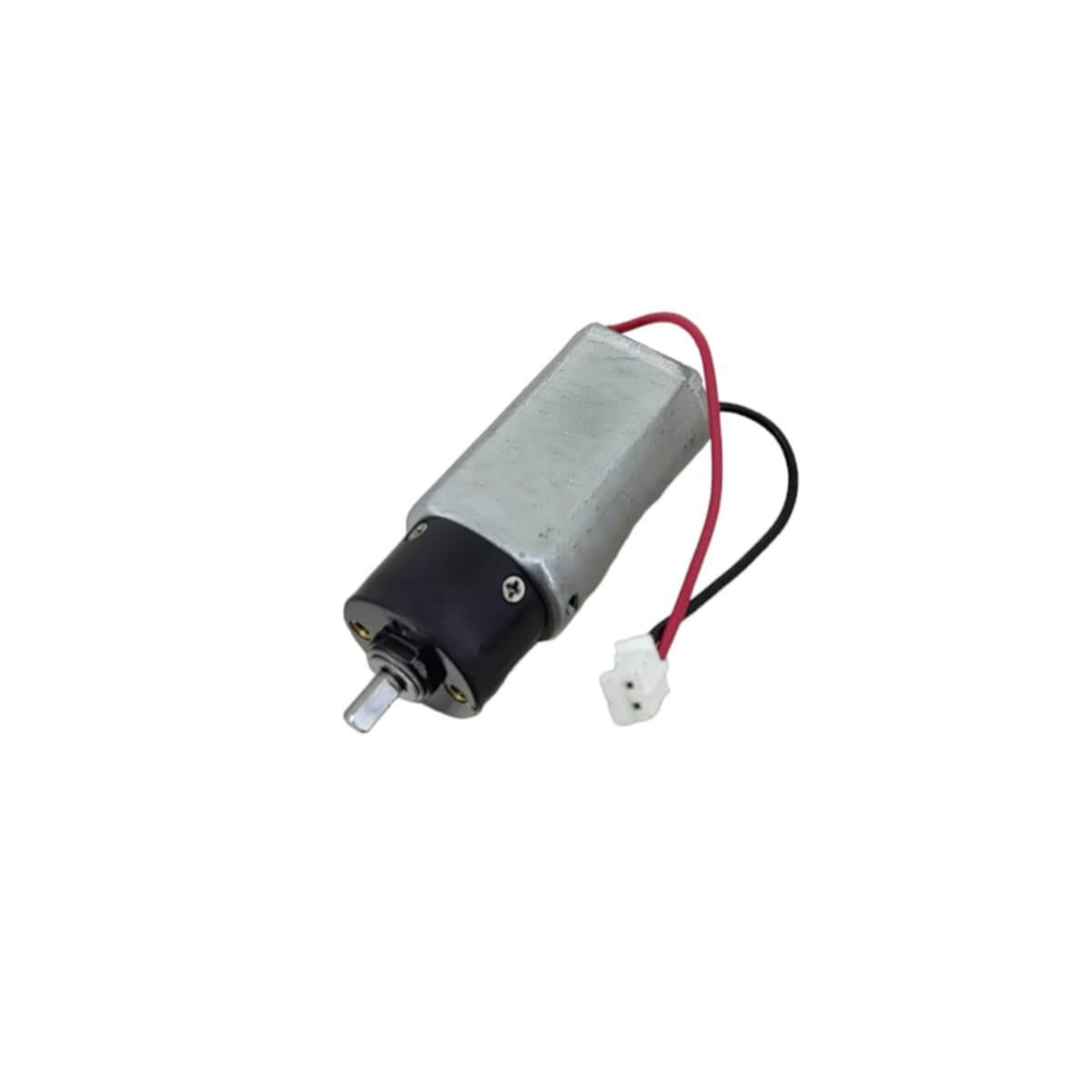

  • DC 3.6V-12V 180 miniature gear reducer motor with a 17mm gearbox for DIY projects.

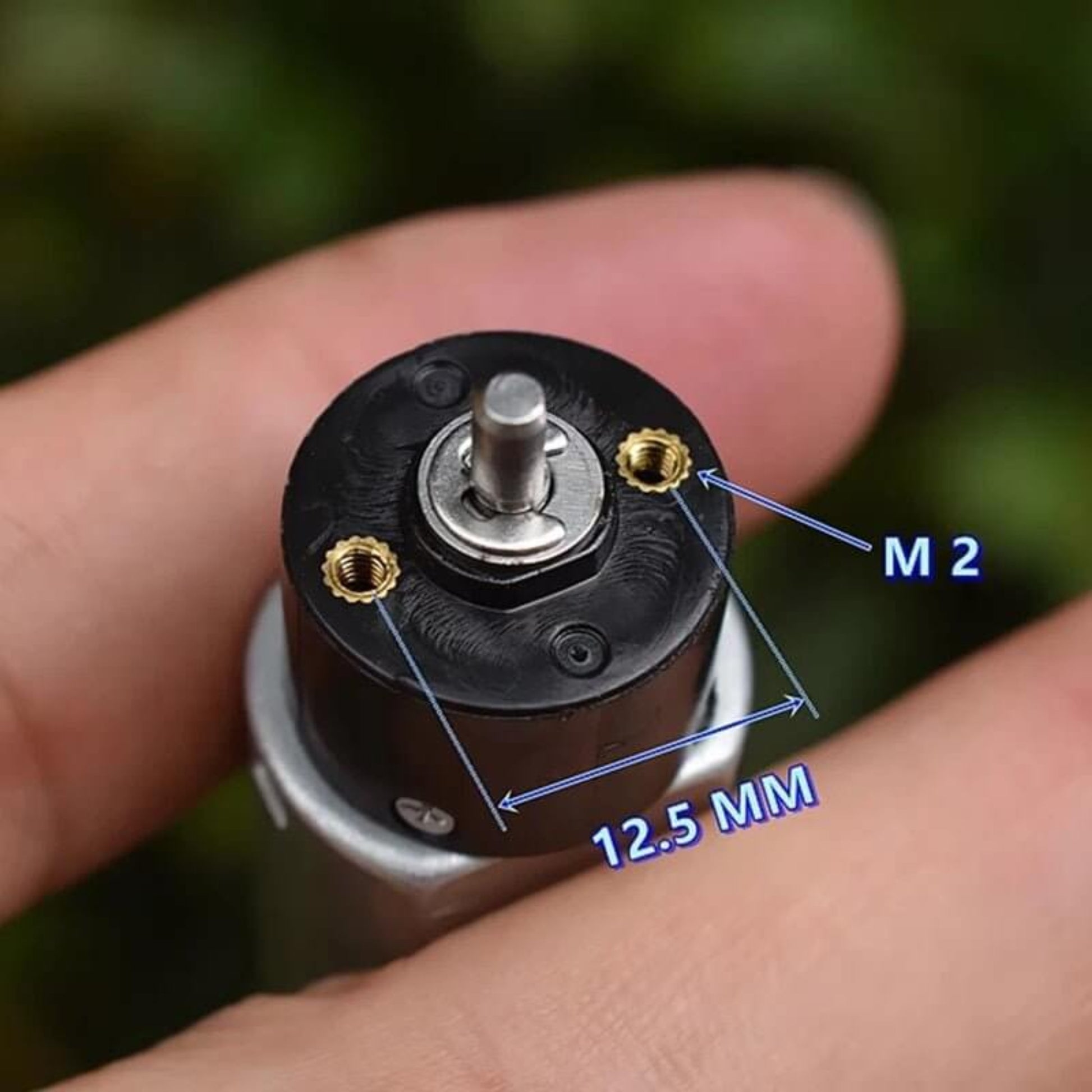

  • Close-up of a DC 180 miniature gear reducer motor showcasing output shaft and measurement details.

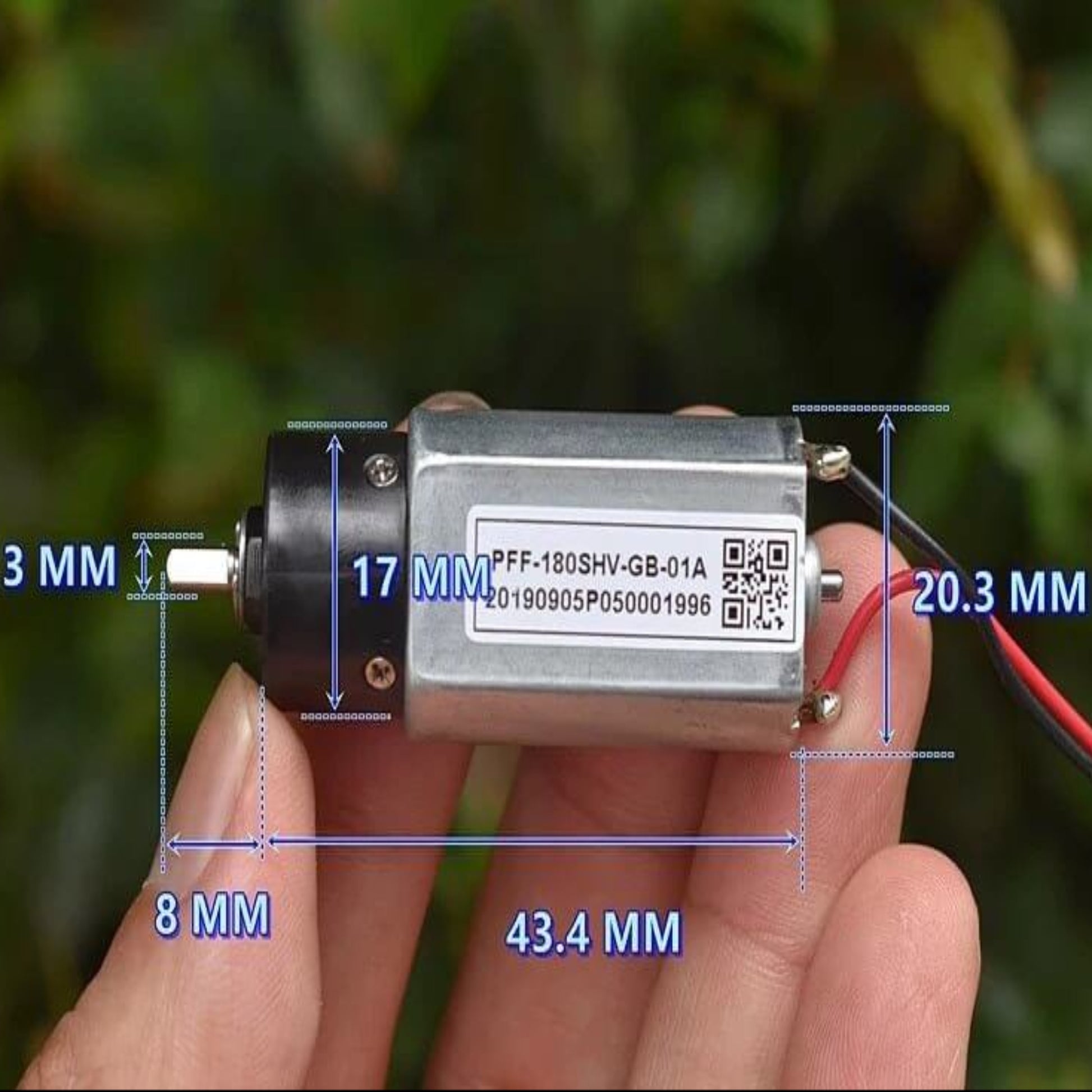

  • Dimensions of DC 3.6V-12V 180 Miniature Gear Reducer Motor with output shaft details.
1 5

High Torque Mini 180 Planetary Gear Motor (3V-12V)

High Torque Mini 180 Planetary Gear Motor (3V-12V)

🔥 3 sold•✓ In stock
HK$30.00
HK$30.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Power your next project with our Mini 180 Planetary Gear Motor. This compact and powerful DC motor is the perfect choice for DIY electronics, robotics, smart cars, and other applications where high torque is needed in a small space. The precision planetary gearbox provides smooth operation and reliable performance.



Key Features:

  • High Torque Output: Delivers excellent turning force, ideal for moving robotic arms, wheels, or other mechanisms.
  • Wide Voltage Range: Operates efficiently from 3V to 12V DC, giving you flexibility in your power source and speed control.
  • Compact & Lightweight: With a gearbox diameter of only 17mm and a weight of 38g, it's perfect for projects with size and weight constraints.
  • Durable Planetary Gearbox: The plastic planetary gear system provides a reliable 6:1 gear ratio for increased torque.
  • Standard D-Shaft: The 3mm D-shaped output shaft ensures a secure connection to wheels, gears, and other attachments.



Technical Specifications:

  • Rated Voltage: DC 3.0V
  • Operating Voltage: DC 3.6V - 12V
  • No-load Current (at 3V): 165mA
  • No-load Speed (at 3V): 1300 RPM
  • Gearbox Type: Planetary (Plastic)
  • Gear Ratio: 1:6
  • Gearbox Diameter: 17mm
  • Output Shaft Diameter: 3mm (D-Type)
  • Output Shaft Length: 8mm
  • Total Length: 43.4mm
  • Mounting Holes: 2 x M2 (12.5mm apart)
  • Weight: 38g



Package Includes:

  • 1 x Mini 180 Planetary Gear Motor
