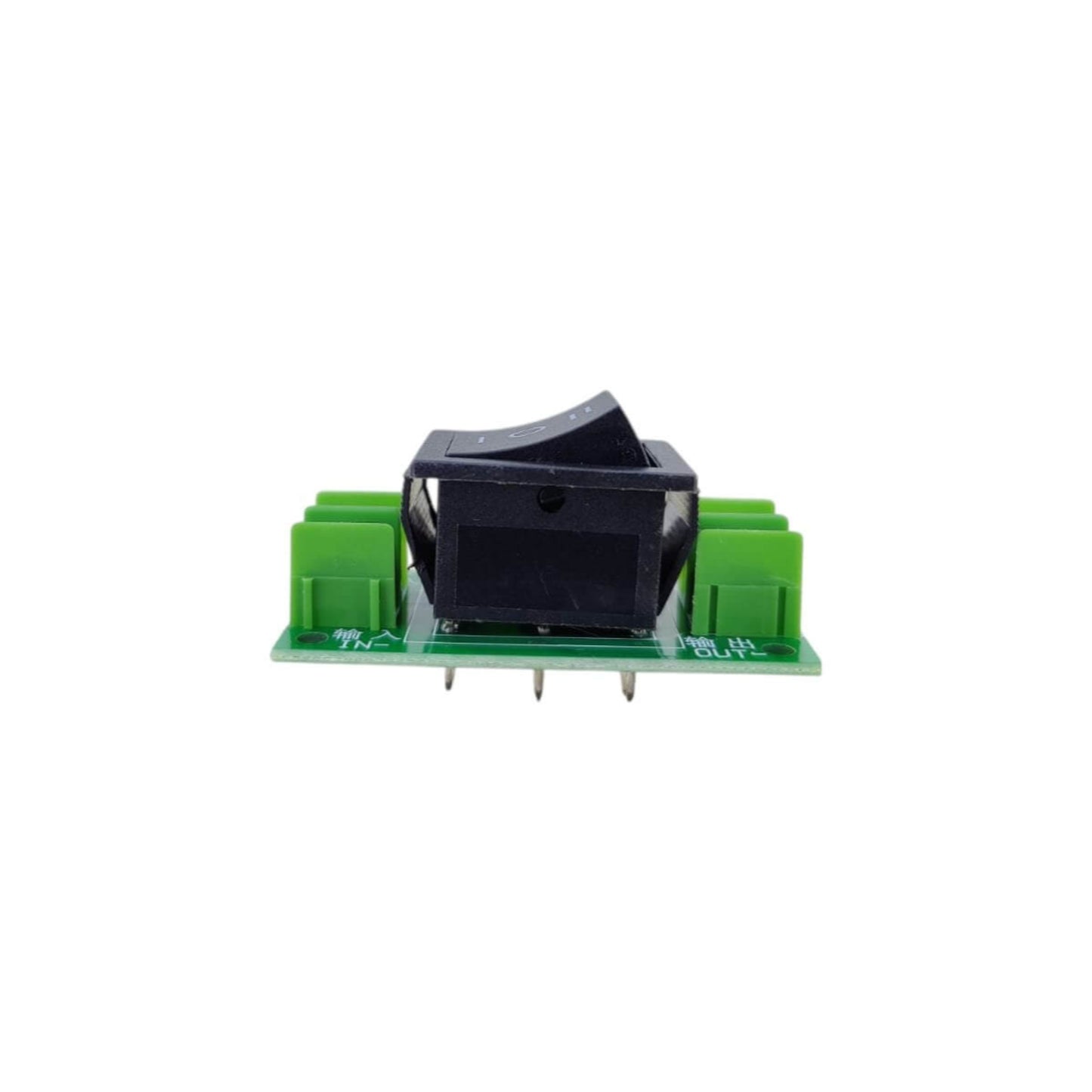

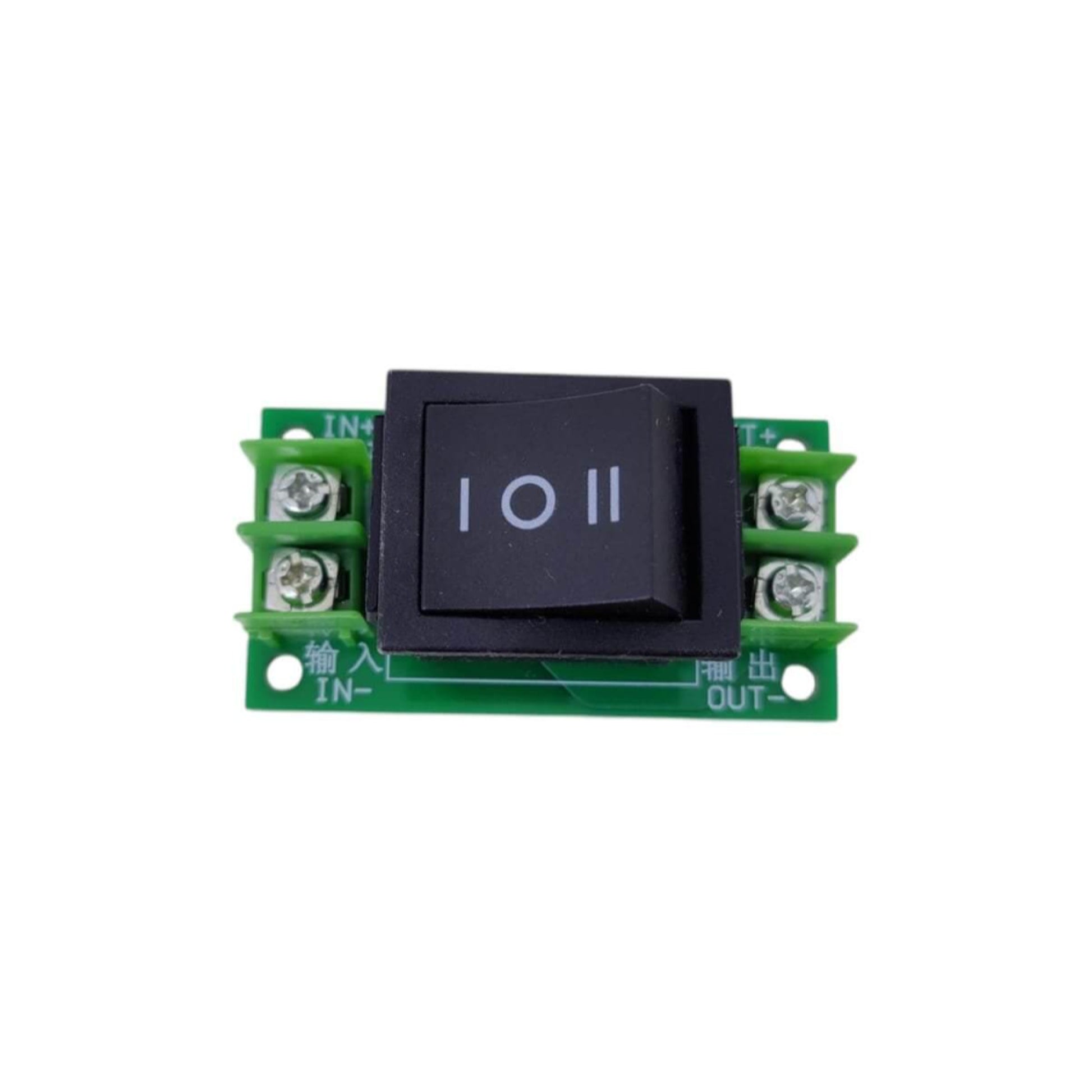

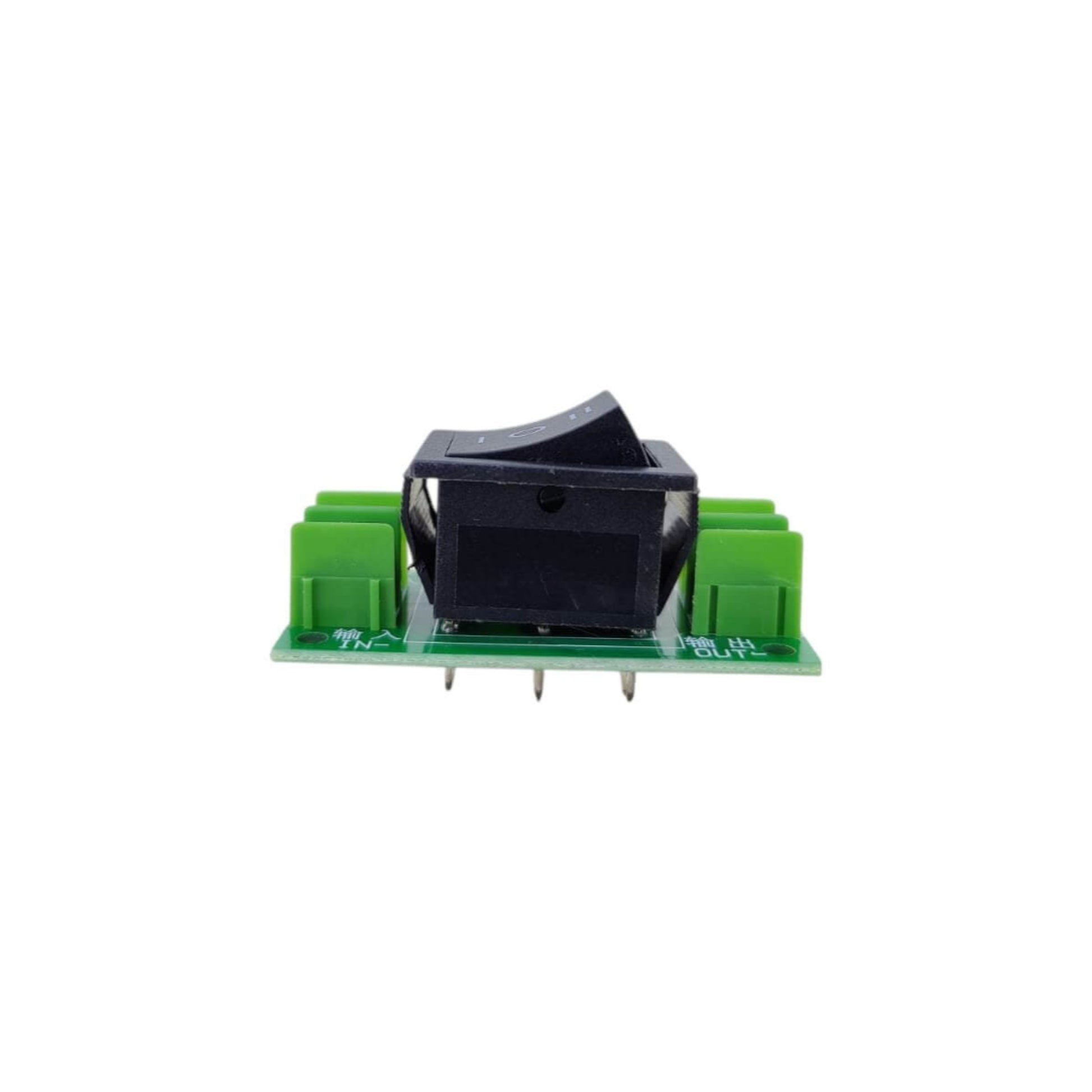

DC Reversible Switch Module (0-50V 20A)

Product Description:

This high-performance DC reversible switch module is designed for various applications, allowing you to easily control the forward and reverse rotation of DC motors. Featuring double-sided copper traces, the product has a more compact size while allowing for a larger current pass-through, supporting a maximum current of up to 20A.

Key Features:

• Forward/Reverse Control: Easily change the positive and negative poles of DC motors to achieve directional switching (Note: Not suitable for diaphragm pumps).
• High Current Capacity: The rocker switch allows for currents up to 20A (AC125V), ensuring stable and reliable operation.

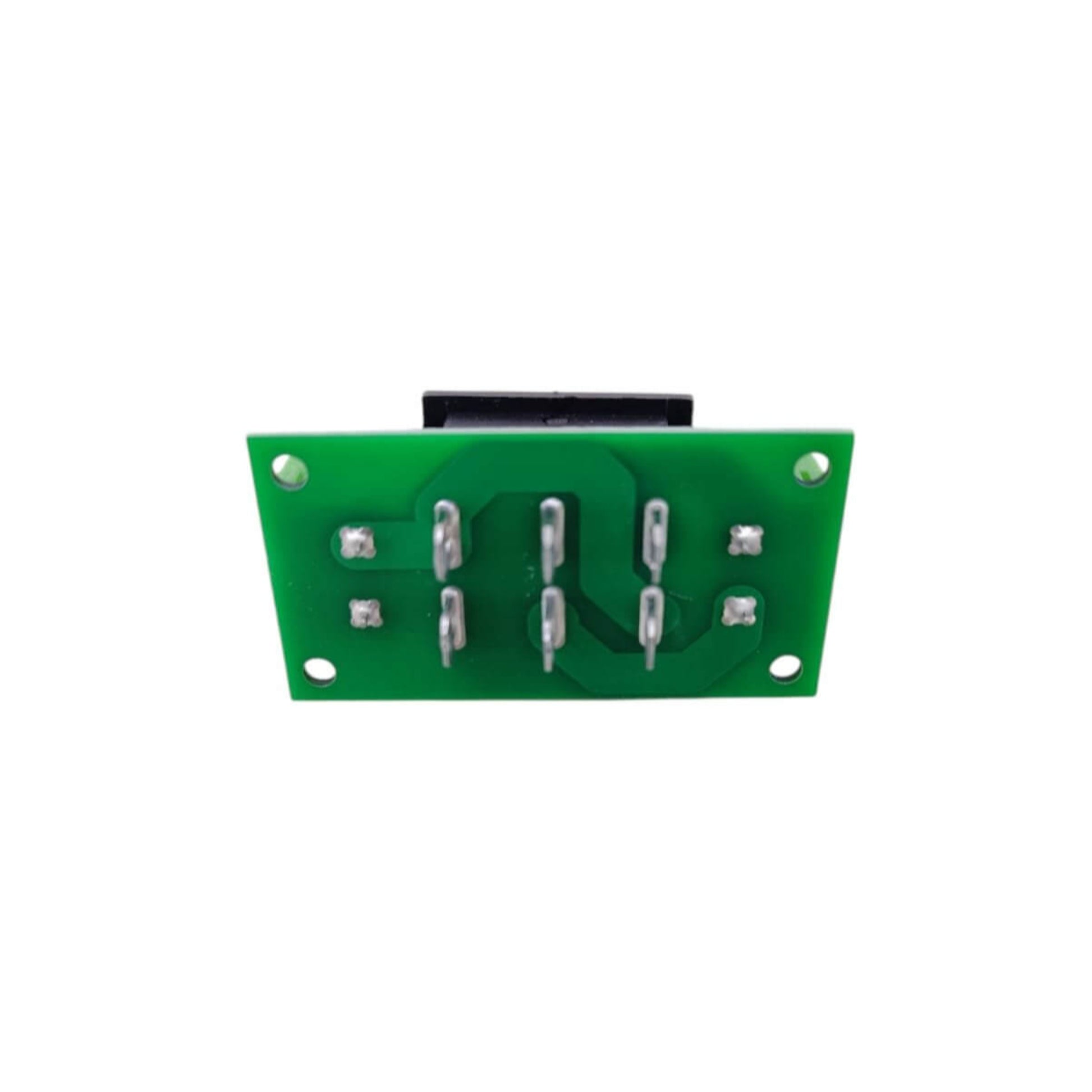

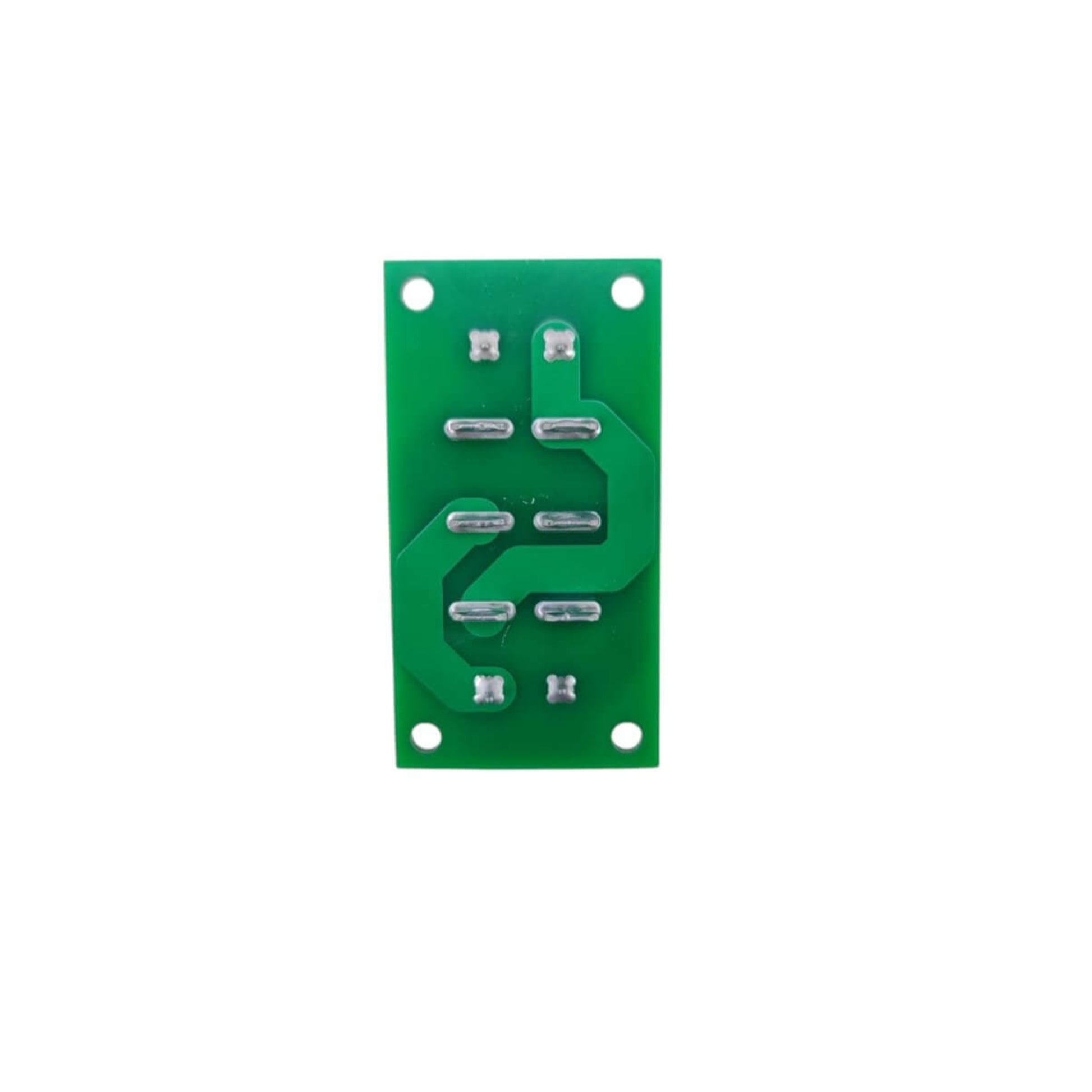

• Durable Build: Constructed with FR4 double-sided board, offering excellent durability and stability.
• Reliable Connection: The wiring terminals use 7.62mm pitch barrier terminals for a more secure and reliable connection.
• Easy Installation: Equipped with four mounting holes for M3 screws or M3 copper pillars (available in our store), allowing for flexible mounting.
• Wide Application: Suitable for applications requiring forward/reverse control, such as water pumps, motors, and more.

Product Specifications:

• Voltage Range: 0-50V
• Maximum Current: 20A
• Board Material: FR4 Double-Sided Board
• Dimensions: 3.2 x 6.0 CM
• Switch Type: Rocker Switch (Allows current up to 20A, AC125V)
• Terminal Type: 7.62mm Pitch Barrier Terminals
• Mounting Holes: 4 (Supports M3 screws/M3 copper pillars)

Package Includes:

• 1 x DC Reversible Switch ModuleIndustrial Control
