DJ96-S Digital Length Counter for Fabric, Textile & More - DC 5V

Accurately measure length with the DJ96-S Digital Length Meter Counter. This versatile and easy-to-install electronic counter is perfect for a wide range of industrial applications, including printing, packaging, textiles, plastics, and more. Featuring a robust design with a textured anti-slip rubber wheel, the DJ96-S provides reliable and precise measurements up to 999,999 meters.

Key Features & Benefits:

• High Accuracy: Measures lengths with precision down to centimeters (CM) for critical applications.
• Wide Counting Range: Tracks up to 999,999 meters, making it suitable for large-scale production.
• Reliable Power-Off Memory: Your data is safe! The counter retains all accumulated measurements for over 10 years, even during power outages.
• Versatile Counting Modes: Supports both reversible counting (up and down) and one-way cumulative counting to suit your specific needs.
• Easy to Install & Use: Designed for straightforward setup with a compact installation size (47x46 mm) and simple panel reset.

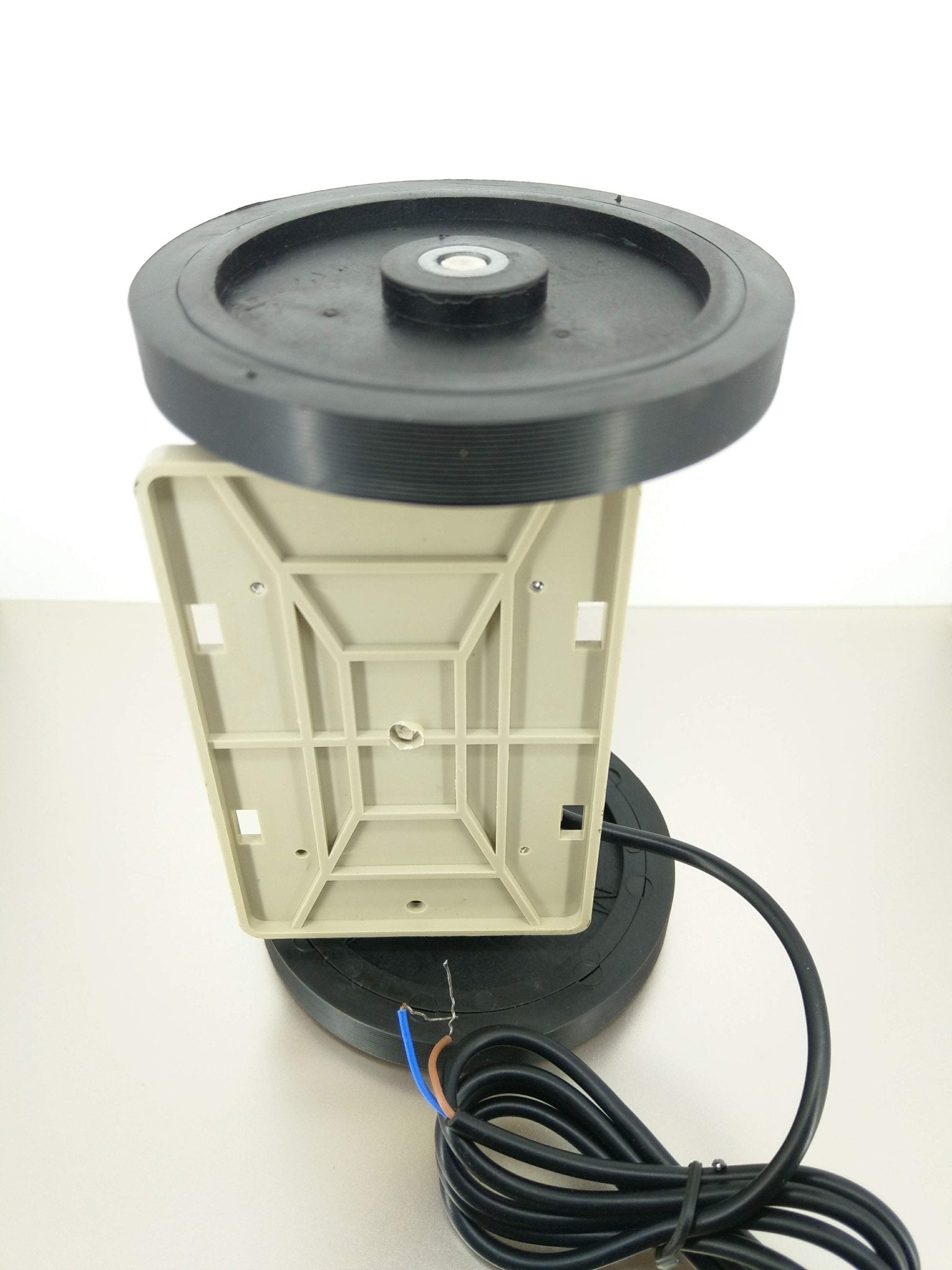

• Durable Design: Equipped with a textured anti-slip rubber wheel (96.5mm diameter) for excellent grip and consistent measurement on various materials.
• Fast Counting Speed: Capable of counting up to 350 times per minute, ensuring efficient operation in high-speed environments.
• Broad Application: Ideal for length measurement in printing, packaging, textile, plastic, wire and cable, and pharmaceutical machinery.

Technical Specifications:

• Model: DJ96-S

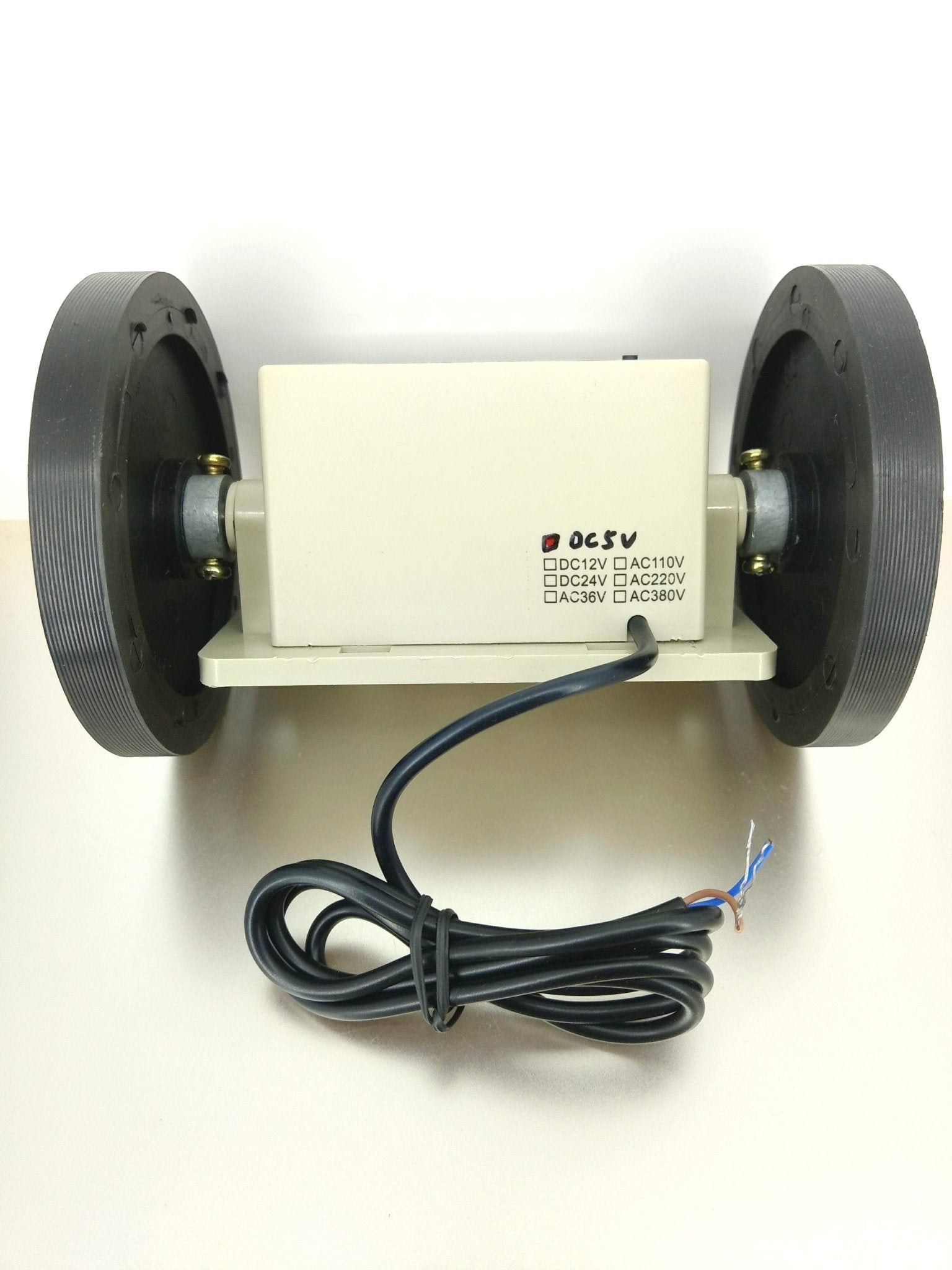

• Input Voltage: DC 5V (customizable to other voltages)
• Counting Range: 0 - 999,999 meters
• Accuracy: 0.01 meters (centimeter precision)
• Counting Speed: 350 times/minute (max)
• Maximum Operating Speed: 120 meters/minute

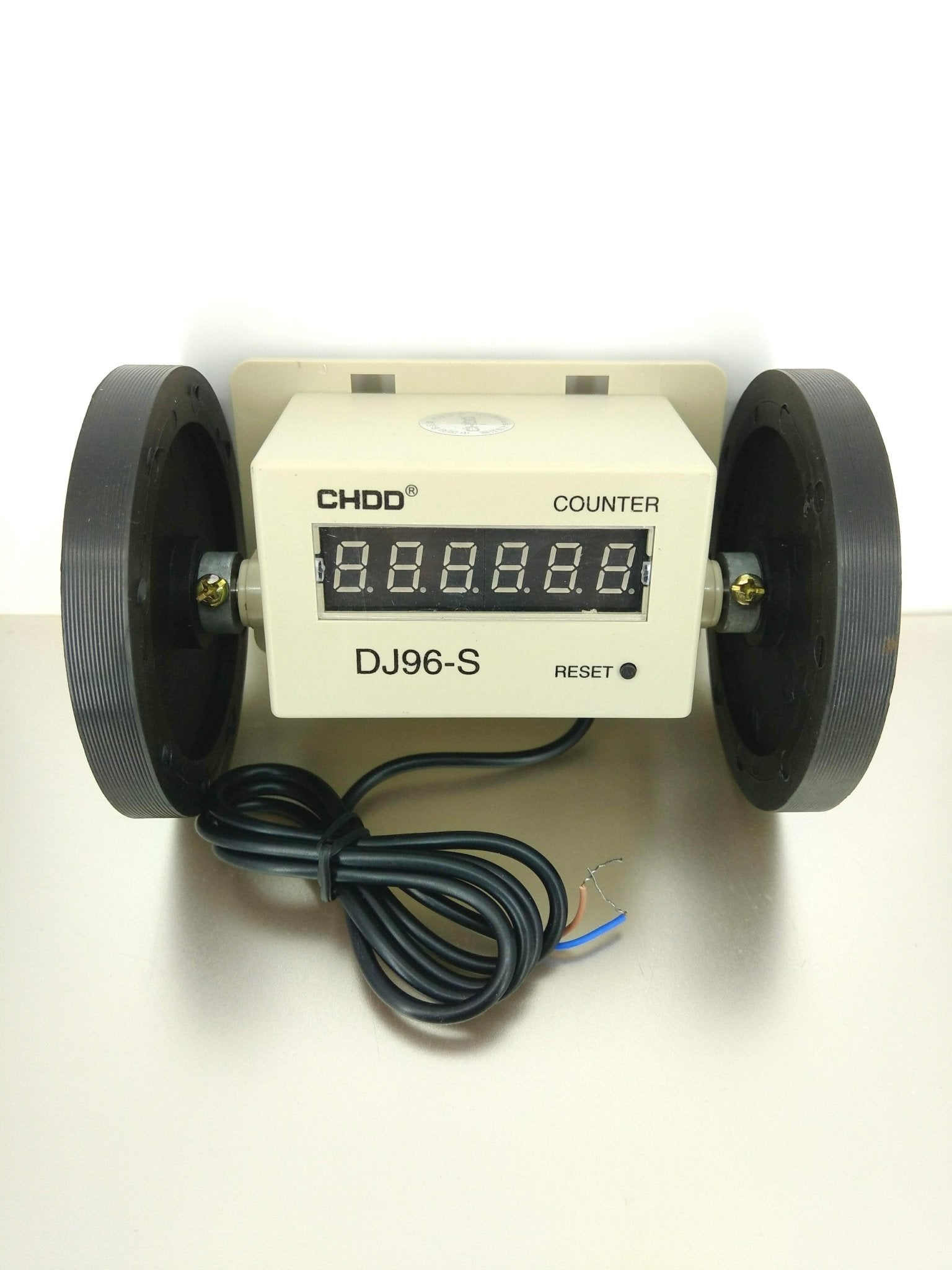

• Display: 6-digit LED display
• Reset Method: Manual panel reset
• Data Retention: Over 10 years (power-off memory)
• Operating Voltage Range: 85-110% of rated voltage
• Power Consumption: 2W
• Operating Temperature: -10°C to 45°C
• Installation Size: 47mm x 46mm
• Wheel Diameter: Approximately 96.5mm
• Wheel Width: Approximately 12mm
• Shaft Diameter: 8mm
• Weight: 0.55 KG

Enhance your production efficiency and accuracy with the DJ96-S Electronic Digital Counter.
