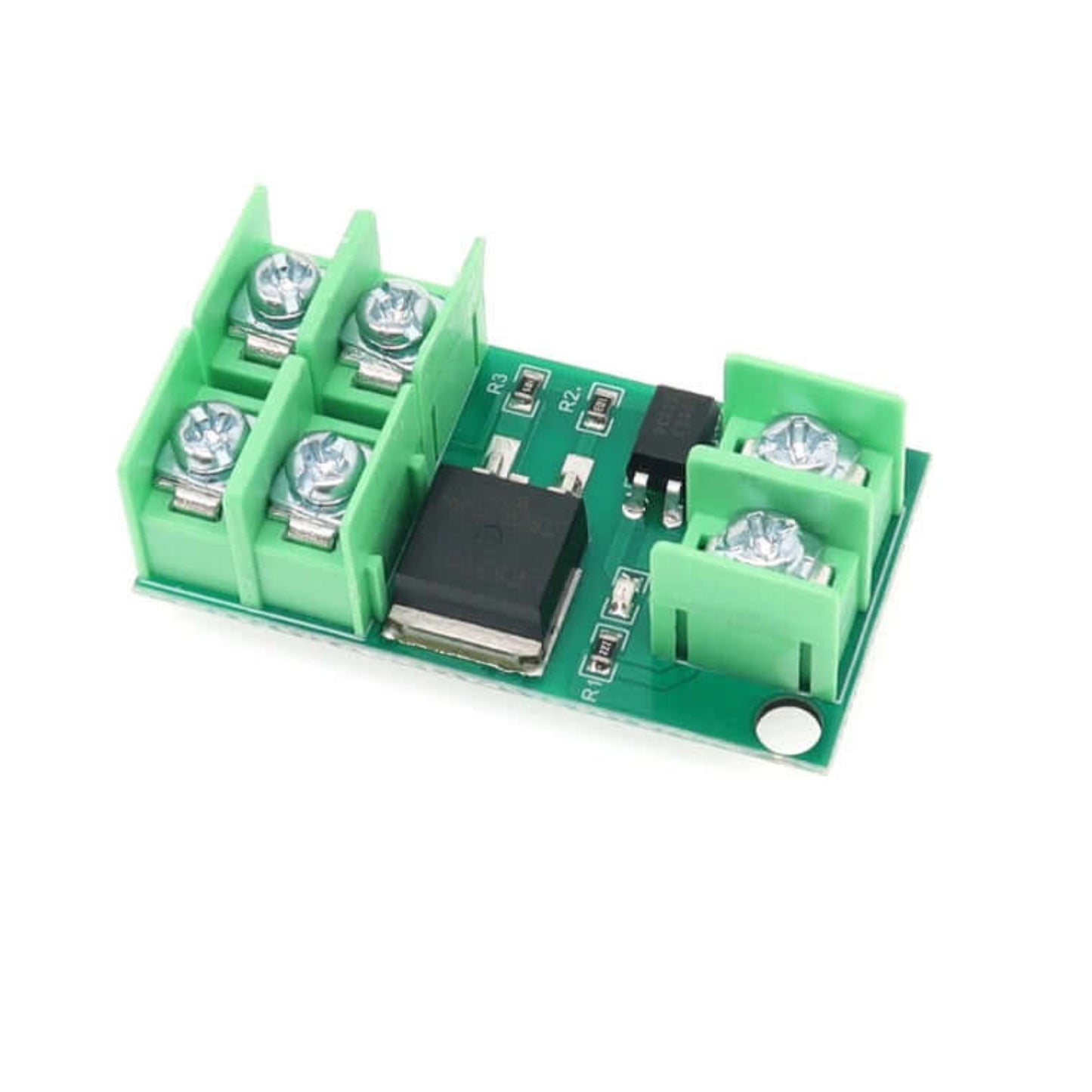

• DC 5V–36V electronic pulse trigger switch control panel, MOSFET driver module with terminals for motor and LED control.
  • DC 5V-36V Electronic Pulse Trigger Switch Control Panel with labeled connections for efficient device control.

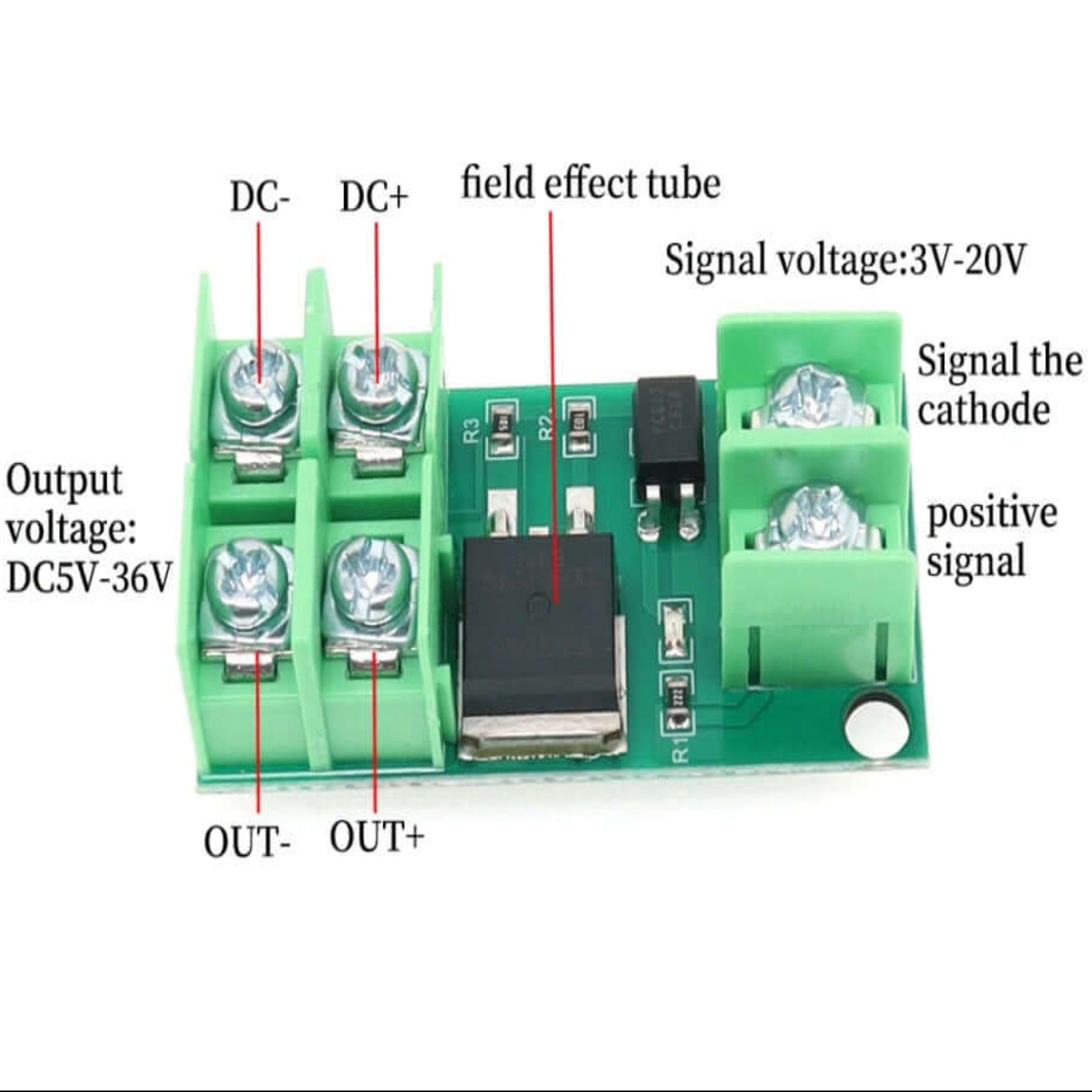

  • DC 5V–36V Electronic Pulse Trigger Switch with MOSFET driver for motor and LED control.

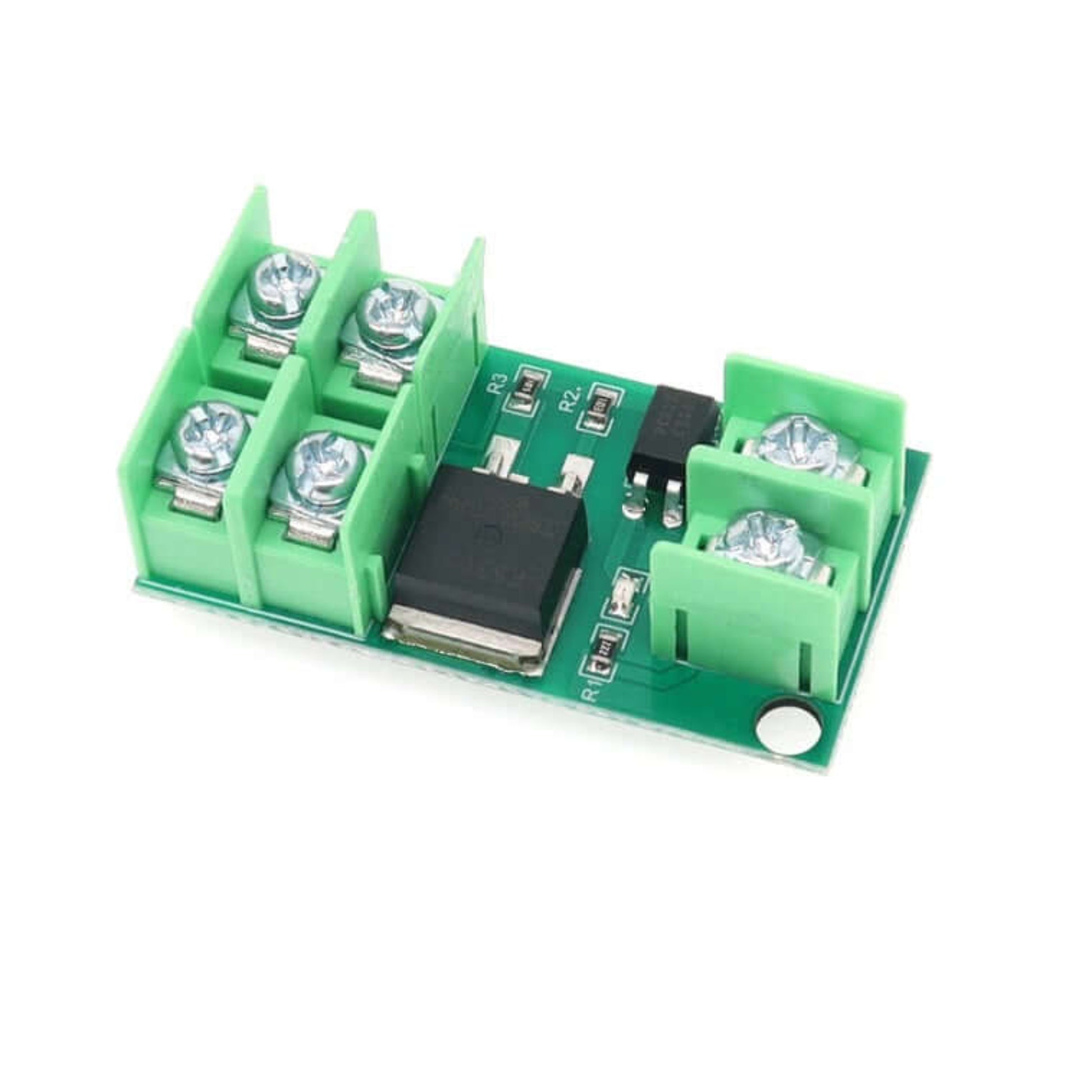

  • DC 5V–36V Electronic Pulse Trigger Switch Control Panel module with power MOSFET, designed for motor and LED control.
1 4

DC 5V–36V Electronic Pulse Trigger Switch Control Panel – MOSFET Driver Module

DC 5V–36V Electronic Pulse Trigger Switch Control Panel – MOSFET Driver Module

🔥 1 sold•✓ In stock
HK$20.00
HK$20.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

📄 Product Description:

Upgrade your electronics projects with this DC 5V–36V Electronic Pulse Trigger Switch Control Panel. Equipped with an original F5305S power MOSFET, this module is designed for efficient control of motors, LEDs, pumps, solenoid valves, and other DC devices.

Key Features:

  • Wide Output Voltage Range: Controls devices from 5V to 36V.
  • PWM Compatible: Supports PWM signal input to adjust motor speed and light brightness.
  • Input Isolation: Full isolation between input and output for enhanced safety.
  • Signal Trigger Compatibility: Accepts 3V–20V input signals, suitable for microcontrollers (MCUs), PLCs, or direct DC supply.

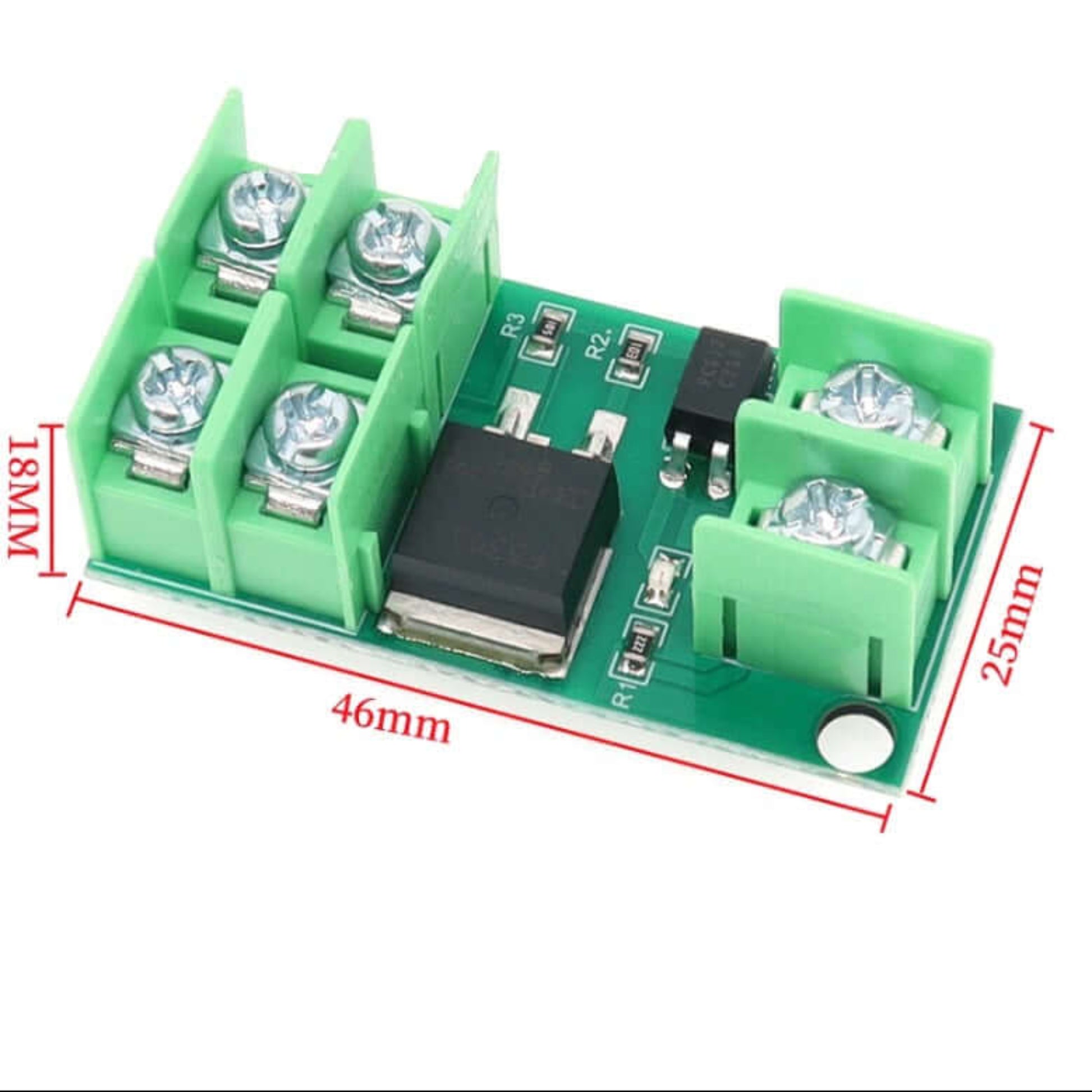

  • Compact Size: Only 46 x 25 x 18 mm, weighing just 15g.
  • Current Handling: Supports up to 5A without a heatsink; up to 20A with proper cooling.

Applications:

  • LED light dimming
  • DC motor speed control
  • Miniature pump and solenoid valve switching
  • Smart DIY automation projects

Specifications:

  • Input Voltage: 3V–20V
  • Input Current: ~5mA
  • Output Voltage: 5V–36V
  • Output Current: ≤5A (max 20A with heatsink)
  • Weight: 15g
  • Dimensions: 46 x 25 x 18 mm (L×W×H)
