Dahua WizSense XVR5116HS-I3 16-Channel 5MP AI Digital Video Recorder

Elevate your security system with the Dahua WizSense XVR5116HS-I3, a powerful 16-channel 5MP Digital Video Recorder (DVR) engineered with Dahua's advanced AI-powered WizSense technology. This compact 1U 1HDD DVR is designed for superior surveillance, offering intelligent features for accurate detection, efficient monitoring, and significant storage savings.

Key Features & Benefits:

• Advanced AI Capabilities with WizSense: Experience a new level of intelligent surveillance.
  • 2-Channel QuickPick 2.0: Swiftly locate targets in analog video footage, significantly improving retrieval efficiency.
  • 16-Channel SMD Plus: Accurately distinguishes between humans and vehicles, drastically reducing false alarms caused by environmental factors like leaves or rain.
  • 4-Channel Perimeter Protection: Define tripwire and intrusion detection zones to secure critical areas with AI precision.
  • 2-Channel Face Recognition: Enhance security with the ability to detect and compare faces against a database of up to 10,000 images, across 10 face databases.
  • 16-Channel AI Coding: Optimize storage and bandwidth without compromising the critical details of detected targets in your video streams.
• Versatile Camera Compatibility: This Penta-brid DVR seamlessly integrates with a wide range of camera types, supporting HDCVI, AHD, TVI, CVBS, and IP video inputs.
• High-Resolution IP Camera Support: Connect up to 24 IP cameras (8 by default + 16 analog converted to IP), with each channel supporting up to 6MP resolution, and a robust incoming bandwidth of 128 Mbps.
• Efficient Video Compression: Utilizes Smart H.265+ and H.265 dual-stream video compression to maximize storage efficiency while maintaining high video quality.
• Flexible Video Output: Connect to your preferred display with HDMI and VGA outputs, supporting resolutions up to 4K (HDMI) for crystal-clear viewing.
• Ample Storage: Features 1 SATA port, supporting up to a 16TB HDD (hard disk drive) for extensive video recording.
• Easy Mobile Access: Stay connected to your surveillance system on the go with intuitive mobile apps for both iOS and Android devices.
• Robust Network Protocols: Supports a comprehensive suite of network protocols for seamless integration into existing networks.
• IoT & POS Capabilities: Expand your system's functionality with integrated Internet of Things (IoT) and Point of Sale (POS) features.

Technical Specifications:

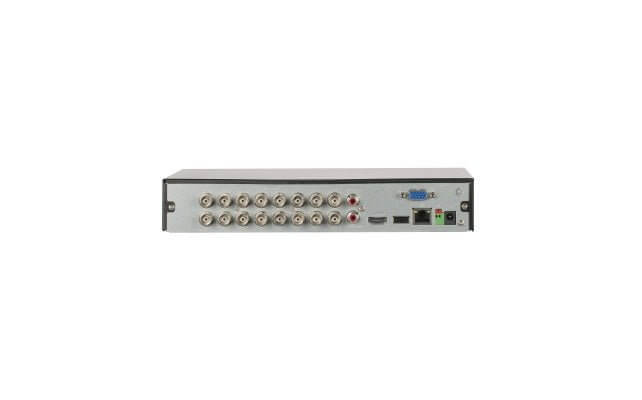

• Analog Camera Input: 16 BNC ports (HDCVI/AHD/TVI/CVBS auto-detect)
• IP Camera Input: Up to 24 channels (max 6MP per channel)
• Encoding Capacity: 5MP@6fps (4-ch), 5M-N@12fps (others); 4M-N/1080p@15fps (others)
• Video Output: 1 HDMI, 1 VGA
• Audio Input/Output: 1-channel RCA in, 1-channel RCA out (Coaxial Audio on BNC ports also supported)
• Storage: 1 SATA port, up to 16 TB
• USB Ports: 2 (1 front USB 2.0, 1 rear USB 3.0)
• Network Port: 1 (10/100/1000 Mbps Ethernet)
• Power Supply: 12 VDC, 2 A
• Dimensions: 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87")
• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

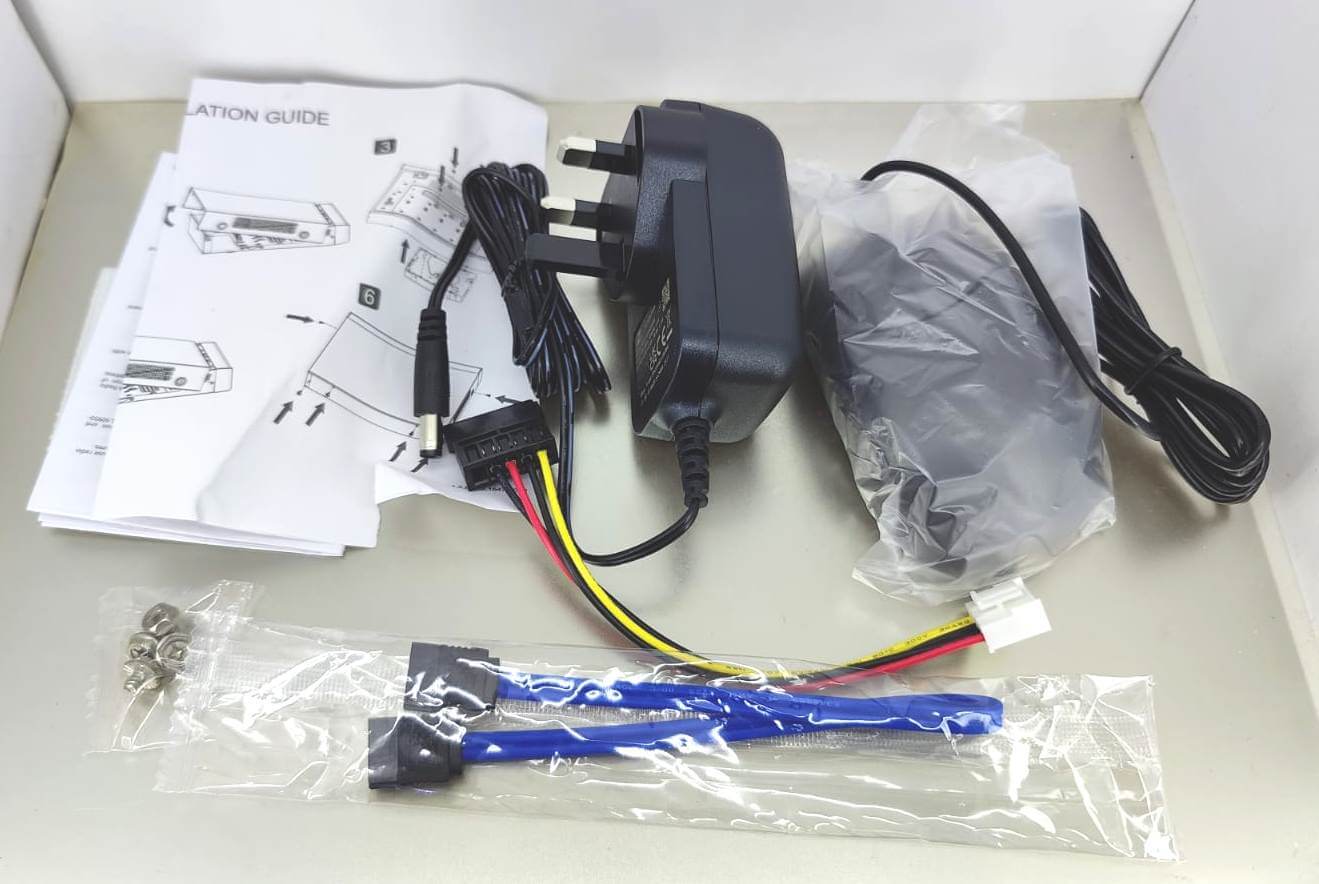

What's Included:

• Dahua WizSense XVR5116HS-I3 Digital Video Recorder
• Power Adapter
• SATA cables and screws for HDD installation
• Installation Guide

Warranty: 1 Year Local Warranty
