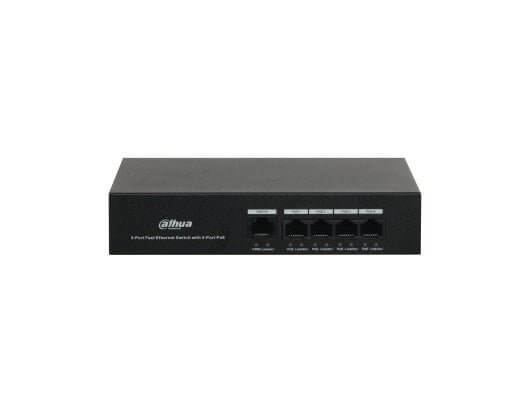

Dahua PFS3005-4ET-36 5-Port PoE Switch | 4 PoE Ports, Unmanaged

Reliable Power & Connectivity for Your IP Devices

The Dahua PFS3005-4ET-36 is a compact and efficient 5-Port Fast Ethernet PoE Switch designed to provide seamless network connectivity and power to your PoE-compatible devices like IP cameras, VoIP phones, and wireless access points. With four PoE (Power over Ethernet) enabled ports, this unmanaged switch simplifies your network setup by eliminating the need for separate power outlets for each device.

Key Features & Benefits:

• Simplified Setup (Plug & Play): As an unmanaged switch, the PFS3005-4ET-36 requires no complex configuration. Simply connect your devices and it's ready to go, making it ideal for home, small office, or remote surveillance applications.
• Power Over Ethernet (PoE): Four 10/100 Base-T ports support IEEE 802.3af and IEEE 802.3at standards, delivering up to 30W per port with a total power budget of 36W. Power your devices directly through the Ethernet cable, reducing cable clutter and installation costs.
• High Performance: With a 1Gbps switching capacity and 744Kpps packet forwarding rate, this switch ensures smooth data transmission for your connected devices, minimizing lag and maximizing efficiency.
• Robust & Reliable: Built to last, the switch features robust lightning protection (Common Mode 2KV, Differential Mode 1KV) and operates reliably in a wide temperature range from -10°C to +55°C (14°F–131°F), making it suitable for various environments.
• Compact Design: Its small footprint (170mm×100mm×35mm) allows for easy placement in tight spaces, while the durable metal casing ensures longevity.
• 1-Year Warranty: Purchase with confidence! This Dahua PoE switch comes with a 1-year warranty, ensuring peace of mind and support for your investment.

Ideal For:

• Extending IP camera systems
• Powering VoIP phones in offices
• Deploying wireless access points
• Small business networks
• Home security setups

Technical Specifications:

• Model: DH-PFS3005-4ET-36
• Ethernet Ports:
  • 1 x 10/100 Base-T (Uplink)
  • 4 x 10/100 Base-T (PoE Power Supply)
• PoE Standards: IEEE802.3af, IEEE802.3at
• Total PoE Power: ≤36W (Max 30W per port)
• Switching Capacity: 1Gbps
• Packet Forwarding Rate: 744Kpps
• MAC Table Size: 1K
• Power Input: AC100~240V
• Operating Temperature: -10°C to +55°C (14°F–131°F)
• Dimensions (W×D×H): 170mm×100mm×35mm
• Weight: 0.5kg
• Warranty: 1 Year
