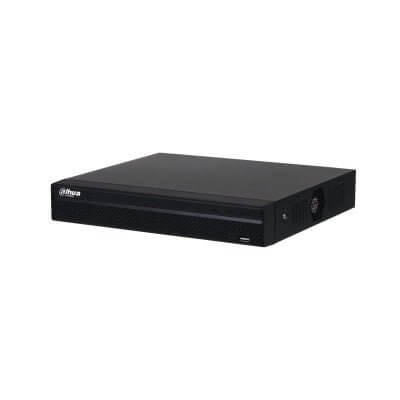

Dahua NVR4116HS-8P-4KS2/L: 16-Channel 4K PoE NVR with AI Support

Overview: Elevate your security system with the Dahua NVR4116HS-8P-4KS2/L, a powerful 16-Channel Compact 1U 1HDD 8PoE Network Video Recorder. Designed for both residential and commercial applications, this NVR boasts a new 4.0 user interface and advanced security features, including Security Baseline 2.1. With its robust decoding capabilities and support for 4K resolution, you'll experience crystal-clear surveillance footage.

Key Features & Benefits:

• Superior Video Compression: Utilizes Smart H.265+/H.265 and Smart H.264+/H.264 compression technologies, significantly reducing storage and bandwidth requirements without compromising video quality. The H.265 auto-switch feature ensures optimal performance.
• High-Resolution Monitoring: Supports up to 8MP cameras and offers a maximum decoding capability of 8 x 1080p@30 fps, allowing you to capture every detail.
• Integrated PoE for Easy Setup: Equipped with 8 Power over Ethernet (PoE) ports, simplifying camera installation by providing both power and data through a single cable. Total PoE output power is 72W, with a maximum of 25.5W per port.
• Intelligent AI by Camera Support: Leverage advanced AI functionalities from compatible Dahua cameras, including:
  • Perimeter Protection: Accurately detects intrusions and tripwire crossings, reducing false alarms.
  • Face Detection: Identifies faces with attributes like gender, age, and expression for enhanced monitoring.
  • SMD Plus (Smart Motion Detection): Differentiates between human and vehicle targets, focusing on genuine threats.
  • IVS, People Counting, Heat Map: Provides valuable insights for security and business intelligence.
• Seamless Connectivity: Supports ONVIF and RTSP protocols for compatibility with a wide range of mainstream IP cameras. Enjoy P2P remote surveillance and video playback directly on your mobile device (Android/iOS).
• Flexible Video Output: Features both VGA and HDMI outputs, supporting simultaneous video display, with the HDMI port capable of up to 4K resolution.
• Extensive Storage Capacity: Supports 1 SATA III HDD up to 10TB, providing ample storage for your surveillance footage. (HDD not included).
• User-Friendly Interface: The intuitive new 4.0 user interface and web interface make configuration and operation straightforward.
• Comprehensive Alarm System: Includes general alarms (motion detection, video loss, privacy masking) and intelligent alarms from AI-enabled cameras. Alarm linkage options include recording, snapshots, and email notifications.

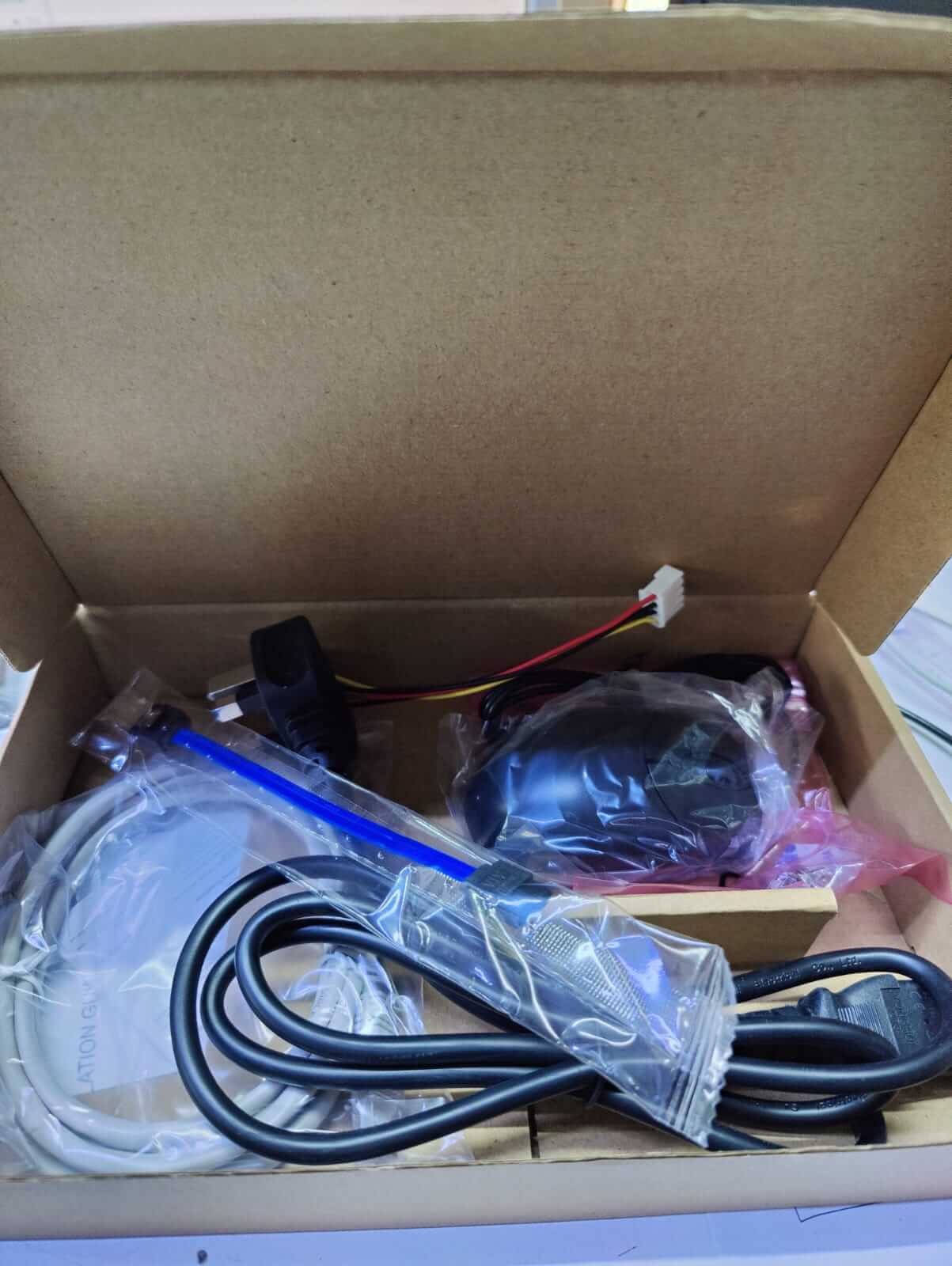

What's in the Box:

• Dahua NVR4116HS-8P-4KS2/L Network Video Recorder
• Power Adapter
• USB Mouse
• SATA Cable
• Installation Guide

Technical Specifications:

• Channels: 16 IP Camera Inputs
• Network Bandwidth: Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
• Video Resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
• Decoding Capability: 8 × 1080p@30 fps

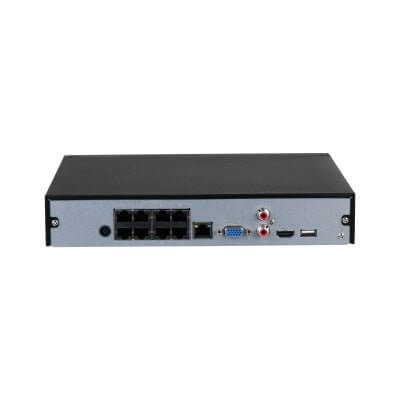

• Video Outputs: 1 x HDMI (up to 4K), 1 x VGA
• Audio: 1 x RCA Input, 1 x RCA Output
• PoE Ports: 8
• USB Ports: 2 (1 x USB2.0 front, 1 x USB2.0 back)
• Network Port: 1 x RJ-45 (10/100 Mbps)
• Power Supply: DC48V/53V, 2A/1.8A
• Power Consumption: < 10 W (without HDD)PoE NVR
• Dimensions (W × L × H): 260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98")
• Warranty: 1 Year Manufacturer Warranty (行貨1年保養)
• Certifications: CE, FCC
