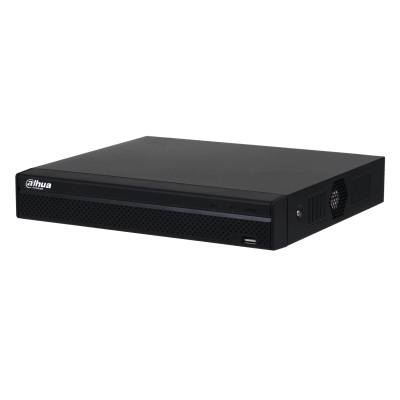

Dahua NVR4108HS-8P-4KS3 8-Channel 4K PoE Network Video Recorder

1-Year Warranty

The Dahua NVR4108HS-8P-4KS3 is a powerful 8-channel Network Video Recorder designed for homes or small to medium-sized businesses seeking a high-performance and intelligent surveillance solution. Featuring 8 Power-over-Ethernet (PoE) ports, it simplifies IP camera installation and supports resolutions up to 4K, ensuring crystal-clear video footage. Its integrated and camera-supported AI functions bring a revolutionary leap in security capabilities.

Key Features:

• Ultra HD 4K Support: Supports IP cameras up to 12MP resolution, offering incredibly sharp 4K video recording and playback.
• 8-Channel PoE Supply: Equipped with 8 built-in PoE ports, directly powering and transmitting data to IP cameras, significantly simplifying wiring and speeding up installation.
• Efficient Video Compression: Utilizes advanced compression technologies like Smart H.265+ / H.265 / Smart H.264+ / H.264, saving storage space and network bandwidth while maintaining high video quality.
• Powerful AI Smart Analytics:
  • AI by Recorder (4-channel SMD Plus): Enhanced Smart Motion Detection accurately identifies humans and vehicles, significantly reducing false alarms caused by leaves, rain, or lighting changes.
  • AI by Camera (Up to 6-channel support): Supports advanced intelligent functions such as face detection and recognition, perimeter protection, people counting, stereo analysis, and heat maps (requires AI-enabled cameras).
• High Bandwidth Processing: Supports up to 160Mbps incoming bandwidth, ensuring smooth recording even with multiple high-resolution cameras.
• Multiple Output Options: Features both HDMI and VGA video output ports, supporting up to 4K (HDMI) display resolution for flexible monitor connections.
• Convenient Remote Monitoring: Access live view and playback from anywhere using the iOS and Android mobile applications.
• Flexible Storage: Supports 1 SATA hard drive, with each drive supporting up to 20TB capacity (Note: actual supported capacity may vary depending on ambient temperature).

Technical Specifications at a Glance:

• Model: NVR4108HS-8P-4KS3
• Access Channels: 8 IP Camera inputs
• PoE Ports: 8 ports (IEEE 802.3 af/at), total PoE power output 72W, max. 25.5W per port
• Max. Decoding Capability: 8 channels 1080p@30fps (AI disabled)
• Network Bandwidth: 160Mbps incoming / 160Mbps recording / 80Mbps outgoing (AI disabled)

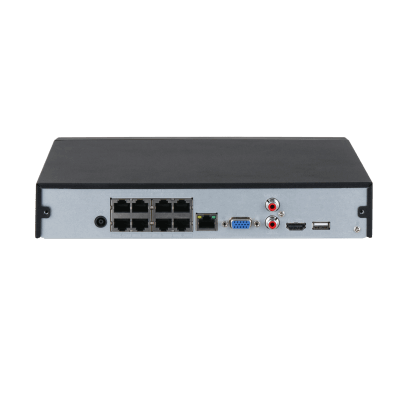

• Video Output: 1 x HDMI (up to 3840 × 2160), 1 x VGA
• USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)
• Audio Input/Output: 1-channel RCA input / 1-channel RCA output
• Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
• Power Supply: 53 VDC, 1.81 A
• Power Consumption: NVR total output <10W (without HDD)
• Dimensions (WxDxH): 260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87")
• Net Weight: 0.92 kg (2.03 lb)

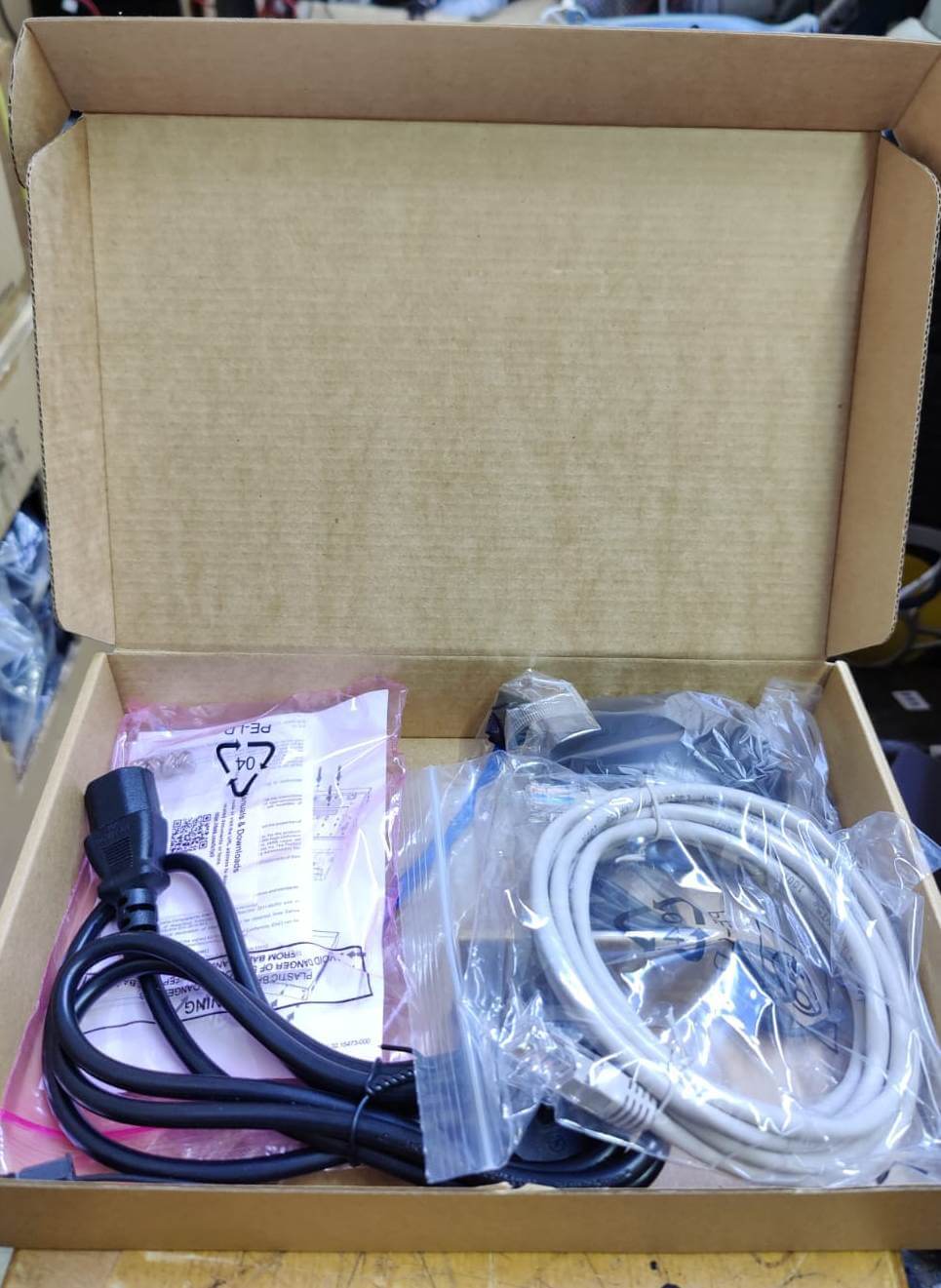

What's in the Box:

• NVR4108HS-8P-4KS3 Network Video Recorder Unit
• Power Cord
• Mouse
• SATA Cable (for HDD installation)
• Quick Start Guide (or Manual)
