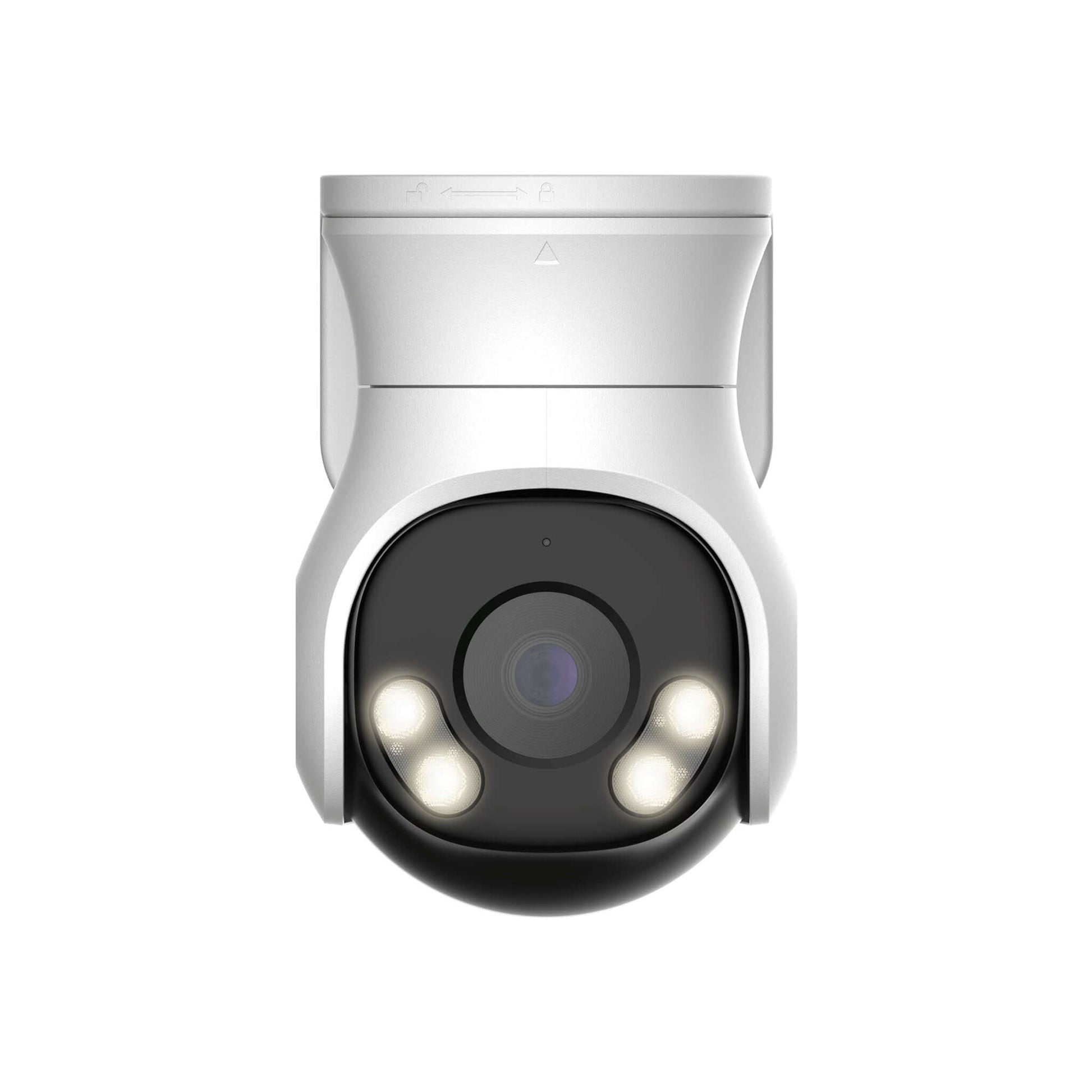

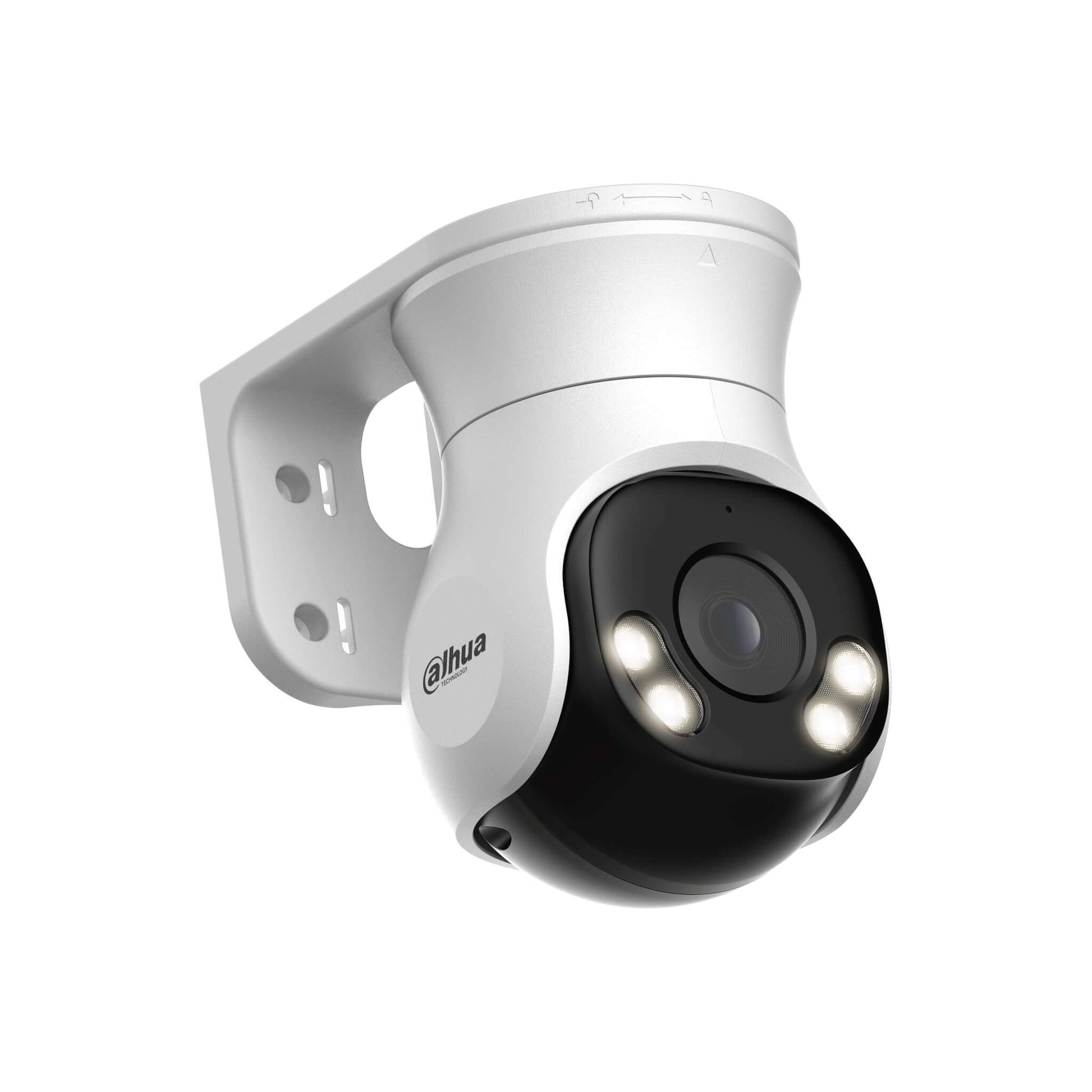

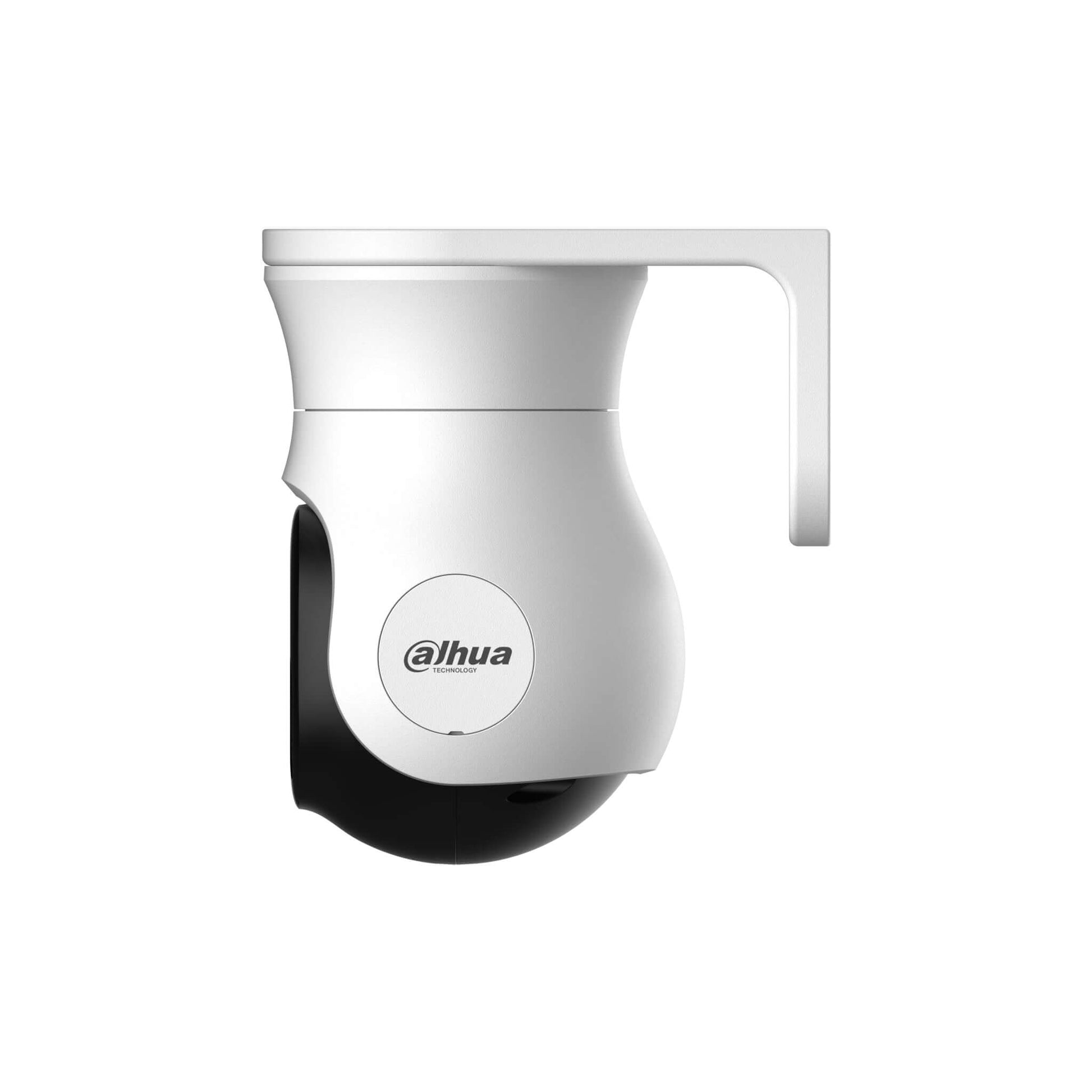

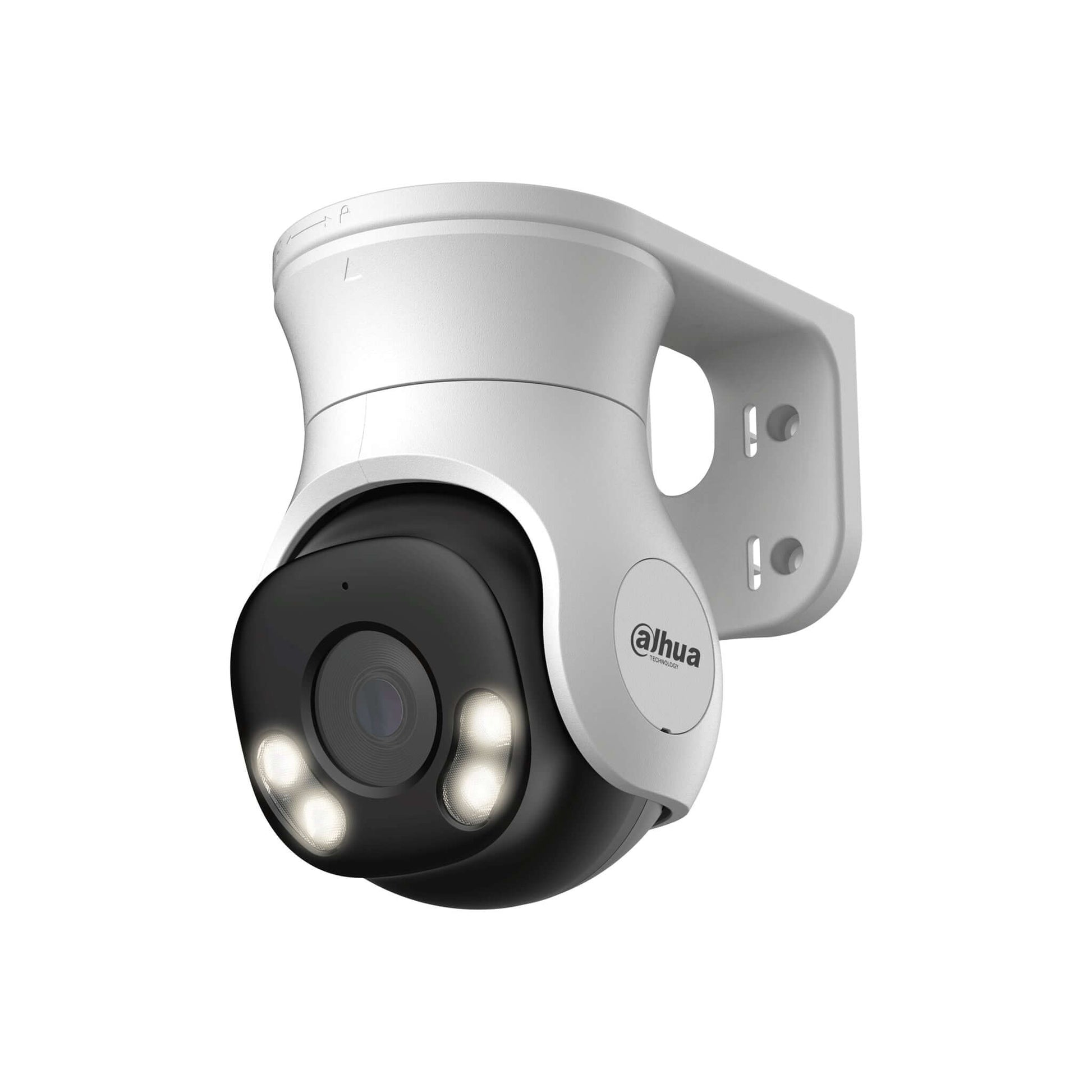

Dahua HAC-PT1200A-IL-A 2MP Smart Dual Light PT Camera - 2.8mm Lens

Key Features & Highlights:

• Crystal Clear 2MP Resolution: Capture sharp and detailed footage with a 1920 x 1080 resolution, ensuring no critical details are missed.
• Smart Dual Light Technology: Experience superior nighttime surveillance. The camera intelligently switches between IR (infrared) for discreet monitoring and warm LED light for full-color images when an event is detected.
  • 40m Illumination Distance: Both IR and warm light provide extensive coverage up to 40 meters (131.23 ft).
  • Smart Area Lighting: Focus illumination precisely where it's needed most.
• Pan & Tilt Functionality: Remotely adjust the camera's view with 0°-355° Pan and 0°-90° Tilt capabilities for comprehensive area coverage.
• Built-in Microphone: Enhance your security monitoring with integrated audio capture.
• Versatile HDCVI Output: Compatible with CVI, AHD, TVI, and CVBS formats, offering flexible integration with various DVR systems.
• Durable & Weatherproof: Rated IP66 for protection against dust and water, making it suitable for both indoor and outdoor installations in diverse weather conditions (-40 °C to +60 °C).
• Quick & Easy Installation: Designed with a quick-to-install structure to save you time and effort during setup.
• Wide Field of View: The 2.8mm fixed lens provides a broad 102° horizontal, 60° vertical, and 129° diagonal field of view, covering large areas effectively. (Also available with 3.6mm lens option).
• Super Adapt Technology: Ensures optimal image quality across varying light conditions.
• Advanced Image Processing: Features BLC, HLC, DWDR, 3D NR, Mirror, and Privacy Masking for optimized video quality and privacy control.

Specifications:

• Model: HAC-PT1200A-IL-A
• Image Sensor: 2 MP CMOS
• Max Resolution: 1920 (H) × 1080 (V)
• Lens: 2.8 mm Fixed-focal
• Max Aperture: F2.0
• Video Frame Rate (CVI): 1080p@25 fps (PAL) / 1080p@30 fps (NTSC)
• Min. Illumination: 0.01 lux@F2.0 (Color), 0.001 lux@F2.0 (B/W), 0 lux (Illuminator on)
• Power Supply: 12 VDC ± 30% (Max 6.1 W with LED on)
• Dimensions: 92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")
• Net Weight: 0.39 kg (0.86 lb)
• Installation: Wall mount, ceiling mount, vertical pole mount

Important Notes:

• Firmware Requirement: To utilize the Smart Dual Light feature, your XVR's firmware must be upgraded to V4.001.0000004.1.R.220323 or a later version.
• Warranty: This product comes with a 1-year warranty.
