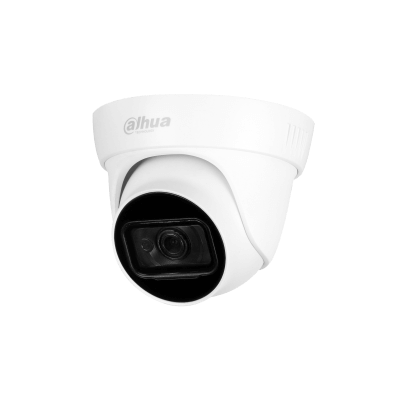

Dahua HAC-HDW1800TLP-A 4K HDCVI Camera with Audio (2.8mm)

Elevate Your Security with the Dahua 4K HDCVI IR Eyeball Camera

Experience next-generation surveillance with the Dahua HAC-HDW1800TLP-A 2.8mm camera. This powerful 4K (8MP) HDCVI camera delivers crystal-clear, real-time video, making it easier than ever to monitor your property with exceptional detail. Whether you're upgrading an existing system or setting up new surveillance, its multi-format compatibility ensures a hassle-free integration.

We stand behind our product with a 1-Year Manufacturer's Warranty, ensuring your investment is protected and giving you complete peace of mind.

Unmatched Clarity & Coverage: With a native 4K resolution (3840 x 2160 pixels) and a wide 2.8mm fixed lens offering a 125° diagonal angle of view, this camera is perfect for monitoring large rooms, outdoor areas, or storefronts. Catch crucial details you might miss with lower-resolution cameras.

Intelligent Night Vision: Don't let darkness compromise your security. The integrated Smart IR technology automatically adjusts the infrared lighting, preventing overexposure and providing clear, consistent black and white images up to 30 meters (98.4 feet) away, even in total darkness.

Audio Monitoring Capability: The built-in microphone (-A model) allows you to capture ambient sound, adding another layer of security and context to your video footage. This is invaluable for incident review and provides a more complete surveillance picture.

Built Tough for Any Environment: Rated IP67, this camera is fully protected against dust and water immersion, making it suitable for both indoor and outdoor installations in challenging weather conditions (operating from -40°C to +60°C). Its robust casing ensures long-lasting performance.

Flexible Installation & Compatibility: Easily adjust the camera's view with 360° pan and rotation, and 78° tilt. With switchable video outputs (CVI, TVI, AHD, CVBS), this camera offers maximum flexibility, ensuring it can connect to almost any existing DVR system.

Technical Specifications:

• Camera & Image:
  • Image Sensor: 1/2.7 inch CMOS
  • Effective Pixels: 3840 (H)× 2160 (V), 4K (8MP)
  • Minimum Illumination: 0.03 Lux/F2.0 (color), 0 Lux with IR on
  • S/N Ratio: >65dB
• Lens:
  • Focal Length: 2.8mm fixed lens (wide angle)
  • Max. Aperture: F2.0
  • Angle of View: 125° (Diagonal) x 105° (Horizontal) x 56° (Vertical)
  • Close Focus Distance: 1.0 m (3.3 ft)
• Video Performance:
  • Resolution Options: 4K (3840x2160), 5M (2592x1944), 4M (2560x1440), 960H
  • Frame Rate (CVI): 4K@25/30fps, 4K@15fps, 5M@20fps, 4M@25fps/30fps
  • Day/Night: Auto switch by ICR (Infrared Cut Filter Removal)
  • Dynamic Range: DWDR (Digital Wide Dynamic Range) for clear images in varying light
  • Noise Reduction: 2D NR
  • Smart IR: Yes
  • Privacy Masking: 8 configurable rectangular areas
• Connectivity & Power:
  • Video Output: Single BNC port (CVI/TVI/AHD/CVBS switchable)
  • Audio Input: Built-in microphone (-A)
  • Power Supply: 12V DC ±30%
  • Power Consumption: Max 4.3W (IR on)
• Environmental & Physical:
  • Operating Temperature: -40°C to +60°C (-40°F to 140°F)
  • Protection Grade: IP67 (Dust and water resistant)
  • Casing: Durable plastic cover with metal inner core
  • Dimensions: Φ97 mm × 85.8 mm (Φ3.82"×3.38")
  • Net Weight: 0.3Kg (0.66lb)
• DORI Distance (2.8mm Lens):
  • Detect: 74.7 m (245.1 ft)
  • Observe: 29.9 m (98.1 ft)
  • Recognize: 14.9 m (48.9 ft)
  • Identify: 7.5 m (24.6 ft)
