Dahua DH-PFB120WS Aluminum Wall Mount Bracket | For Bullet Cameras
Dahua DH-PFB120WS Aluminum Wall Mount Bracket | For Bullet Cameras
Couldn't load pickup availability
Short Product Description
Short Product Description
Ensure a secure and stable installation for your security system with the Dahua DH-PFB120WS Wall Mount Bracket. Custom-engineered for Dahua M, K, B, D, and F series small bullet cameras, this heavy-duty mount is constructed from premium aluminum alloy. Capable of supporting up to 1kg (2.2 lbs) and featuring a 360° horizontal rotation, it provides the perfect viewing angle for any environment. Built to withstand extreme temperatures from -40°C to +60°C.
Key Features
Key Features
- Premium Aluminum Alloy: Rust-resistant and highly durable material ensures long-lasting outdoor and indoor performance.
- 360° Pan Rotation: Easily adjust your camera horizontally up to 360 degrees and tilt vertically down to -30 degrees for the perfect blind-spot-free angle.
- 1kg Load Capacity: Strong enough to securely hold Dahua small bullet cameras without sagging or vibrating.
- Extreme Weather Tolerance: Operates reliably in freezing conditions (-40°C) and extreme heat (+60°C).
- Perfect Compatibility: Specifically designed for seamless integration with Dahua M, K, B, D, and F series bullet cameras.
- Clean Aesthetics: Finished in signature "Dahua White" to seamlessly match your camera and building exterior.
Full Product Description
Full Product Description
Secure Your Surveillance with Precision

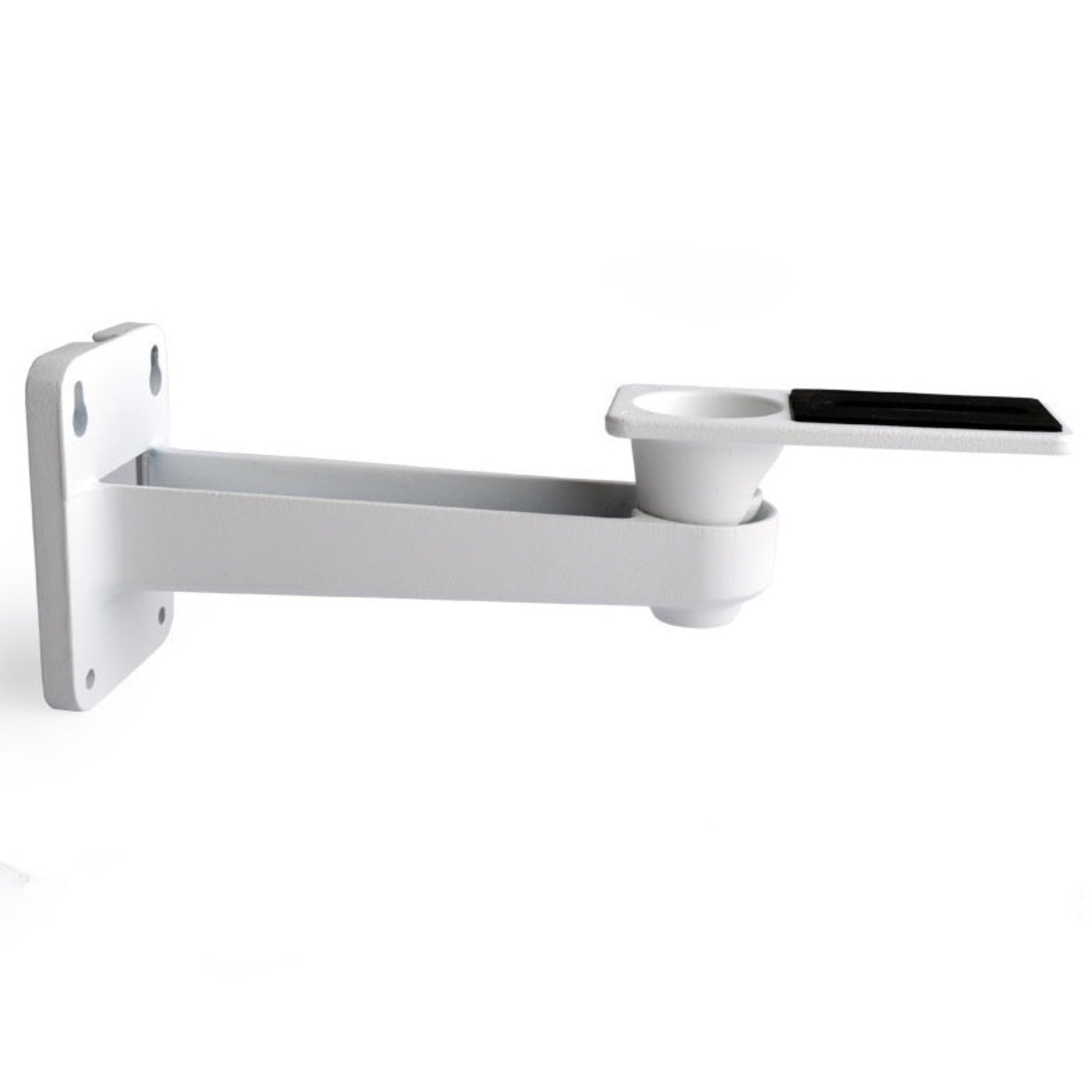

A security camera is only as reliable as the mount that holds it. The Dahua DH-PFB120WS is a professional-grade wall mount bracket designed to provide a rock-solid foundation for your small bullet cameras. Whether you are monitoring a commercial parking lot, a retail storefront, or your home perimeter, this bracket ensures your camera stays exactly where you mounted it, eliminating vibrations and maintaining a clear, steady video feed.
Heavy-Duty Aluminum Alloy Construction
Don't compromise your expensive security equipment with flimsy plastic mounts. The DH-PFB120WS is crafted from high-quality aluminum alloy, offering an exceptional strength-to-weight ratio. Weighing just 0.38kg, it safely supports a load capacity of up to 1kg. This rugged construction not only resists physical impact but also provides excellent protection against rust and corrosion, making it ideal for both indoor and harsh outdoor installations.
Flexible Viewing Angles & Extreme Weather Ready

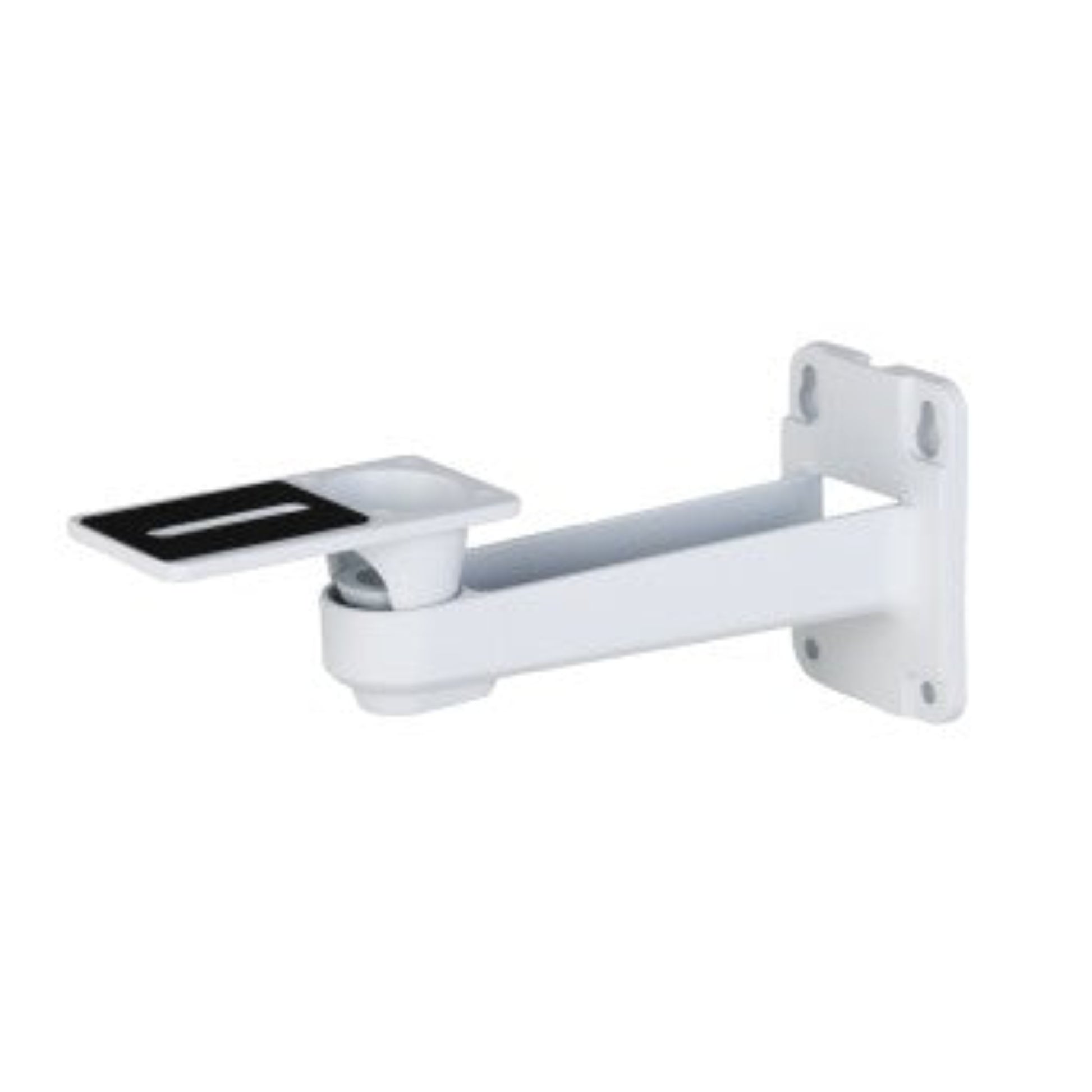

Achieve the perfect line of sight without hassle. This bracket features an adjustable joint that allows for 0° to 360° horizontal pan rotation and a -30° to 0° vertical tilt. Once you find the optimal angle, simply lock it in place. Furthermore, it is engineered to perform flawlessly in extreme climates, boasting an operating temperature range of -40°C to +60°C and handling up to 90% relative humidity.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Installation Type | Wall Mount |
| Material | Aluminum Alloy |

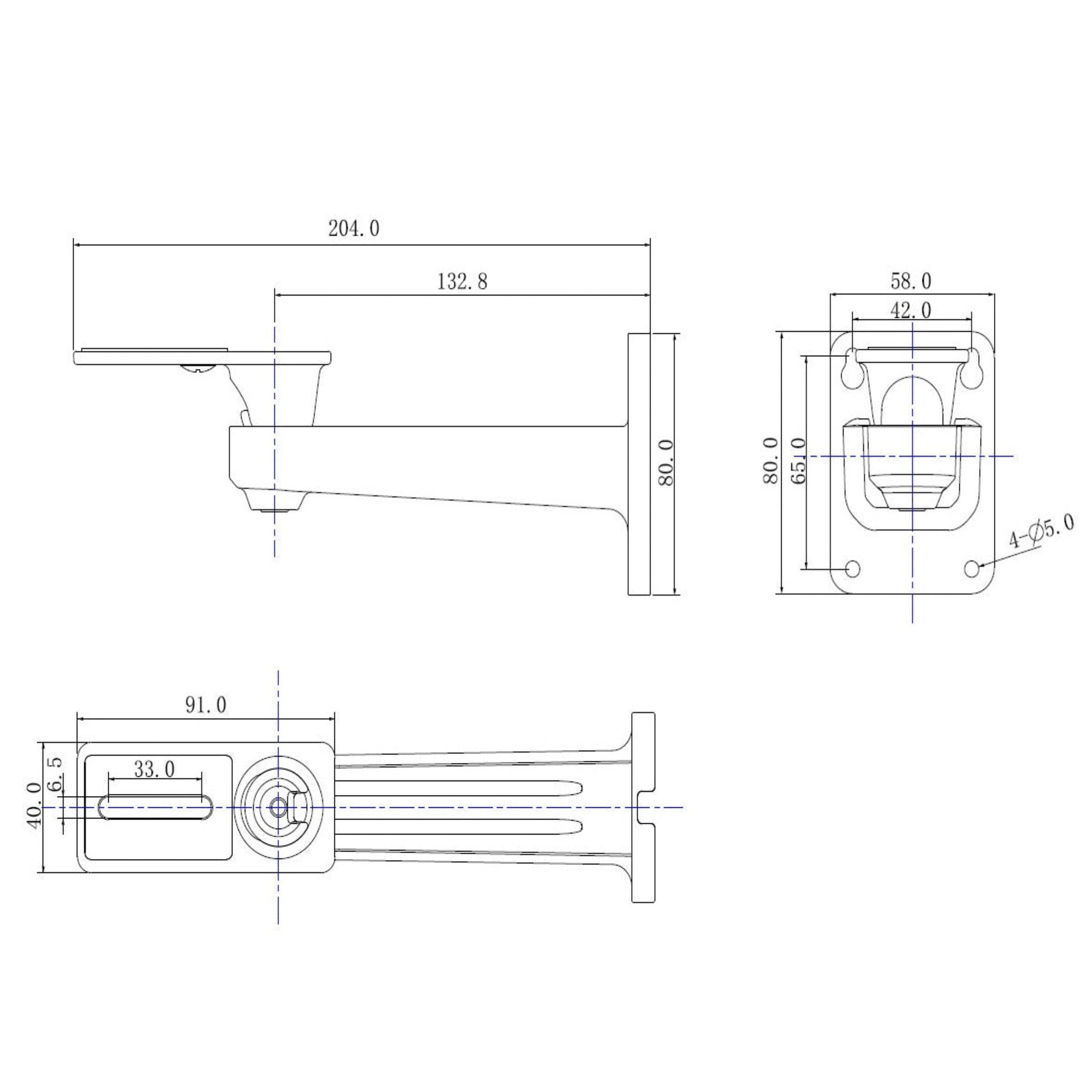

| Dimensions | 204.0 mm × 58.0 mm × 80.0 mm |
| Weight | 0.38 kg (0.84 lbs) |
| Load Bearing Capacity | 1.0 kg (2.2 lbs) |
| Rotation Angle | Pan (Horizontal): 0° ~ 360° Tilt (Vertical): -30° ~ 0° |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% RH ~ 90% RH |
| Storage Temperature | -40°C ~ +60°C (-40°F ~ 140°F) |
| Color | Dahua White |
| Compatible Models | Dahua M / K / B / D / F Series Bullet Cameras |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- Is this bracket suitable for outdoor use?Yes, absolutely. The Dahua DH-PFB120WS is made from rust-resistant aluminum alloy and is rated to withstand extreme temperatures ranging from -40°C to +60°C, making it perfect for year-round outdoor installation.
- Which cameras are compatible with this mount?This specific wall mount bracket is precision-engineered to fit Dahua's small bullet cameras, specifically the M-series, K-series, B-series, D-series, and F-series models.
- Can I adjust the camera angle after mounting the bracket to the wall?Yes. The bracket features an adjustable mounting head that allows you to rotate the camera horizontally a full 360° and tilt it vertically from 0° down to -30°, ensuring you capture the exact field of view required.
Target Users / Applications
Target Users / Applications
- Professional CCTV Installers: Looking for reliable, OEM-standard mounting hardware that saves time on site.
- Commercial Property Owners: Needing durable, tamper-resistant mounts for exterior building surveillance.
- Homeowners: Upgrading their home security system and requiring a clean, professional-looking wall mount for their Dahua bullet cameras.
