Elevate Your Security with Dahua WizSense AI Technology

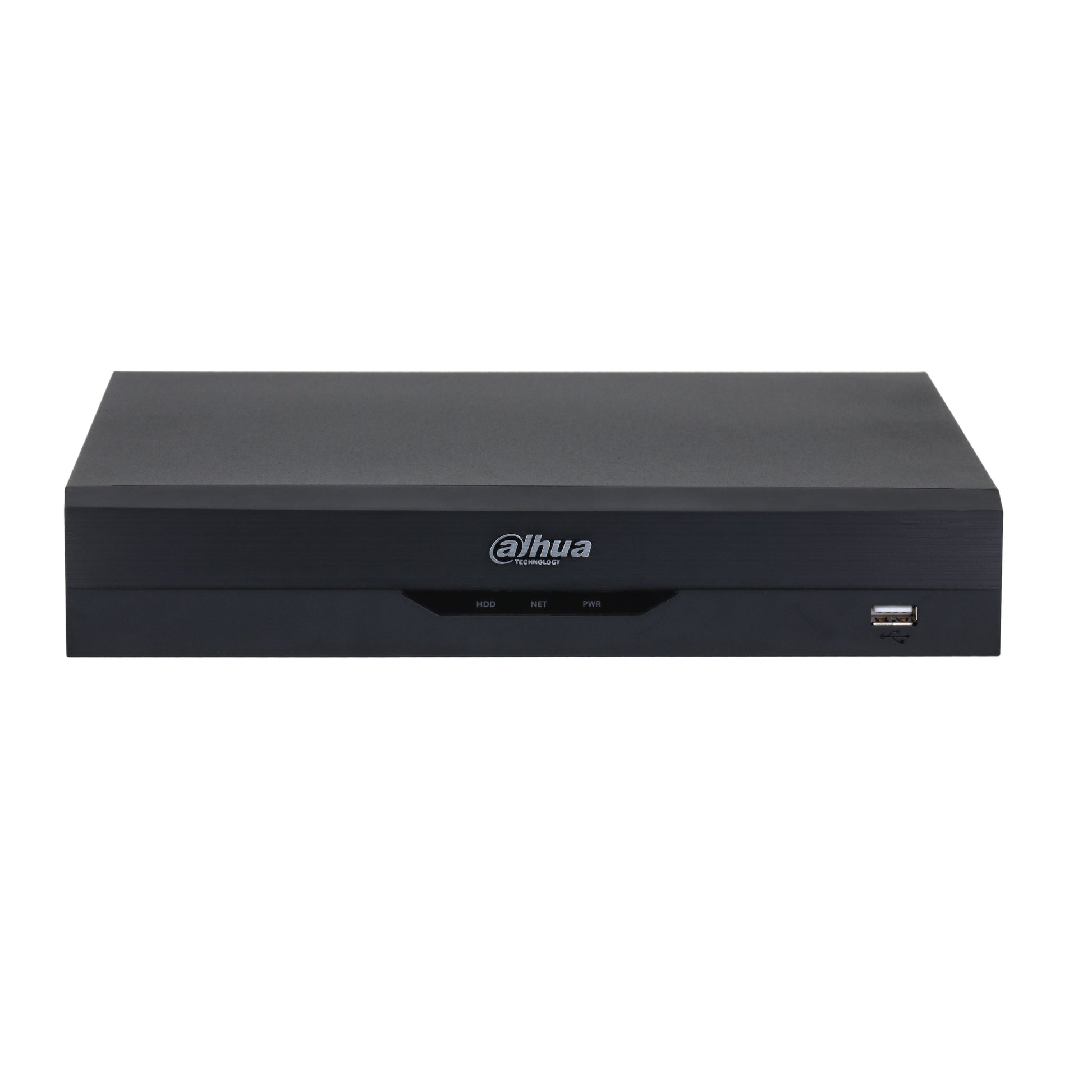

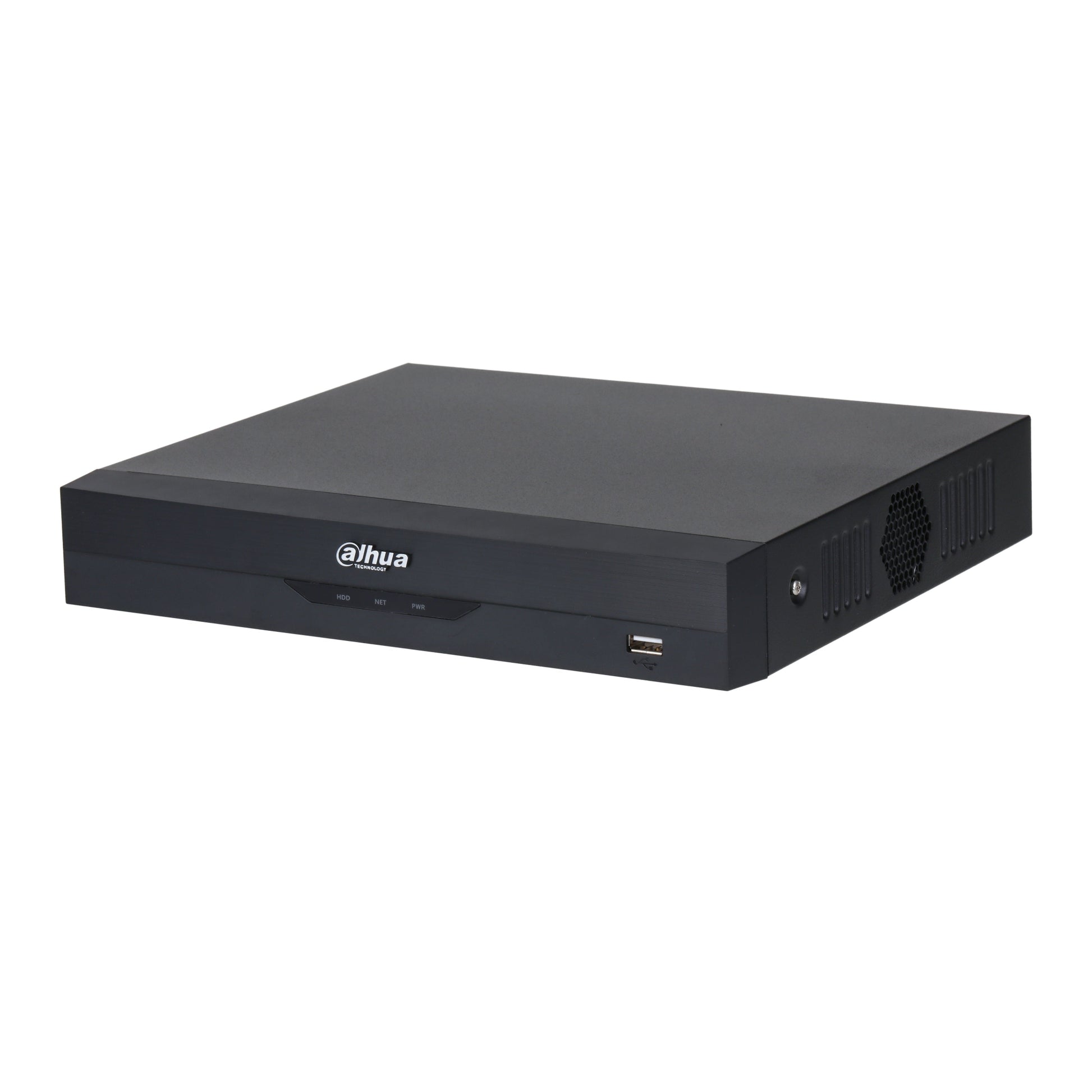

The Dahua XVR5108HS-I3/T is a powerful 8-channel Digital Video Recorder (DVR) built with cutting-edge WizSense AI technology. Designed for both high-resolution analog (HDCVI/AHD/TVI/CVBS) and IP cameras, this Penta-brid recorder offers superior surveillance performance and extreme value in a compact 1U enclosure.
The built-in AI features—including SMD Plus for accurate human/vehicle detection, Perimeter Protection, and Face Recognition—drastically reduce false alarms and streamline video evidence retrieval. Combined with efficient AI Coding and a 16TB HDD capacity, the XVR5108HS-I3/T is the smart, future-proof core for any professional security system.
Key AI & Performance Features
| Feature | Explanation & Benefit |
| WizSense AI Technology | Features intelligent functions like SMD Plus (8-Channel), Perimeter Protection (4-Channel), and Face Recognition (2-Channel) to focus on real threats (human/vehicle). |
| Penta-brid & High Resolution | Supports all five major camera standards (HDCVI/AHD/TVI/CVBS/IP). Records 5MP video and supports up to 12 channels (8 Analog + 4 IP) or 12 IP cameras up to 6MP, with 64 Mbps incoming bandwidth. |
| AI Coding & Smart H.265+ | Save over 50% on storage and bandwidth compared to H.265/H.264 without sacrificing the detail of human/vehicle targets. Maximizes your Hard Drive capacity (up to 16TB). |
| Coaxial Two-Way Talk | Full 8-channel support for two-way audio over coaxial cable (Coax Audio), simplifying installation and enabling seamless remote communication. |
| Target Retrieval (AcuPick) | 2-Channel AcuPick improves target retrieval efficiency, allowing you to quickly find video clips of specific events. |
| Easy Setup & Access | Simple Web and Local GUI interface. Remote viewing via the DMSS mobile app (iOS/Android) and P2P connection for quick setup. |
Technical Specifications
| Category | Specification |
| Model | XVR5108HS-I3/T |
| Channels | 8 Analog (BNC) + up to 4 IP (or up to 12 IP total) |
| Max Resolution | 5MP (Analog), 6MP (IP Camera) |
| AI Functions (Recorder) | 8CH SMD Plus, 4CH Perimeter Protection, 2CH Face Recognition, 2CH AcuPick |
| Video Compression | AI Coding, Smart H.265+/H.265/Smart H.264+/H.264 |

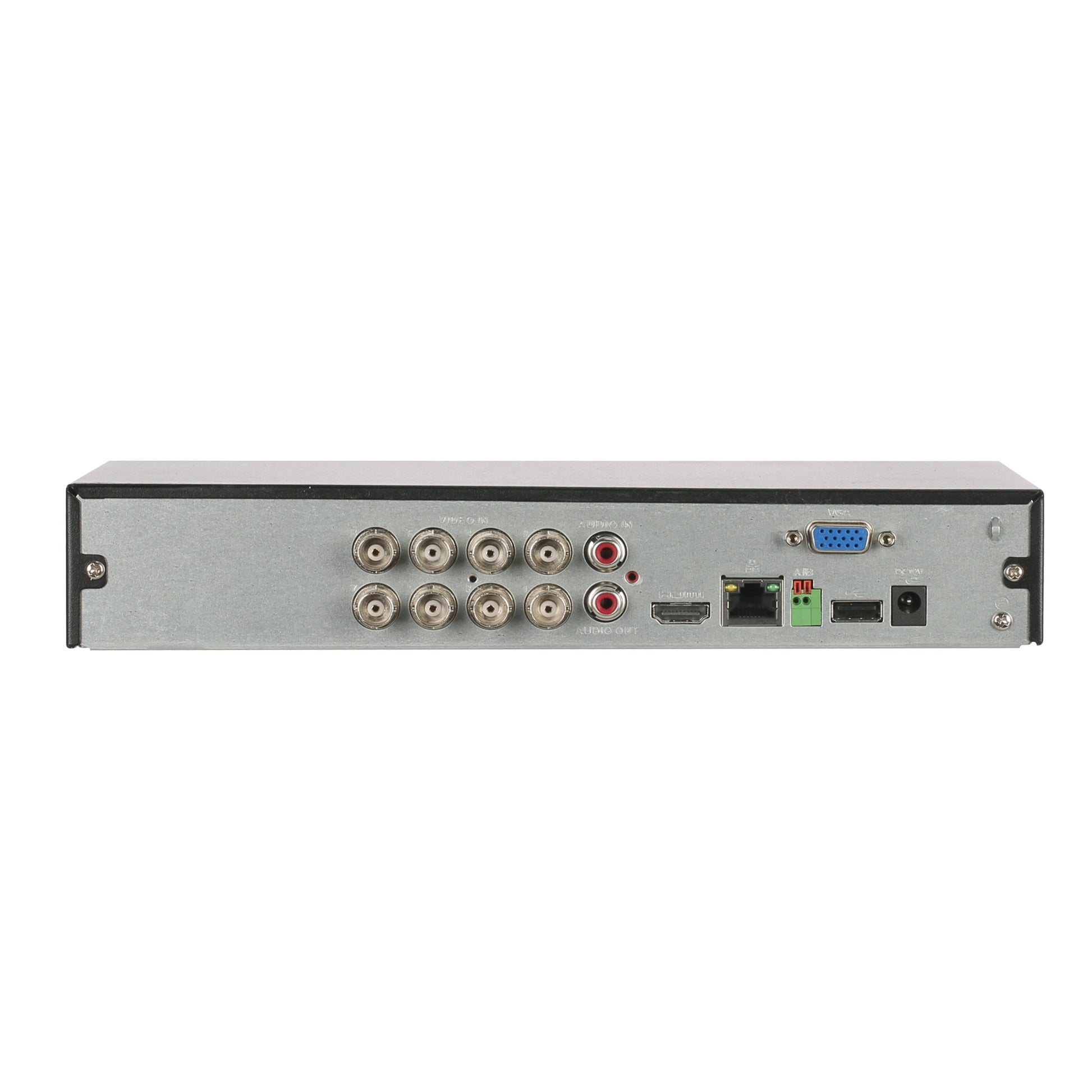

| Video Output | 1 HDMI, 1 VGA (1080P Max) |
| HDD Interface | 1 SATA port, up to 16 TB |
| Audio | 8-Channel Coaxial Two-way Talk; 1 RCA In/Out |
| Network | 10/100 Mbps Ethernet Port, P2P Support (DMSS) |
| Form Factor | Compact 1U, Desktop Installation |
