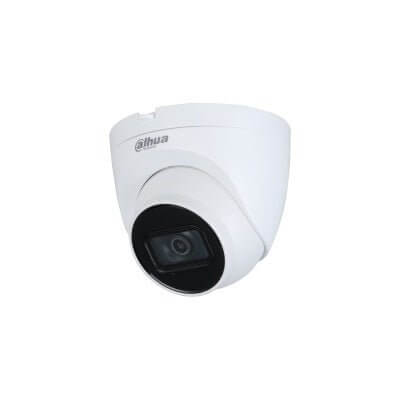

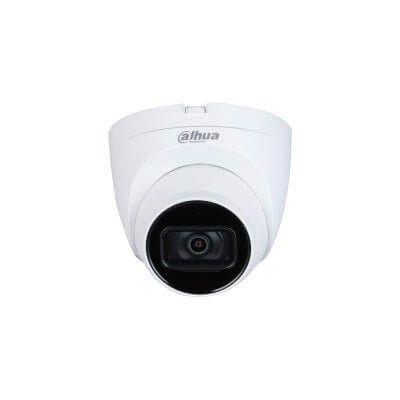

Dahua 2MP HDCVI IR Eyeball Camera with Built-in Mic (HAC-HDW1200TQ-A)

Capture high-quality surveillance footage with the Dahua HAC-HDW1200TQ-A 2MP HDCVI IR Eyeball Camera. This versatile camera delivers crisp 1080p resolution, ensuring you don't miss crucial details. Equipped with powerful Smart IR illumination, it provides clear night vision up to 40 meters (131 feet), making it ideal for both day and night monitoring. The built-in microphone adds an extra layer of security by allowing audio recording, providing a more comprehensive surveillance solution.

Designed for quick and easy installation, this eyeball camera is perfect for a variety of indoor and outdoor applications. Its robust IP67 weatherproof rating ensures reliable performance in harsh environmental conditions. The camera also boasts multi-format compatibility, supporting CVI, CVBS, AHD, and TVI video outputs, making it highly flexible for integration into existing security systems.

Key Features

• 2MP Full HD 1080p Resolution: Experience crystal-clear video footage with 1920 x 1080 resolution, ensuring sharp and detailed images.
• Built-in Microphone: Capture audio alongside video, providing a more complete security picture and enhancing situational awareness.
• 40m (131ft) Smart IR Illumination: Advanced Smart IR technology automatically adjusts infrared light intensity to prevent overexposure, delivering clear black and white images even in complete darkness up to 40 meters.
• Flexible Video Outputs (4-in-1): Supports HDCVI, CVBS, AHD, and TVI formats, allowing for easy integration with various DVRs and systems. Switch between formats effortlessly via the OSD menu or a dedicated controller.
• Quick-to-Install Eyeball Design: Save time and effort during installation with its user-friendly, quick-mount design.
• IP67 Weatherproof Rating: Designed for both indoor and outdoor use, this camera is protected against dust and water ingress, ensuring reliable operation in challenging weather conditions.
• Digital Wide Dynamic Range (DWDR): Optimizes video quality in scenes with both very bright and very dark areas, ensuring details are visible across the entire image.
• 3D Noise Reduction (3D NR): Reduces image noise, especially in low-light conditions, leading to cleaner and sharper video streams.
• Wide Viewing Angle Options: Available with a 2.8mm fixed lens offering a wide 102° horizontal field of view (or 3.6mm for 83°), suitable for various surveillance needs.

Technical Specifications (HAC-HDW1200TQ-A 2.8mm)

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Minimum Illumination: 0.01 lux@F2.0 (Color), 0 lux (IR on)
• S/N Ratio: >65 dB
• Illumination Distance: 40 m (131.23 ft)
• Illuminator Type: 1 x IR light
• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Focal Length: 2.8 mm (default) or 3.6 mm
• Max. Aperture: F2.0
• Field of View (2.8mm): H: 102°; V: 60°; D: 129°
• Close Focus Distance (2.8mm): 0.5 m (1.64 ft)

Video

• Video Frame Rate: 1080p@25/30 fps (CVI/AHD/TVI), 960H (CVBS)
• Day/Night: Auto(ICR)/Color/B/W
• Compensation: BLC, HLC, DWDR
• Noise Reduction: 3D NR
• Illumination Mode: Smart IR
• Privacy Masking: Up to 8 configurable rectangular areas

Audio

• Audio Input: One channel built-in Mic

Port

• Video Output: One BNC port (CVI/TVI/AHD/CVBS switchable)

Power

• Power Supply: 12 VDC ± 30%
• Power Consumption: Max 3.2 W (IR on)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: <95% (RH), non-condensing
• Protection: IP67

Structure

• Casing Material: Dome (metal + plastic) + plastic enclosure
• Product Dimensions: Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")
• Net Weight: 0.32 kg (0.71 lb)
• Installation: Wall mount, ceiling mount, vertical pole mount

Certifications

• CE-LVD: EN 62368-1
• CE-EMC: EN 55032; EN 55035
• FCC: 47 CFR FCC Part 15, Subpart B

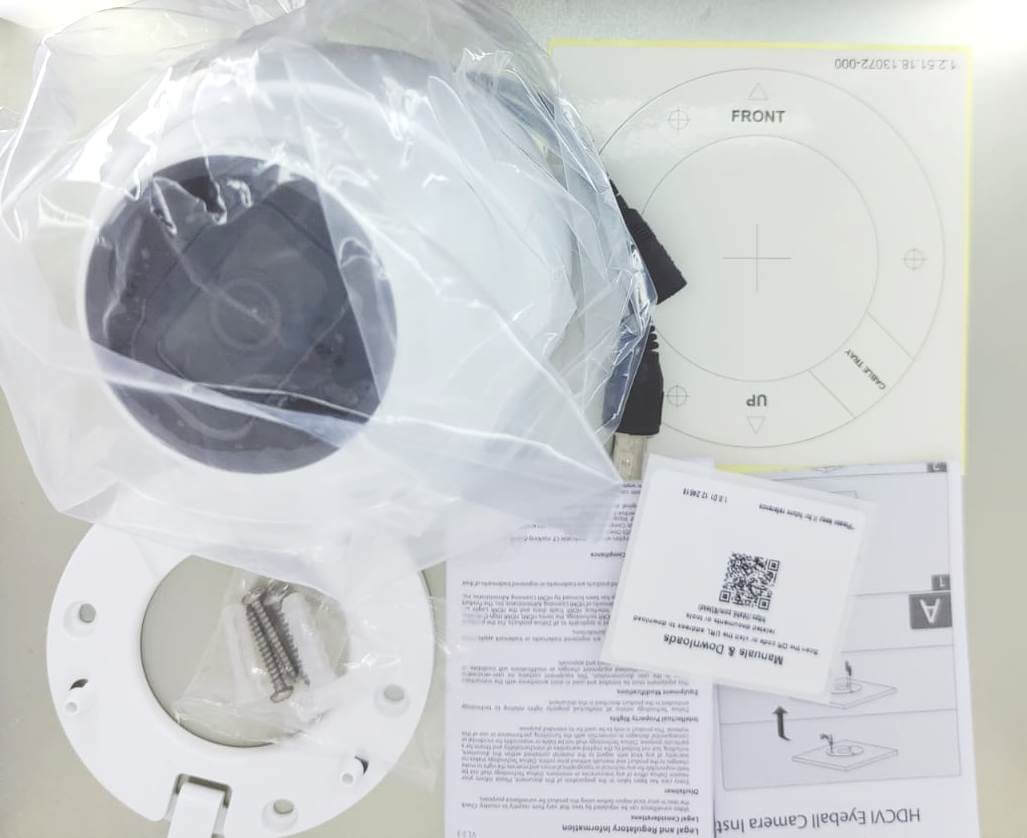

What's in the Box?

• Dahua HAC-HDW1200TQ-A 2MP HDCVI IR Eyeball Camera
• Mounting Screws and Plugs
• Quick Start Guide / Installation Template


Warranty & Support

• 1-Year Manufacturer Warranty: Enjoy peace of mind with a 1-year warranty on this genuine Dahua product.
• Local Support:

• • Whatsapp: 6467 8958 - Contact our team for technical support and assistance.
