TEC1-12706 Peltier Module - 12V 6A Thermoelectric Cooler (4x4cm)

Experience rapid cooling or heating with the TEC1-12706 Thermoelectric Cooler Peltier module. This versatile 12V 6A device, measuring 40x40mm, offers a powerful 55W cooling capacity (Qcmax), making it ideal for a wide range of applications from CPU cooling to custom car drink warmers/coolers.

Simply reverse the polarity to switch between cooling and heating functions, achieving impressive temperature differentials of over 59°C (Tmax at Qc=0). The side with text printed on it is the cooling surface, while the plain, unprinted side is the heat dissipation surface.

Crucial: Important Safety & Usage Instructions

• Heat Sink Required: This Peltier module must be used with an appropriate heat sink or liquid cooling device attached to the heat dissipation surface (the unprinted side). Without proper heat dissipation, the module will quickly burn out.
• Exercise Extreme Caution During Testing: When testing for cooling effect without a heat sink attached, connect power for no more than 1 second and disconnect immediately. Failure to do so will very likely burn out the module. Please test with extreme care.

Constructed from semiconductor material sandwiched between durable ceramic plates, these solid-state devices contain no moving parts, ensuring reliability and a long lifespan. Each module is thoroughly inspected and tested to guarantee optimal performance.

Key Features:

• Powerful Cooling/Heating: 55W cooling power (Qcmax), achieving instant temperature changes by reversing polarity.
• High Efficiency: Maximum temperature difference of over 59°C, providing excellent thermal performance.
• Compact Size: Convenient 40mm x 40mm dimensions for versatile integration.
• Solid-State Reliability: No moving parts for silent, long-lasting operation.
• Wide Application: Perfect for CPU coolers, mini-fridges, liquid cooling systems, DIY thermal projects, and more.
• Quality Assured: Each unit undergoes full inspection and testing for reliability.

Technical Specifications:

• Model: TEC1-12706
• Operating Voltage: 12V
• Current: 6A
• External Dimensions: 40mm x 40mm x ~3.8mm (typical thickness)
• Internal Resistance: 2.1 ~ 2.4Ω (at 23±1°C, 1kHz AC test)
• Maximum Temperature Difference (ΔTmax): >59°C (at Qc=0)
• Cooling Power (Qcmax): 55W
• Operating Temperature Range: -55°C ~ 83°C (Note: high ambient temperatures directly affect cooling efficiency)

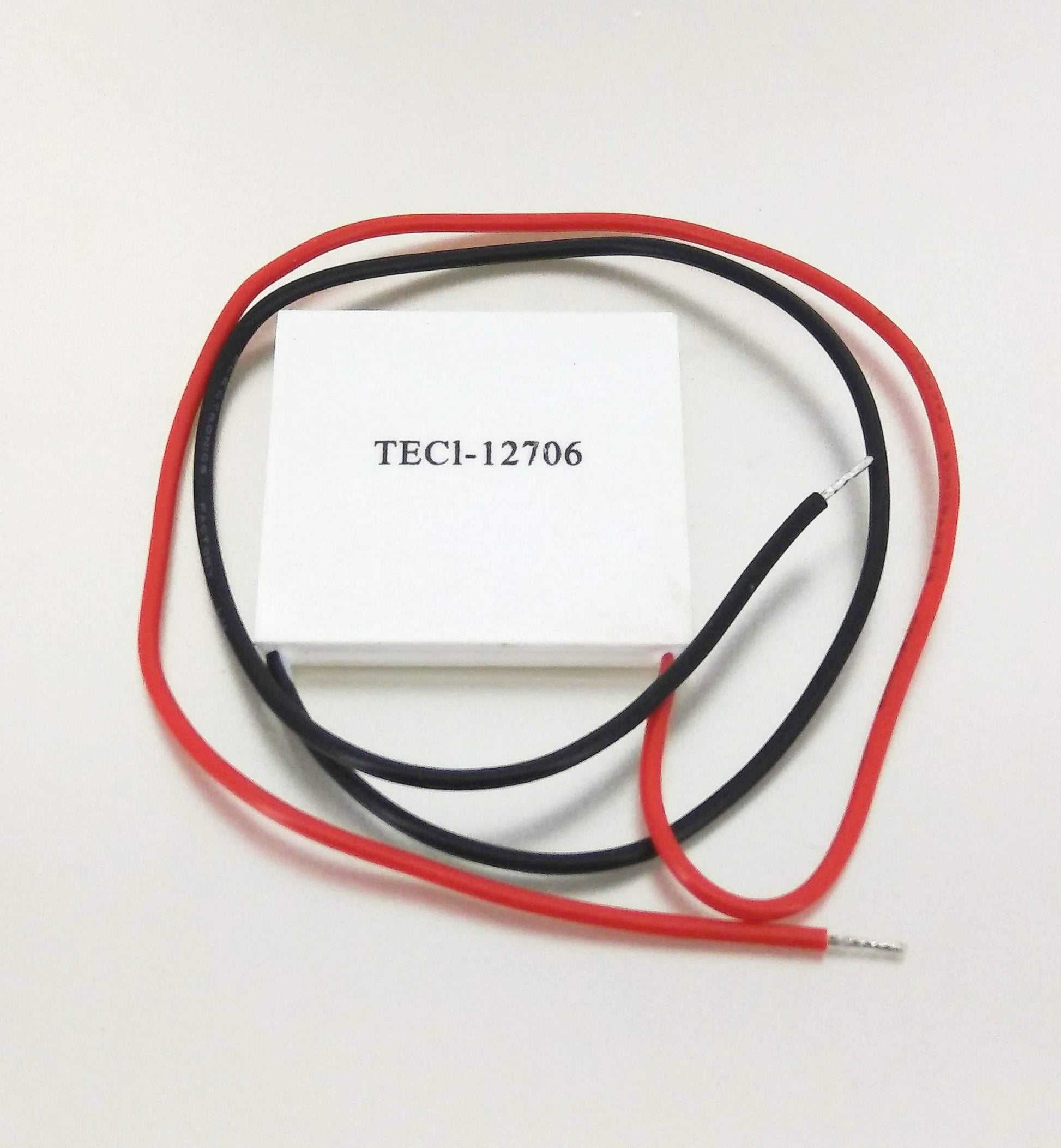

• Cooling Side: The side with printed text

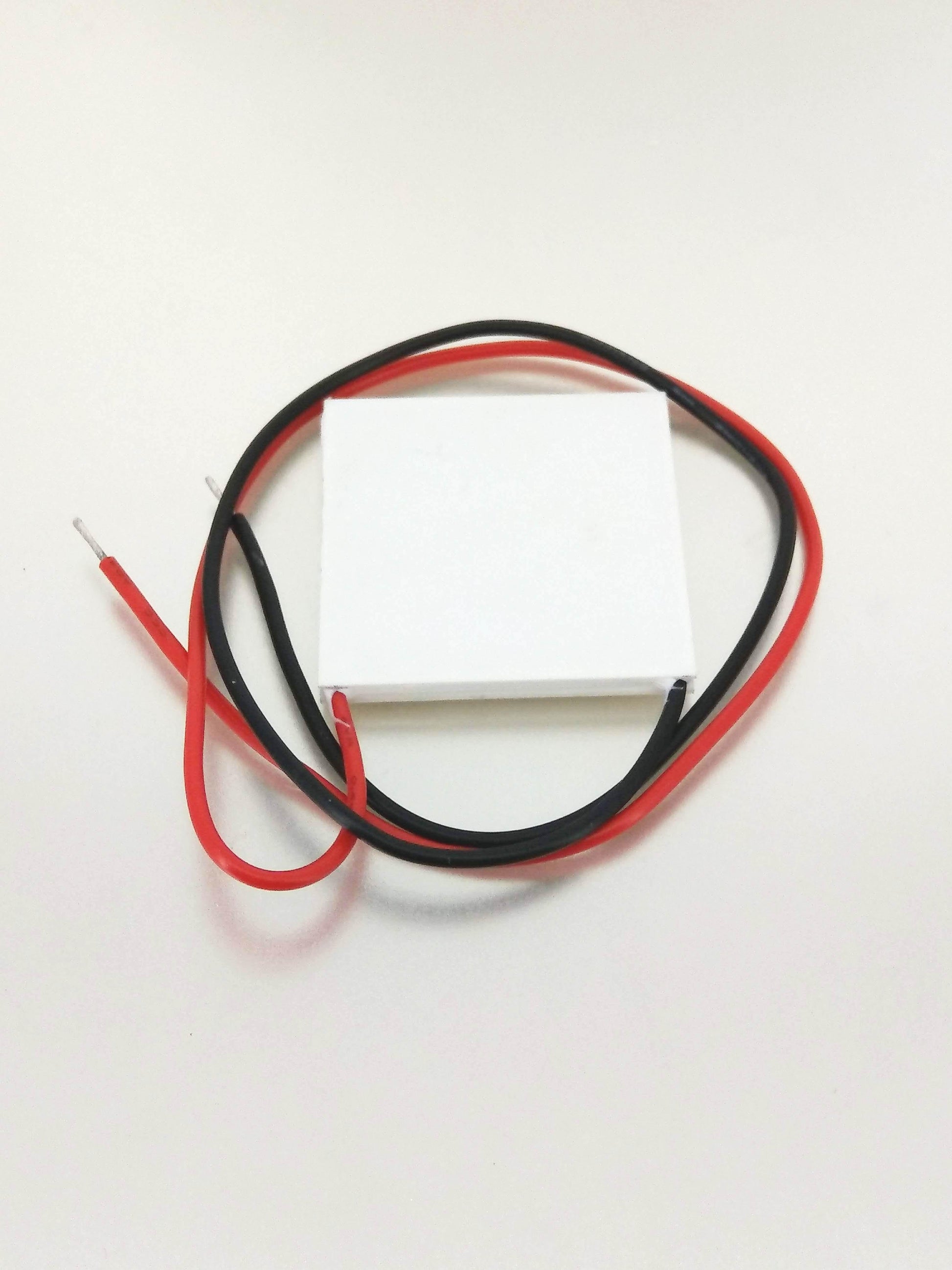

• Heat Dissipation Side: The plain, unprinted side
