C-Type 3-Way Pneumatic Quick Coupler + PM20 Plug Set | 1.0 MPa
C-Type 3-Way Pneumatic Quick Coupler + PM20 Plug Set | 1.0 MPa
Couldn't load pickup availability
Short Product Description
Short Product Description
Maximize your air compressor's efficiency with thePremium C-Type 3-Way Self-Locking Quick Coupler Set. Designed to split a single air line into multiple outputs, this manifold allows you to run several pneumatic tools simultaneously. Featuring aone-handed push-to-lock mechanism, double-layer leak-proof seals, and a rust-resistant pearl nickel-plated finish, it safely handles up to1.0 MPa (145 PSI). The set includes a standardPM20 male plugfor instant setup. Need help matching your air hoses?Sun Cheong Computer Co. Ltd.has over 20 years of pneumatic and automation expertise. Visit our Sham Shui Po physical store for instant pickup and expert advice!
Key Features
Key Features
- Multi-Tool Efficiency: Splits one air source into multiple outputs, eliminating the need to constantly swap pneumatic tools.
- One-Handed Operation: Self-locking C-type sockets allow for instant, push-to-connect tool changes with a single hand.
- Double-Layer Sealing: Advanced internal dual O-rings ensure a flawless, leak-proof connection up to 1.0 MPa (145 PSI).
- Rust-Resistant Finish: Pearl nickel-plated stainless iron construction withstands moisture and harsh workshop environments.

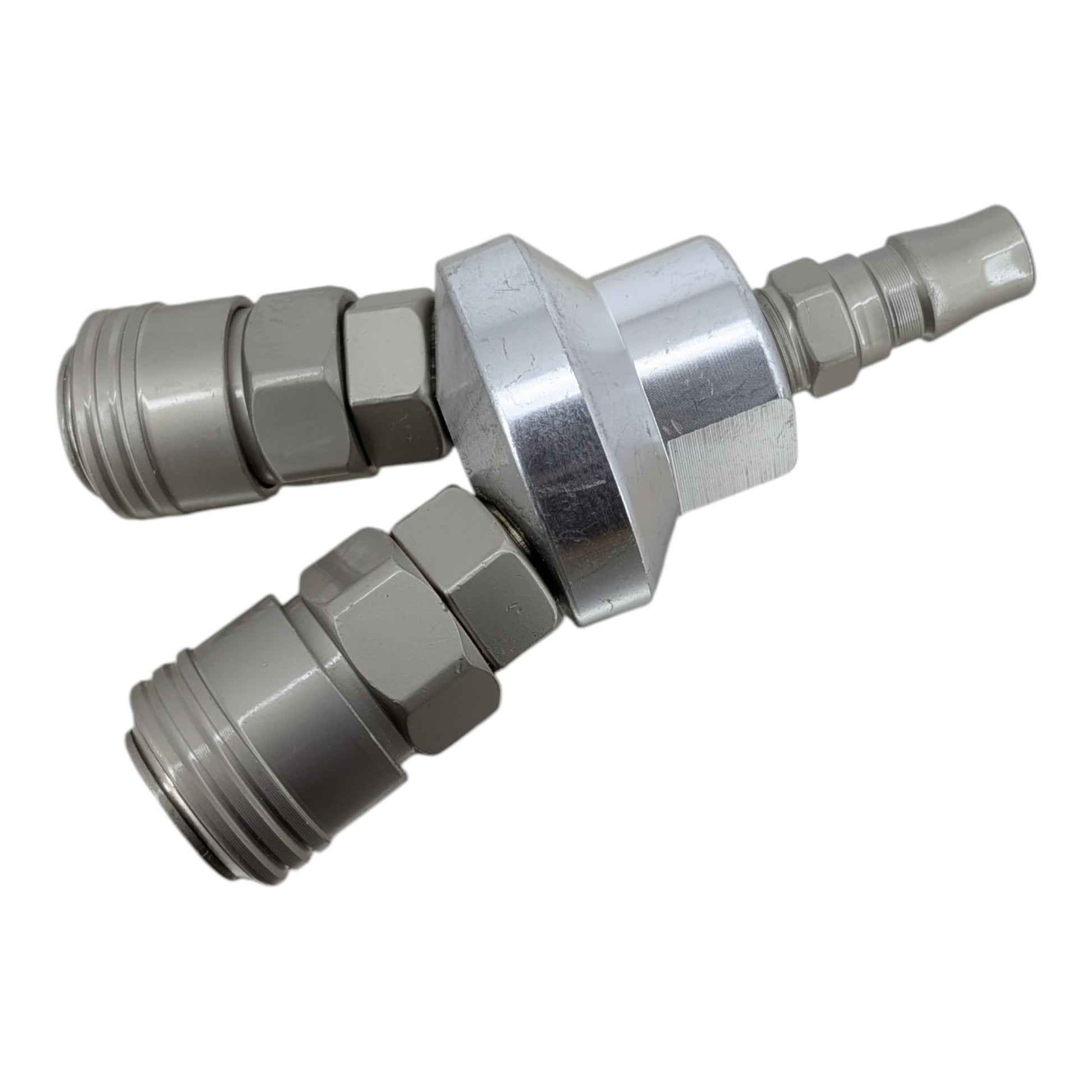

- Complete Set: Includes the multi-way self-locking manifold and a standard PM20 male plug for immediate connection to your air hose.
- Universal Compatibility: Fits standard C-type (Asian/Nitto style) pneumatic quick-release male plugs.
Full Product Description
Full Product Description
Multiply Your Air Compressor's Productivity

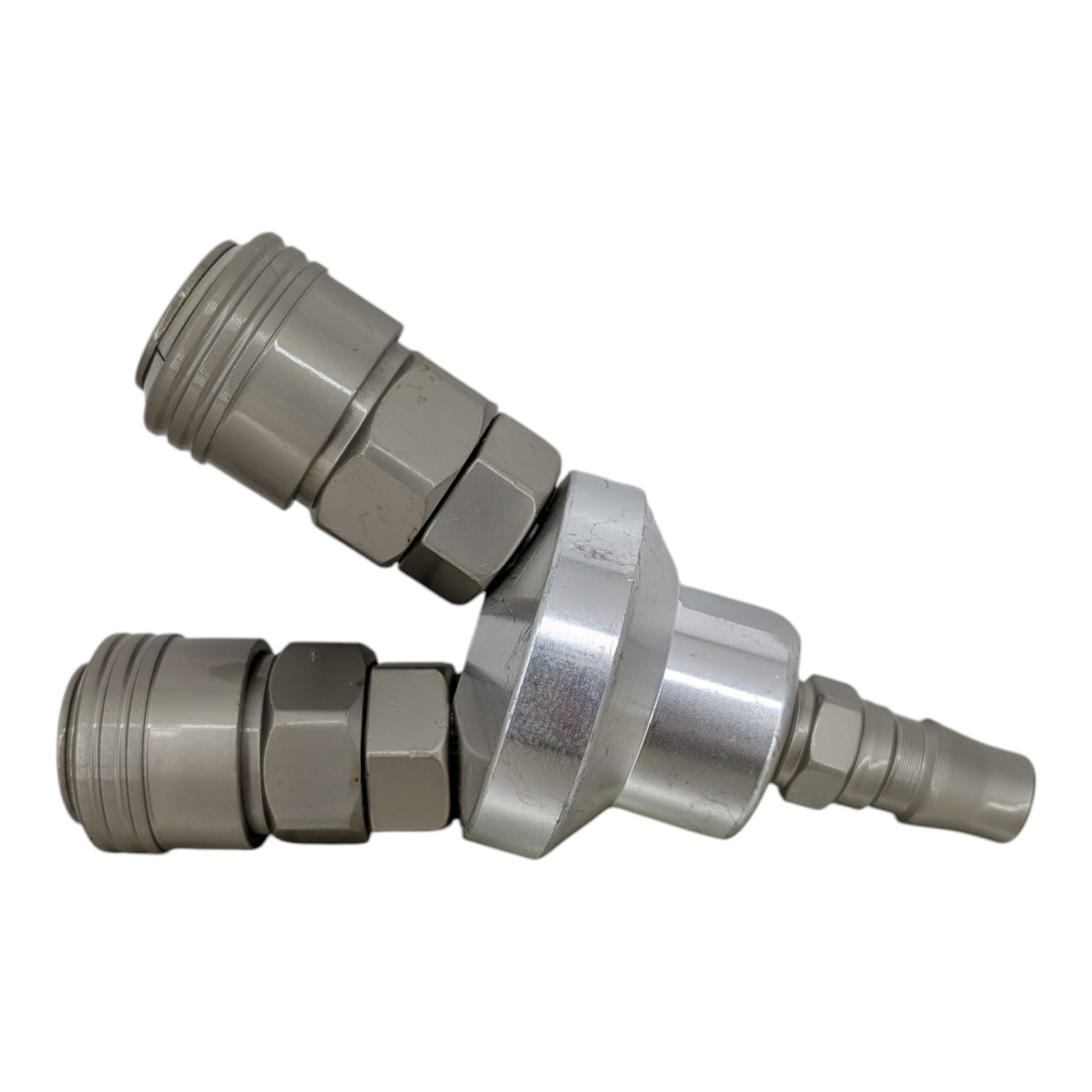

Constantly swapping out air hoses between your nail gun, blow gun, and paint sprayer wastes valuable time. The C-Type 3-Way Pneumatic Quick Coupler solves this by acting as a heavy-duty air manifold. It splits a single air compressor line into multiple quick-release outputs, allowing you to keep all your essential pneumatic tools connected and ready to use simultaneously.
One-Handed Self-Locking Convenience
Say goodbye to stiff, frustrating air fittings. This premium manifold features an advanced C-Type self-locking mechanism. You can easily push your male air hose fittings into the sockets with just one hand—they will instantly click and lock into place securely. To release, simply pull back the outer sleeve. It is designed for high-frequency, rapid tool changes in busy workshops.
Industrial-Grade Durability & Leak-Proof Seal
Air leaks cost you money and reduce tool performance. This coupler is constructed from high-strength stainless iron with a pearl nickel-plated finish, providing exceptional resistance to rust, corrosion, and physical impact. Internally, it utilizes a double-layer sealing ring and a hard plastic core, guaranteeing a 100% airtight connection even under maximum operating pressures of 1.0 MPa (145 PSI).
💡 Pro Tip from Our Technicians

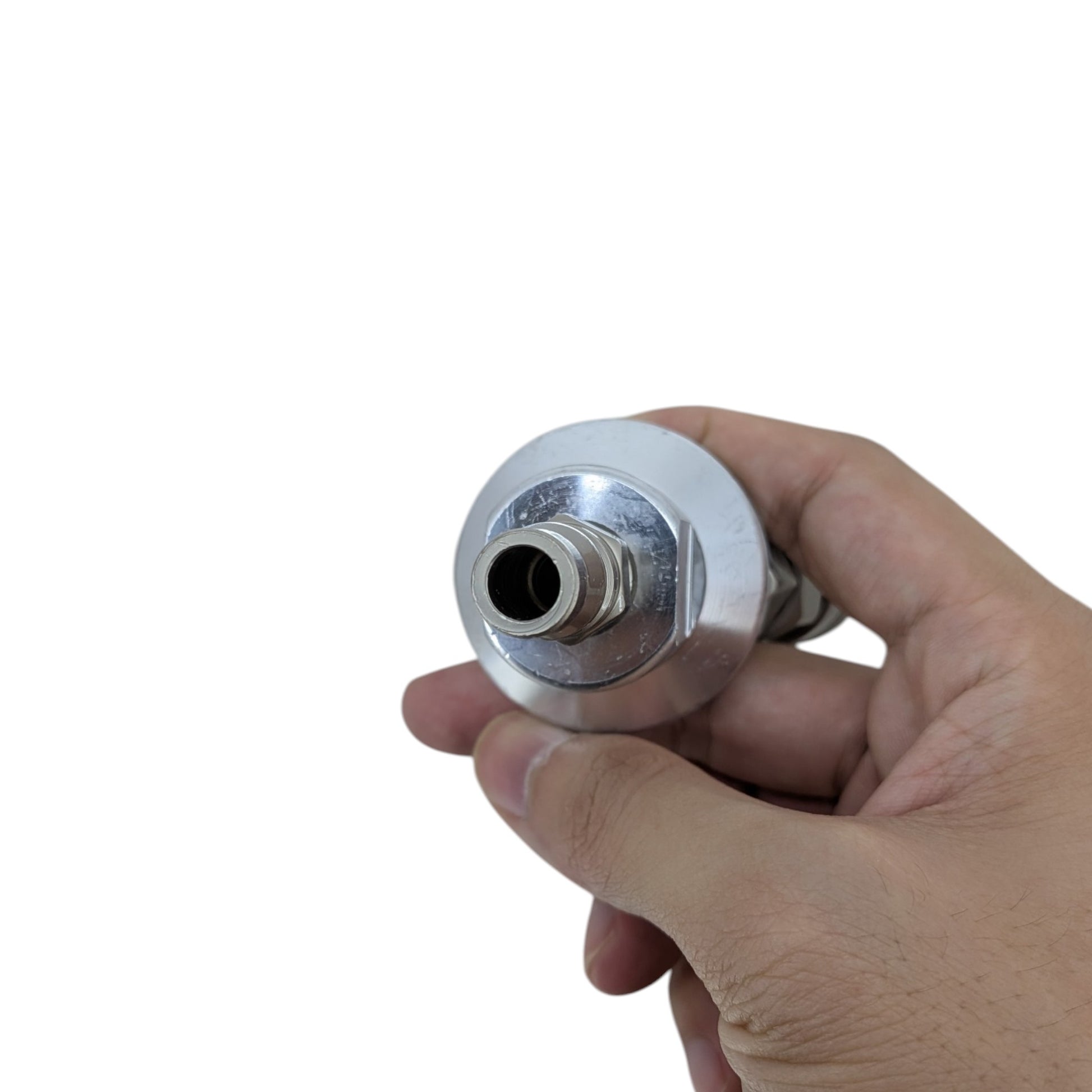

"This set includes a PM20 male plug that screws into the bottom 1/4" (G1/4) thread of the manifold. To ensure a completely leak-free setup, we highly recommend wrapping the PM20 thread with 2 to 3 layers of Teflon tape (plumber's tape) before tightening it with a wrench. If you are building a custom air system and aren't sure which C-type fittings or PU hoses you need, drop by our Sham Shui Po store! Our team at Sun Cheong Computer Co. Ltd. will help you test-fit all your pneumatic components on the spot."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | C-Type Self-Locking Quick Coupler Manifold |
| Included Plug | PM20 Male Plug (1/4" PT Thread) |
| Material | Stainless Iron with Pearl Nickel Plating |
| Internal Core | Hard Plastic with Double-Layer Seal |
| Fluid Type | Compressed Air (AIR) |
| Max Operating Pressure | 1.0 MPa (10 kgf/cm² / ~145 PSI) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Connection Method | One-Handed Push-to-Lock |
| Bottom Inlet Thread | G1/4 (approx. 12.5mm) |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- What type of air hoses and tools will fit into this coupler?This manifold uses standard C-Type (often referred to as Asian or Nitto style) quick-release sockets. It will perfectly fit any standard C-type male plugs (like PP20, SP20, or PH20) attached to your air hoses, blow guns, or pneumatic nailers.

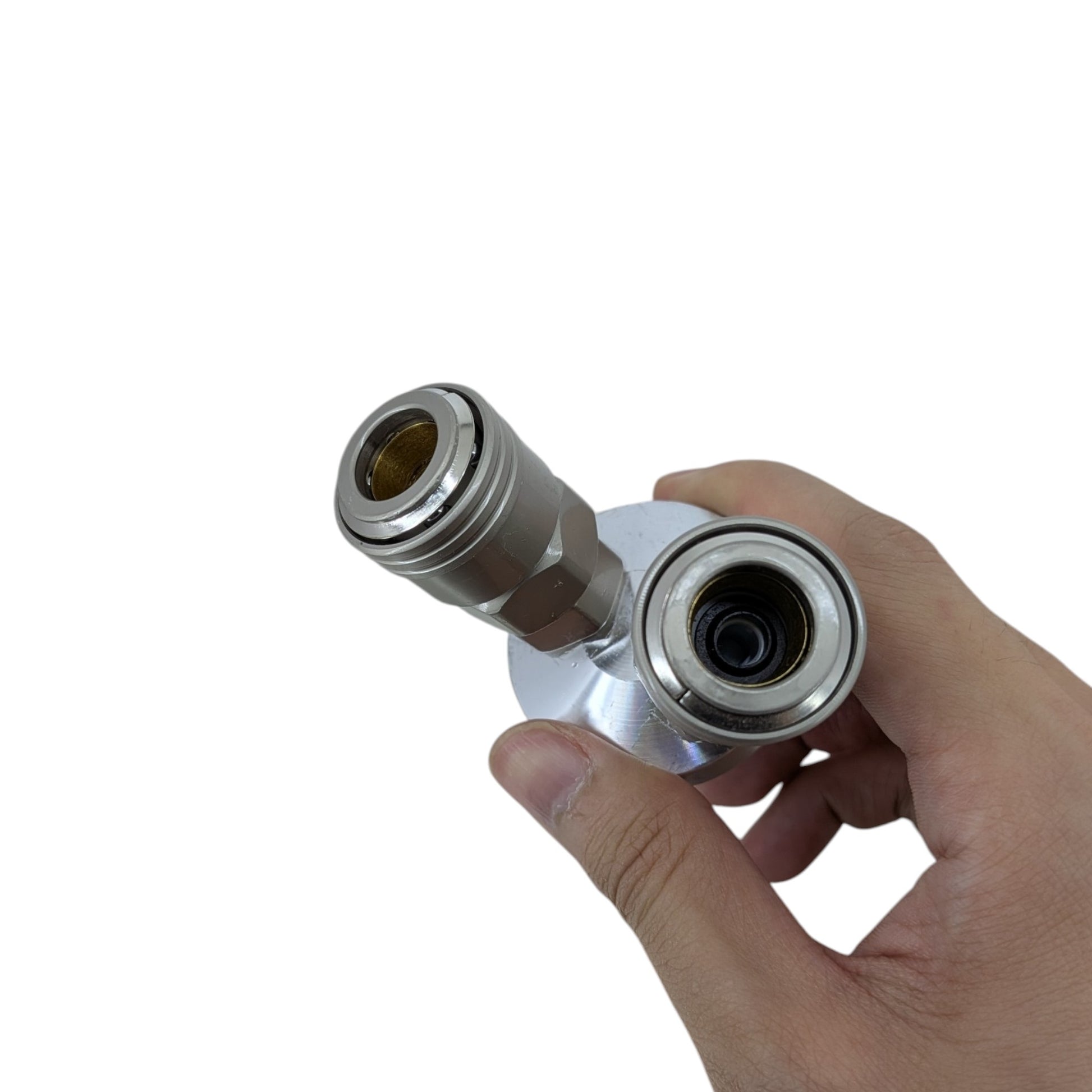

- Does this manifold leak air when only one tool is plugged in?No, it does not. Each socket has an internal self-sealing valve. Air will only flow through a specific socket when a male plug is actively inserted into it. The unused sockets remain completely airtight.
- How do I install the included PM20 plug?The PM20 plug features a 1/4" male thread. Simply wrap the thread with a few layers of Teflon tape, and use a wrench to screw it tightly into the bottom inlet port of the manifold. You can then click the entire manifold into your main air compressor hose.
Target Users / Applications
Target Users / Applications
- Auto Repair Shops: Running impact wrenches, tire inflators, and air blow guns simultaneously from a single compressor drop.
- Carpentry & Woodworking: Keeping brad nailers, finish staplers, and air dusters connected at the same workbench.
- Paint & Body Shops: Splitting air lines for spray guns and dual-action sanders.
- DIY Garage Builders: Upgrading home air compressor setups for better cable management and multi-tool efficiency.
