5A Boost Converter with LCD | DC 9V-45V to 11V-50V Step-Up Module

5A Boost Converter with LCD | DC 9V-45V to 11V-50V Step-Up Module

Regular price HK$79.00
Regular price Sale price HK$79.00
Sale Sold out
Shipping calculated at checkout.
Quantity

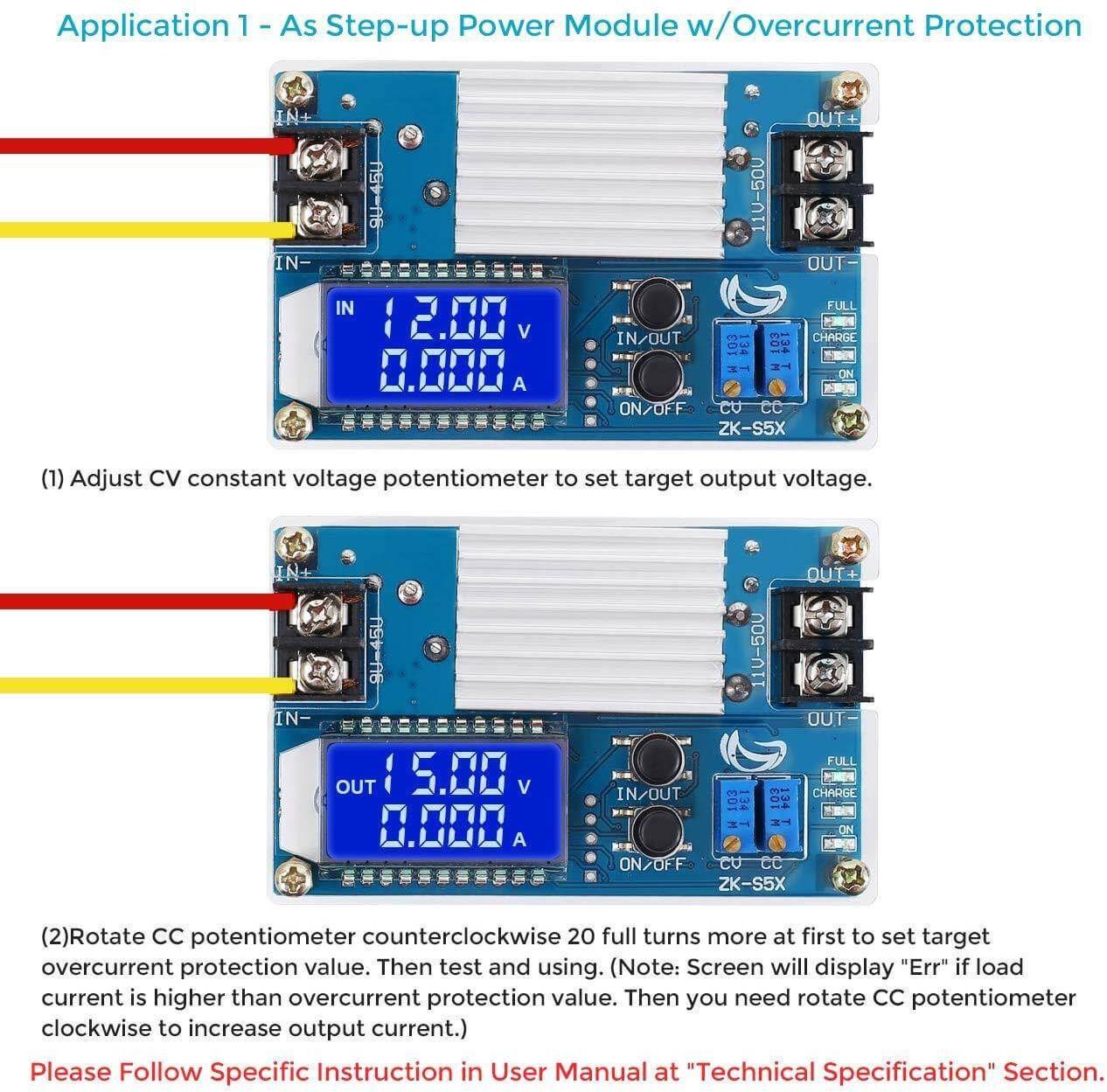

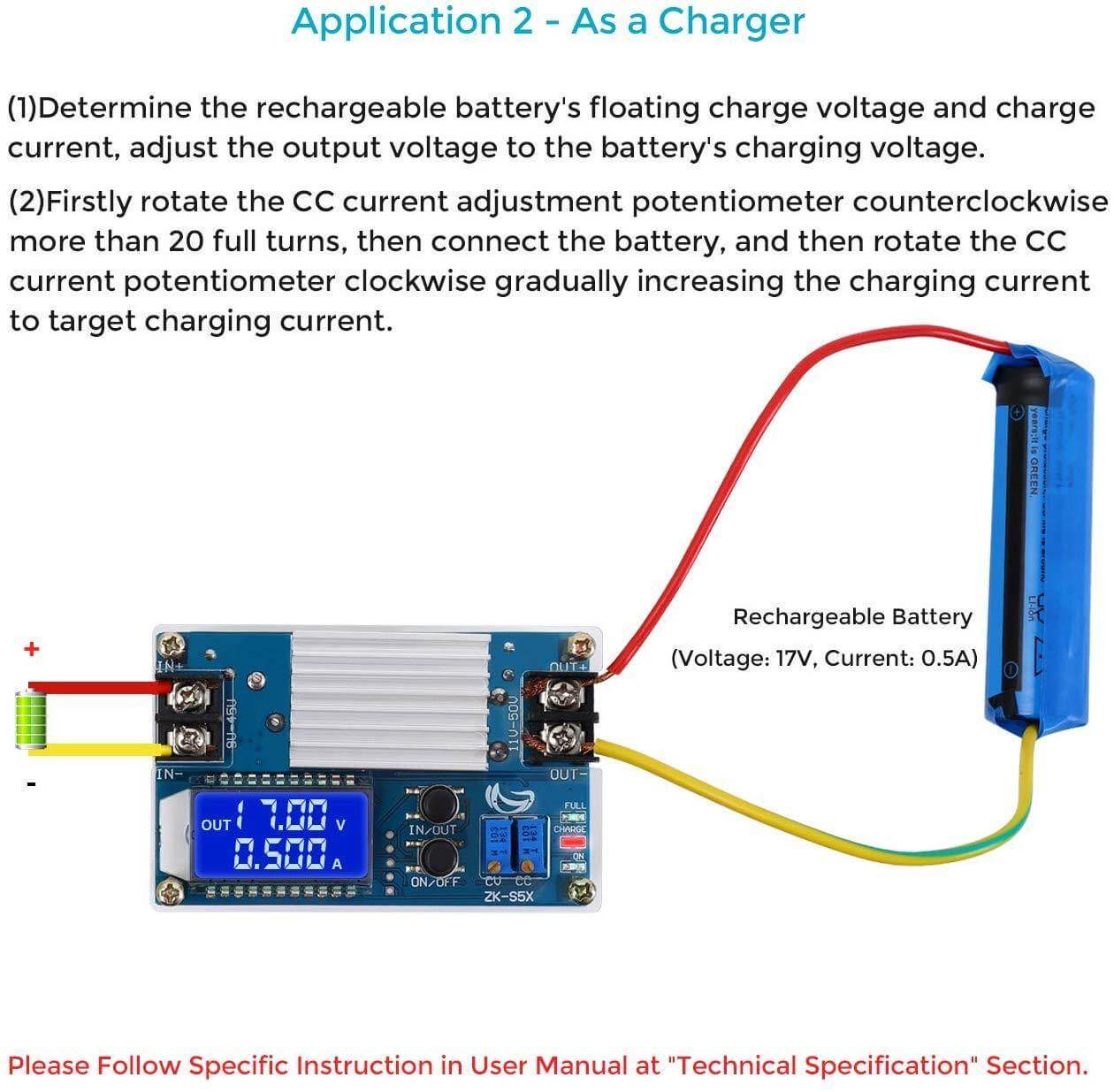

This product is a versatile Boost Converter with an LCD display (model ZK-S5X), suitable for various electronic applications, including use as a Step-up Power Module or a battery charger. It features adjustable voltage and current, overcurrent protection, and a built-in display for monitoring input/output voltage and current.

Key Features:

  • Boost Functionality: Capable of stepping up input voltage from DC 9V-45V to DC 11V-50V.

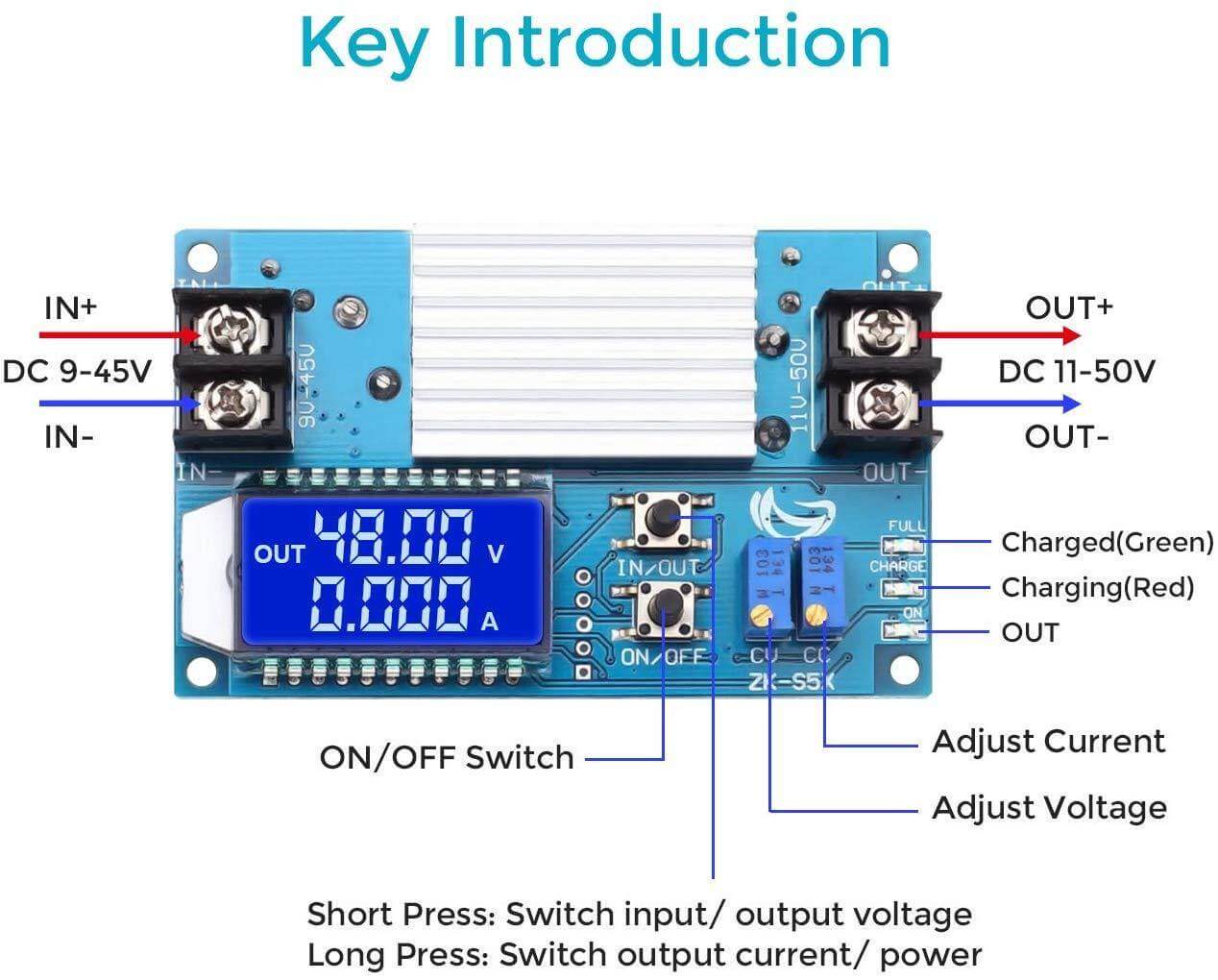

  • Adjustable Output: Features CV (Constant Voltage) and CC (Constant Current) potentiometers for precise adjustment of voltage and current.
  • High Efficiency: Approximately 96% conversion efficiency.
  • Safety Features: Includes short protection, anti-reverse protection, and anti-back-flow protection.

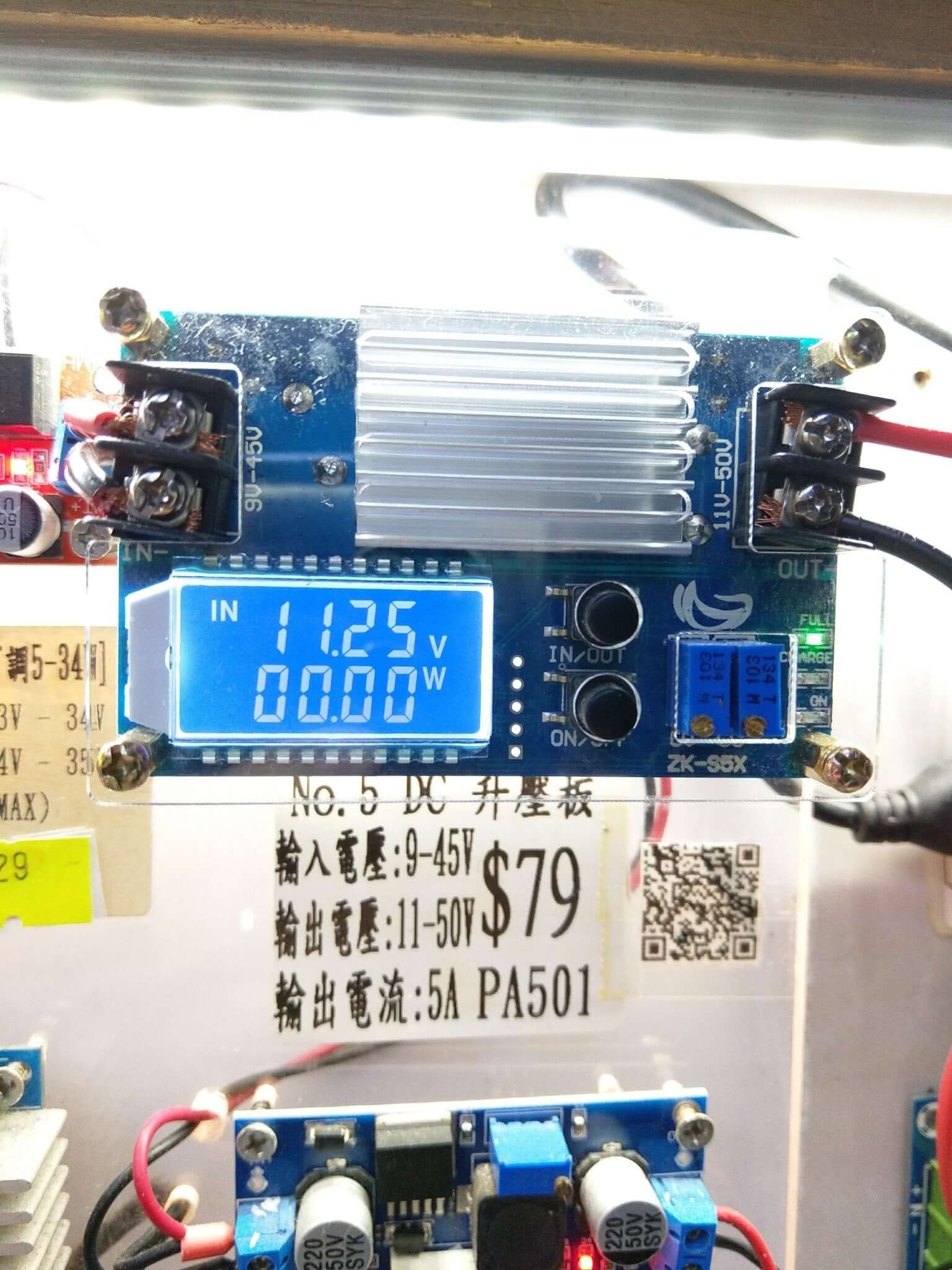

  • LCD Display: Provides clear readouts of voltage (0-50V range, resolution 0.05V) and current (0-5A range, resolution 0.005A).

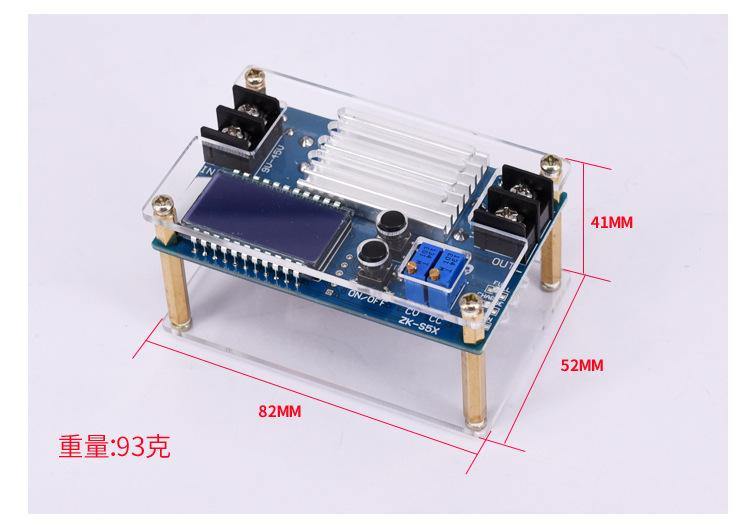

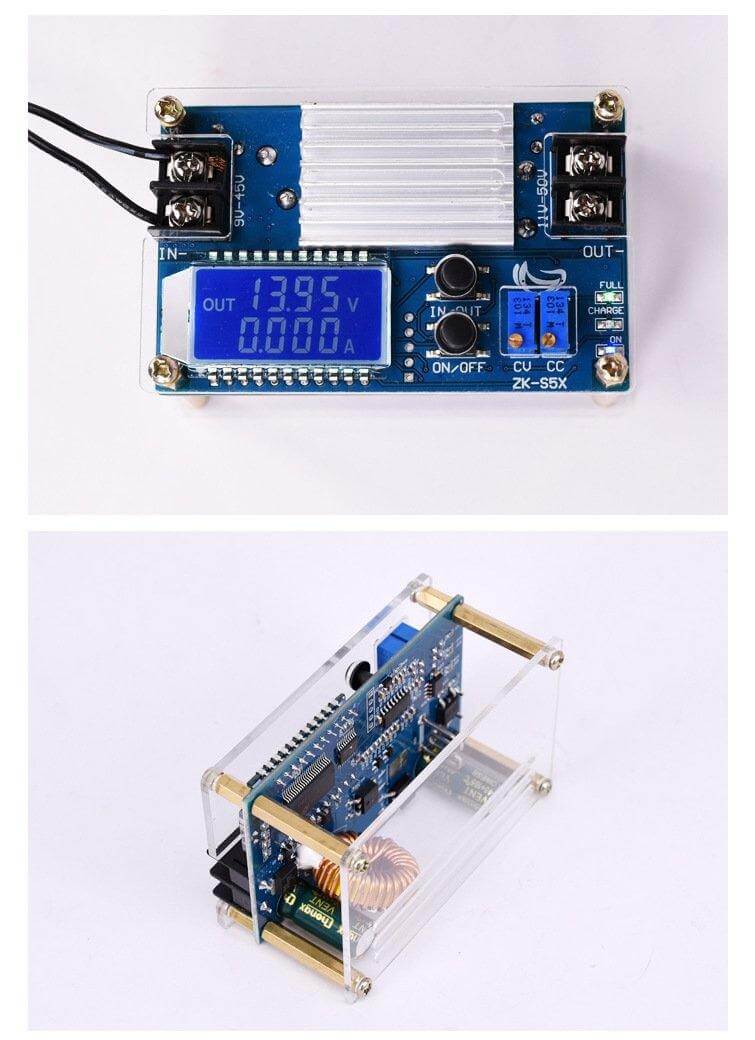

  • Durable Design: Comes with a shell for protection.

Technical Specifications:

  • Input Voltage: DC 9V-45V
  • Output Voltage: DC 11V-50V
  • Output Current: Maximum 5A (Output disabled if more than 5A)
  • Output Power: 90W (Natural heat dissipation)
  • Working Current: Approx. 30mA
  • Working Temperature: -20℃ to 85℃
