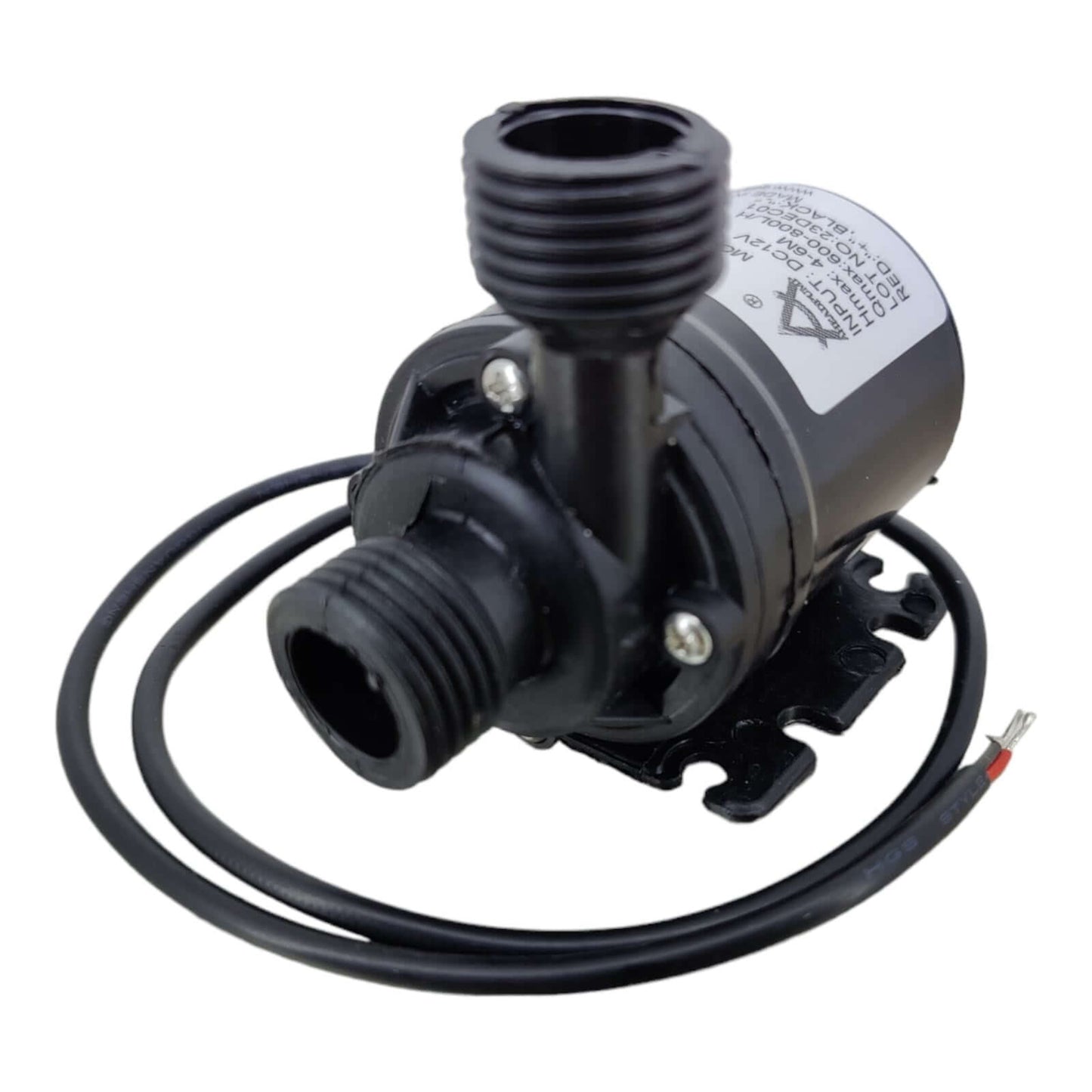

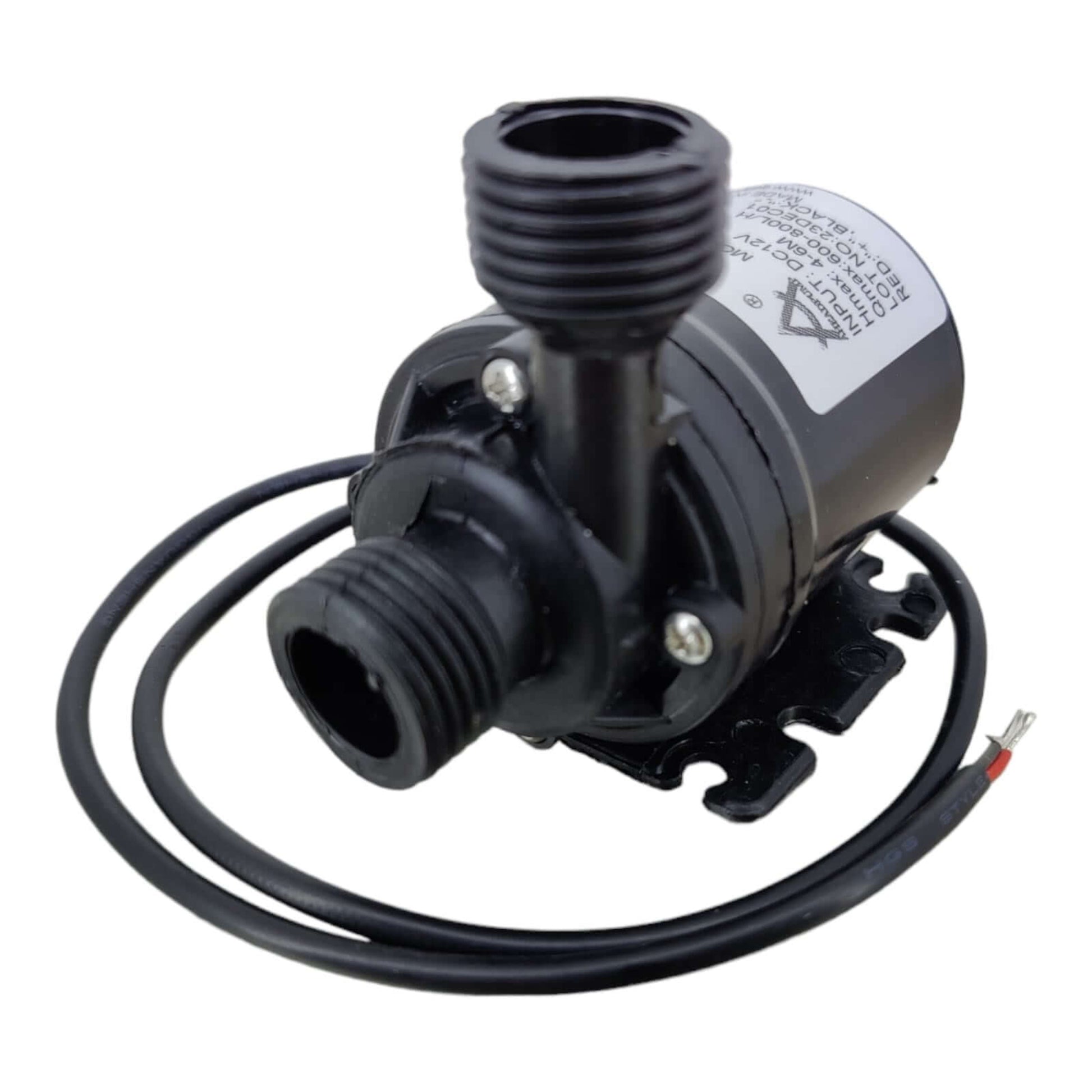

• Front view of 12V AW500S water pump with G1/2 (4分外牙) inlet/outlet thread for circulation.

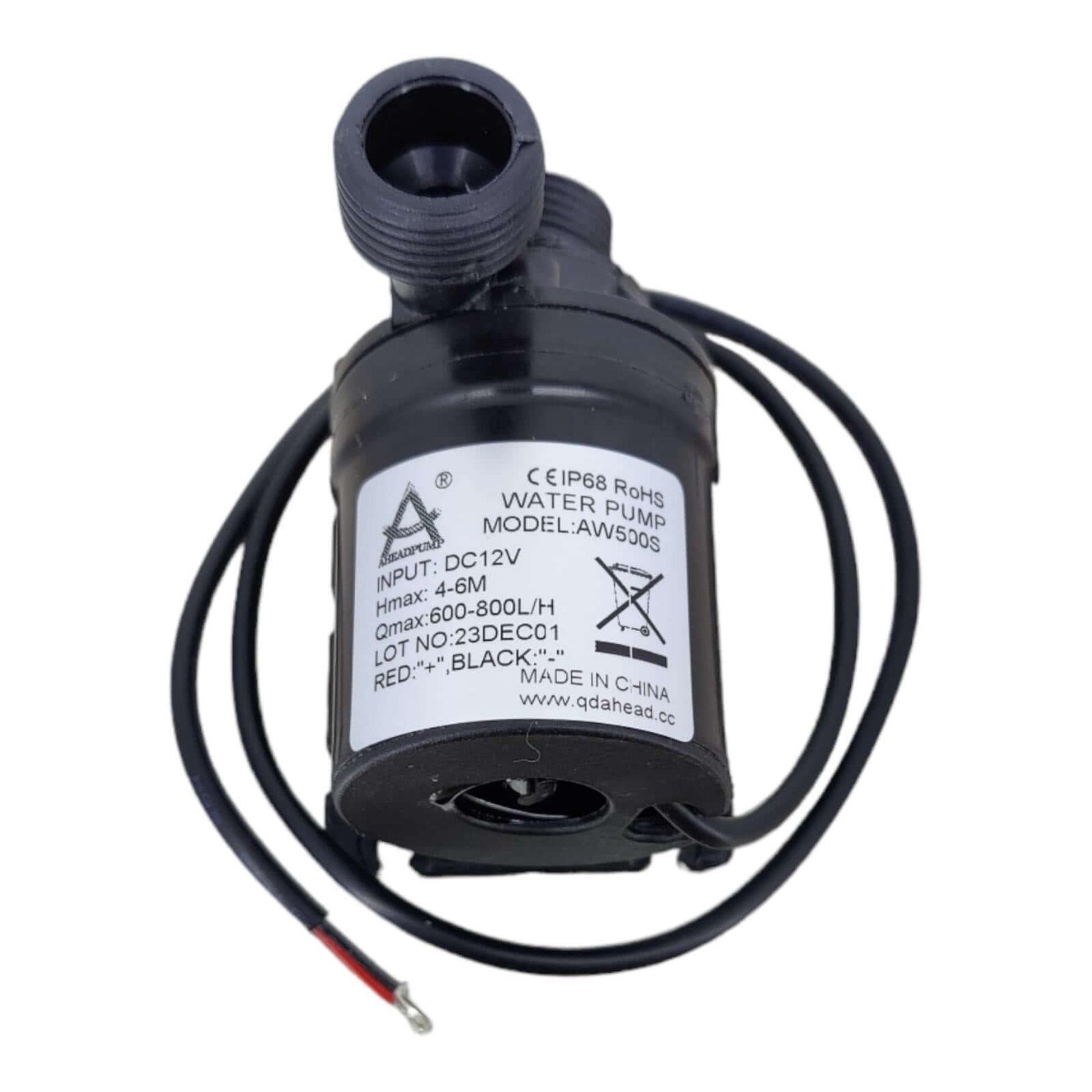

  • Focuses on the product label/specs, which is a key informational image.

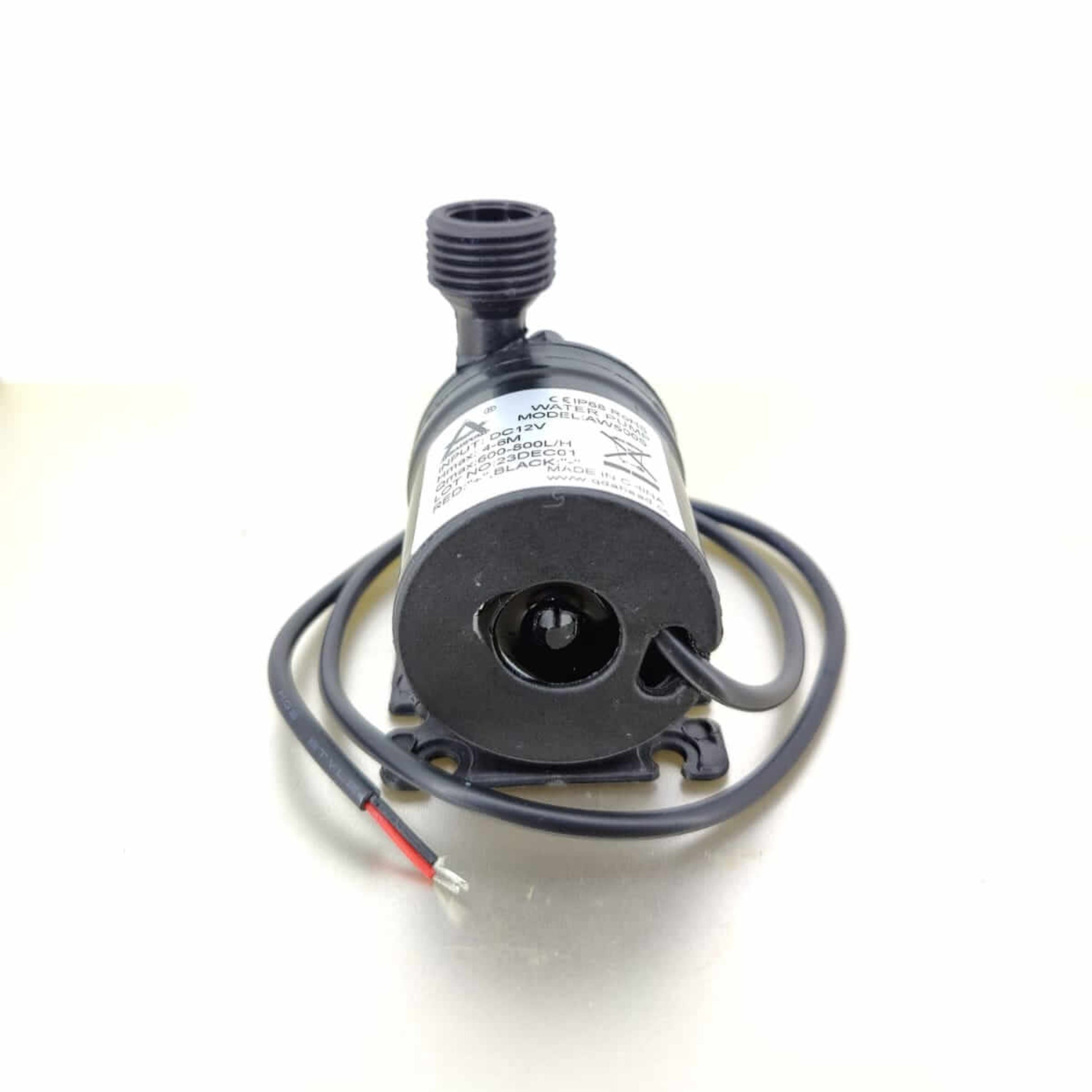

  • Micro DC brushless submersible pump AW500S, ideal for fish ponds, water features, and gardens.

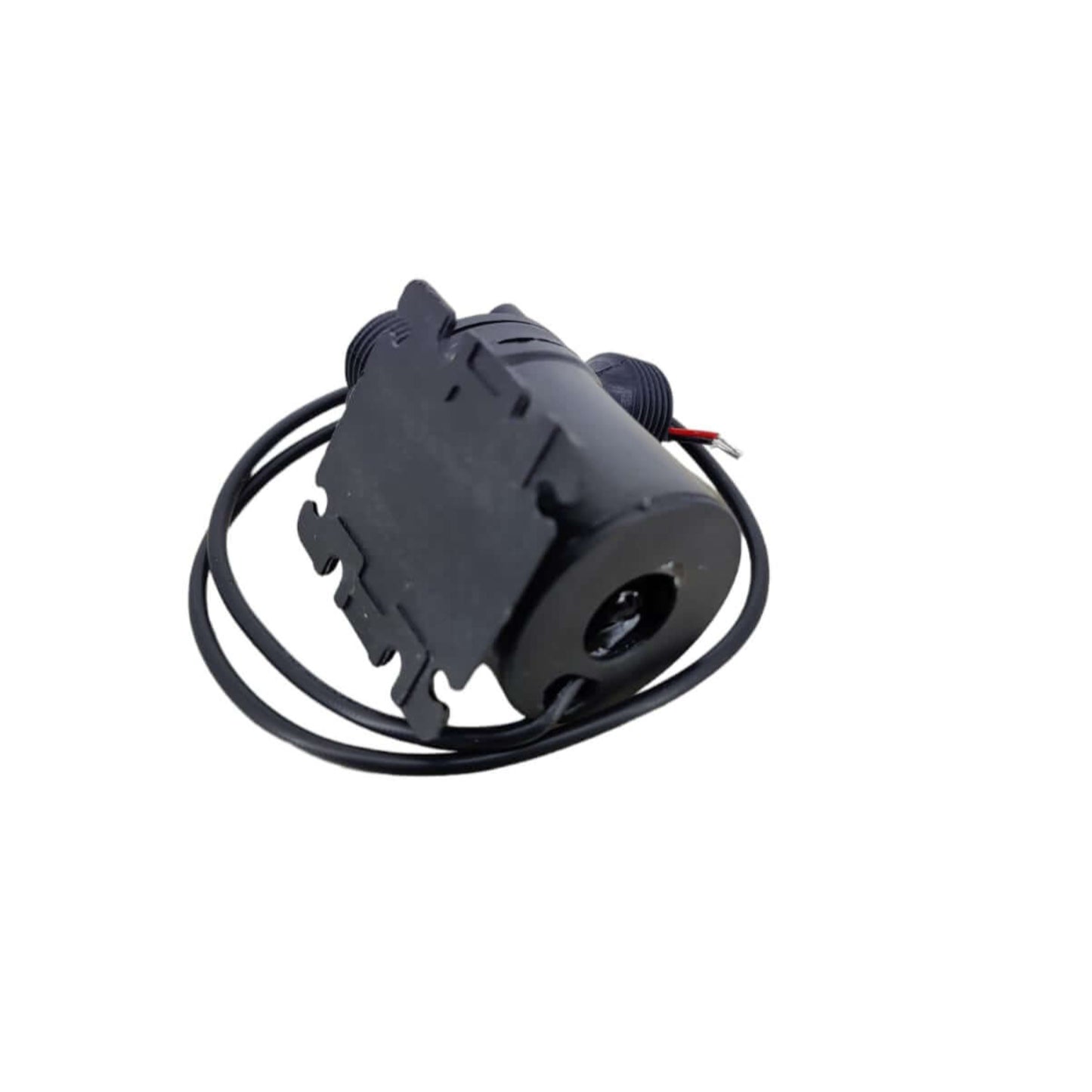

  • Side view of AW500S 12V solar water pump for outdoor fish pond, water circulation, and landscaping.

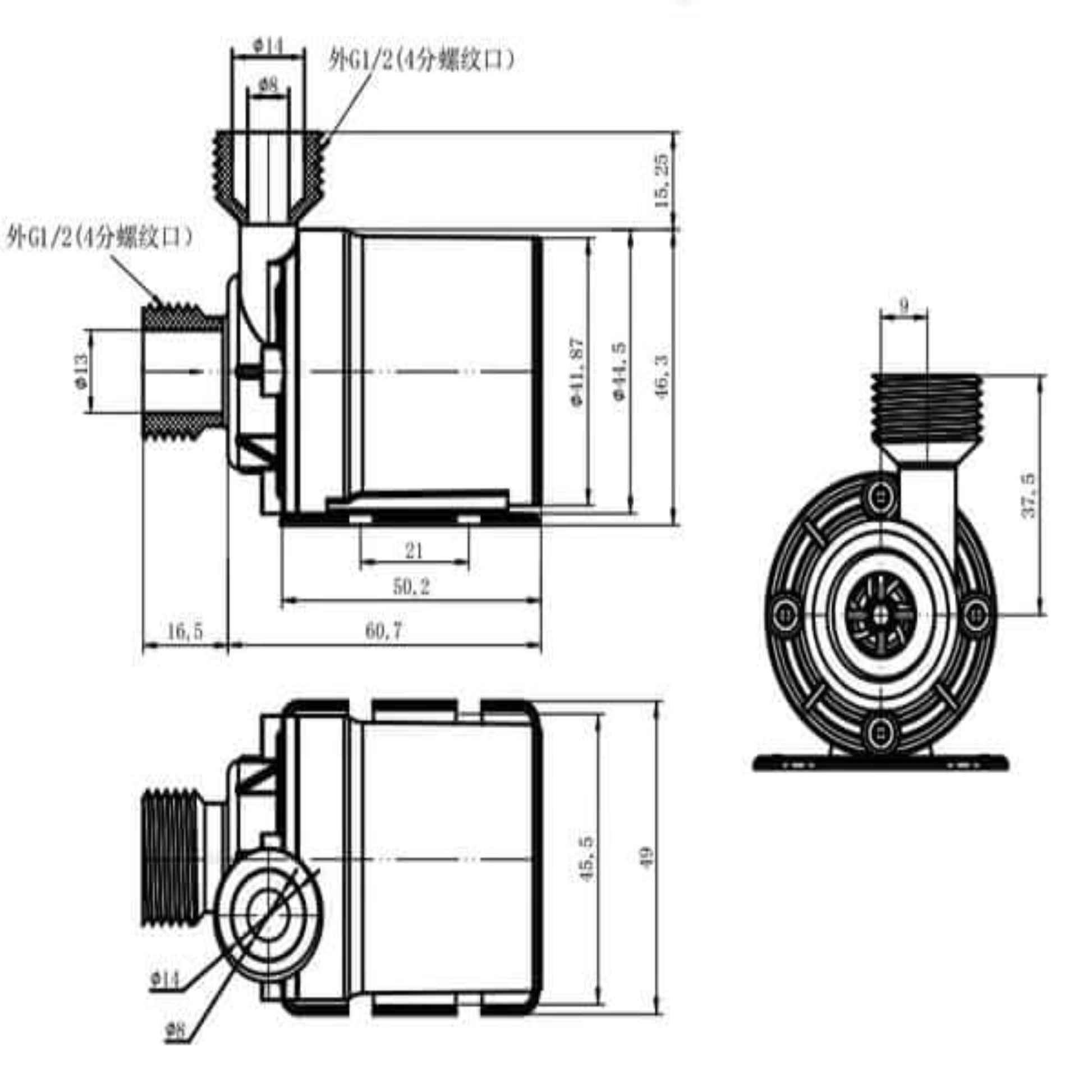

  • Technical dimensional drawing for the 12V mini DC brushless water pump, Model AW500S.
1 5
sales

AW500S 12V Brushless Submersible Pump 19W | 800L/h, 6m Lift

AW500S 12V Brushless Submersible Pump 19W | 800L/h, 6m Lift

HK$99.00
HK$99.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Silent & Energy‑Efficient | AW500S 12V DC Brushless Submersible Circulation Pump (19W)
The AW500S 12V brushless water pump is a reliable, ultra‑quiet (35dB) and energy‑saving solution for off‑grid, solar‑powered, or outdoor water circulation systems. With its durable brushless motor and a maximum head of 6 meters, it delivers consistent flow (600–800 L/h) while consuming minimal power at just 19W. Ideal for ponds, fountains, aquariums, and irrigation setups.

Applications

  • Solar‑Powered Water Supply: Easily integrates with small off‑grid systems (works with a 30W solar panel and controller) for fully independent water pumping.
  • Outdoor Ponds & Water Features: Maintains strong circulation (800 L/h flow, 6m head) for waterfalls, fountains, or fish ponds.
  • Off‑Grid Water Transfer: Suitable for garden irrigation, livestock troughs, water tank transfer, or emergency drainage.
  • Indoor Silent Operation: Whisper‑quiet at 35dB, perfect for aquariums or noise‑sensitive environments.

Technical Specifications

  • Model: AW500S
  • Working Voltage: 12V DC
  • Rated Power: 19W
  • Max Flow Rate: 10–13 L/min (600–800 L/h)
  • Max Head: 4–6 m
  • Motor Type: Brushless DC Motor
  • Noise Level: ≤35dB
  • Max Liquid Temperature: 60°C
  • Type: Submersible, Closed Impeller, G1/2 (½ inch) Male Thread
  • Dimensions / Weight: 80×77×49 mm / Approx. 212 g
