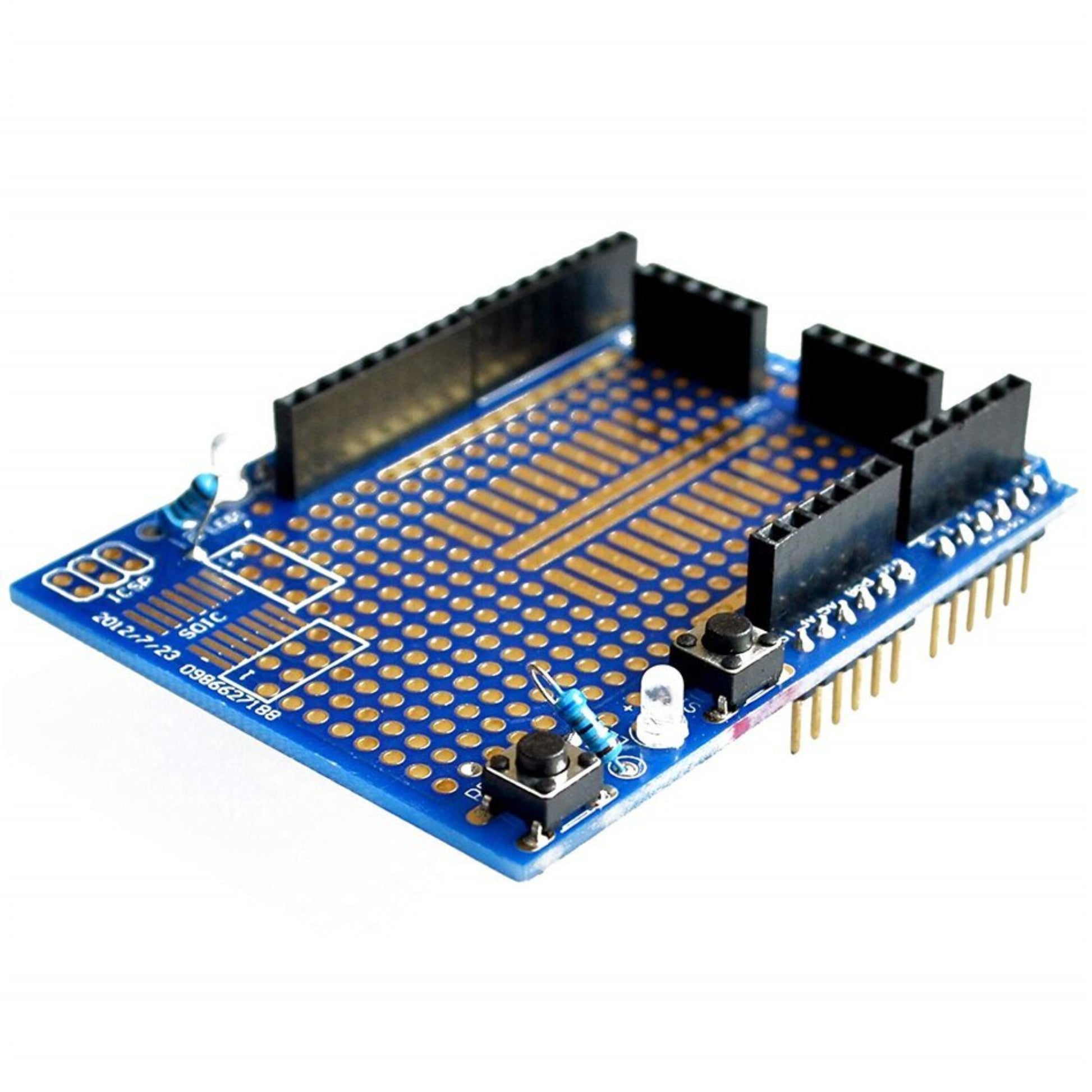

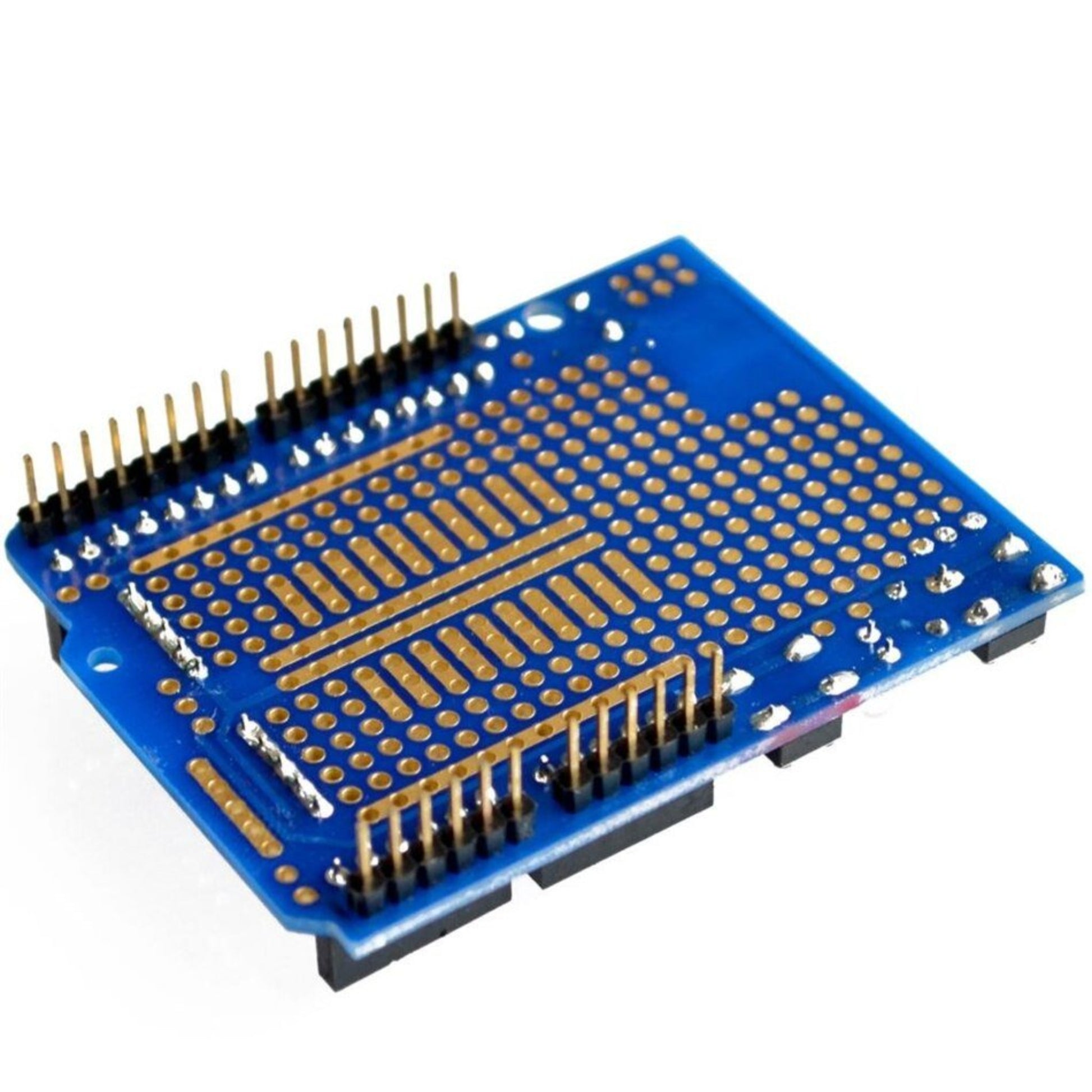

Arduino UNO R3 Prototype Shield with Mini Breadboard

Arduino UNO R3 Prototype Shield with Mini Breadboard

Regular price HK$15.00
Regular price Sale price HK$15.00
Sale Sold out
Shipping calculated at checkout.
Quantity

Overview:

Unlock new possibilities for your Arduino UNO R3 projects with this versatile Prototype Expansion Board (SYB-170). Designed to seamlessly integrate with your ATMEGA328P-based Arduino, this shield provides a convenient platform for building and testing circuits without the need for extensive soldering. It's perfect for hobbyists, educators, and professional developers looking to rapidly prototype their ideas.

Key Features:

  • Effortless Prototyping: Comes with a compact SYB-170 mini solderless breadboard (170 tie points) that easily adheres to the shield, allowing for quick and flexible circuit assembly.
  • Accessible Pin Layout: All Arduino UNO R3 pins are conveniently brought to the top level of the shield, making connections intuitive and straightforward.
  • Integrated Controls: Features a dedicated reset button, a general-purpose button, and two LED circuits that can be used directly for simple feedback and interaction.
  • Essential Power Access: 5V, GND, and Raw power pins are exposed for easy power supply and ground connections to your external components.
  • Dedicated IC Area: Includes a SOIC (Small Outline Integrated Circuit) place for soldering in surface-mount ICs, expanding your prototyping capabilities.
  • Compact & Durable: Designed for practicality, with a prototype size of 7cm x 5.5cm x 2cm, ensuring it fits neatly into your project setup.

Package Includes:

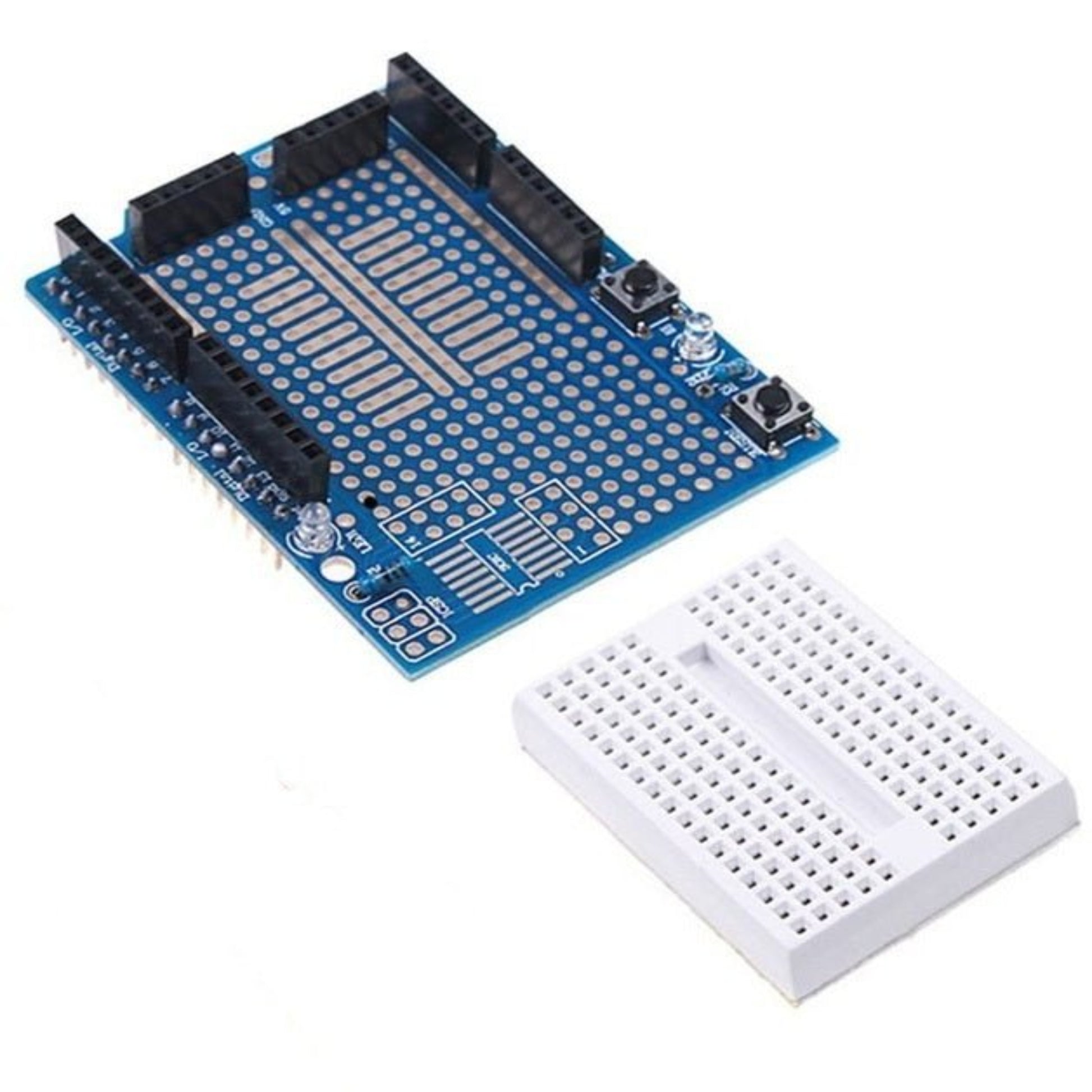

  • 1 x Arduino UNO R3 Prototype Shield
  • 1 x SYB-170 Mini Solderless Breadboard

Ideal For:

  • Rapid Prototyping
  • Educational Projects
  • Experimenting with New Circuits
  • Developing Custom Shields
