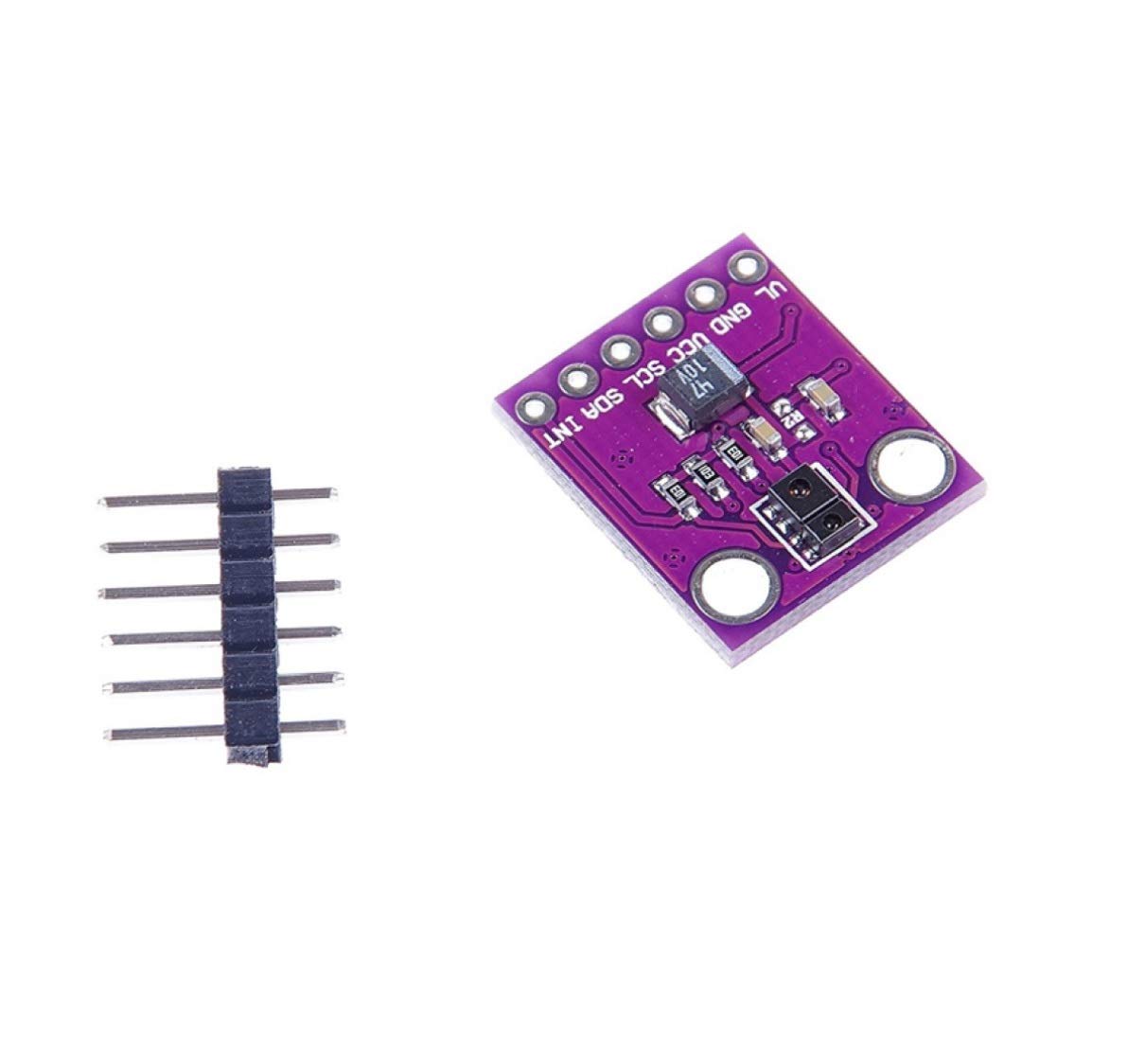

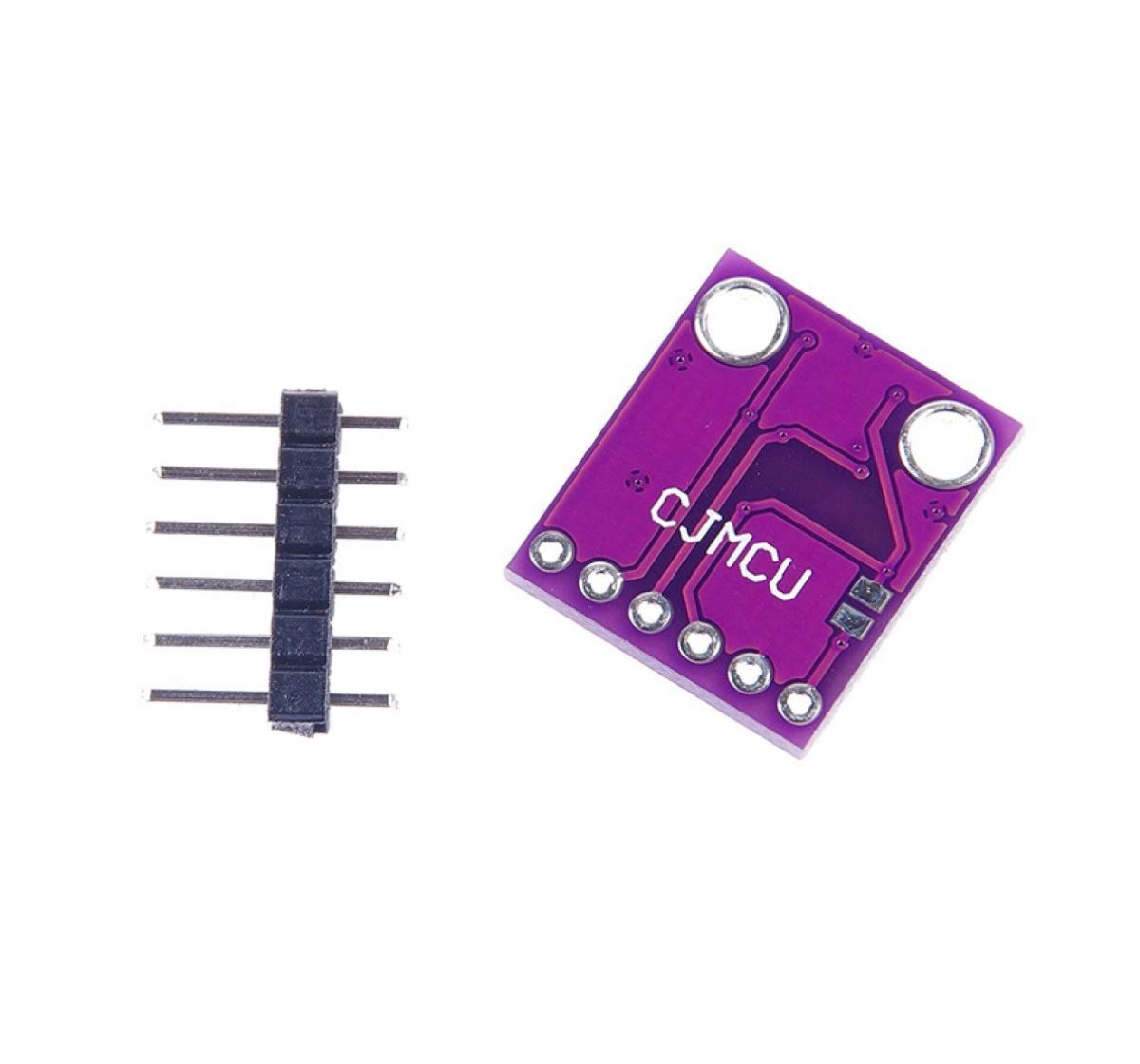

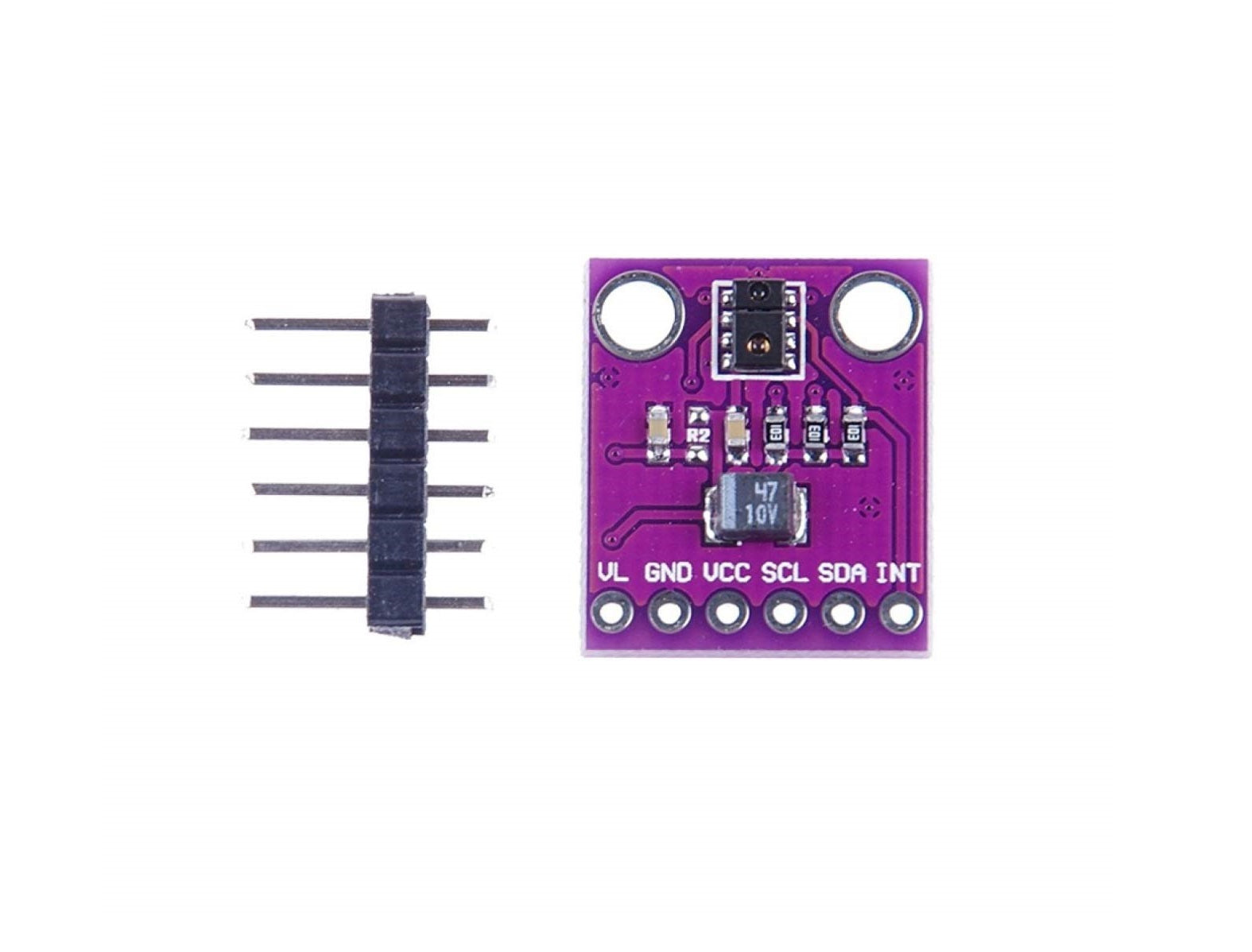

APDS-9930 Digital Proximity, Ambient Light & Gesture Sensor Module

The APDS-9930 is an all-in-one digital ambient light, proximity, and gesture sensor module, perfect for Arduino and other DIY electronics projects. Its plug-and-play design offers reliable detection up to 100mm, eliminating the need for complex factory calibration. Build interactive projects that respond to light, motion, and touchless control.

Key Features:

• Integrated Sensing: Combines digital ambient light sensing (ALS), IR LED, and proximity detection in one compact module.
• Plug-and-Play Proximity: Offers reliable detection up to 100mm, with no factory calibration required.
• Versatile Performance: Works reliably in various lighting conditions, from bright sunlight to dark rooms.
• High Sensitivity: Operates effectively behind darkened glass, making it ideal for mobile phone-style applications.
• Wide Dynamic Range: Enables short-distance detection behind materials like dark glass.
• Programmable Interrupts: Customize upper and lower threshold settings for a wide range of applications.
• Approximates Human Eye Response: The ambient light sensor provides a more natural light measurement.

Product Details & Specifications

• Operating Voltage: 2.8V - 3.8V
• Resolution: Up to 16-bit
• Included Components: ALS, IR LED, and Proximity Detector integrated into a single optical module.
• Applications: Ideal for gesture control, object detection, interactive displays, and smart home projects with Arduino, Raspberry Pi, and more.
