1080P 5-in-1 AHD/TVI/CVI/CVBS to HDMI/VGA/BNC Converter for CCTV

Elevate your CCTV surveillance system with our versatile TVI/AHD/CVI to HDMI/VGA/BNC Converter (Model M-AHD2.0). This powerful device seamlessly transforms various high-definition analog signals (AHD, TVI, CVI) and traditional analog (CVBS) into universal digital and analog outputs (HDMI, VGA, BNC). Whether you're upgrading an existing setup or integrating new cameras, this converter provides a flexible and cost-effective solution for displaying your security footage on modern monitors and displays.

Key Features:

• Universal Compatibility: Converts AHD, TVI, CVI, and CVBS signals, supporting resolutions up to 1080P/720P.
• Multiple Output Options: Provides simultaneous HDMI, VGA, and CVBS (BNC) outputs for maximum flexibility.
• High-Definition HDMI Output: Enjoy crystal-clear images with HDMI output resolutions of 720P@50/60Hz and 1080P@50/60Hz.
• Wide VGA Input Support: Compatible with common VGA formats including 800X600, 1024X768, 1280X1024, 1360X768, 1680X1050, and 1920X1080@50/60Hz.
• Automatic Signal Detection: Automatically detects NTSC/PAL video formats for hassle-free setup.

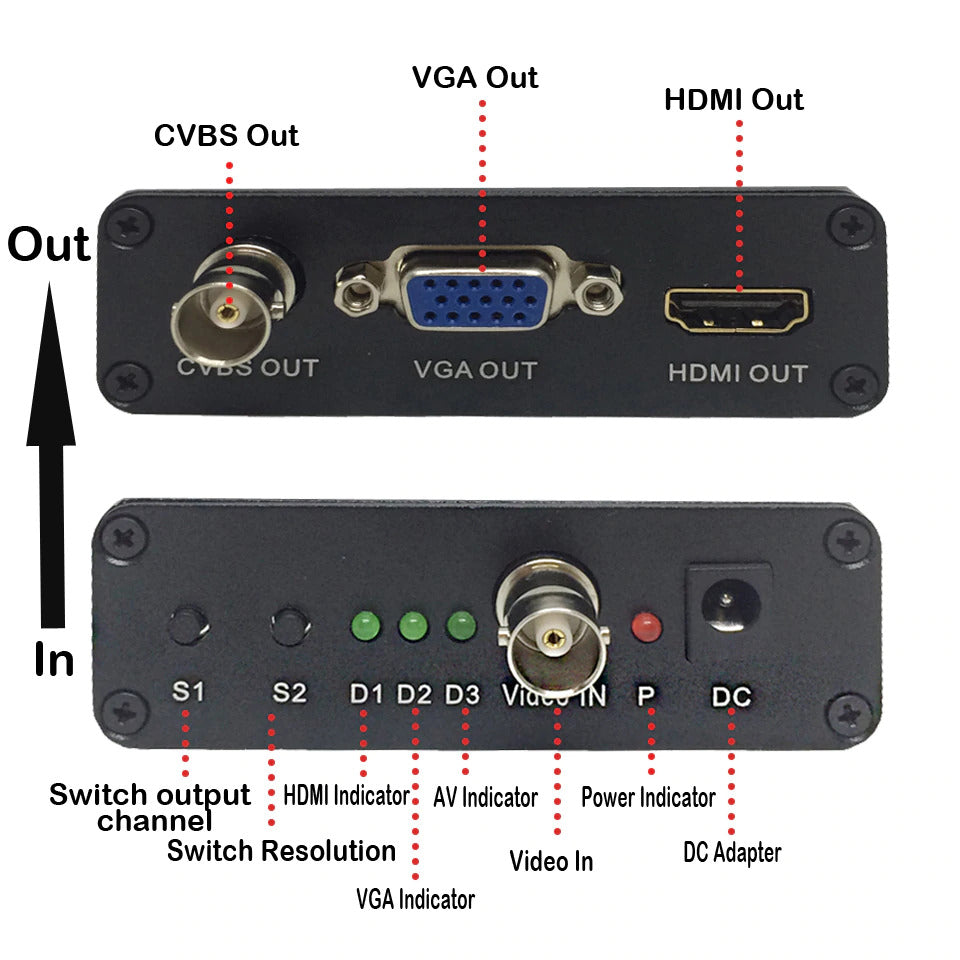

• Flexible Output Switching: Easily switch between HDMI, VGA, and BNC outputs using the intuitive control buttons.
• Resolution Adjustment: Adjust HDMI output resolution between 1080P and 720P with a simple button press.
• Robust & Reliable: Built with a wide power design (5V-20V) for stable operation in various environments.
• HDCP & HDMI 1.4 Compliant: Ensures compatibility with a broad range of display devices.

Simplify Your Surveillance Setup:

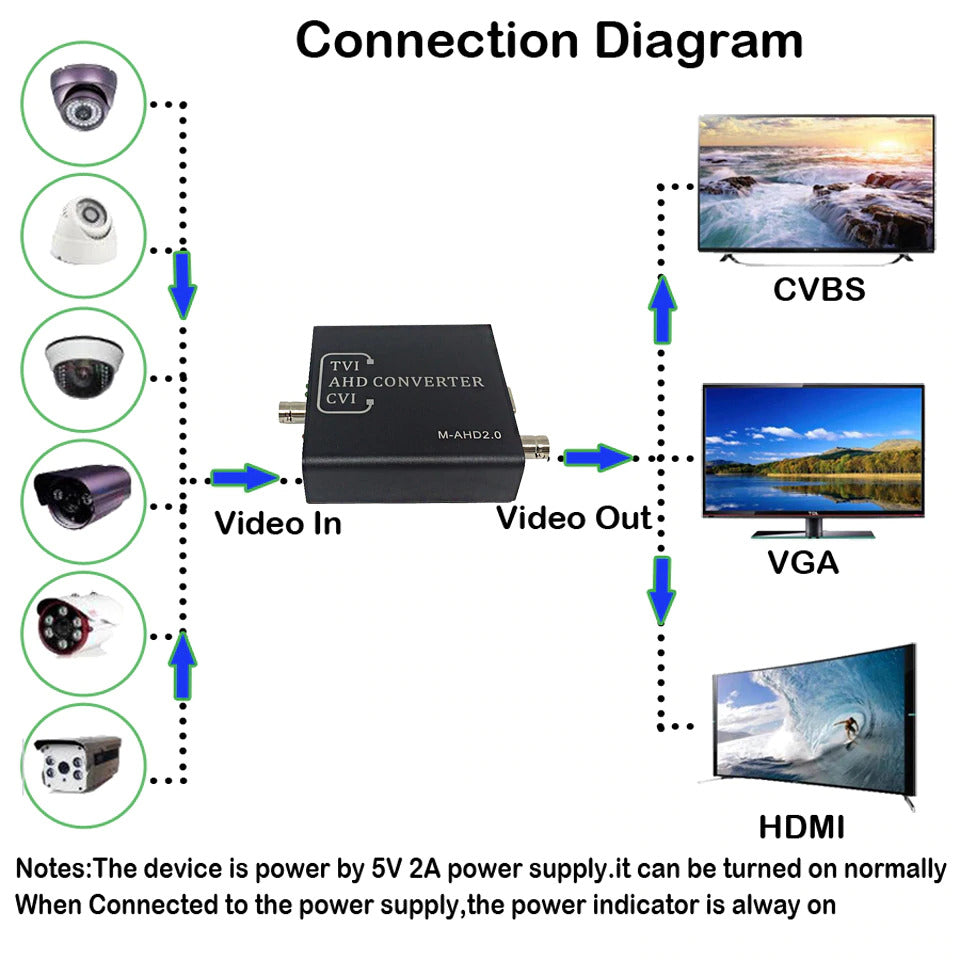

This 1-in-3-out video signal converter is designed for ease of use. Simply connect your TVI, AHD, CVI, or CVBS camera to the "Video In" port, and then connect your display(s) to the HDMI, VGA, or CVBS (BNC) "Out" ports. The converter will automatically recognize the input signal. Use the dedicated buttons to select your desired output channel and resolution, providing an immediate and clear view of your surveillance footage.

Ideal For:

• Upgrading analog CCTV systems to digital displays
• Connecting AHD/TVI/CVI cameras to HDMI/VGA monitors
• Security professionals and DIY enthusiasts
• Retail, office, and home surveillance
• Video testers and troubleshooting

Product Specifications:

• Model: M-AHD2.0
• Input Signals: AHD, TVI, CVI, CVBS
• Output Signals: HDMI, VGA, CVBS (BNC)
• HDMI Output Resolutions: 720P@50/60Hz, 1080P@50/60Hz
• Supported Input Resolutions: 5MP, 2MP, 720P, 1080P (AHD/TVI/CVI)
• Video System: NTSC / PAL (Auto Detection)
• Power Supply: DC 5V 2A (Included)

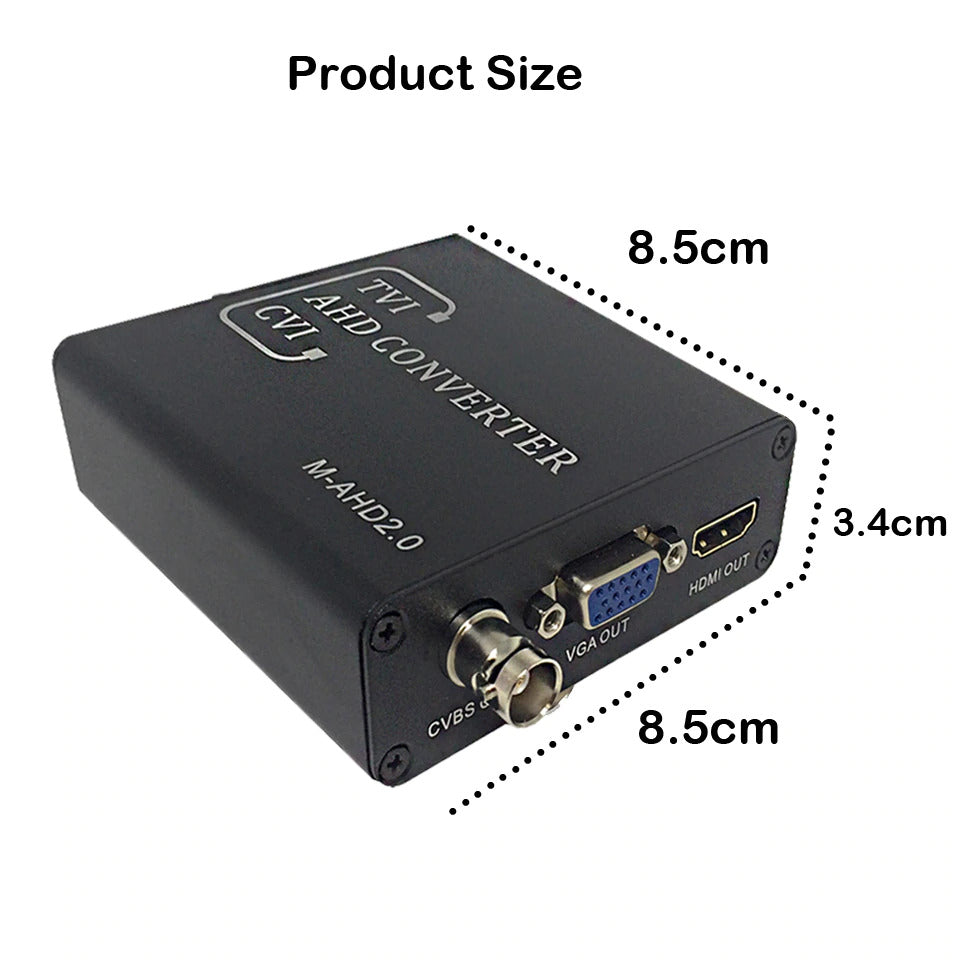

• Dimensions: 8.5cm x 8.5cm x 3.4cm (approx.)

What's Included:

• 1 x TVI/AHD/CVI Converter
• 1 x 5V Power Adapter
• 1 x User Manual (English)
