Active & Passive Buzzer Modules for Arduino DIY Kits | 3.3V-5V

Add dynamic audio feedback to your electronic creations with our versatile Active and Passive Buzzer Modules for Arduino and other microcontrollers! Whether you need simple beeps for alarms or precise tone generation for melodies, this product listing offers both types of buzzer modules to perfectly suit your project needs. Each module is designed for easy integration and reliable performance in your DIY kits.

Key Features Common to Both Modules:

• Wide Voltage Compatibility: Both modules operate seamlessly with 3.3V-5V systems, directly compatible with most microcontrollers (e.g., Arduino Uno, ESP32, Raspberry Pi Pico).
• Easy Integration: Simple 3-wire interface for straightforward connection to your MCU's IO port.
• Robust Design: Features convenient fixing bolt holes for secure and easy installation into your prototypes or enclosures.

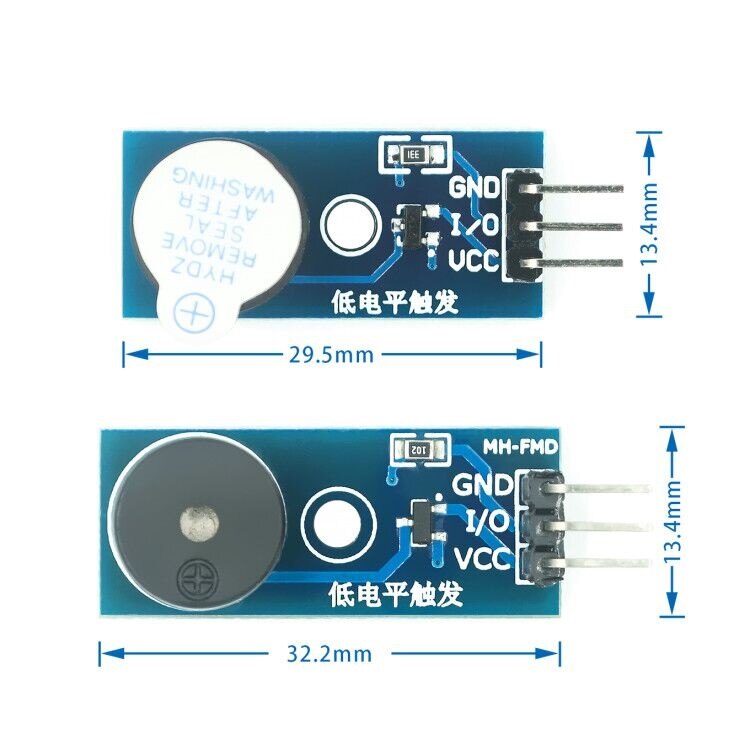

• Compact Size: PCB dimensions are designed to be space-efficient, as shown in product photos.
• Reliable Driver: Both types are driven by a 9012 transistor for stable performance.

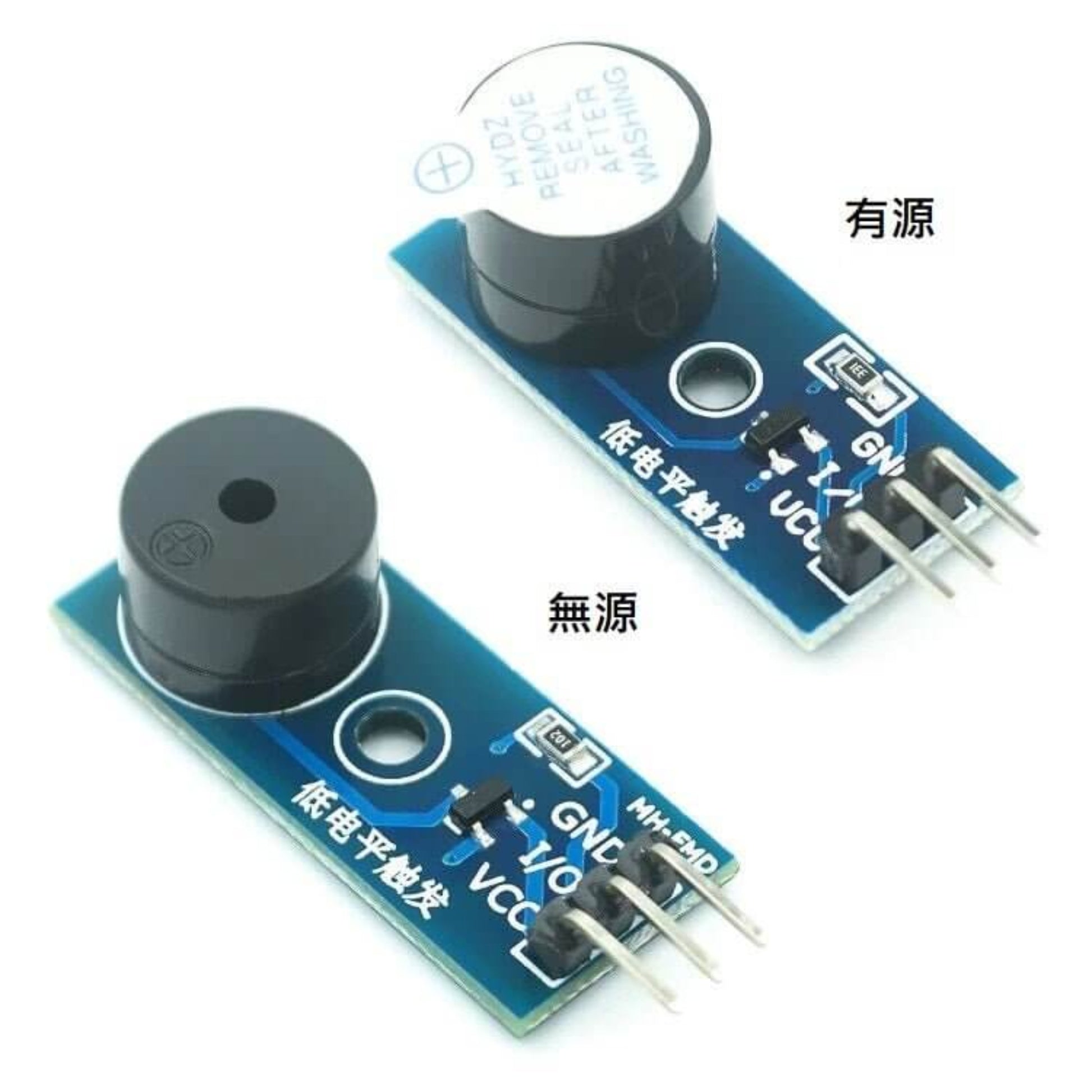

Choose Your Buzzer Type:

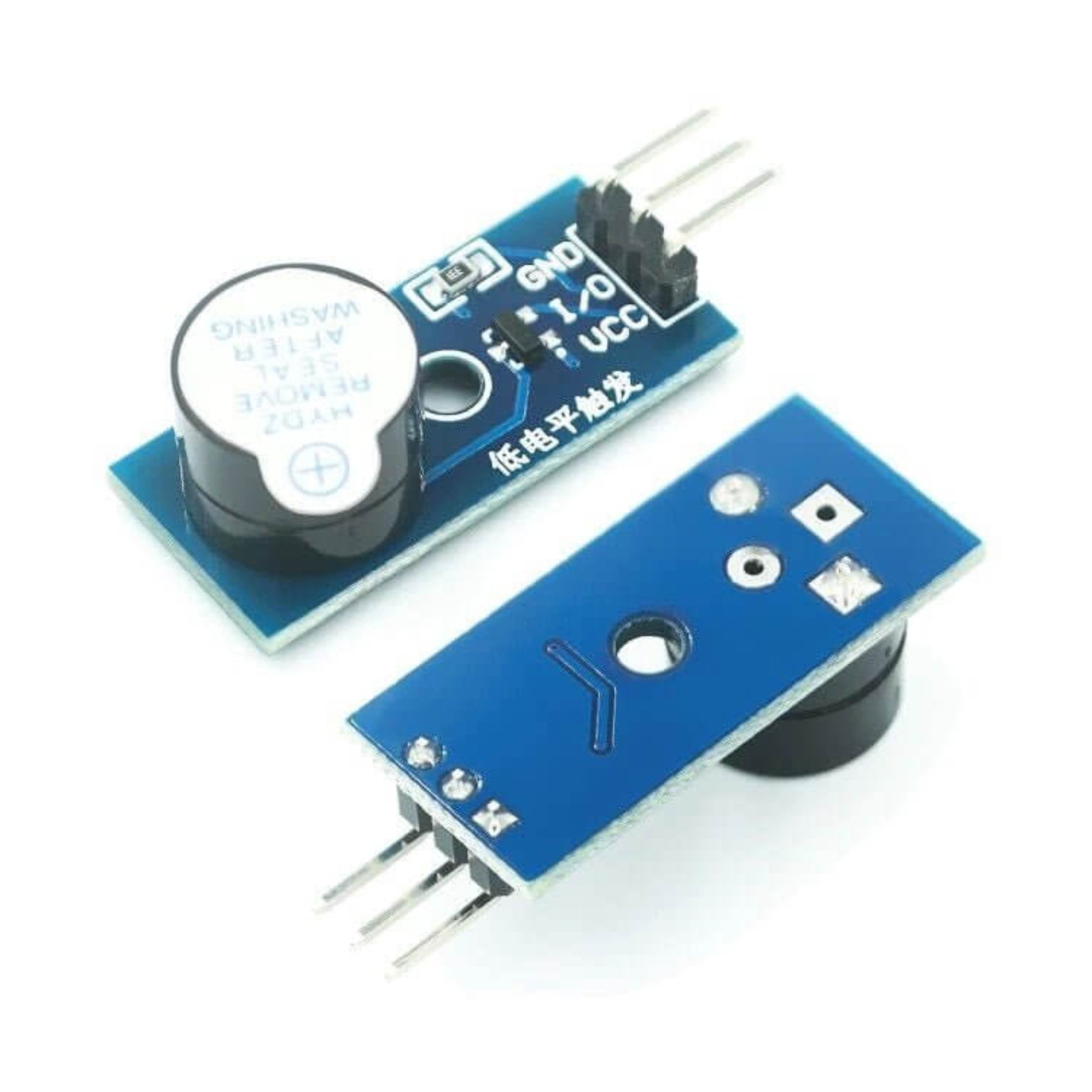

1. Active Buzzer Module:

• Instant Sound: Features a built-in oscillation source, producing a continuous "beep" sound as soon as power is applied.
• Simplified Control: Easily activated or deactivated with a single high or low-level signal from your microcontroller.
• Ideal For: Simple alarms, basic status indicators, quick audible feedback in projects, and beginner-friendly setups where complex sound control isn't required.

2. Passive Buzzer Module:

• Full Frequency Control: Lacks an internal oscillator, allowing you to generate custom tones and melodies by sending varying frequency square wave signals (e.g., 2KHz-5KHz) from your microcontroller.
• Musical Potential: Capable of producing a wide range of pitches, perfect for creating "Duo Lai Mifa Solassie" effects, musical instruments, and more intricate audio patterns.
• Resource Optimization: In specific applications, its control port can be multiplexed with an LED, helping to conserve your microcontroller's valuable pins.
• Ideal For: Projects requiring custom melodies, variable tone alerts, interactive sound designs, and advanced audio feedback where precise pitch control is paramount.

Module Interface Description (3-Wire System for Both):

• 1. + (VCC): Connect to external 3.3V-5V power supply.
• 2. - (GND): Connect to Ground.
• 3. OUT (I/O): Connect to your Microcontroller's digital IO port (for Active) or PWM-capable IO port (for Passive).
