AC2010-02D Pneumatic FRL Unit (Filter Regulator Lubricator)
AC2010-02D Pneumatic FRL Unit (Filter Regulator Lubricator)
Couldn't load pickup availability
Short Product Description
Short Product Description
Protect your expensive pneumatic cylinders and solenoid valves with theAC2010-02D Pneumatic FRL Unit (Two-Piece Air Source Treatment). This industrial-grade unit combines a high-precision5μm fiber filter, a precise pressure regulator, and an automatic lubricator into one compact system. Featuring a1/4" (PT1/4) port size, imported NBR leak-proof seals, and a convenientAuto Drainfunction, it safely handles up to 1.0 MPa (145 PSI). Need help sizing your air fittings?Sun Cheong Computer Co. Ltd.has over 20 years of automation expertise. Visit our Sham Shui Po physical store for instant pickup and on-site pneumatic system configuration!
Key Features
Key Features

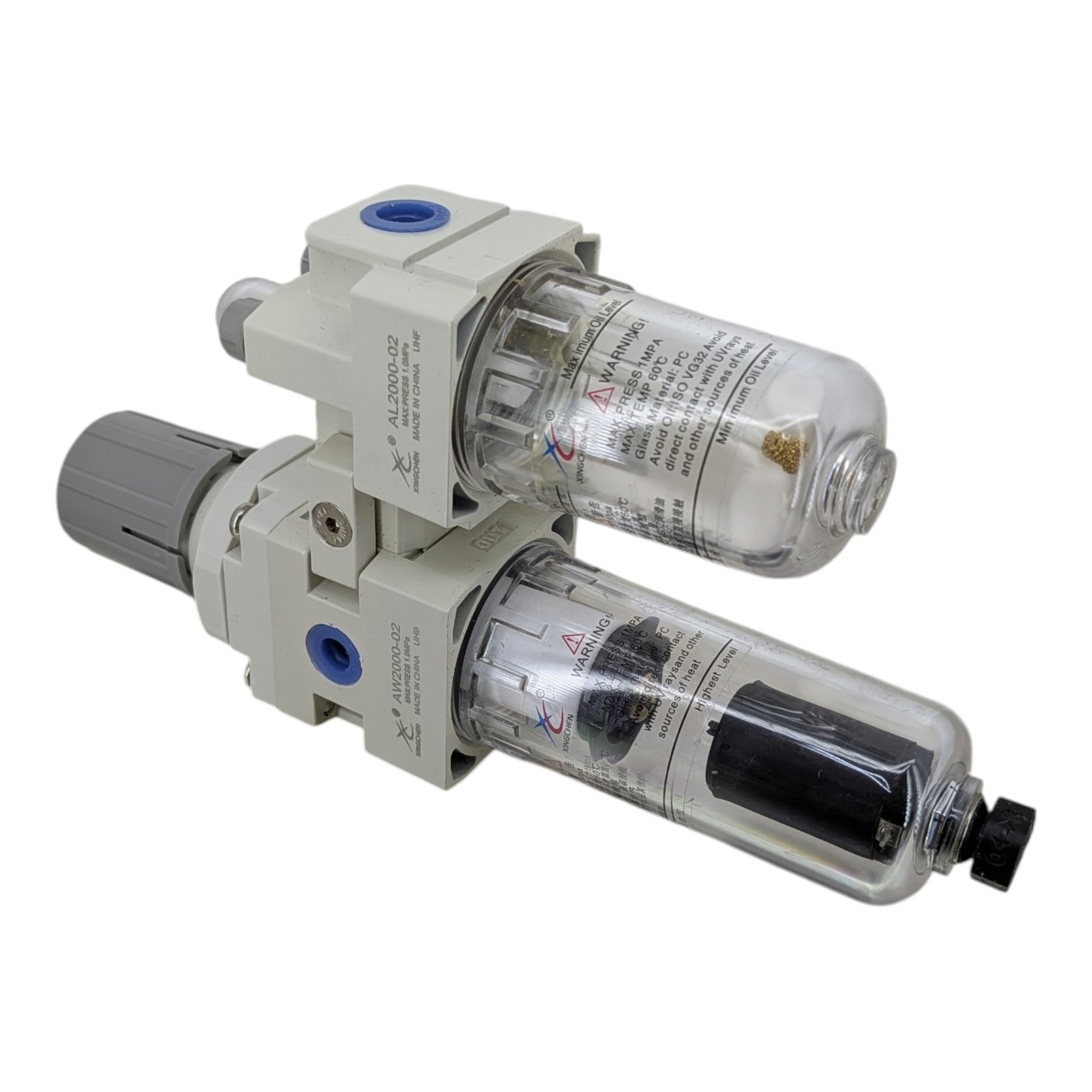

- 3-in-1 Air Treatment: Combines a moisture/dust filter, a precise pressure regulator, and an oil mist lubricator in a space-saving two-piece design.
- 5μm Fiber Filter: Captures microscopic impurities and water droplets with 99.96% efficiency, delivering ultra-clean air to your tools.
- Auto Drain Function: Automatically expels accumulated water from the filter bowl, reducing maintenance and preventing water damage to valves.
- Push-to-Lock Regulator: The rotary knob locks securely into place, ensuring your pressure settings remain stable despite heavy machinery vibrations.
- Imported NBR Seals: Premium nitrile rubber seals guarantee ~99.8% airtight performance, drastically outlasting standard rubber rings.
- Aluminum Alloy Body: Rust-resistant and built to withstand high-pressure pneumatic environments up to 1.0 MPa (145 PSI).
Full Product Description
Full Product Description
Clean, Regulated, and Lubricated Air for Automation
Moisture, dust, and unregulated pressure are the biggest enemies of pneumatic systems. The AC2010-02D FRL Unit (Filter, Regulator, Lubricator) acts as the ultimate frontline defense for your automated machinery. By purifying the compressed air, stabilizing the pressure, and injecting a fine mist of lubricating oil, this two-piece unit drastically extends the lifespan of your air cylinders, solenoid valves, and robotic arms, preventing premature wear and costly downtime.

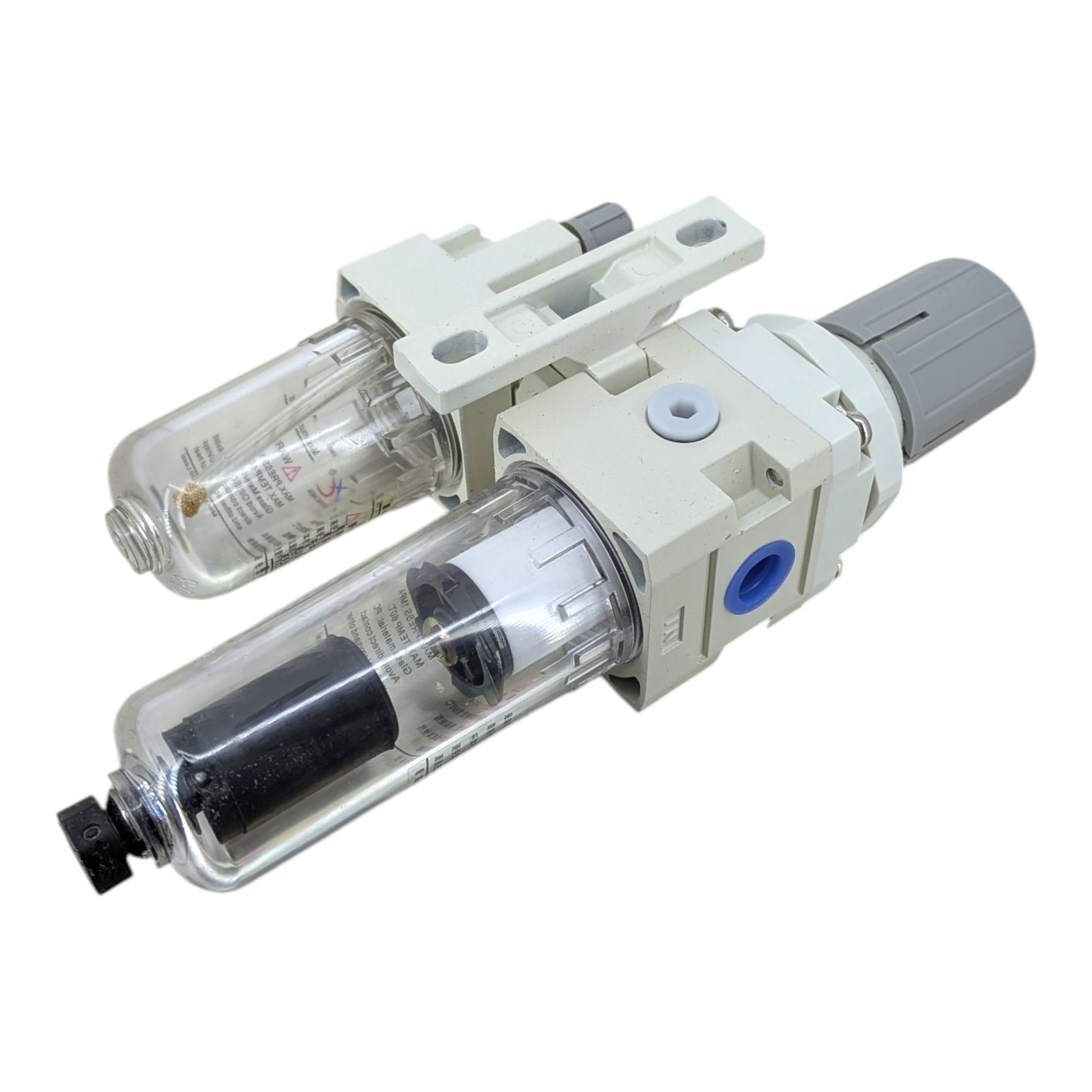

5μm High-Precision Filtration & Auto Drain
Standard air filters only catch large debris. This unit is equipped with an advanced 5μm high-fiber filter element, boasting a 99.96% removal rate for microscopic dust, rust, and water droplets. Furthermore, the "D" in the AC2010-02D model signifies its Automatic Drain mechanism. You no longer need to manually empty the water cup; the system automatically purges accumulated moisture, making it ideal for hard-to-reach installations or continuous 24/7 factory operations.
Built to Last: Aluminum Alloy & NBR Seals
Industrial environments demand rugged hardware. The main body and protective cup guards are constructed from anti-rust aluminum alloy, ensuring they won't crack under pressure or degrade over time. Internally, the unit utilizes imported NBR (Nitrile Butadiene Rubber) seals, providing a ~99.8% leak-proof guarantee. This maintains consistent air pressure and prevents the sudden pressure drops associated with cheap, disposable rubber O-rings.
💡 Pro Tip from Our Technicians
"Setting the pressure on this unit is incredibly simple but often misunderstood. To adjust the pressure, pull the top grey knob UP to unlock it, rotate it to your desired PSI/MPa, and then push it DOWN to lock it securely in place. This prevents machine vibrations from altering your settings. If you are unsure which 1/4" push-to-connect fittings you need for your air hoses, don't guess! Bring your setup to our Sham Shui Po store. Our team at Sun Cheong Computer Co. Ltd. will test-fit the exact pneumatic connectors you need on the spot."
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Model | AC2010-02D (Two-Piece FRL Unit) |
| Port Size (Inlet/Outlet) | 1/4" (PT1/4) |
| Maximum Operating Pressure | 1.0 MPa (10 kgf/cm² / ~145 PSI) |
| Rated Flow Rate | 500 L/min |
| Filter Precision | 5 μm (High-fiber filter element) |
| Drain Type | Automatic Drain (Auto Drain) |
| Body Material | Anti-rust Aluminum Alloy |
| Seal Material | Imported NBR (Nitrile Butadiene Rubber) |
| Total Dimensions (W x H) | 90 mm x 164.5 mm |

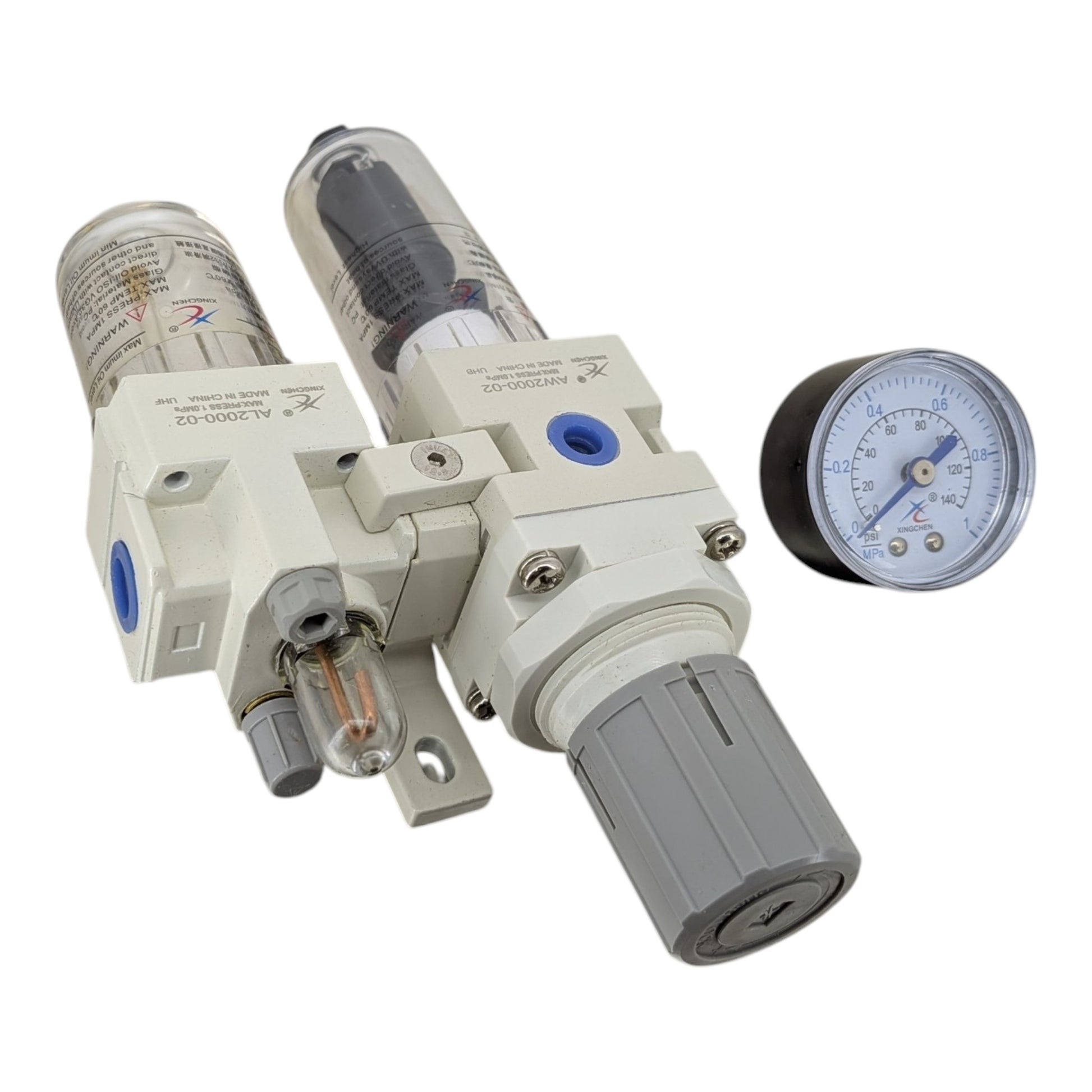

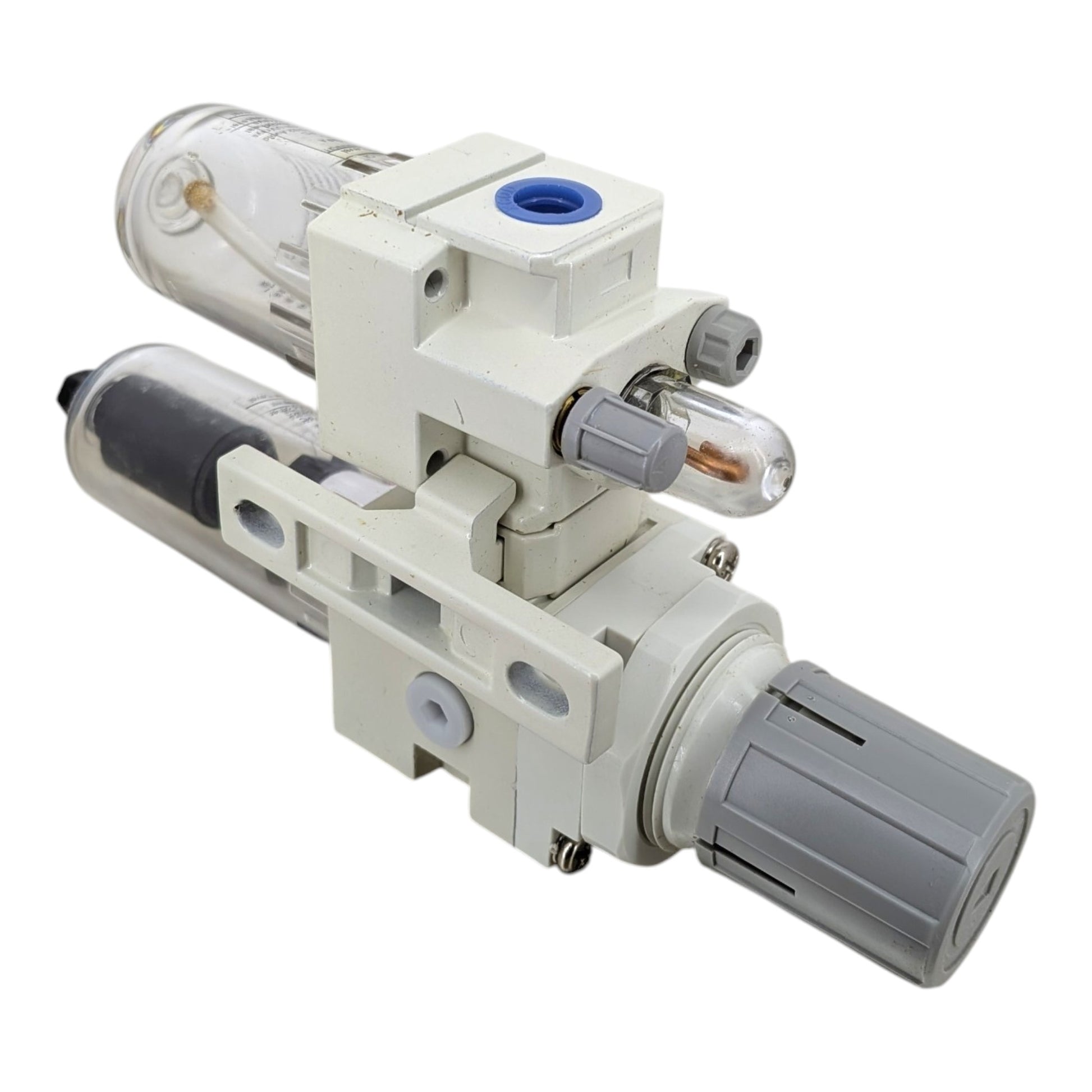

| Included Accessories | Pressure Gauge, Mounting Bracket |
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
- What does the lubricator (oil cup) do, and what oil should I use?The lubricator injects a fine mist of oil into the clean air stream to continuously lubricate the internal seals of your downstream air cylinders and solenoid valves. You should use standard pneumatic tool oil (ISO VG32 or equivalent). Do not use motor oil or WD-40.
- How does the Auto Drain feature work?The "D" in the AC2010-02D model stands for Auto Drain. It contains a float mechanism inside the water cup. When the accumulated water reaches a certain level, the float rises and automatically opens the valve to expel the water, requiring zero manual intervention.
- What size air fittings do I need for this FRL unit?The inlet and outlet ports are standard PT 1/4" (2分) female threads. You will need 1/4" male threaded pneumatic fittings (such as push-to-connect fittings for 6mm, 8mm, or 10mm tubing) to connect your air lines.
Target Users / Applications
Target Users / Applications
- Factory Automation Engineers: Protecting multi-manifold solenoid valve blocks and high-speed cylinders on mask production lines and CNC machines.
- Robotics Integrators: Ensuring clean, lubricated air for smooth, jitter-free movements in pneumatic robotic arms and AI robots.
- Medical Equipment Maintenance: Providing highly filtered 5μm air for sensitive pneumatic medical devices and dental chairs.
- Custom Workshop Builders: Upgrading workshop air compressors to deliver dry, regulated air for pneumatic tools and paint sprayers.
