AC 16-28V/DC 16-40V to 12V 2A 24W Converter (5.5mm Plug & Wires)

Convert Variable AC/DC Voltage to a Stable 12V DC Output

Need to power a 12V DC device like an LED strip or CCTV camera from a variable AC or DC power source? This compact and powerful converter module is your solution.

It efficiently converts a wide input range of AC 16-28V or DC 16-40V into a rock-solid DC 12V 2A (24W) output. Its durable, sealed housing makes it reliable for a variety of DIY and professional projects.

Key Features:

• Wide Input Range: Accepts AC 16-28V or DC 16-40V, making it highly versatile.
• Stable 12V Output: Provides a consistent DC 12V / 2A (24W max) output, protecting your sensitive electronics.

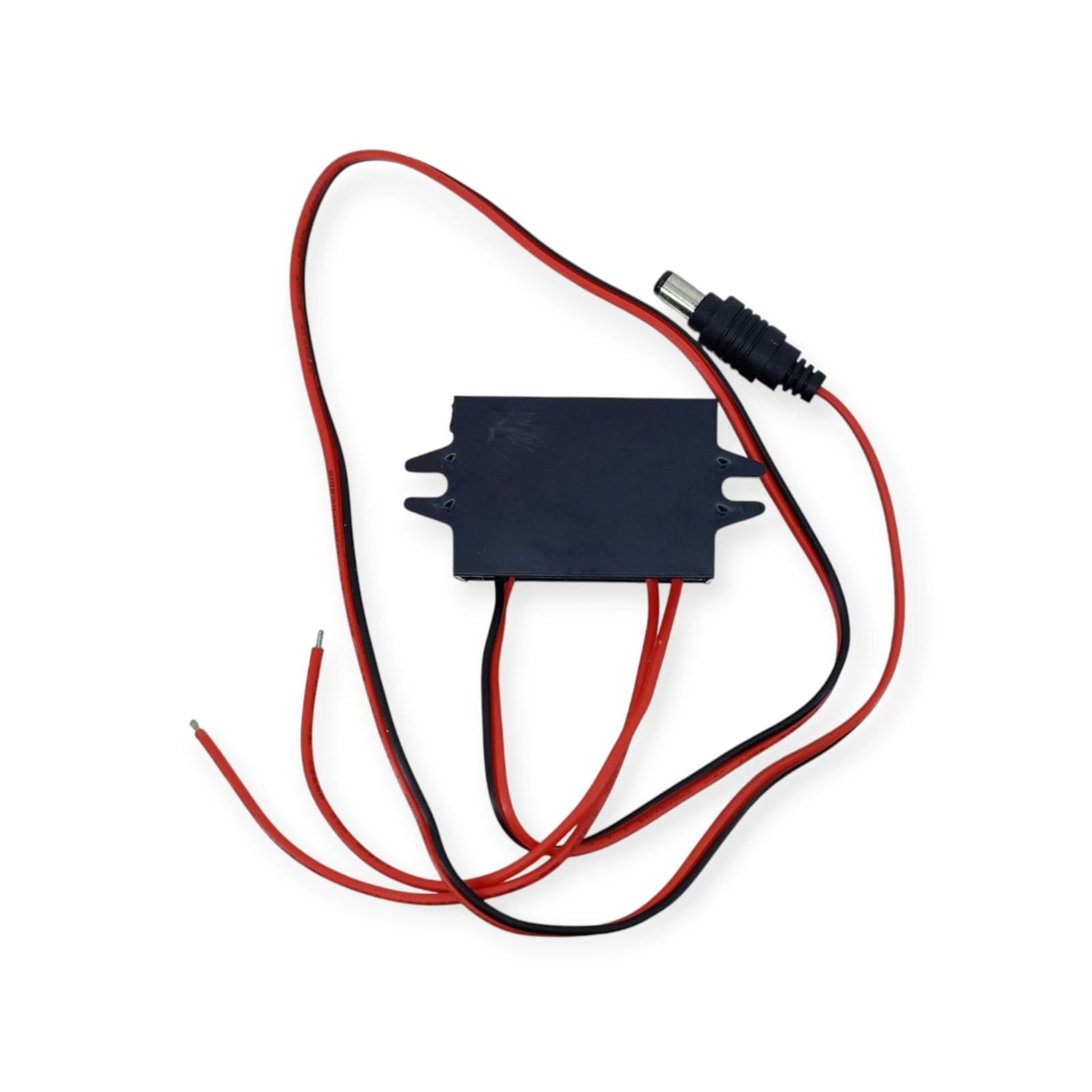

• Dual Output Options: Features both a standard 5.5mm x 2.1mm DC barrel plug and a set of bare wire terminals (Red+/Black-) for maximum connection flexibility.

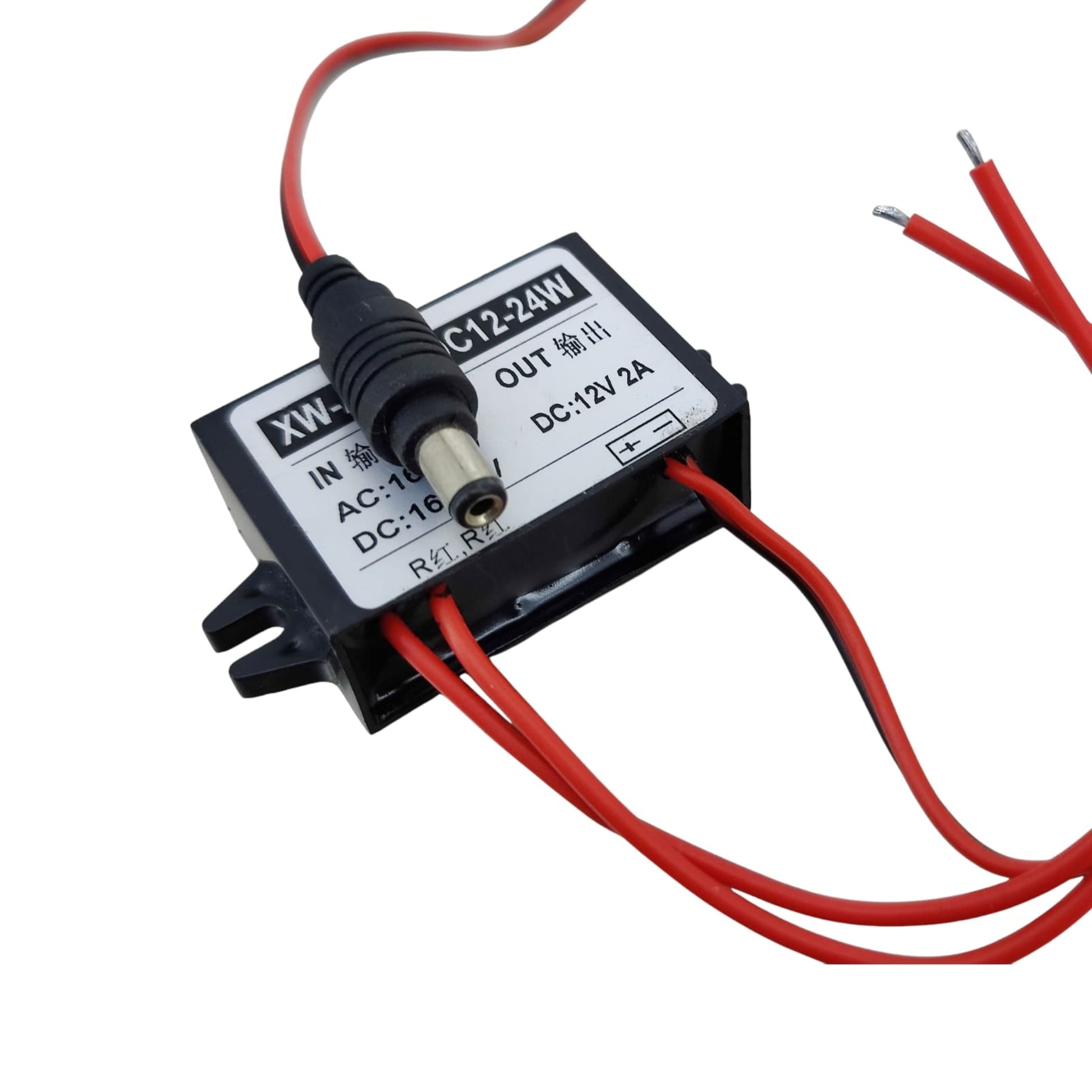

• Compact & Durable: Housed in a robust, potted plastic case with built-in mounting tabs for easy installation.
• Wide Application: Perfect for powering LED strip lights, CCTV security cameras, boat electronics, automotive accessories, and other low-voltage DIY projects.

Specifications:

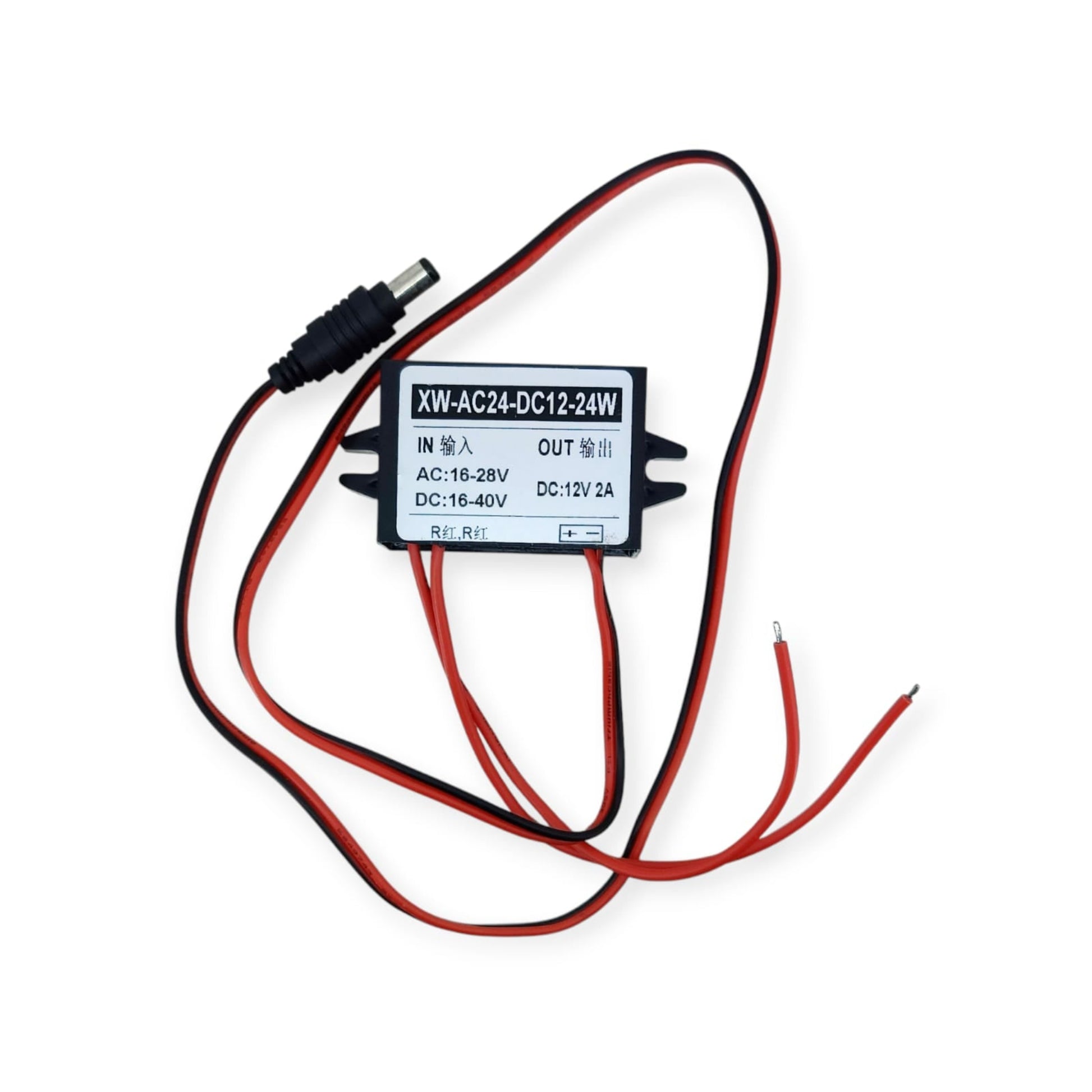

• Model: XW-AC24-DC12-24W
• Input Voltage: AC 16-28V / DC 16-40V (via bare wires)
• Output Voltage: DC 12V
• Output Current: 2A (Max)
• Output Power: 24W (Max)
• Output Connectors:
  • 1x DC Barrel Plug (5.5mm x 2.1mm)
  • 1x Bare Wires (Red+, Black-)
• Dimensions (Approx.): 55mm x 32mm x 18mm
