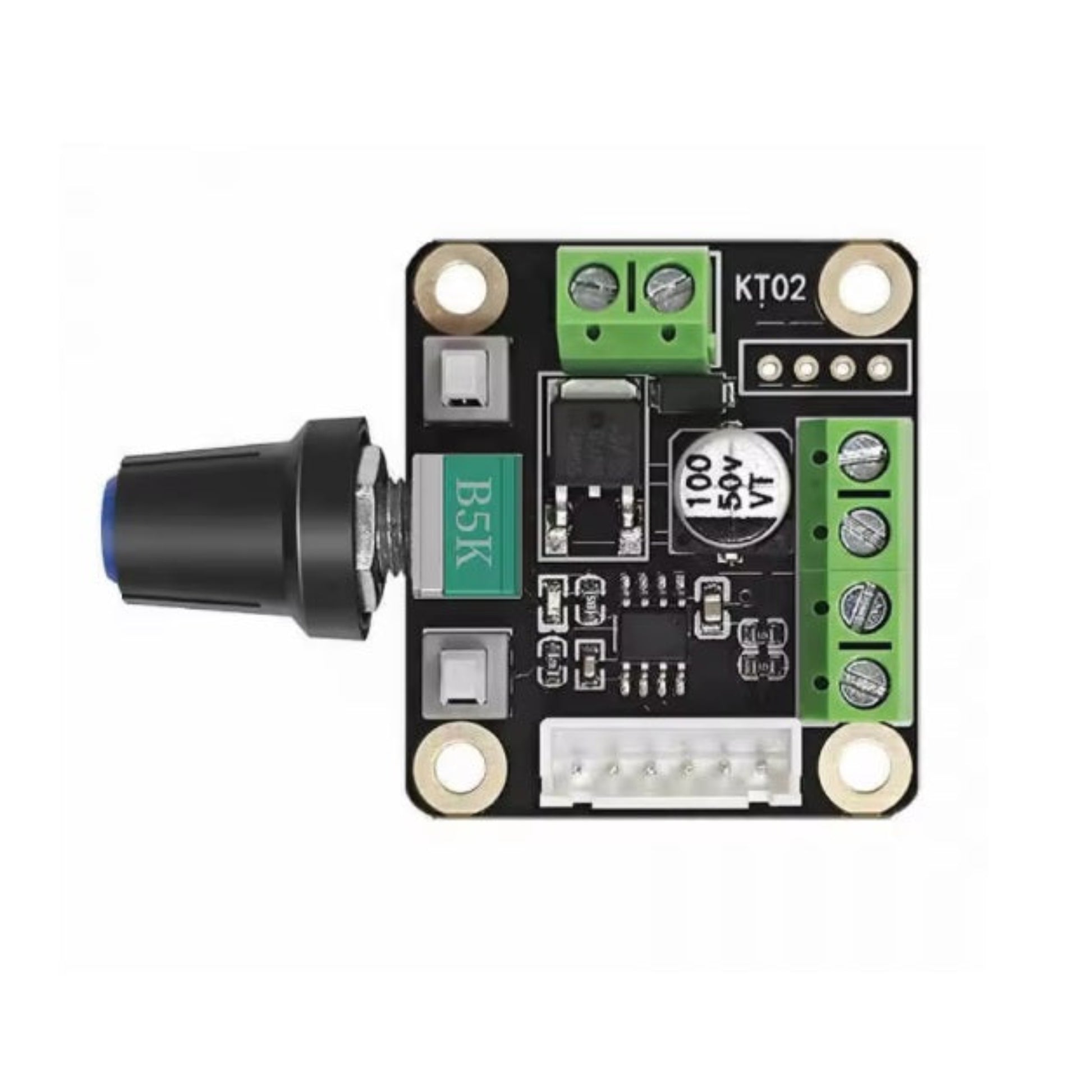

• Front view of the 9-24V stepper motor controller with speed adjustment knob and terminals.

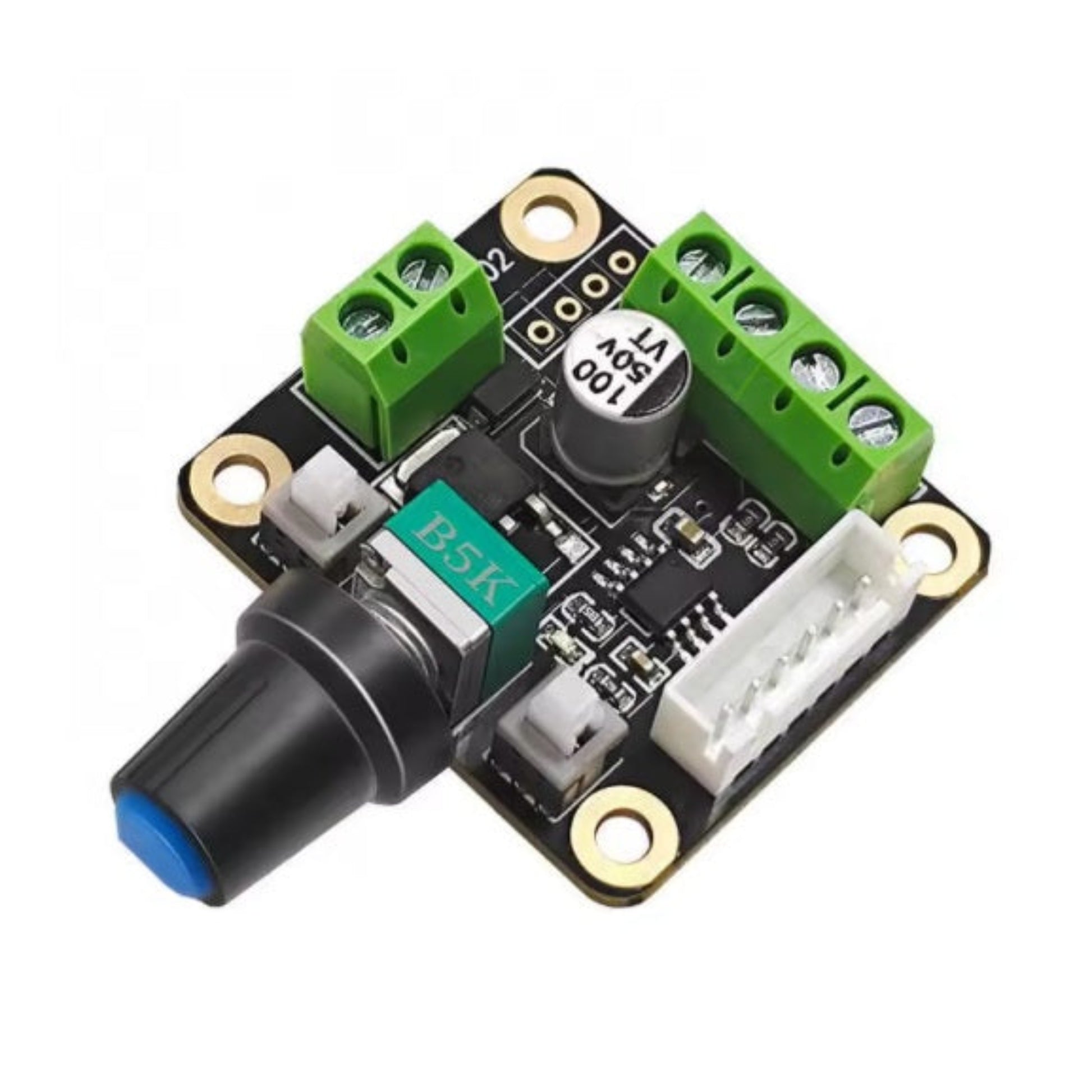

  • Compact 9-24V stepper motor speed regulator module, ideal for various motor control applications.

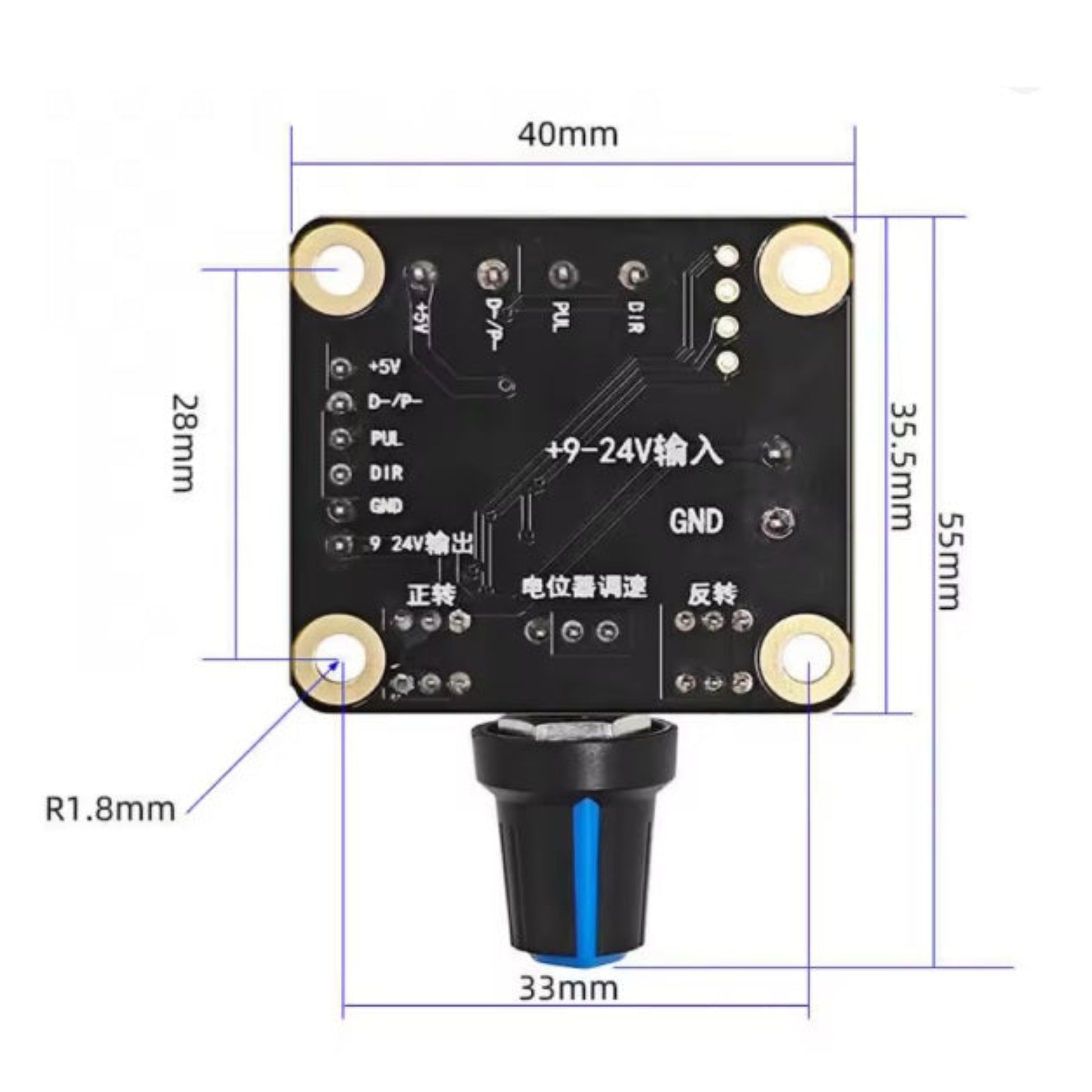

  • Back view with precise dimensions of the 9-24V stepper motor pulse generator module.

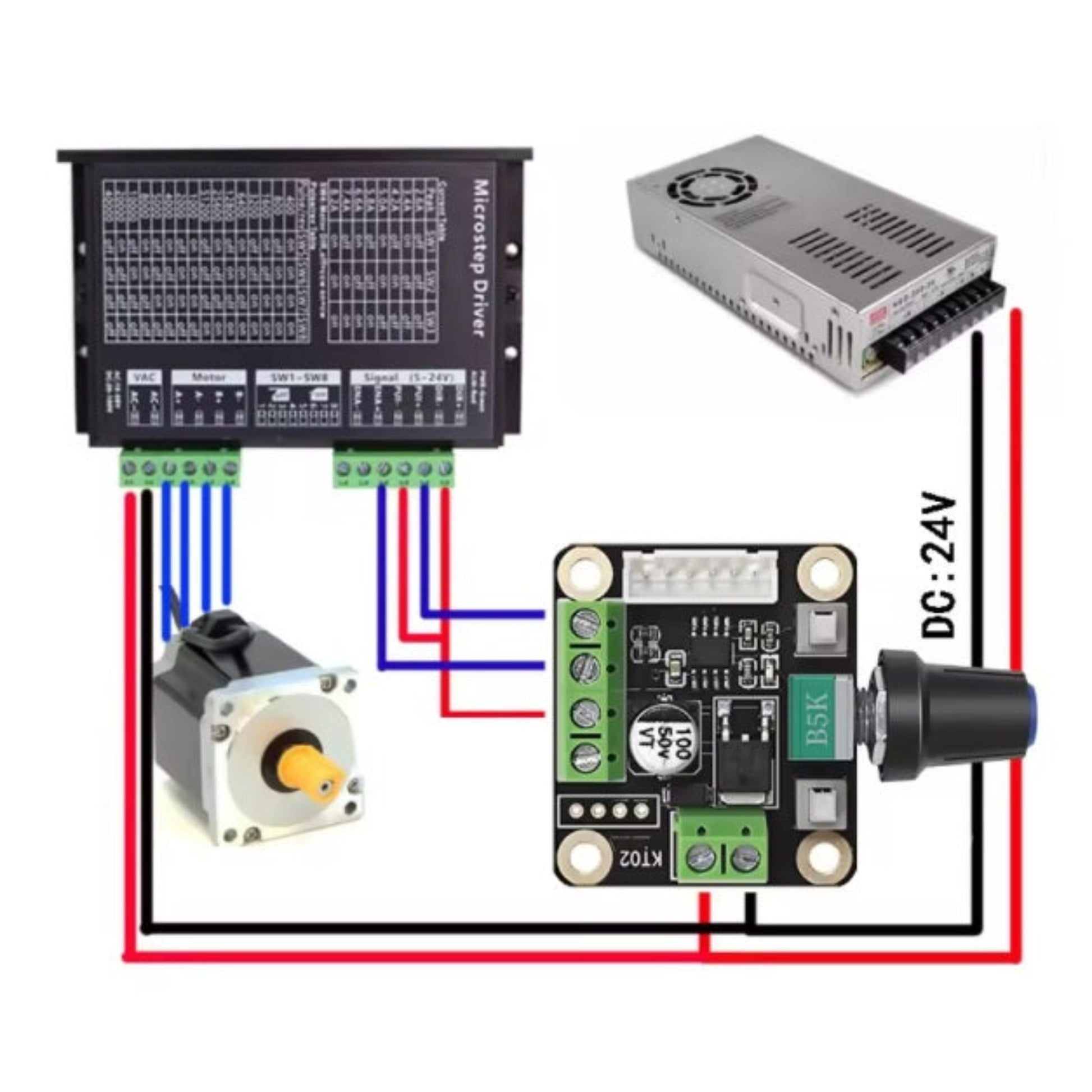

  • Complete wiring diagram for 9-24V stepper motor controller, driver, power supply, and motor.
1 4
1 sales

9-24V Stepper Motor Controller | Pulse Generator & Speed Governor

9-24V Stepper Motor Controller | Pulse Generator & Speed Governor

HK$29.00
HK$29.00
Sale Sold out
Shipping calculated at checkout.

Delivery Options

  • Local delivery within Hong Kong and in-store pickup.​
  • Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.​
  • Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).​
  • Estimated delivery time: 1–3 business days after dispatch (Hong Kong).​
  • In-store pickup details (location and time) will be confirmed by email or phone message.​
  • Delivery times are estimates and may be affected by weather or unforeseen circumstances.​

Overview:

Take precise control of your stepper motors with our versatile 9-24V Stepper Motor Controller. This compact module functions as a reliable pulse generator and speed governor, offering intuitive control over your motor's speed, direction (forward/reverse), and start/stop functions. Designed for seamless integration, it provides the essential signal input needed for your stepper motor driver.

Key Features:

  • Wide Input Voltage Range: Operates efficiently on 9V to 24V DC power, making it compatible with various setups.
  • Multi-Function Control: Easily manage your stepper motor's operation with built-in controls for:
    • Forward/Reverse Turn: Switch motor direction with a simple toggle.
    • Speed Regulation: Fine-tune motor speed using the integrated potentiometer.
    • Start/Stop Function: Instantly start and stop motor movement.
  • Pulse Generating Module: Provides the critical pulse signals required by your stepper motor driver for accurate motion.
  • Simple & Intuitive Operation: Designed for ease of use, making it suitable for both hobbyists and professionals.
  • Compact Design: Small footprint (40mm x 55mm) for easy integration into your projects.

Applications: Ideal for a wide range of projects requiring precise stepper motor control, including:

  • CNC machines
  • 3D printers
  • Robotics
  • Automated systems
  • DIY electronics projects
  • And more!

Important Note: This module is a pulse generating module and provides the signal for a stepper driver. To control a stepper motor, you MUST use this module in conjunction with a compatible stepper motor driver. (Driver not included).



Specifications:

  • Input Voltage: 9-24V DC
  • Functions: Forward turn, Reverse turn, Speed regulation, Start/Stop control
  • Compatibility: Designed to supply pulse signals to stepper motor drivers.
  • Dimensions (Module): 40mm (Width) x 55mm (Height) (Refer to dimension image for R1.8mm hole size)
  • Knob Diameter: 33mm

Package Includes:

  • 1x Stepper Motor Governor (KT02 Module)
