8MP 4K Passive Video & Power Balun (Pair) for HD-CVI/TVI/AHD Cameras

Extend Your CCTV Reach with Our 8MP 4K Passive Video & Power Balun Kit!

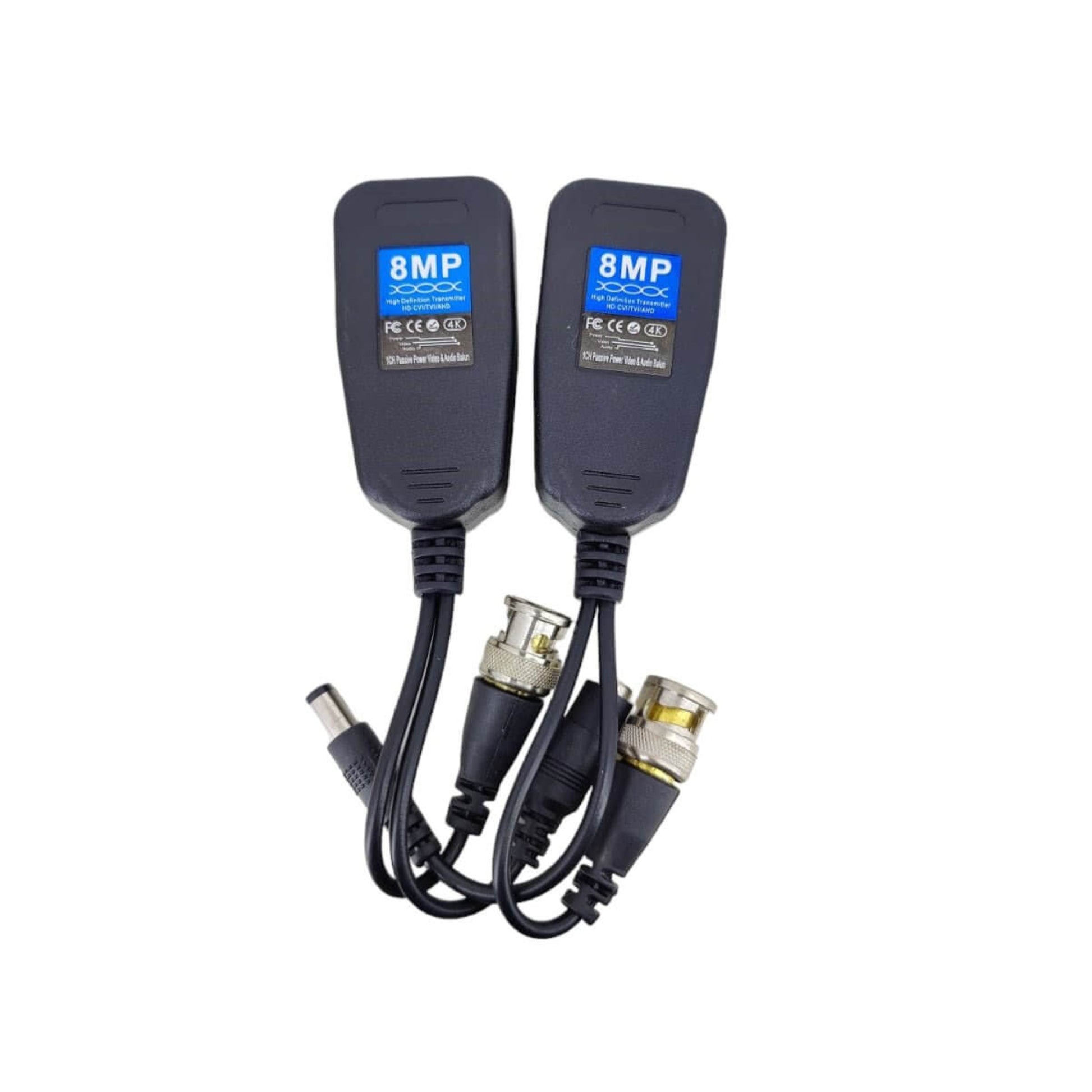

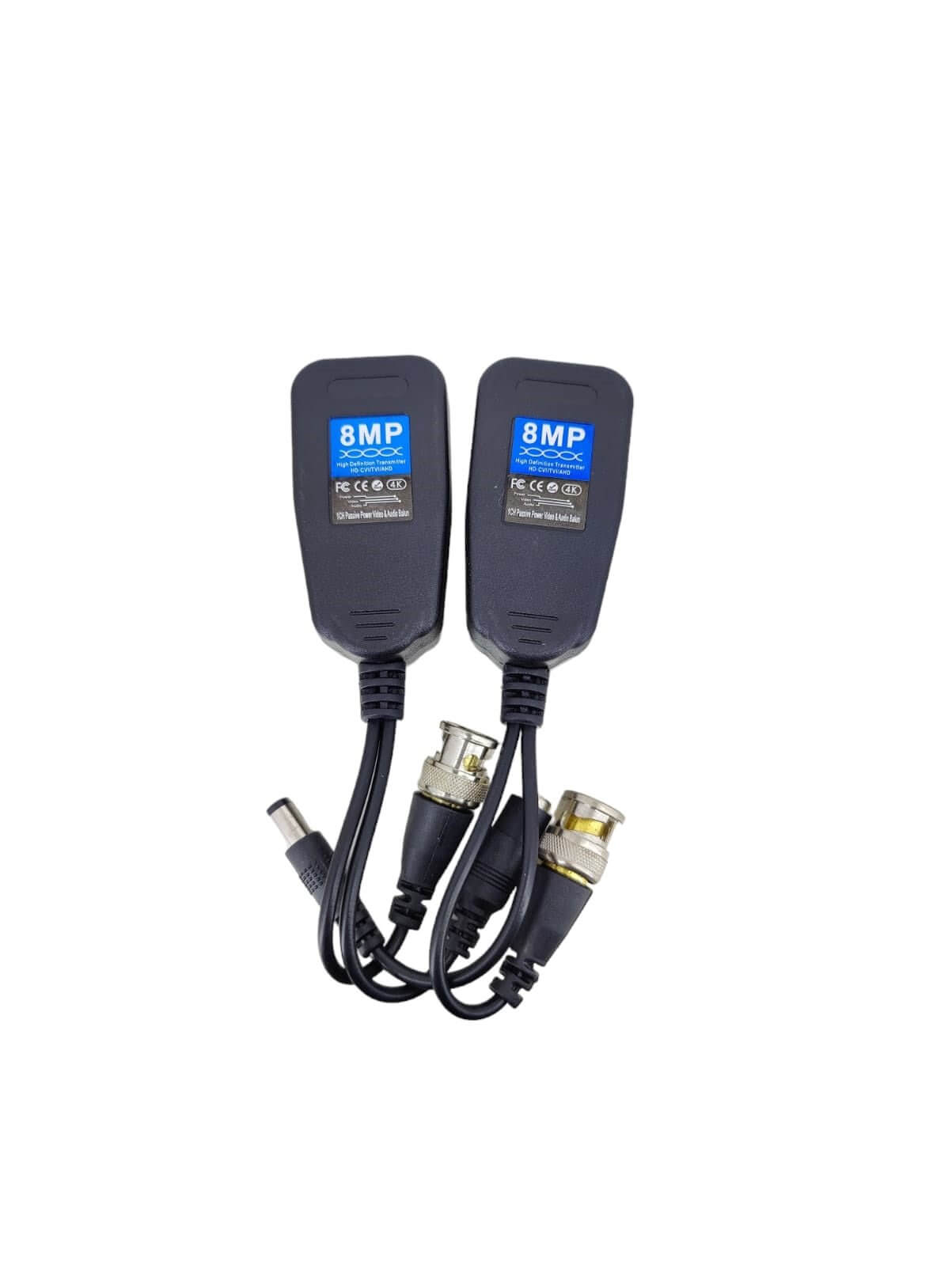

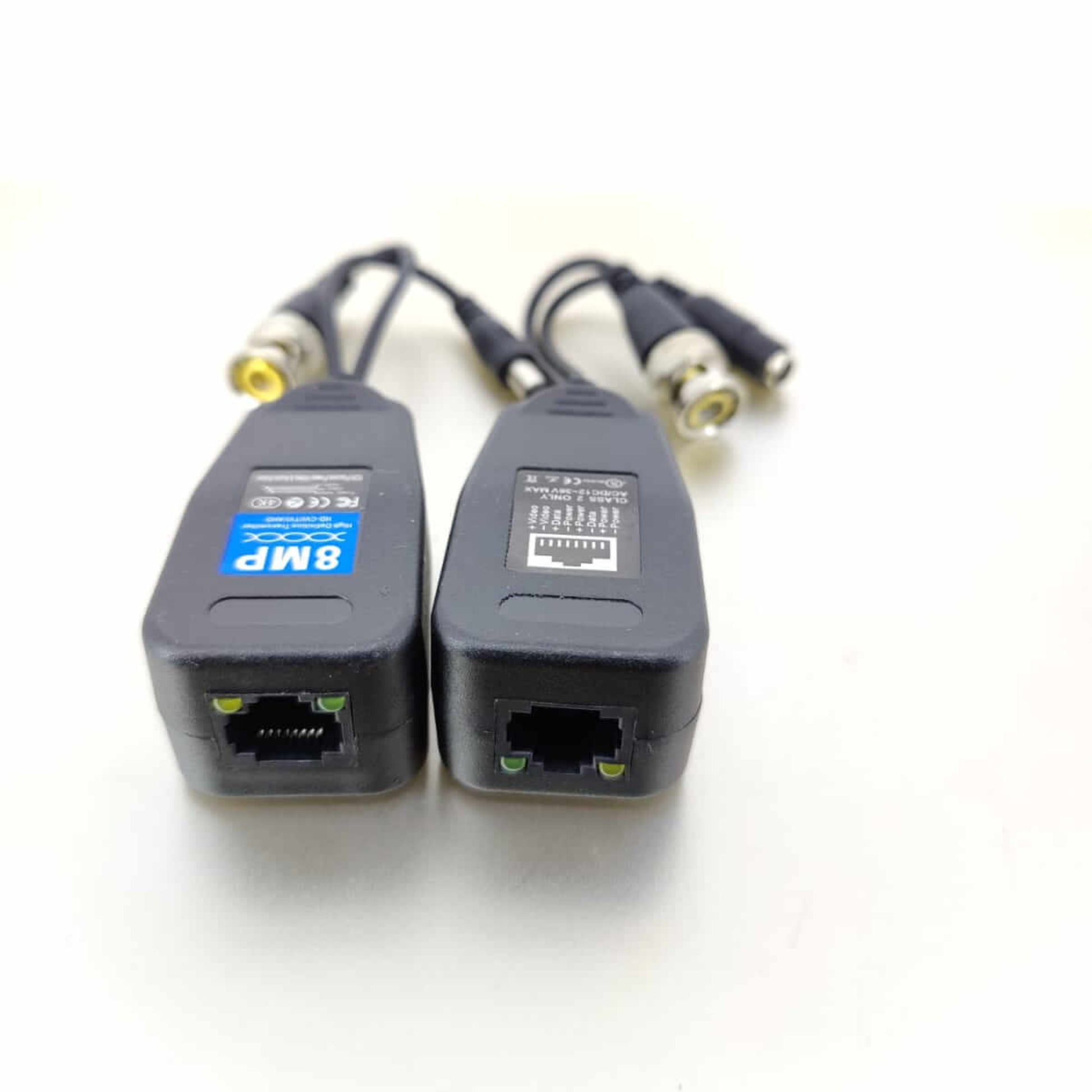

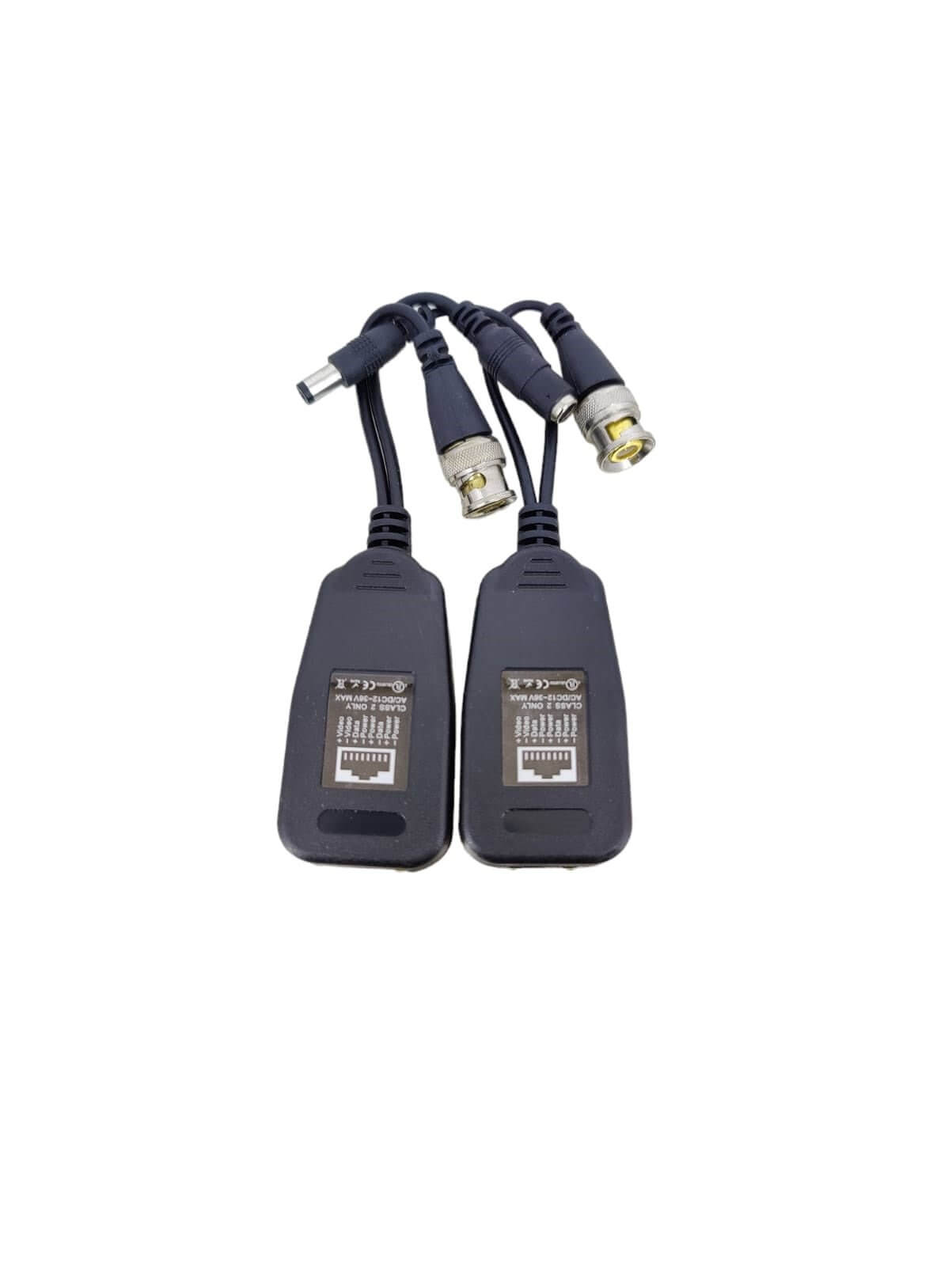

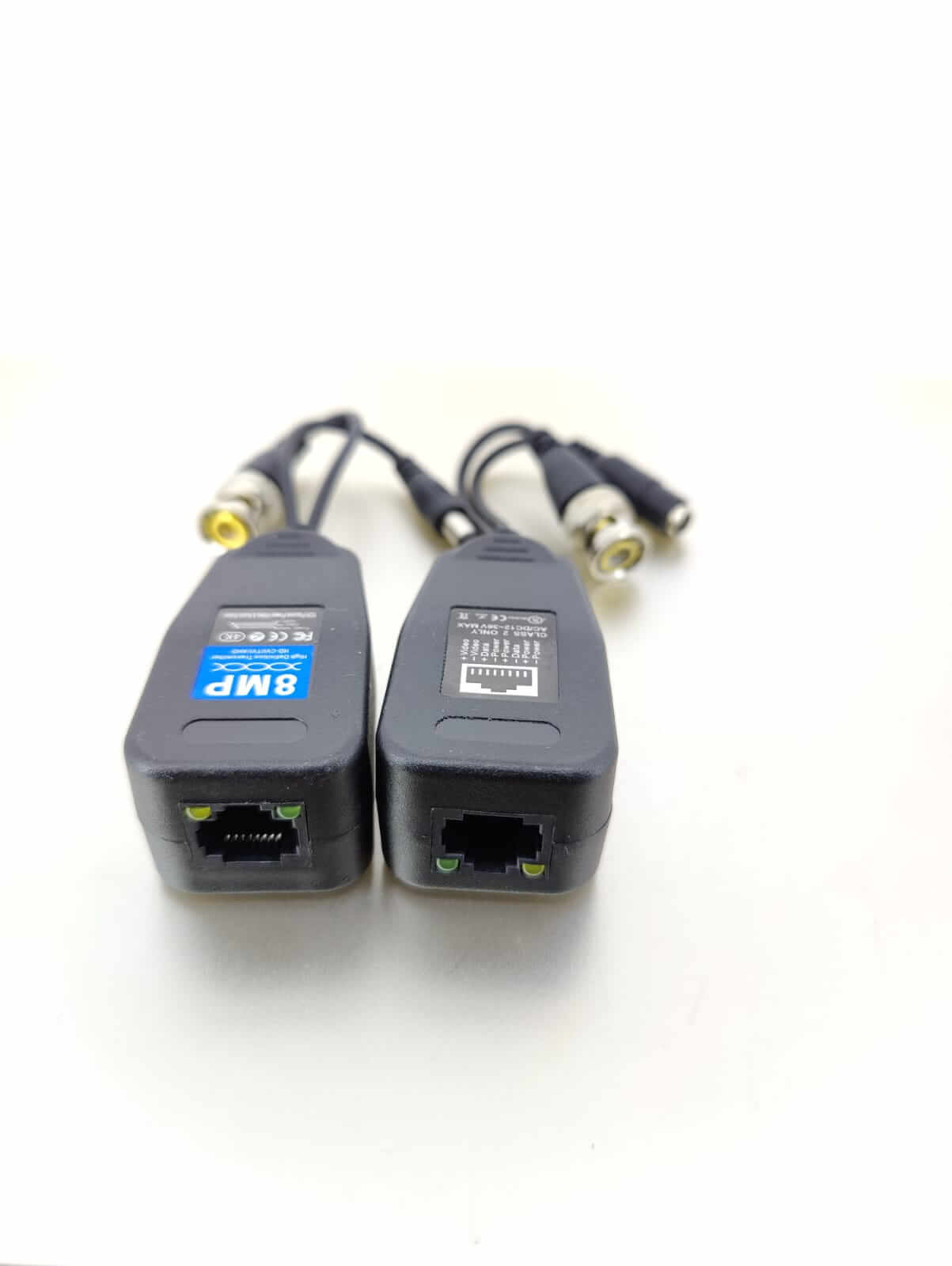

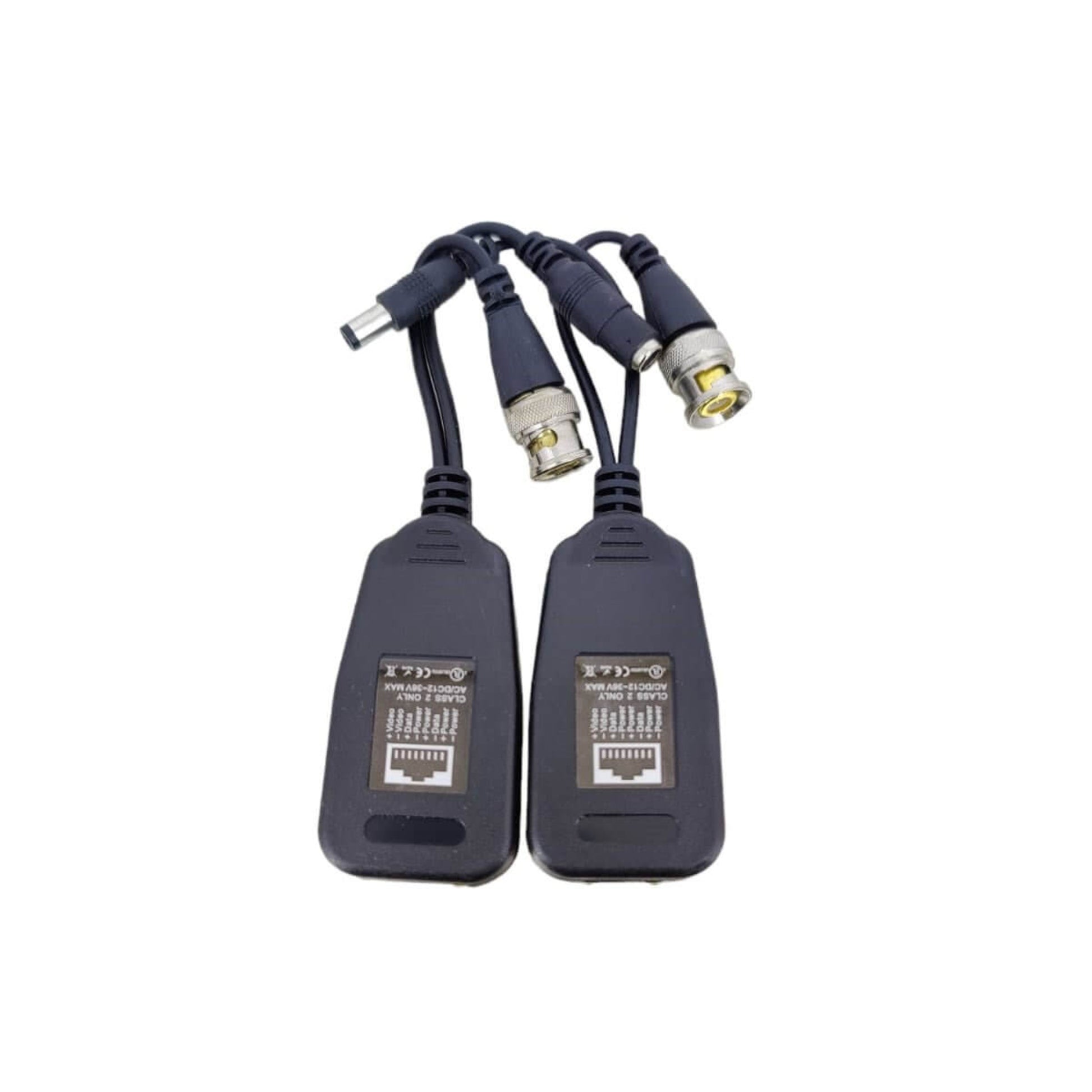

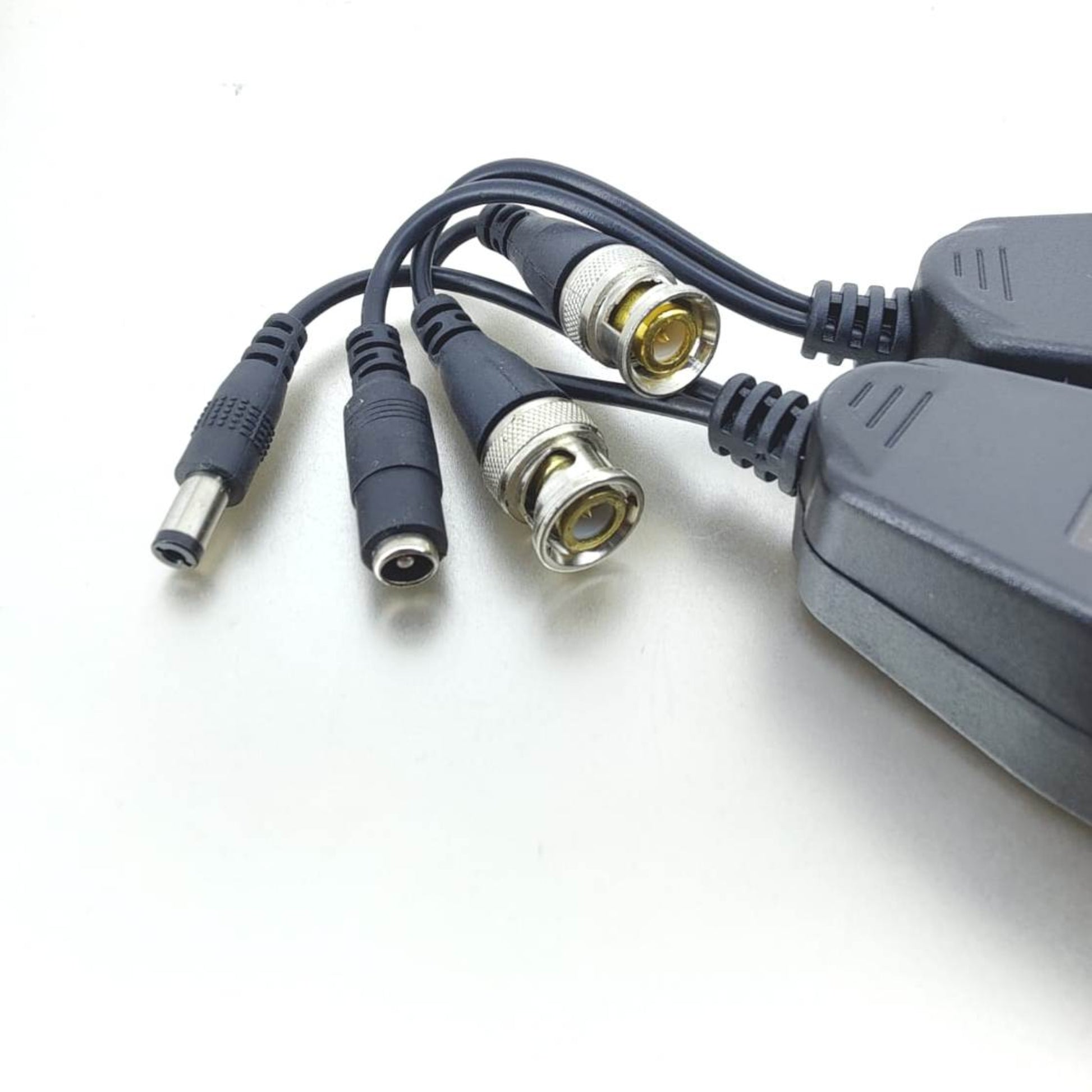

Upgrade your surveillance system with this essential pair of 8MP 4K Passive Video & Power Baluns. Designed to transmit both video signals and power over a single Cat5e/6 network cable, these transceivers offer a cost-effective and efficient solution for extending the reach of your HD-CVI, HD-TVI, and HD-AHD cameras without compromising on video quality. Eliminate the need for separate power cables and costly coaxial runs, simplifying your installation process.

Key Features:

• Universal HD Compatibility: Fully compatible with all HD-CVI, HD-TVI, and HD-AHD formats, ensuring seamless integration with a wide range of modern CCTV cameras and DVRs.
• High-Resolution Support: Supports up to 8MP resolution for AHD cameras, and up to 5MP for CVI/TVI, delivering crisp, clear video over long distances.
• Extended Transmission Distances:
  • 960H CVBS Cameras: Up to 300m (984ft)
  • 1080P/5MP CVI Cameras: Up to 120m (394ft)
  • 720P/1080P/5MP TVI Cameras: Up to 120m (394ft)
  • 720P/5MP/8MP AHD Cameras: Up to 120m (394ft)
• Passive & Power-Free: Requires no external power supply, simplifying installation and reducing wiring complexity.
• Superior Signal Integrity: Boasts 60dB cross talk and noise immunity, ensuring a clean, interference-free video signal.
• Compact & Easy to Install: Its small size and innovative combinable design make installation quick and hassle-free in tight spaces.
• Built-in Protection: Features integrated transient suppression protection (4KV Surge, 8KV ESD) to safeguard your equipment from power surges and electrostatic discharge.
• Durable Construction: Made from robust ABS Plastic, built to withstand various working conditions.

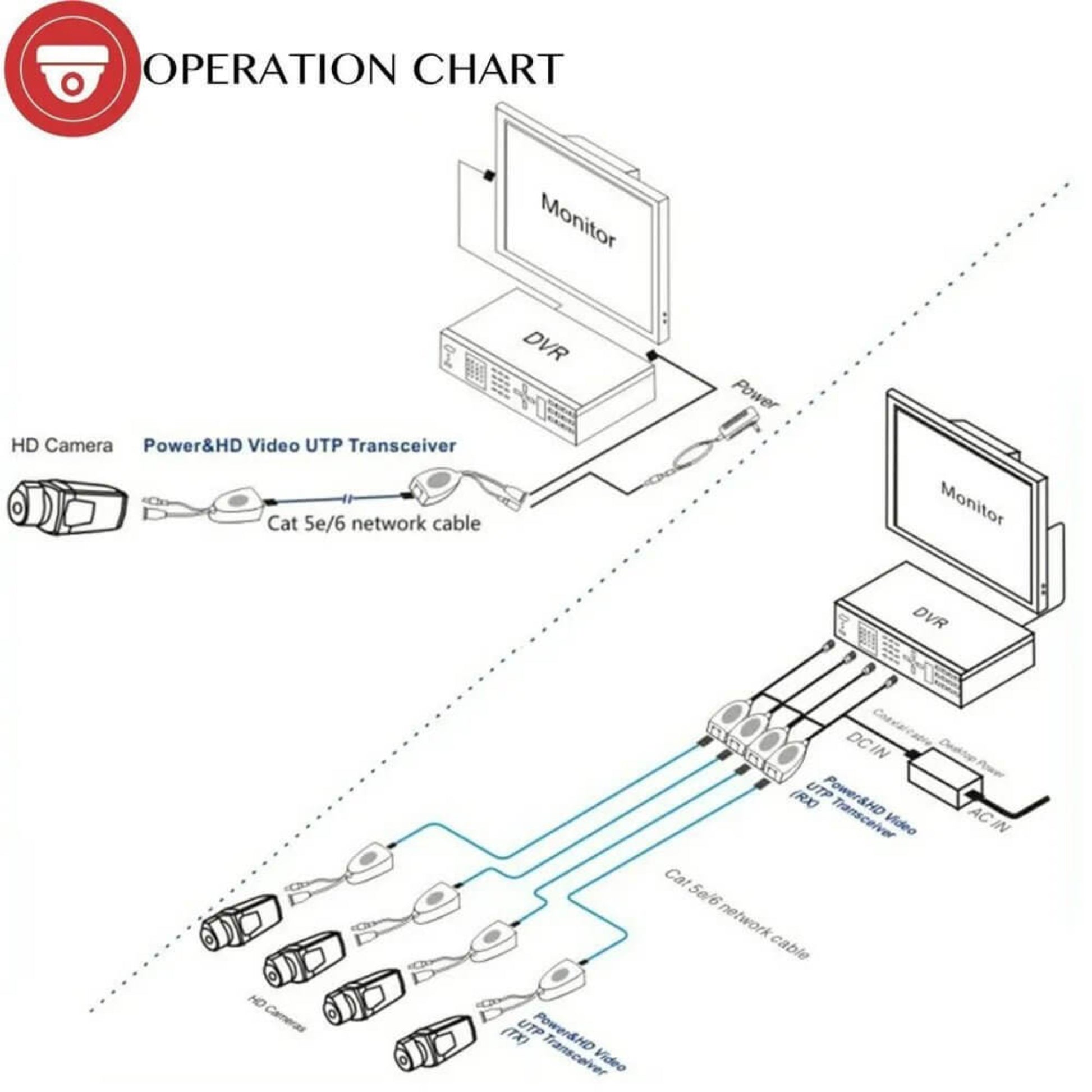

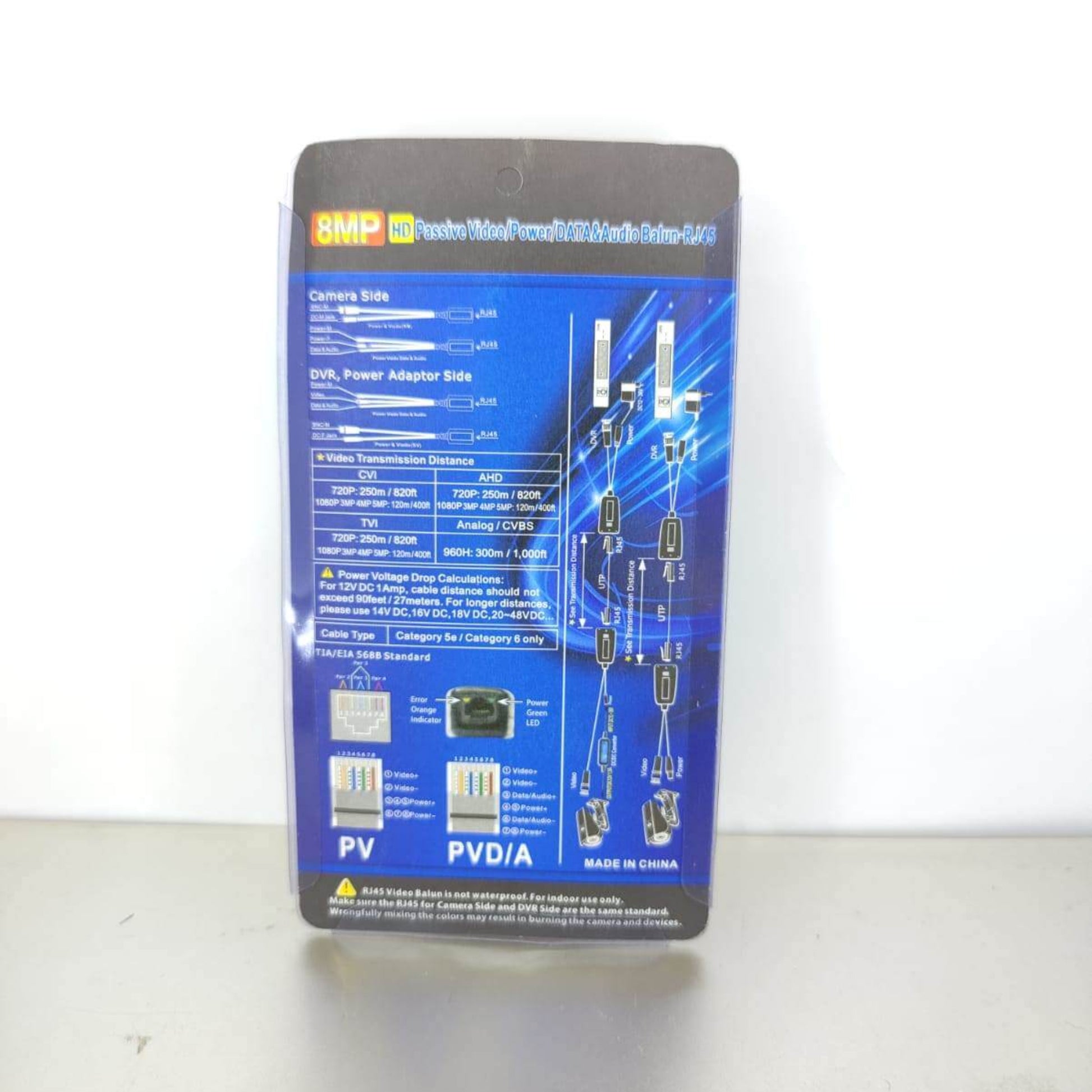

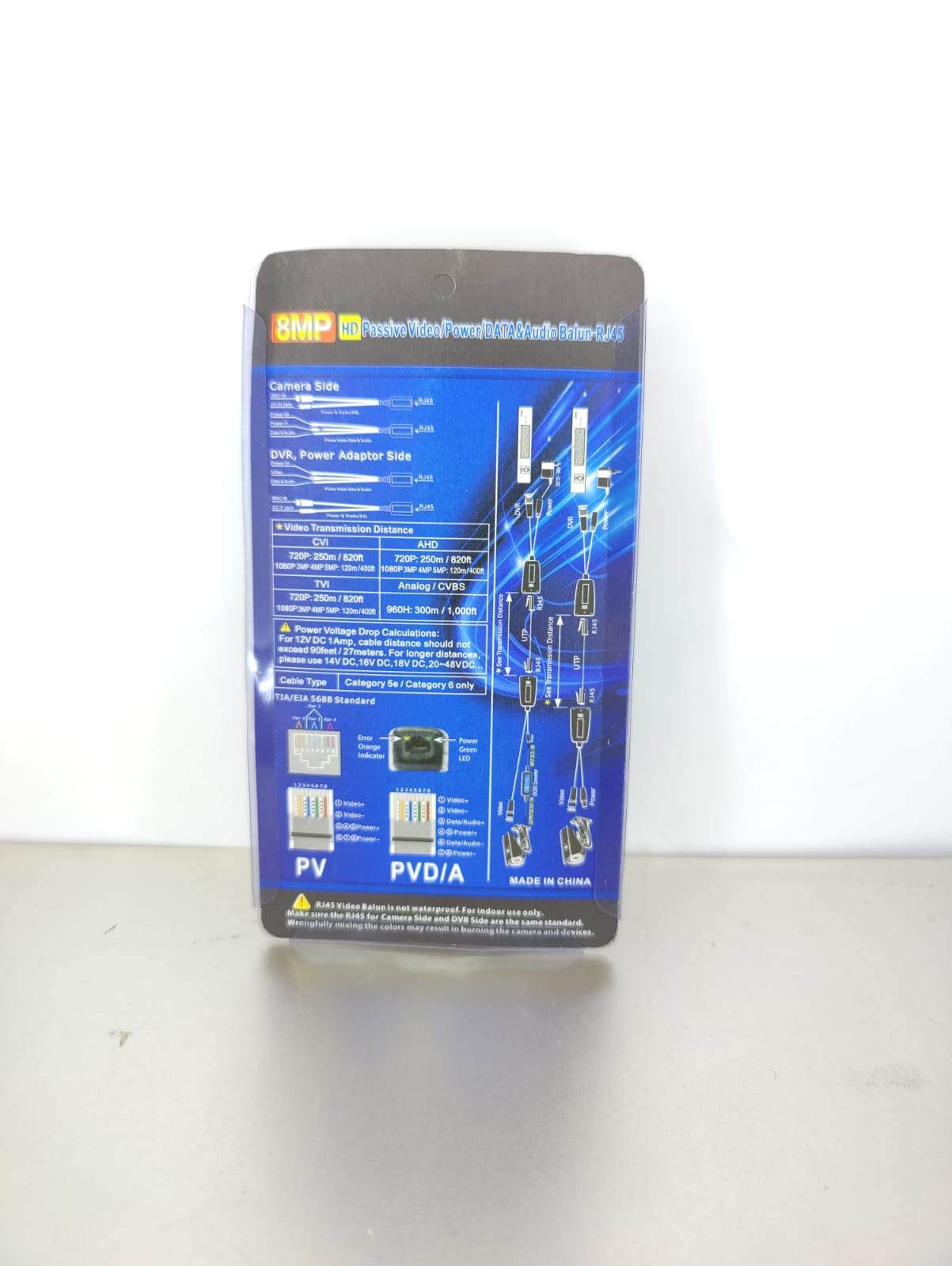

How it Works (Operation Chart Explained):

This balun pair acts as a transceiver system. You connect one balun (TX - Transmitter) to your HD camera's video and power output, and then run a standard Cat5e/6 network cable between it and the other balun (RX - Receiver). The RX balun then connects to your DVR's video input and a power source, enabling both video signal and power transmission over the single network cable. This setup is ideal for single camera runs or multi-camera installations, as shown in the operation chart.

Technical Specifications:

• Frequency Response: DC to 60Mhz
• Attenuation: 0.5dB typical
• CMRR (Common Mode Rejection Ratio): 60dB
• Surge Protection: 4KV
• ESD (Electrostatic Discharge): 8KV
• Impedance: BNC: 75 ohms, Terminal: 100 ohms
• Working Temperature: -10°C to +70°C (14°F to 158°F)
• Storage Temperature: -30°C to +70°C (-22°F to 158°F)
• Humidity: 0 to 95% (non-condensing)
• Dimensions: 45mm x 25mm x 21mm with 14cm cable (Approx. 1.77" x 0.98" x 0.83" with 5.5" cable)
• Material: ABS Plastic

Note: This RJ45 Video Balun is not waterproof. For indoor use only, or ensure proper weather protection if used outdoors. Improper wiring (e.g., strong mixing colors) may result in burning the camera and devices.
