5V Stepper Motor & ULN2003 Driver Board Kit for Arduino/STEM
5V Stepper Motor & ULN2003 Driver Board Kit for Arduino/STEM
Couldn't load pickup availability
Short Product Description
Short Product Description

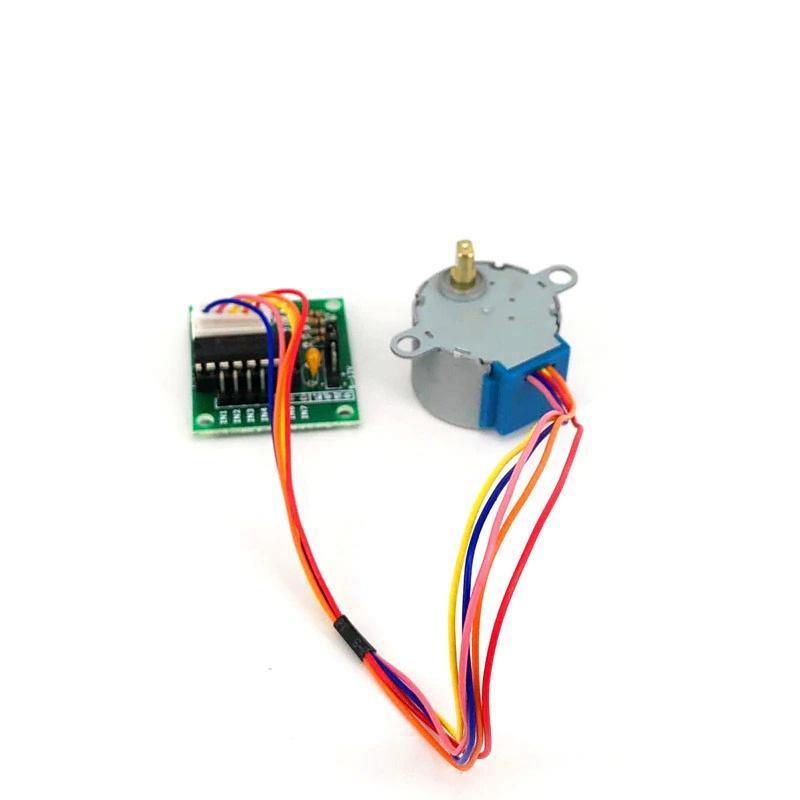

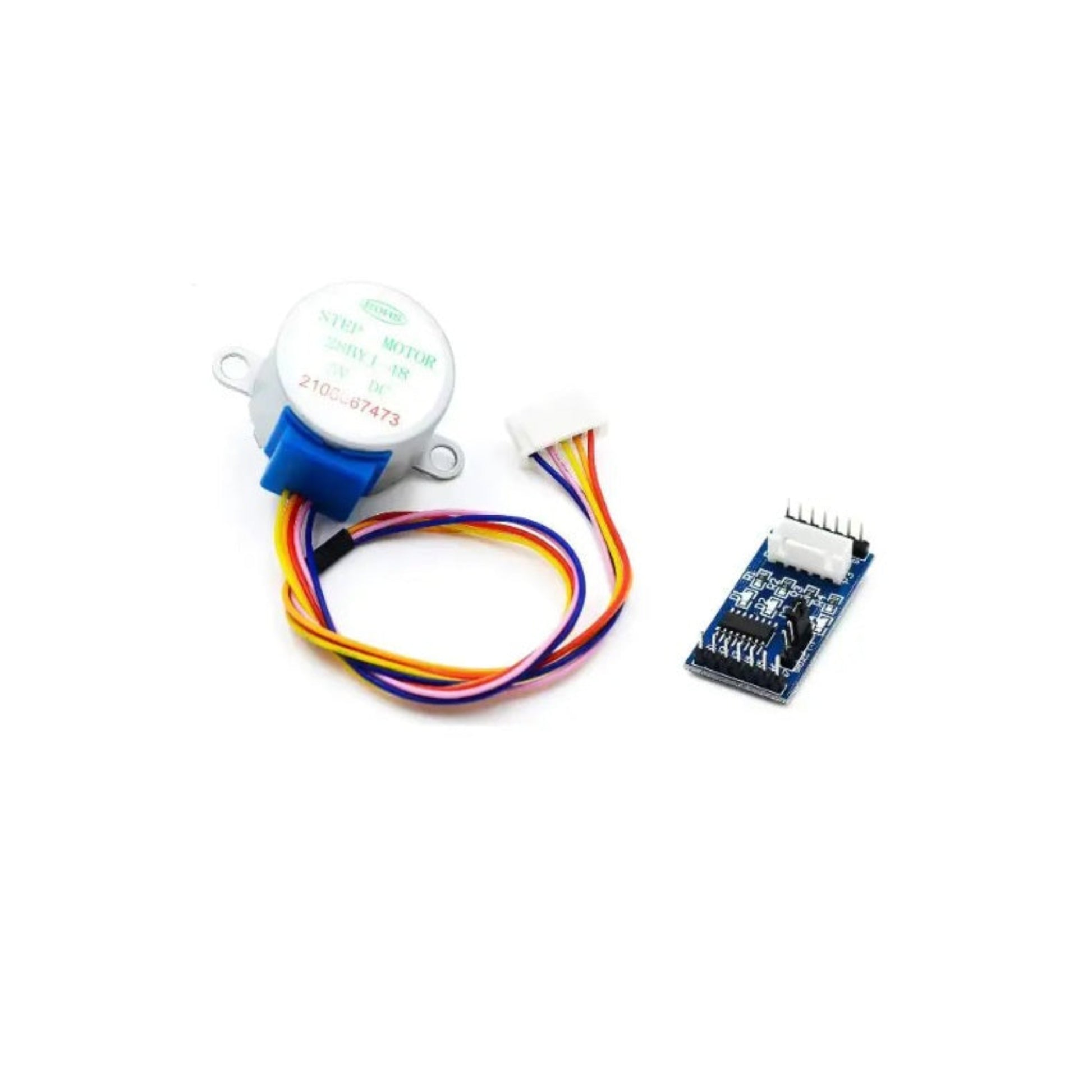

Master precision motion control with the 28BYJ-48 5V Stepper Motor and ULN2003 Driver Board Kit. Designed for students, makers, and DIY hobbyists, this plug-and-play kit offers a high-torque reduction gear system and seamless integration with Arduino, Raspberry Pi, and ESP32. Whether you are building a rotating camera mount, an automated blind, or a robotics project, this kit provides the reliability and accuracy required for professional-grade STEM education.
Key Features
Key Features
- 1:64 Gear Reduction: Increases output torque significantly for moving heavy mechanical arms or pivots.
- Plug-and-Play Design: Standard XH-5P 5-pin connector ensures a secure and easy connection to the motor.
- Onboard Signal LEDs: Four indicators provide real-time visual feedback of the pulse sequence.
- 5V DC Compatibility: Perfectly matched for standard Arduino 5V power rails and STEM power modules.
- Compact Form Factor: Small footprint allows for easy integration into tight enclosures or small-scale robotics.
- Universal STEM Support: Fully compatible with Arduino libraries (AccelStepper) and Raspberry Pi GPIO.
Full Product Description
Full Product Description
High-Precision Motion for Your Next STEM Project

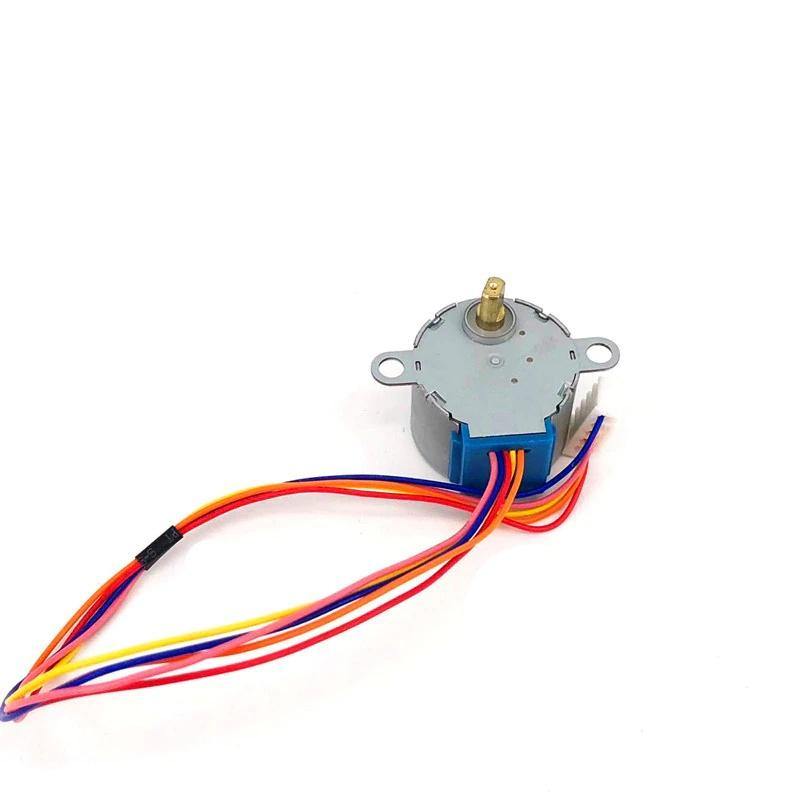

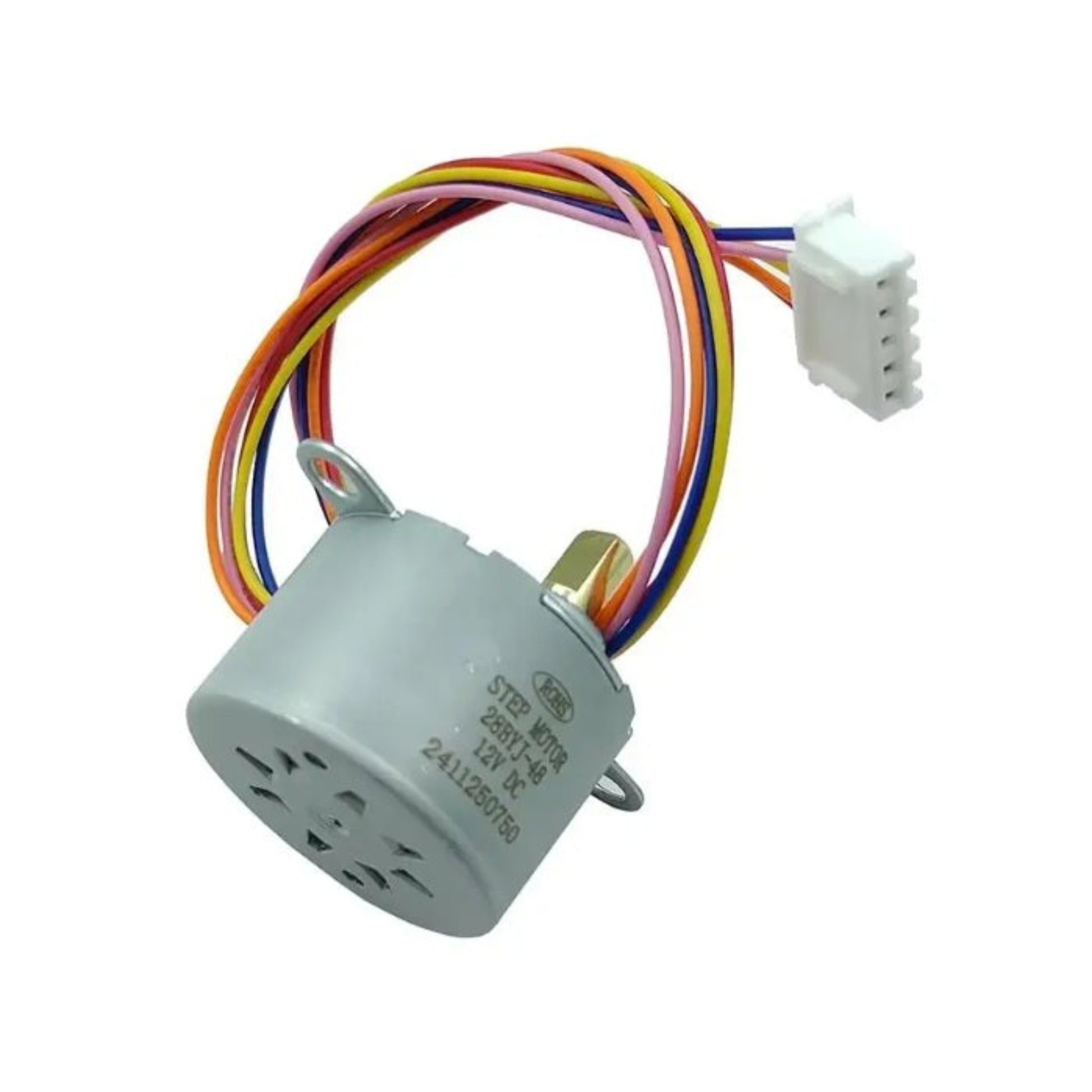

The 28BYJ-48 stepper motor is a cornerstone of DIY electronics. Unlike standard DC motors that spin freely, this stepper motor moves in precise increments, allowing you to control the exact position of your mechanical parts. With an internal 1:64 reduction gear ratio, it delivers impressive torque despite its compact size, making it capable of moving heavier loads with ease.
Plug-and-Play ULN2003 Driver Board

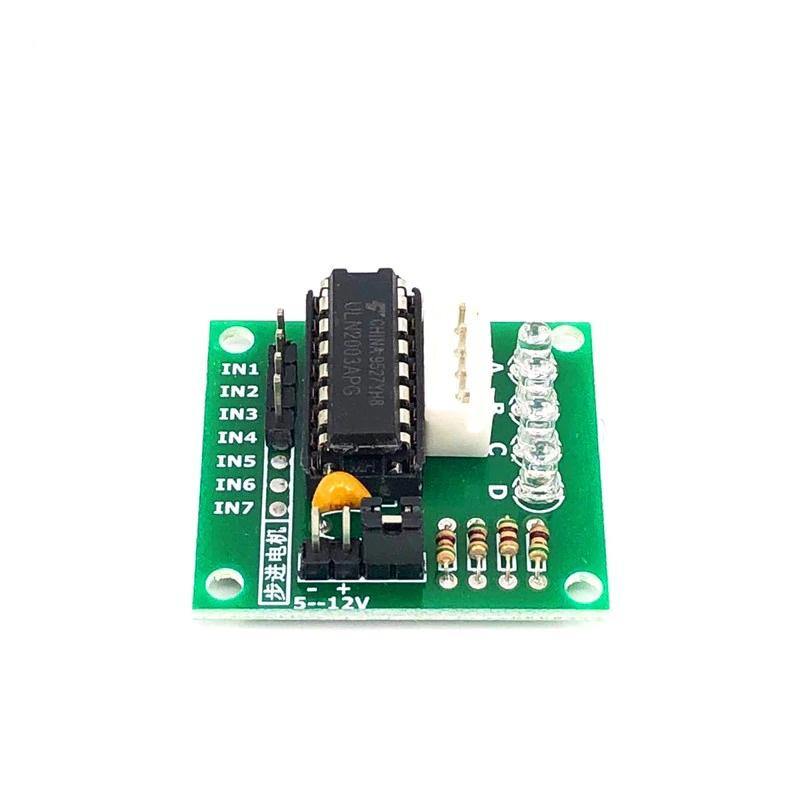

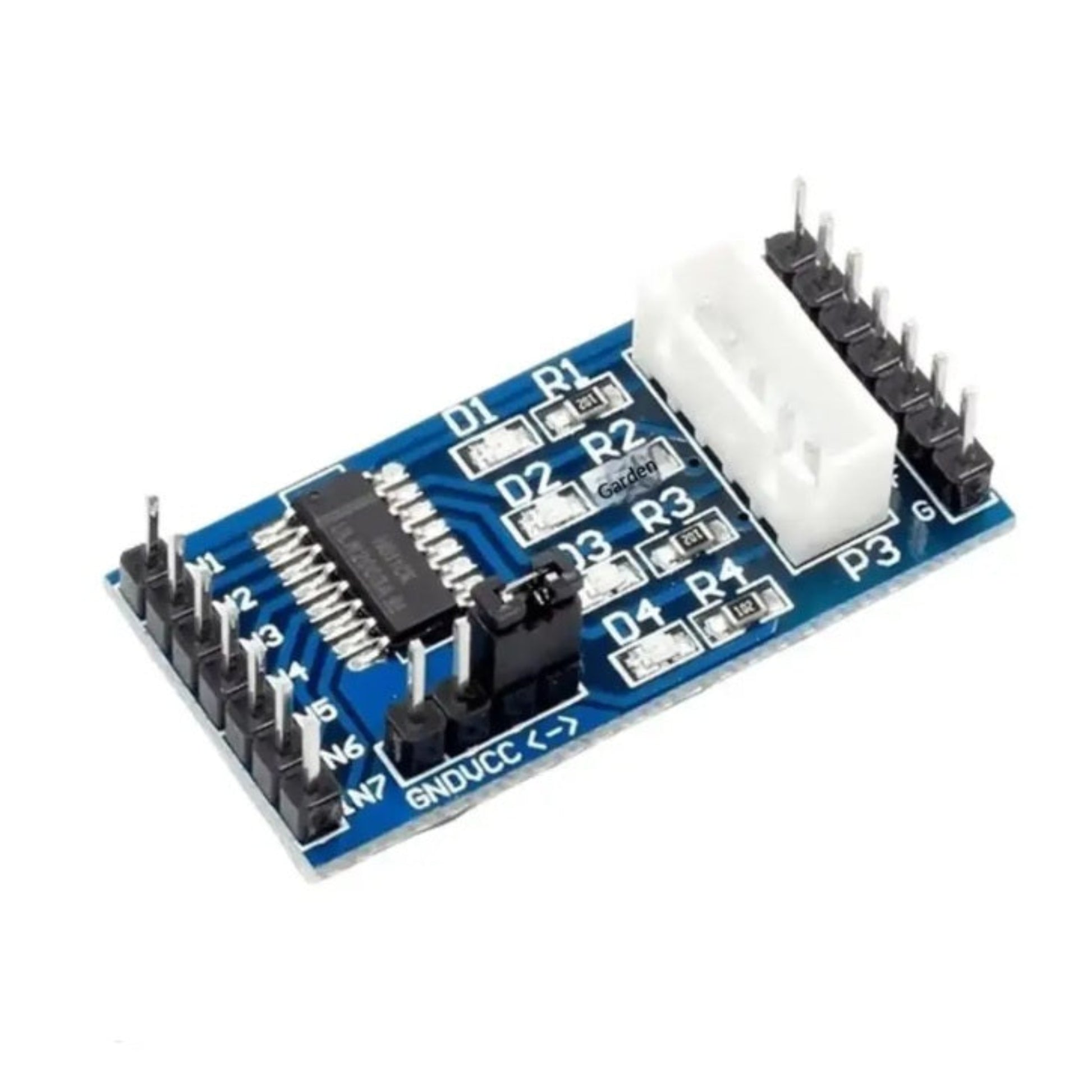

Connecting high-power motors directly to a microcontroller can be risky. The included ULN2003 Driver Board acts as the perfect intermediary. It features a high-current Darlington array to safely power the motor while receiving logic signals from your Arduino or Raspberry Pi. The board includes an XH-5P socket, allowing you to plug the motor directly in—no soldering or messy wiring required.
Real-Time Monitoring & Feedback
Visual troubleshooting is essential for learning. The driver board is equipped with four onboard LEDs (A, B, C, D) that light up to show the current phase of the motor. This provides immediate visual confirmation that your code is working correctly and allows you to understand the logic behind 4-phase motor stepping.
Technical Specifications
Technical Specifications
- Model: 28BYJ-48 Stepper Motor
- Driver Chip: ULN2003A Darlington Array
- Operating Voltage: 5V DC (12V versions available)
- Phase / Wire: 4-Phase / 5-Wire
- Step Angle: 5.625° / 64 (at output shaft)
- Reduction Ratio: 1:64
- Onboard Connectors: XH-5P Socket / 4-Pin Logic Input
- Indicators: 4-Way Phase Status LEDs
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
FAQ Section
FAQ Section
Q: Can I run this motor directly from an Arduino 5V pin?
A: While it is possible for testing, we recommend using an external 5V power source for the driver board to avoid putting excessive electrical noise or current load on your Arduino's internal regulator.
Q: Does this kit include the jumper wires for connection?
A: This kit includes the motor and the driver board. You will need standard female-to-male or female-to-female jumper wires to connect the driver board to your microcontroller.
Q: How many steps are in a full 360-degree rotation?
A: Due to the 1:64 reduction gear, it takes approximately 4096 steps (in half-step mode) for the output shaft to complete one full revolution.
Target Users / Applications
Target Users / Applications
- STEM Students: Learning the fundamentals of motor logic and robotics.
- Makers & DIYers: Creating automated home gadgets (e.g., automatic pet feeders, curtains).
- Engineers: Rapid prototyping for precision movement or 3D printer peripherals.
- Education Centers: Reliable, low-cost components for electronics workshops.
