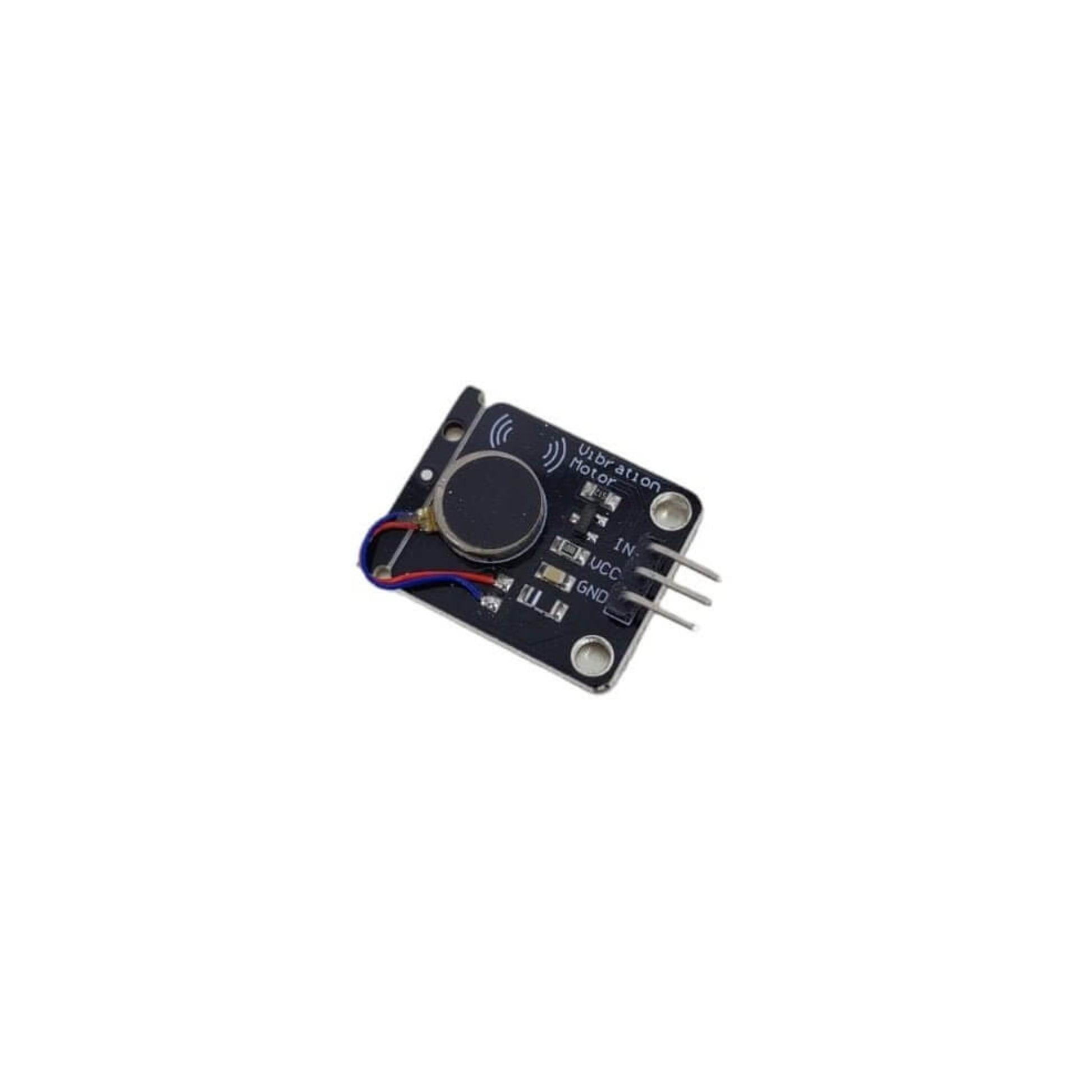

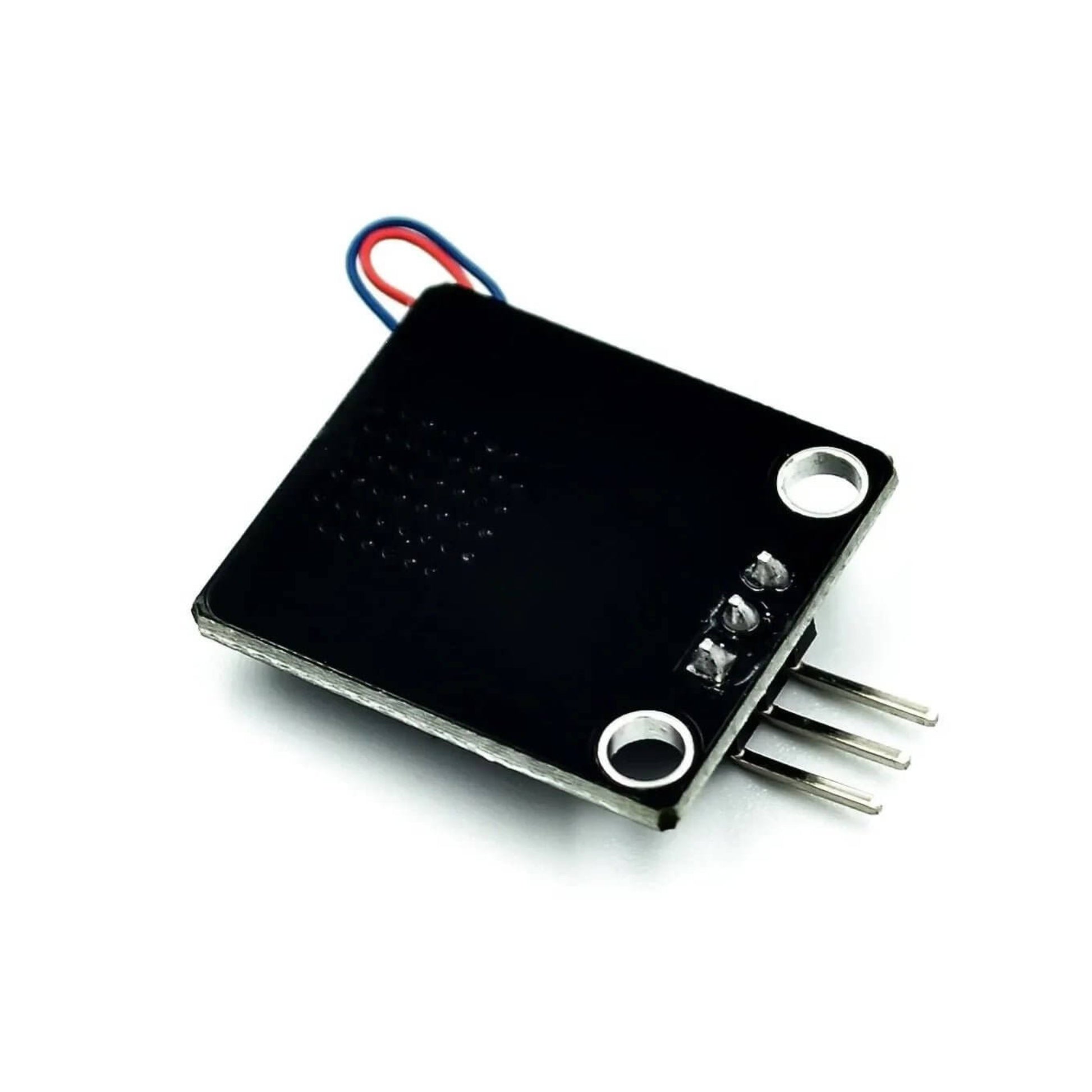

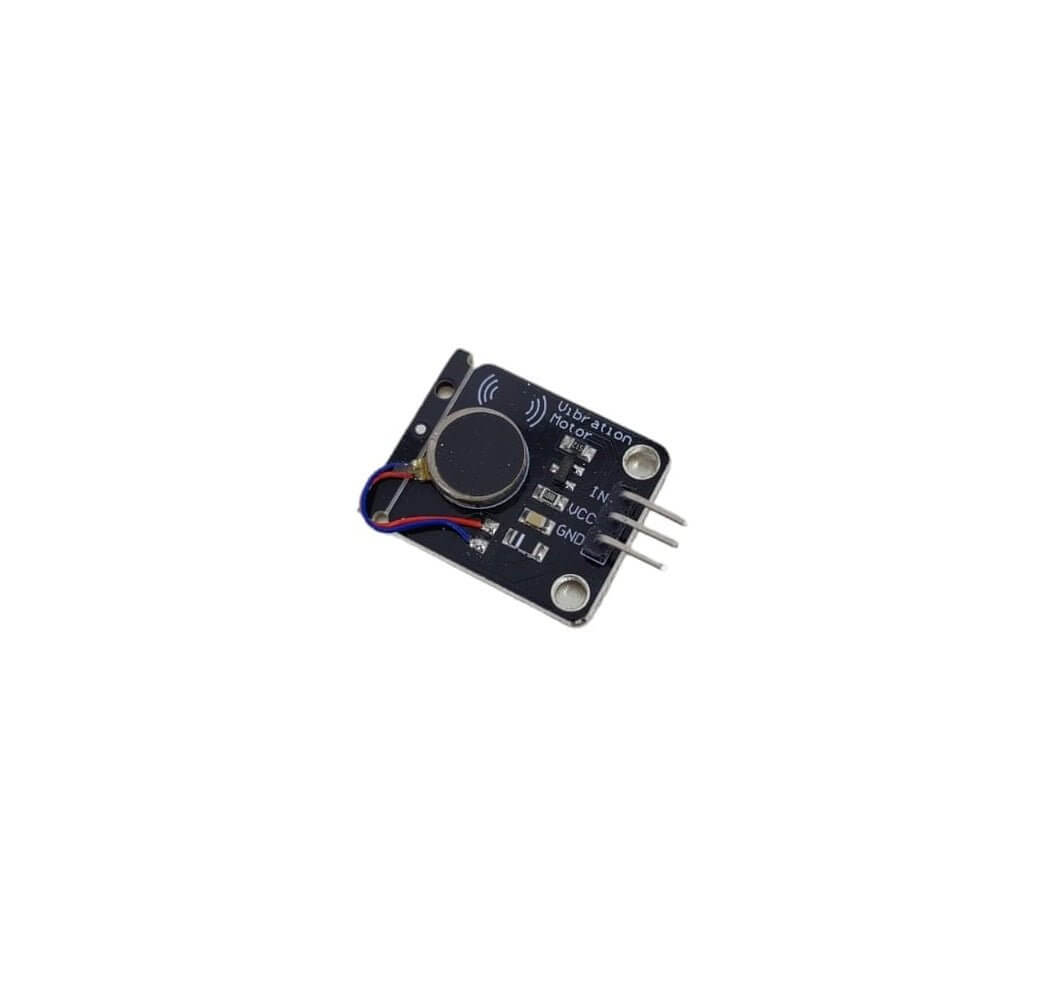

5V PWM Vibration Motor Module High/Low Level Sensor Board for Arduino
5V PWM Vibration Motor Module High/Low Level Sensor Board for Arduino
Regular price
HK$12.00
Regular price
Sale price
HK$12.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Delivery Options
Delivery Options
- Local delivery within Hong Kong and in-store pickup.
- Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
- Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
- Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
- In-store pickup details (location and time) will be confirmed by email or phone message.
- Delivery times are estimates and may be affected by weather or unforeseen circumstances.
This compact 5V vibration motor module provides reliable and silent vibration feedback, ideal for DIY electronics and non-audible indicator applications such as alarms, notifications, and smart devices. The module supports both high/low digital and PWM input signals, allowing you to adjust vibration intensity just like the silent mode function in mobile phones. Featuring convenient mounting holes and compatibility with popular Arduino boards (UNO R3 / Mega2560), this motor module is an excellent choice for makers, hobbyists, and educators.
Key Features:
- Rated Voltage: 5.0VDC
- Operating Voltage: 3.0-5.3VDC
- Rated Speed: 9000 rpm minimum
- Rated Current: up to 60 mA
- Starting Current: up to 90 mA
- Starting Voltage: 3.7VDC
- Insulation Resistance: 10Mohm
- Control Mode: Digital high/low or PWM signal
- Compatibility: Arduino UNO R3 / Mega2560

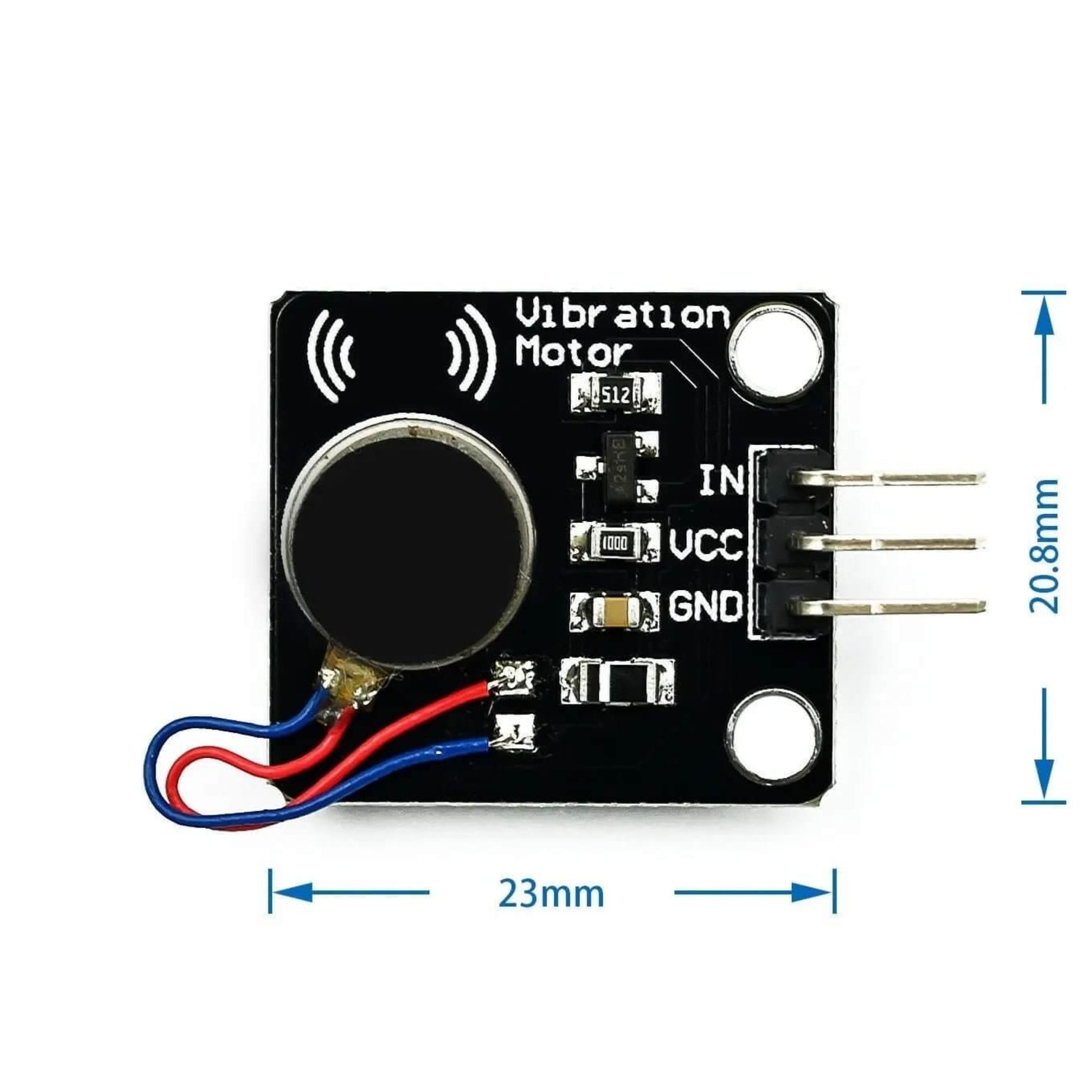

- Dimensions: 23mm × 20.8mm
- Easy mounting for project integration
- Perfect for DIY projects, silent alarm, wearable tech, and interactive gadgets
