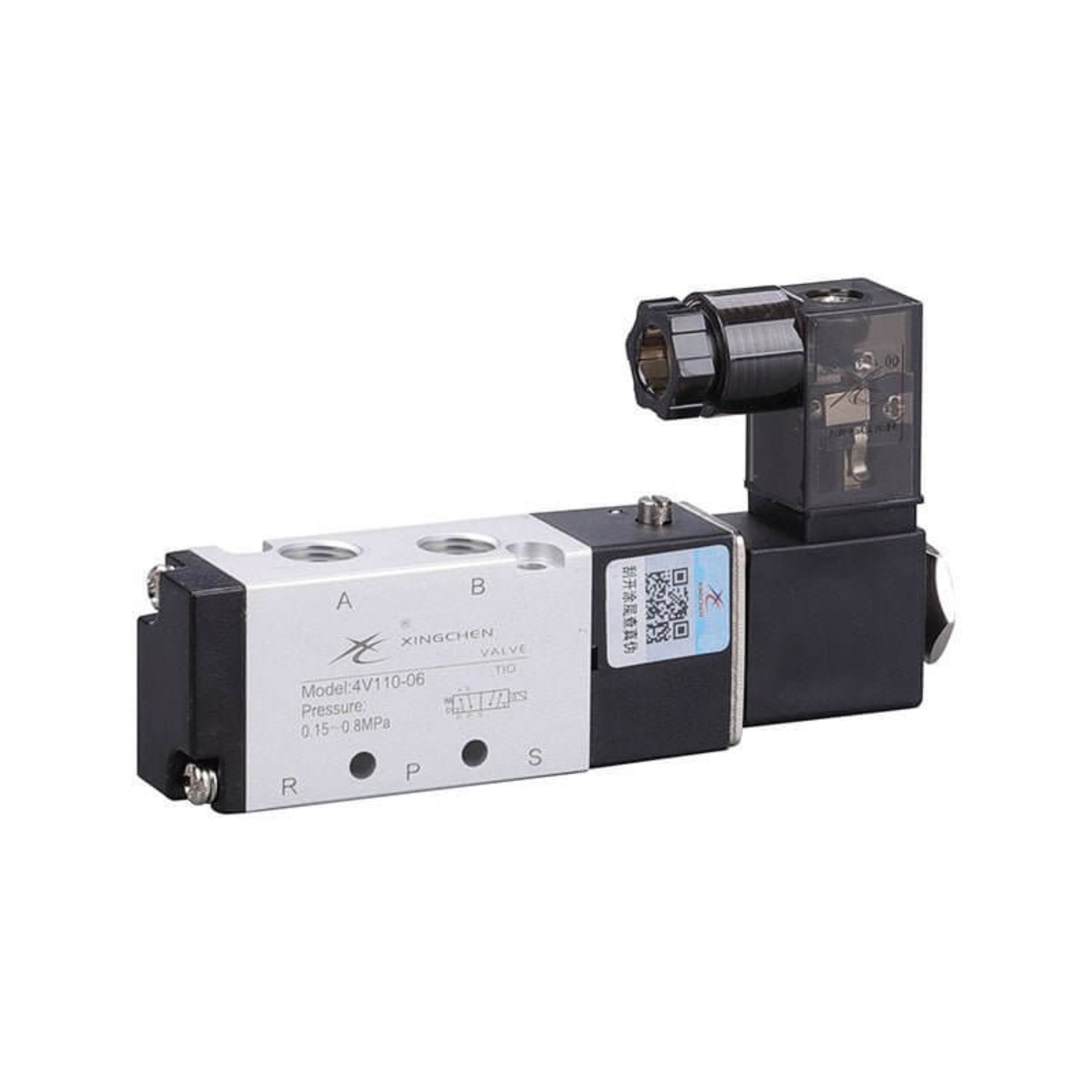

Name: 4V110-06 5-Way 2-Position Pneumatic Solenoid Valve | DC 12V
Brand: Xingchen
Price: 99.0 HKD
Availability: InStock

Short Product Description

Downtime in your pneumatic systems costs time and money. The Xingchen 4V110-06 5-Way 2-Position Pneumatic Solenoid Valve is engineered to provide precise, reliable directional air control for your industrial automation or custom engineering projects. Featuring standard 1/8" BSP ports, a rapid 0.05-second response time, and an IP65 protection rating, this DC 12V valve guarantees high-frequency performance even in demanding environments. Upgrade your air circuitry today with a component built for enduring stability and maximum efficiency.

Key Features

Rapid Response Coil: Actuates in just 0.05 seconds, ensuring high-speed, zero-lag operation for fast-moving automated processes.
IP65 Protection Rating: The covered connector protects electrical contacts from dust and moisture, reducing maintenance in harsh workshop environments.
Standardized 1/8" BSP Ports: Universally compatible threading makes it incredibly easy to source and attach standard pneumatic push-in fittings and silencers.
Internal Pilot Design: Operates efficiently under pressure ranges of 0.15-0.8 MPa, offering stable directional air routing without stalling.
Durable Alloy Construction: The robust metal valve body withstands continuous mechanical vibration and maximum pressure spikes up to 1.2 MPa.
Low Power Consumption: Operates on a safe, efficient DC 12V system (2.8W), minimizing heat generation during continuous 100% ED cycles.

Full Product Description

Reliable Air Flow Control for Industrial Automation

When building or repairing automated machinery, the accuracy of your pneumatic directional control is non-negotiable. The 4V110-06 solenoid valve serves as the vital bridge between your electrical circuits and mechanical actuators. By utilizing a 5-port, 2-position internal guide configuration, it seamlessly directs 40-micron filtered air to drive double-acting pneumatic cylinders. Whether you are setting up a manufacturing assembly line, a robotic arm, or a complex STEM automation project, this valve ensures your air-powered movements are executed flawlessly.

Precision Engineering for Maximum Efficiency

Speed and reliability are at the core of the 4V110-06. Boasting a highly responsive electromagnetic coil, this valve achieves a shortest excitation time of just 0.05 seconds and supports an action frequency of up to 5 cycles per second. This rapid switching capability prevents bottlenecking in fast-paced production environments. Furthermore, its optimized internal structure provides an effective section area of 12mm² (CV=0.67), ensuring sufficient airflow without sudden pressure drops.

Built to Withstand Harsh Environments

Industrial workspaces are often plagued by dust, moisture, and fluctuating temperatures. This solenoid valve is encased in a durable, precision-machined aluminum alloy body designed to resist corrosion and wear. The electrical connections are shielded by an IP65-rated protective cover, safeguarding the internal components against dust ingress and low-pressure water jets. Rated to operate safely between -5°C and +50°C, it delivers unyielding performance you can trust shift after shift.

Technical Specifications

Brand / Model: Xingchen 4V110‑06 (5/2 solenoid valve)
Valve type: 5 port / 2 position (5/2 way), single‑coil directional control valve

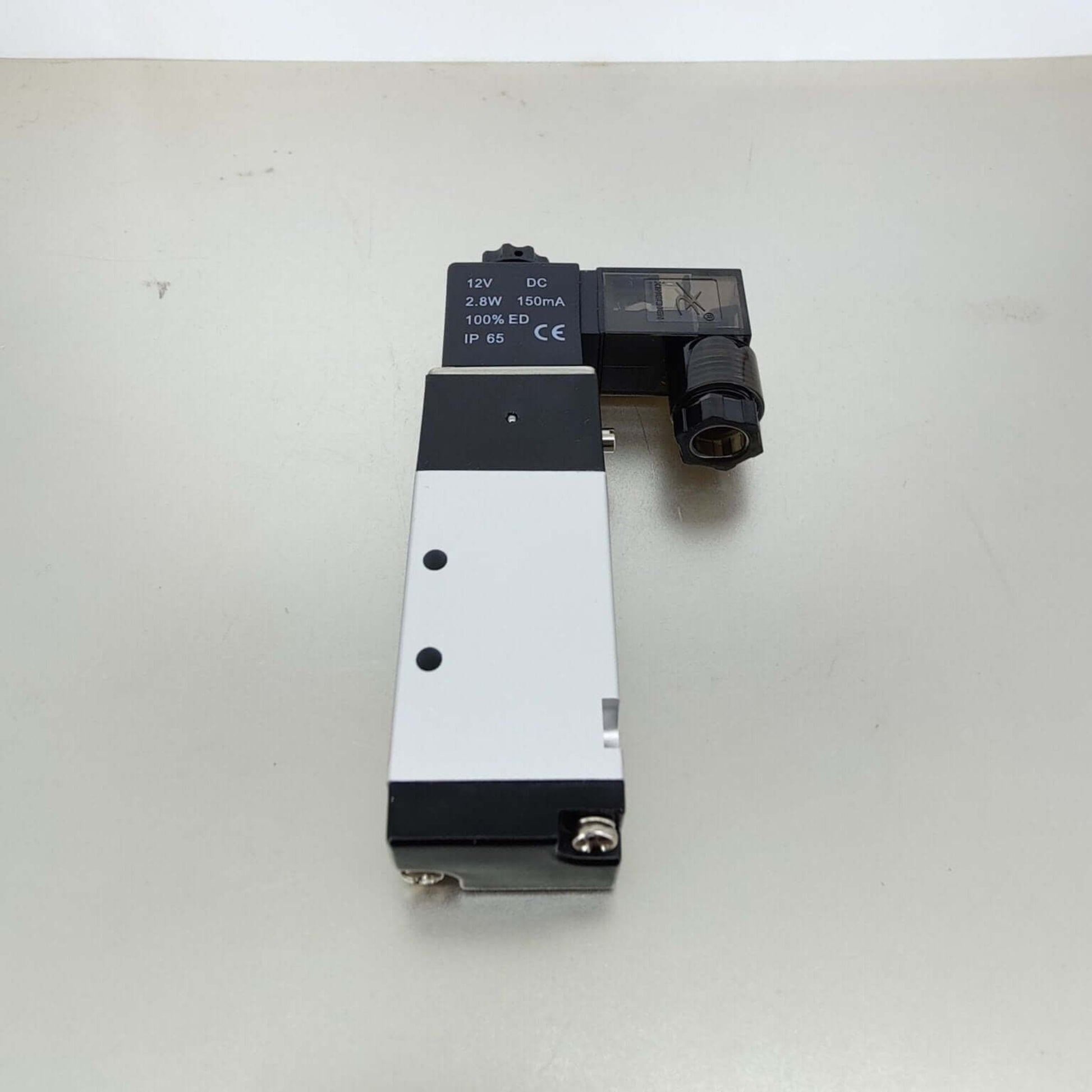

Operating voltage: DC 12 V (coil power ≈ 2.8 W, ≈150 mA)

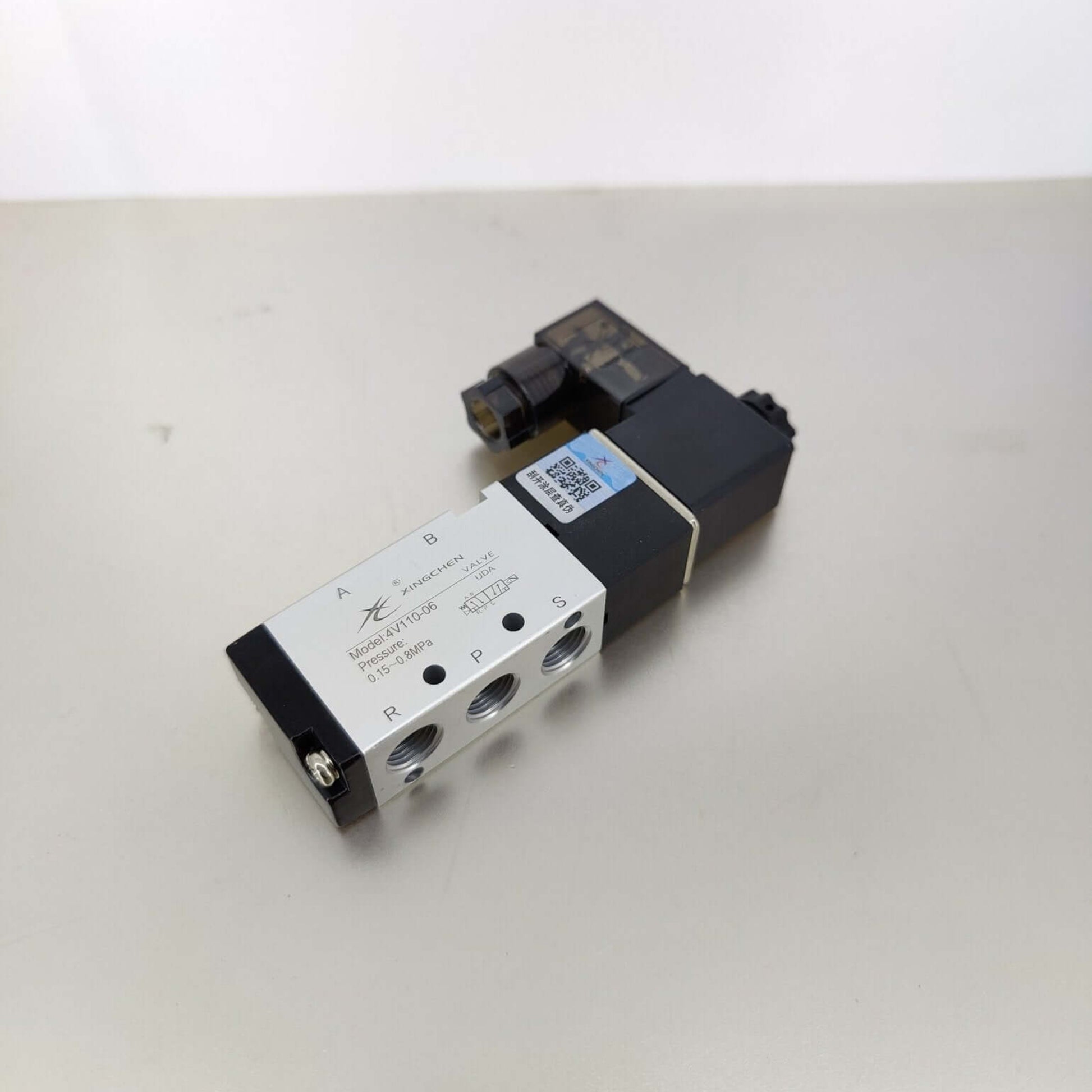

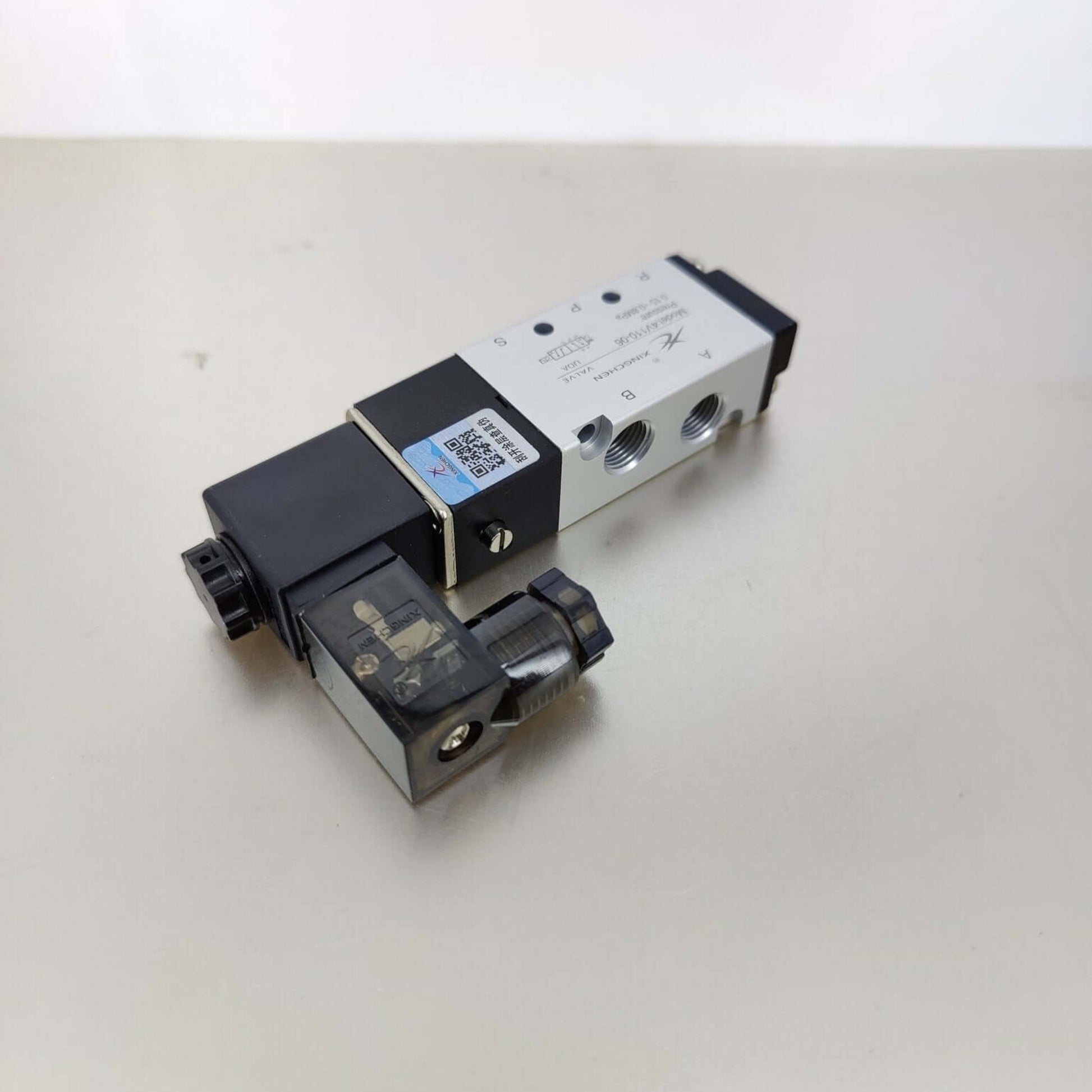

Port size: Inlet = Outlet = Exhaust = 1/8" BSP (G1/8″ thread)
Working medium: 40‑micron filtered compressed air
Operating pressure range: 0.15 – 0.8 MPa (≈22 – 116 psi)
Maximum pressure resistance / proof pressure: 1.2 MPa (≈174 psi)
Effective section area: 12 mm² (Cv ≈ 0.67)
Protection class: IP65; F‑class insulation (often listed as Class B heat‑resistance grade on XingChen 4M‑series; F‑class here likely refers to coil insulation)
Operating temperature range: −5 °C to +50 °C (≈41 °F – 122 °F)
Highest action frequency: up to 5 cycles per second
Shortest excitation time: 0.05 s or less

Delivery Options

Local delivery within Hong Kong and in-store pickup.
Free shipping for orders of HK$400 or above; HK$35 shipping fee for orders below HK$400.
Shipped by SF Express, usually dispatched the same day for orders confirmed before 6:00 PM (Mon–Sat).
Estimated delivery time: 1–3 business days after dispatch (Hong Kong).
In-store pickup details (location and time) will be confirmed by email or phone message.
Delivery times are estimates and may be affected by weather or unforeseen circumstances.

FAQ Section

Q: What does "5-Way 2-Position" mean?
A: A 5/2-way valve has five ports (one air supply inlet, two working outlets to the cylinder, and two exhaust ports) and two states (positions) controlled by the electrical coil. It is the standard valve used to control double-acting pneumatic cylinders, allowing air to push the cylinder out and retract it back.

Q: Do I need to lubricate the air passing through this valve?
A: While the valve requires 40-micron filtered air to prevent debris from damaging the internal seals, adding a pneumatic lubricator to your airline can extend the lifespan of the valve and your connected cylinders, though it is not strictly mandatory for initial operation.

Q: Does this valve come with the pneumatic hose fittings?
A: No, this listing is for the solenoid valve only. You will need to purchase standard 1/8" BSP threaded push-in pneumatic fittings and exhaust silencers separately based on your specific hose diameter requirements.

Target Users / Applications

Automation Engineers: Designing or repairing pneumatic control systems in manufacturing plants and assembly lines.
Maintenance Technicians: Replacing faulty air control valves in industrial machinery.
DIY & Maker Hobbyists: Building custom animatronics, automated props, or air-powered tools.
STEM Educators & Students: Demonstrating the principles of electro-pneumatic integration in robotics projects.
